Características y detalles
- The cochlea of the dual inlet centrifugal fans is open on both sides, maximizing the relationship between fan length and longitudinal dimensions. Its main features are: high efficiency, low noise, robust design and reduced overall dimensions. The dual inlet centrifugal fans are characterized by strength and manufacturing quality. The snails in pre-galvanized metal sheet are designed by appropriately selecting thicknesses and geometries so as to ensure the correct rigidity of the structure at a reduced weight. The trial assembly technologies developed in connection with the product ensure solidity and absence of vibrations and resonances. Particular attention is the linearity of the outflow mouth and mechanical finishing.
- Application
- 1. Heating, cooling and air conditioning.
- 2. Vending machines, humidifiers, microfilm equipment and electro.
- 3. Industrial applications varied.
Frecuentemente Compramos Juntos
Reseñas 0.0
Todas las reseñas son de compras verificadas
Calificación promedio basada en 0 reseñas
Reseñas 0.0
Todas las reseñas son de compras verificadas
Ver todas las 0 reseñas
Acerca de este artículo
Descripción

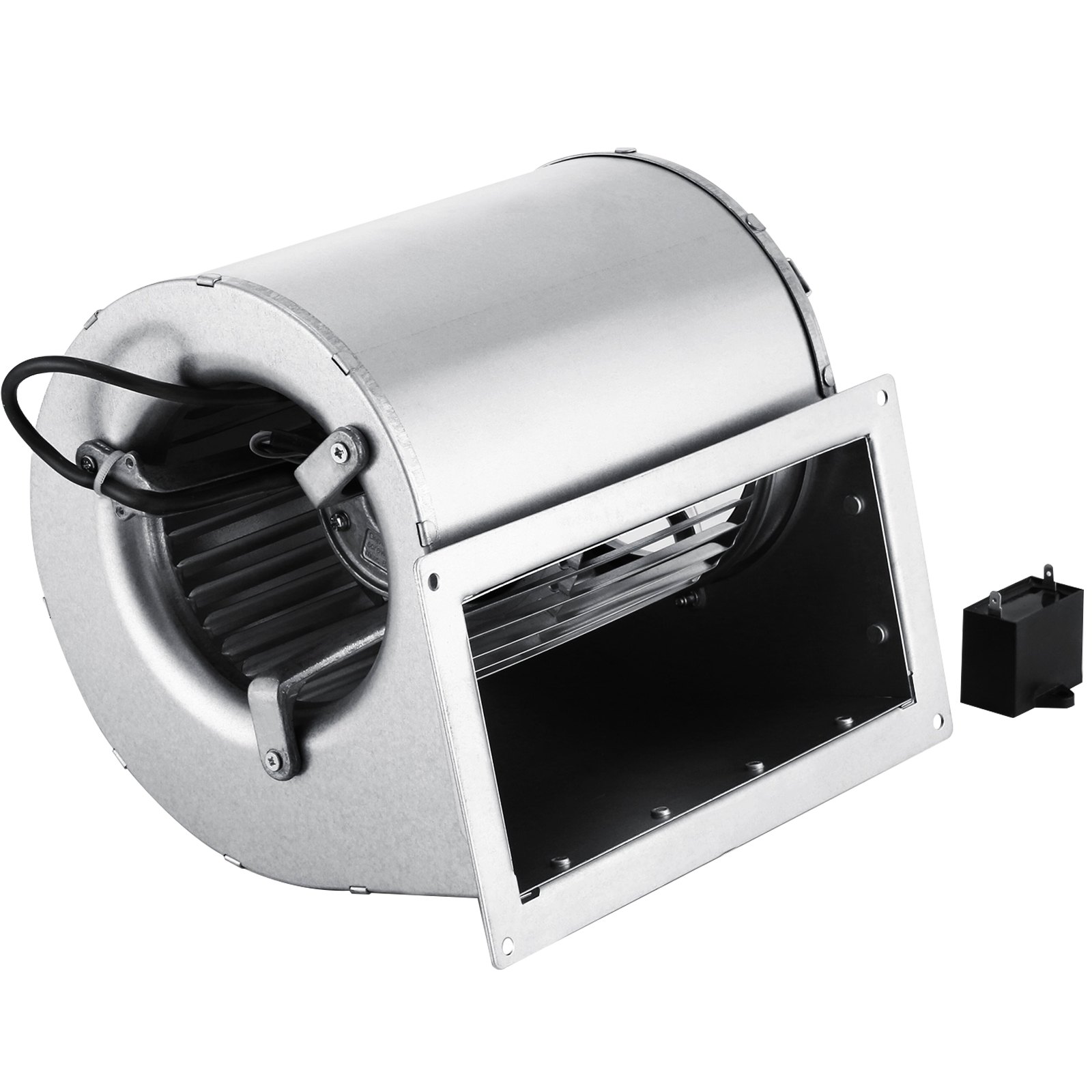

This brand new dual inlet centrifugal fan produces a well distributed flow of air. Usually it is ideal for pellet stoves, fireplaces and ventilation, but it can not be installed o on the fireplace wood or pellets. A really nice quality brand new centrifugal fan used in many commercial and industrial applications.
2. Vending machines, humidifiers, microfilm equipment and electro.
3. Industrial applications varied.
The cochlea of the dual inlet centrifugal fans is open on both sides, maximizing the relationship between fan length and longitudinal dimensions. Its main features are: high efficiency, low noise, robust design and reduced overall dimensions. The dual inlet centrifugal fans are characterized by strength and manufacturing quality. The snails in pre-galvanized metal sheet are designed by appropriately selecting thicknesses and geometries so as to ensure the correct rigidity of the structure at a reduced weight. The trial assembly technologies developed in connection with the product ensure solidity and absence of vibrations and resonances. Particular attention is the linearity of the outflow mouth and mechanical finishing.
Application
1. Heating, cooling and air conditioning.2. Vending machines, humidifiers, microfilm equipment and electro.
3. Industrial applications varied.
Outline diameter
Property
- Ideal for pellet stoves, fireplaces and ventilation
- 146mm diameter centrifugal fan
- Compact design to minimise space and cost using in-line installation
- Intake and exhaust spigot fit into standard duct sizes
- Extensive accessory range Optimised aerodynamic casing design
- Número de Parte: SG146HA2
- Marco: Aluminio ADC-12, Pintado de Negro
- Estator y Rotor: H-23 y H-60
- Dimensión del Esquema: Φ146 mm x 190 mm
- Voltaje Nominal: CA 220 V
- Frecuencia: 50 Hz
- Corriente Nominal: 1,15 A
- Consumo de Energía: 250 W
- Velocidad: 1560 RPM
- Máx. Flujo de Aire: 1530 m³/h (900 CFM)
- Nivel de Ruido: 65 dB (A)
- Temperatura de Funcionamiento Rango: -20 ℃ ~ 70 ℃
- Fuerza Dieléctrica: 1500 V / 0,5 mA / 2
- Resistencia de Aislamiento: 100 Meg Ohm Mín. a 500 V CC
- Peso: 4,2 kg
- 1 X Centrifugal Fan
This brand new dual inlet centrifugal fan produces a well distributed flow of air. Usually it is ideal for pellet stoves, fireplaces and ventilation, but it can not be installed o on the fireplace wood or pellets. A really nice quality brand new centrifugal fan used in many commercial and industrial applications.
2. Vending machines, humidifiers, microfilm equipment and electro.
3. Industrial applications varied.
The cochlea of the dual inlet centrifugal fans is open on both sides, maximizing the relationship between fan length and longitudinal dimensions. Its main features are: high efficiency, low noise, robust design and reduced overall dimensions. The dual inlet centrifugal fans are characterized by strength and manufacturing quality. The snails in pre-galvanized metal sheet are designed by appropriately selecting thicknesses and geometries so as to ensure the correct rigidity of the structure at a reduced weight. The trial assembly technologies developed in connection with the product ensure solidity and absence of vibrations and resonances. Particular attention is the linearity of the outflow mouth and mechanical finishing.
Application
1. Heating, cooling and air conditioning.2. Vending machines, humidifiers, microfilm equipment and electro.
3. Industrial applications varied.
Outline diameter
Property
- Ideal for pellet stoves, fireplaces and ventilation
- 146mm diameter centrifugal fan
- Compact design to minimise space and cost using in-line installation
- Intake and exhaust spigot fit into standard duct sizes
- Extensive accessory range Optimised aerodynamic casing design
- Número de Parte: SG146HA2
- Marco: Aluminio ADC-12, Pintado de Negro
- Estator y Rotor: H-23 y H-60
- Dimensión del Esquema: Φ146 mm x 190 mm
- Voltaje Nominal: CA 220 V
- Frecuencia: 50 Hz
- Corriente Nominal: 1,15 A
- Consumo de Energía: 250 W
- Velocidad: 1560 RPM
- Máx. Flujo de Aire: 1530 m³/h (900 CFM)
- Nivel de Ruido: 65 dB (A)
- Temperatura de Funcionamiento Rango: -20 ℃ ~ 70 ℃
- Fuerza Dieléctrica: 1500 V / 0,5 mA / 2
- Resistencia de Aislamiento: 100 Meg Ohm Mín. a 500 V CC
- Peso: 4,2 kg
- 1 X Centrifugal Fan
