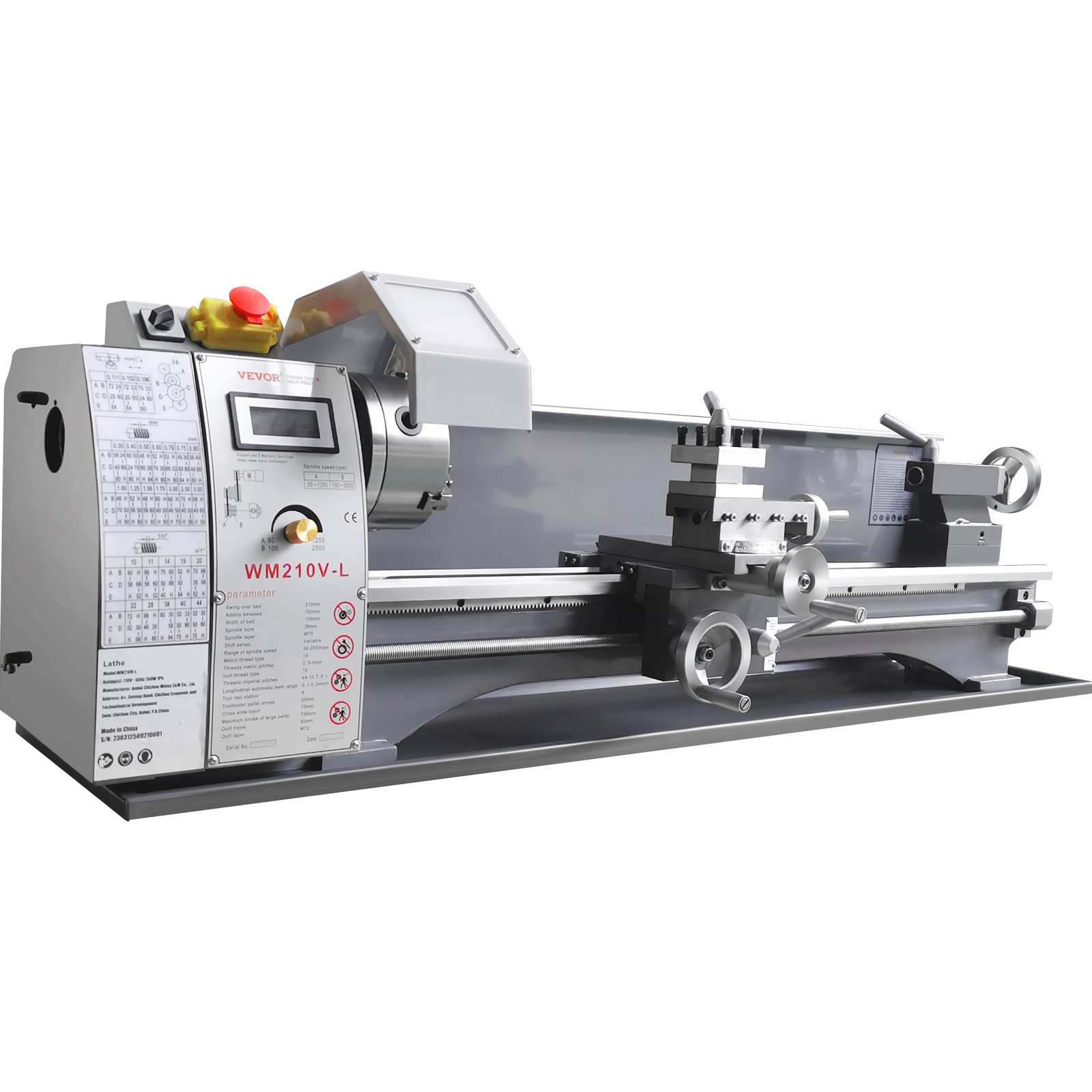

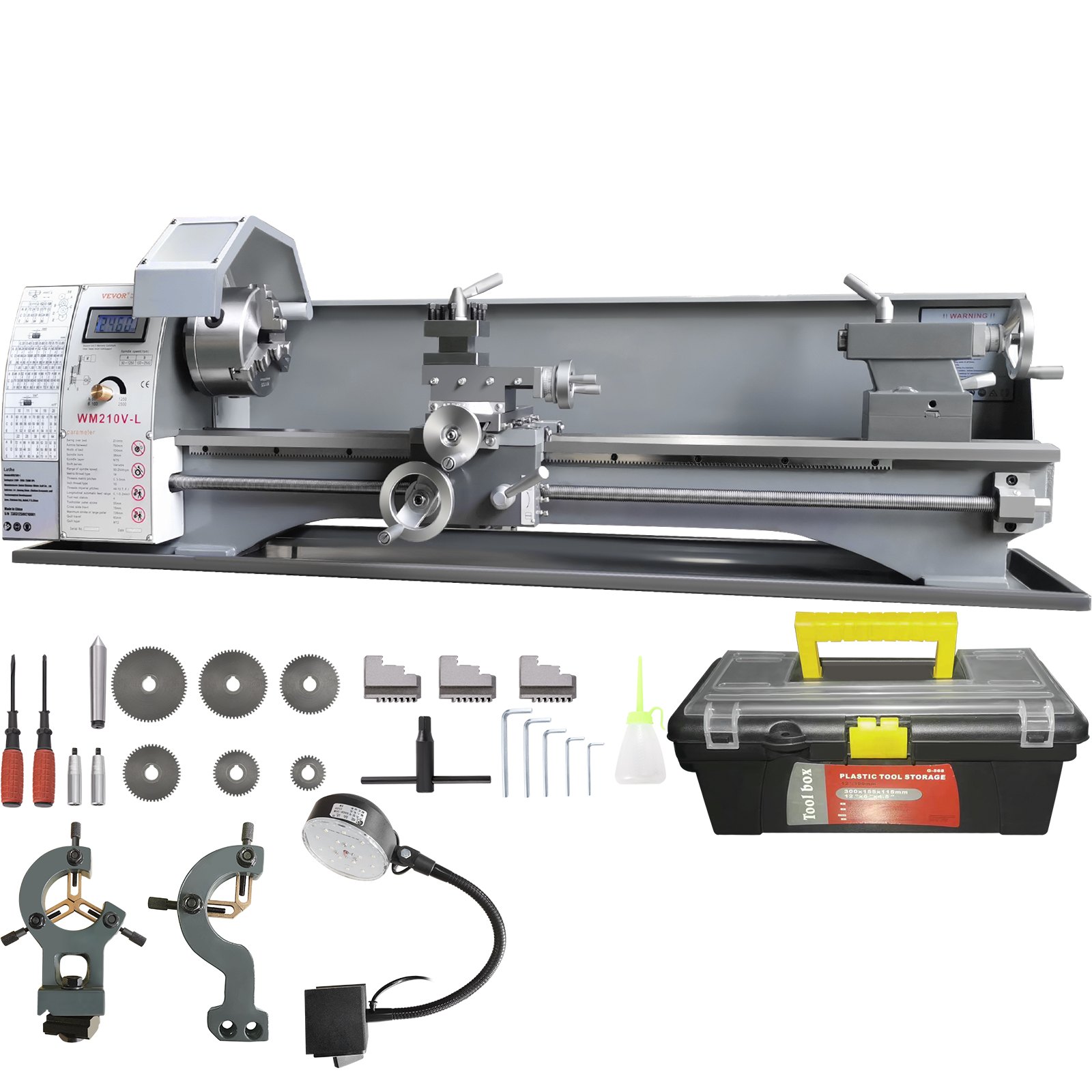

VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
+13
More
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper
VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper VEVOR Metal Lathe 211x750mm Metal Lathe 50-2500 RPM Bench Lathe 750W 14x Metric (0.3 to 3 mm) 10x Inch (10 to 44 TPI) Threads MT5 Spindle Taper

Features & Details

  • Wide application: Our 211 x 750 mm metal lathe is ideal for machining precision parts and models. It features a wide range of turning pitches, enabling the production of 24 different thread types, including 14 metric (from 0.3 to 3 mm) and 10 inch (from 10 to 44 TPI) threads.
  • Durable construction: Our lathes are made of high-quality HT200 cast iron and designed for a long service life. They are equipped with wear-resistant and robust metal gears and aluminum alloy handwheels, ensuring extended use.
  • Brushless 750W motor: Our bench lathe features a brushless 750W motor, which provides more power and eliminates the need to replace brushes, saving time and effort.

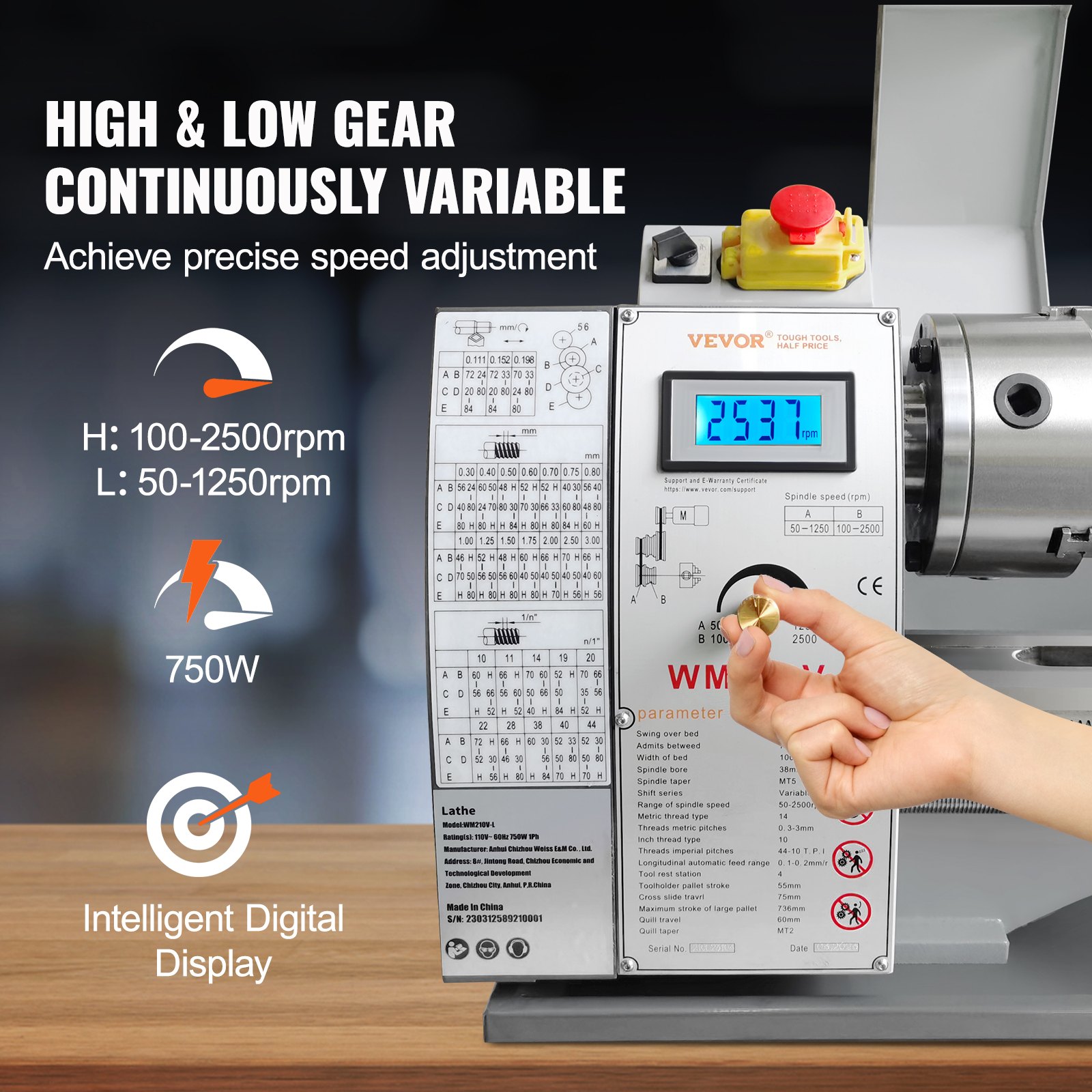

  • Infinitely variable: With a spindle that can rotate both forwards and backwards, and two speed options: a high gear from 100 to 2500 rpm and a low gear from 50 to 1250 rpm. It also features intelligent electronic speed control and a digital display that allows for precise speed adjustment and simplifies operation.
  • Safety is paramount: Our metal lathe features several safety functions to ensure operator safety in an emergency. These include an emergency stop switch, overload protection, a chuck cover release switch, a pulley housing release switch, and a safety switch on the main control panel.

Frequently Bought Together

Reviews 4.3
All reviews are from verified purchases
Average rating based on 3 reviews

See all 3 reviews

About this item

Product specification
Model
WM210V-L
Main material
HT200 cast iron
Lifespan
3 years
Spindle speed
50-2500 rpm
Diameter of the bore through the spindle
38 mm (1.49 inches)
Spindle cone
MT5
Tail shaft cone
MT2
Motor power
750 W
Voltage
220 V, 50 Hz
Chuck diameter
125 mm (4.9 inches)
Net weight
79 kg (174 lbs)
Product dimensions (L x W x H)
1200 x 340 x 360 mm (47.2 x 13.4 x 14.2 inches)
Description
High-performance metal lathe
Our benchtop metal lathe measures 211 x 750 mm and features a powerful 750W motor, an upgraded metal gearbox, and handwheels for extended durability. The external poly-V belt ensures smooth power transmission and is easy to replace.
  • VEVOR metal lathe with adjustable speeds, digital display, and electronically controlled settings.
  • VEVOR metal lathe with 750w brushless motor for sufficient power and stable output.
  • upgraded 3 protection devices on VEVOR metal lathe: overload protection, high-speed reverse, chuck cover protection.
  • VEVOR metal lathe with adjustable speeds, digital display, and electronically controlled settings.
  • VEVOR metal lathe with 750w brushless motor for sufficient power and stable output.
  • upgraded 3 protection devices on VEVOR metal lathe: overload protection, high-speed reverse, chuck cover protection.

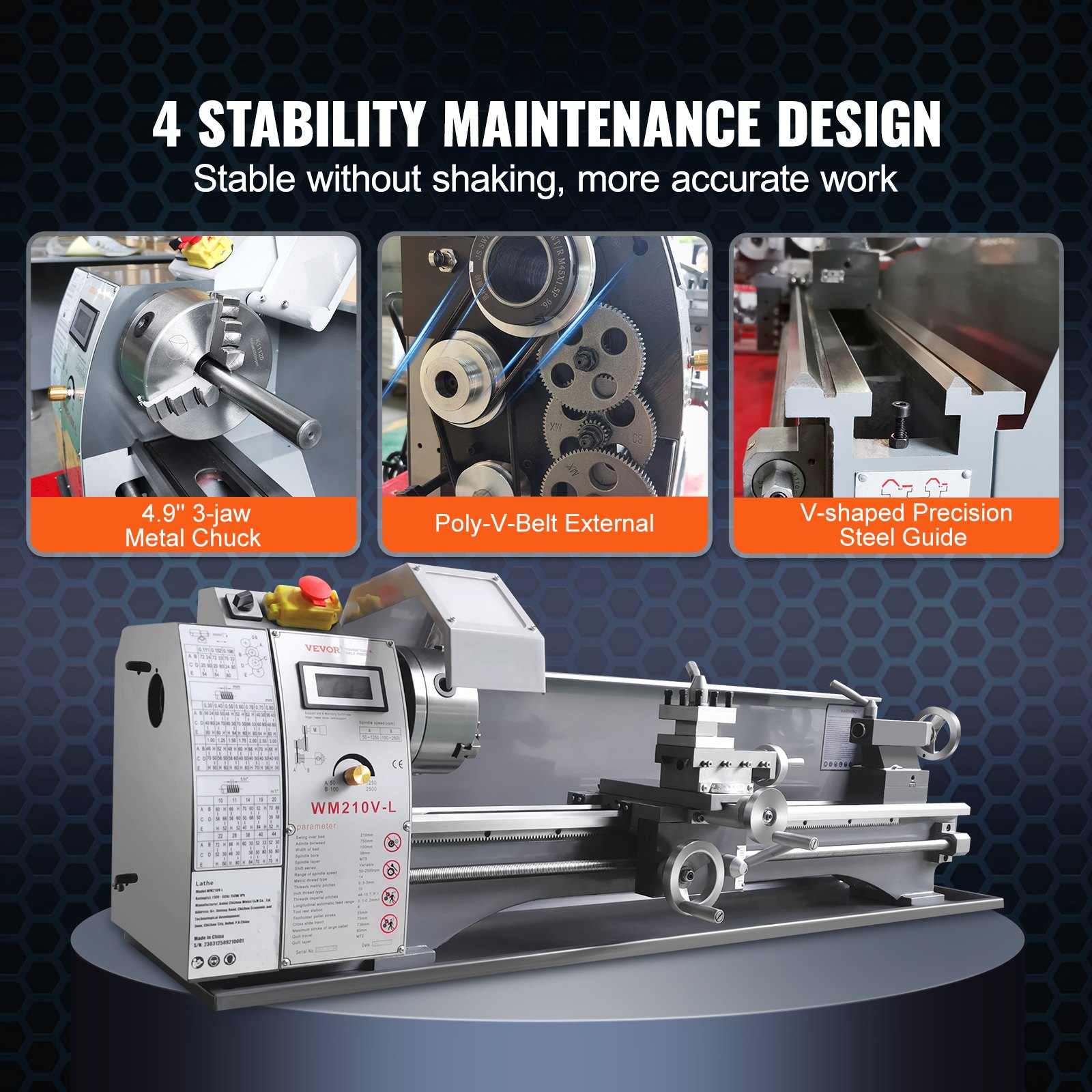

  • VEVOR metal lathe with external poly-v-belt for smooth transmission, easy replacement for novices.
  • heavy-duty VEVOR metal lathe gears vs nylon gears, showcasing durability and longevity comparison.
  • 4.9" 3-jaw metal chuck on VEVOR metal lathe, highlighting multi-directional clamping.
  • VEVOR metal lathe with external poly-v-belt for smooth transmission, easy replacement for novices.
  • heavy-duty VEVOR metal lathe gears vs nylon gears, showcasing durability and longevity comparison.
  • 4.9" 3-jaw metal chuck on VEVOR metal lathe, highlighting multi-directional clamping.
  • wide range of turning pitches for VEVOR metal lathe, create 24 types of threaded parts, metric and imperial.
  • VEVOR metal lathe for processing metals and wood, showcasing stainless steel and wooden workpieces.
  • machining fine parts with VEVOR metal lathe showcasing turning, drilling, thread turning, and knurling.
  • wide range of turning pitches for VEVOR metal lathe, create 24 types of threaded parts, metric and imperial.
  • VEVOR metal lathe for processing metals and wood, showcasing stainless steel and wooden workpieces.
  • machining fine parts with VEVOR metal lathe showcasing turning, drilling, thread turning, and knurling.
Key Features

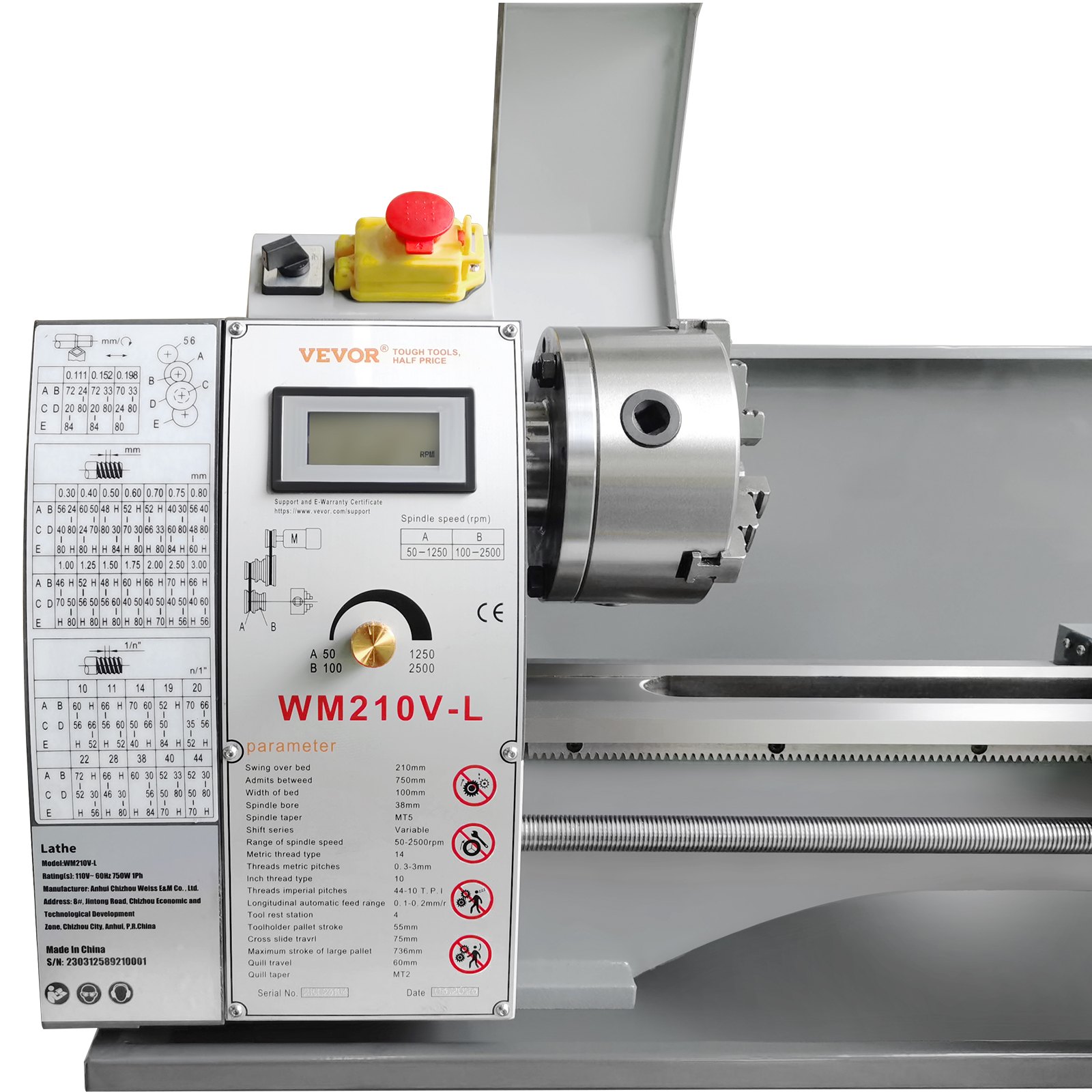

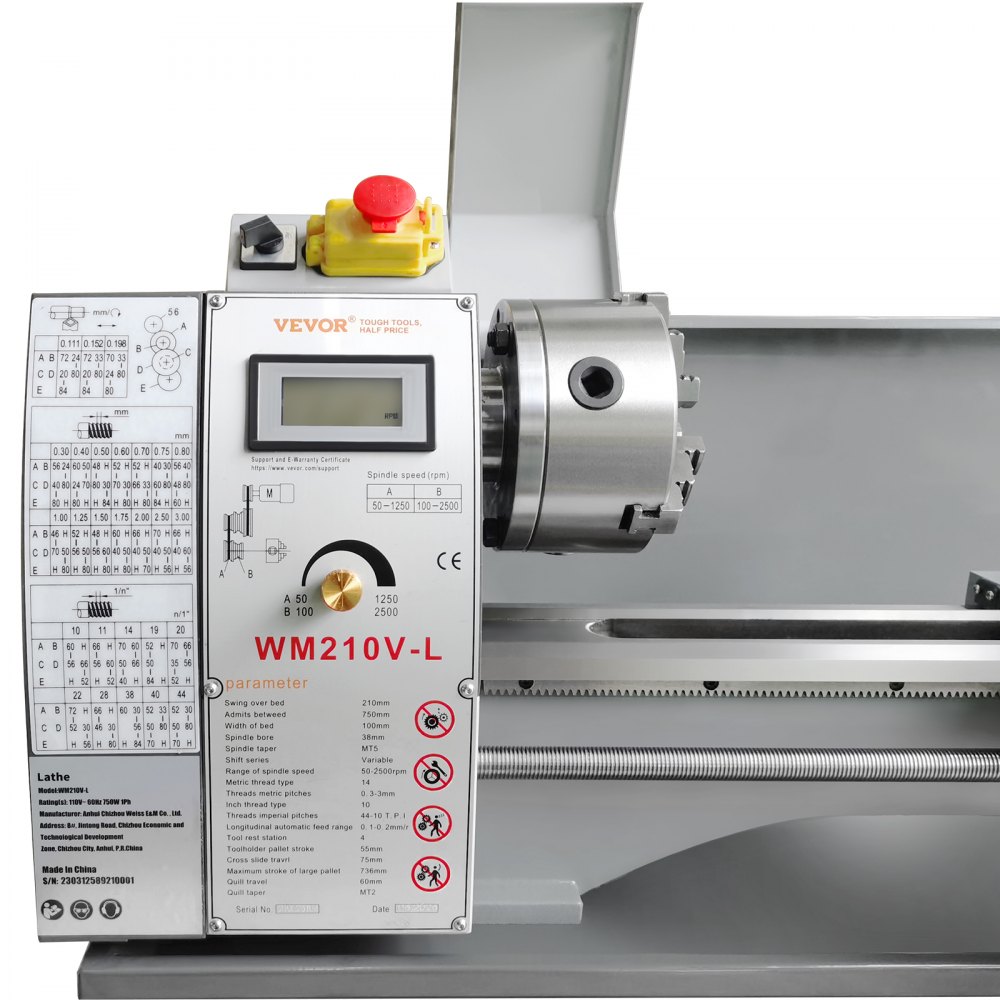

VEVOR metal lathe wm210v-l close-up with control panel, digital display, and chuck mechanism.
Practical tool holder
The 4-position rotating tool holder allows you to install 4 common rotary tools simultaneously. To change the tools, simply open the latch and rotate it.
silver-toned VEVOR metal lathe close-up showcasing spindle and tool holder.
Protective devices
Overload protection, high-speed reverse locking and protection against the chuck cover tearing off ensure greater safety during processing.
VEVOR metal lathe with precision bed, hardened and ground for accuracy, against a red industrial background.
Precision guide made of steel
The V-shaped precision steel guide features an automatic feed screw and high strength, ensuring the parallelism of the main axis and lathe body.

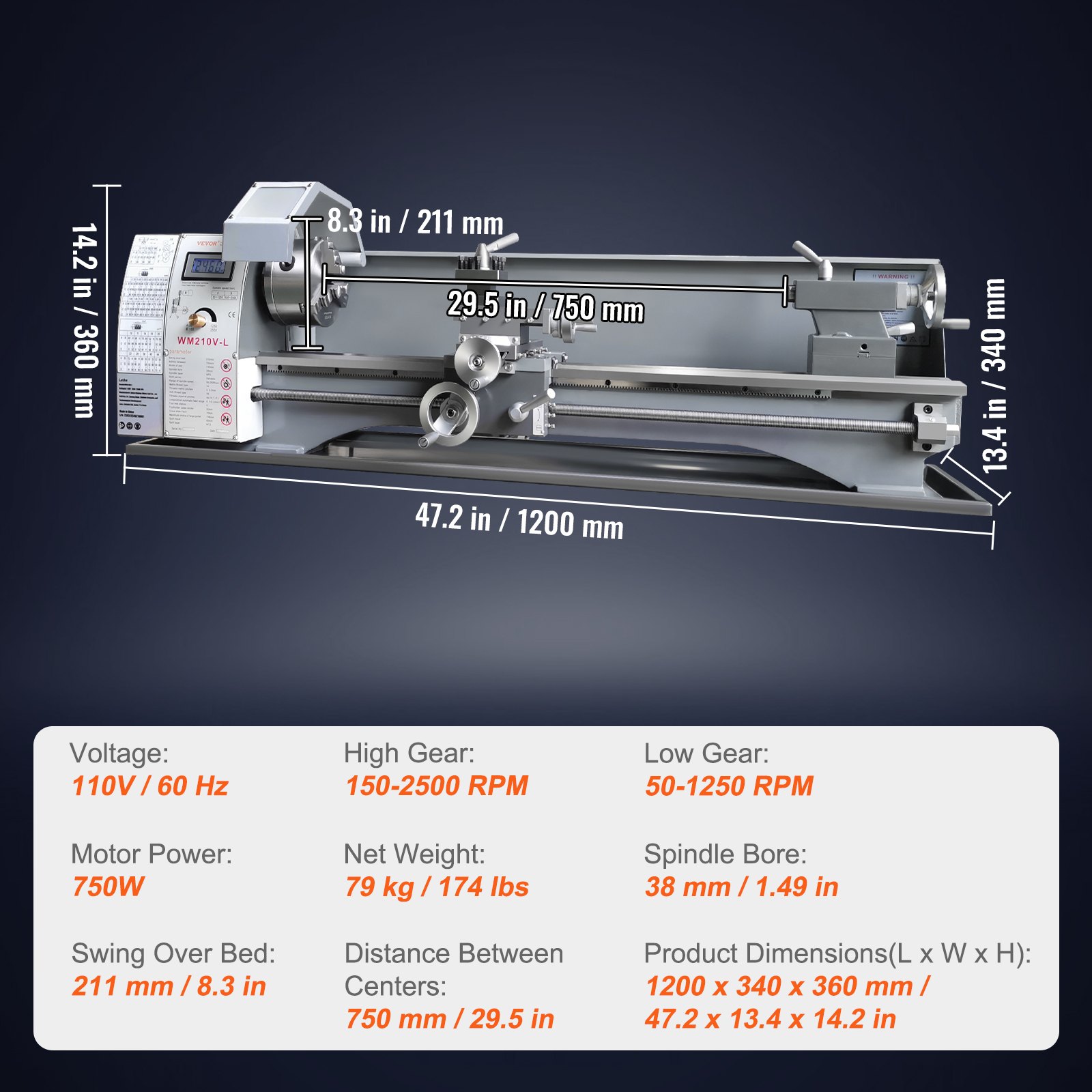

VEVOR metal lathe with ht200 cast iron, 750w motor, rpm ranges 150-2500, and 29.5 in between centers.VEVOR metal lathe with ht200 cast iron, 750w motor, rpm ranges 150-2500, and 29.5 in between centers.
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (7)

7 Questions
Ask a Question
¿Para que sirve y como se usa el contrapunzon grande del torno WM210W-L?
Answer This Question
Se utiliza en el husillo y es necesario quitar el portabrocas cuando se utiliza.
By vevor
Helpful ( 1 )
Hola, el "mandril" que viene con el torno que diametro maximo tiene a traves del husillo
Answer This Question
El diámetro del orificio pasante del husillo es de 38 mm y el diámetro máximo de la pieza de trabajo que se permite pasar a través generalmente se controla dentro de 36 mm.
By vevor
Helpful ( 1 )
Hola. ¿Cuál es la altura de herramienta para la que está diseñado el torno? 10mm, 12mm, 1/2", 3/8"...
Answer This Question
El torno está diseñado con una altura de herramienta de 12 mm.
By vevor
Helpful ( 1 )
Hola, los avances para cilindrar y refrentar se pueden hacer de forma automatica con este totno?
Answer This Question
El círculo externo se puede girar automáticamente, pero la cara final no se puede girar automáticamente.
By vevor
Helpful ( 0 )
Se le puede montar un mandril en la parte trasera y que longitud maxima tiene desde el mandril al contrapunto Gracias
Answer This Question
Lo sentimos, actualmente no vendemos productos que requieran personalización. Solo están a la venta los modelos que se muestran en el sitio web oficial.
By vevor
Helpful ( 0 )
El mandril se puede instalar en el lado izquierdo del torno y se deben proporcionar los accesorios correspondientes. No se recomienda que lo instale usted mismo. La longitud máxima desde el extremo de la mordaza hasta el contrapunto es de 740 mm.
By vevor
Helpful ( 0 )
