Features & Details
- Powerful, efficient performance: The VEVOR brushless DC motor delivers 500W of output power and operates efficiently with 85% conversion efficiency. This ensures reliable speed even on challenging terrain and lower energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive torque and speed: Reach up to 21.1 MPH at rated speed and an idle speed of 24.2 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 2.8 Nm provides reliable performance even on steep inclines and rough terrain.

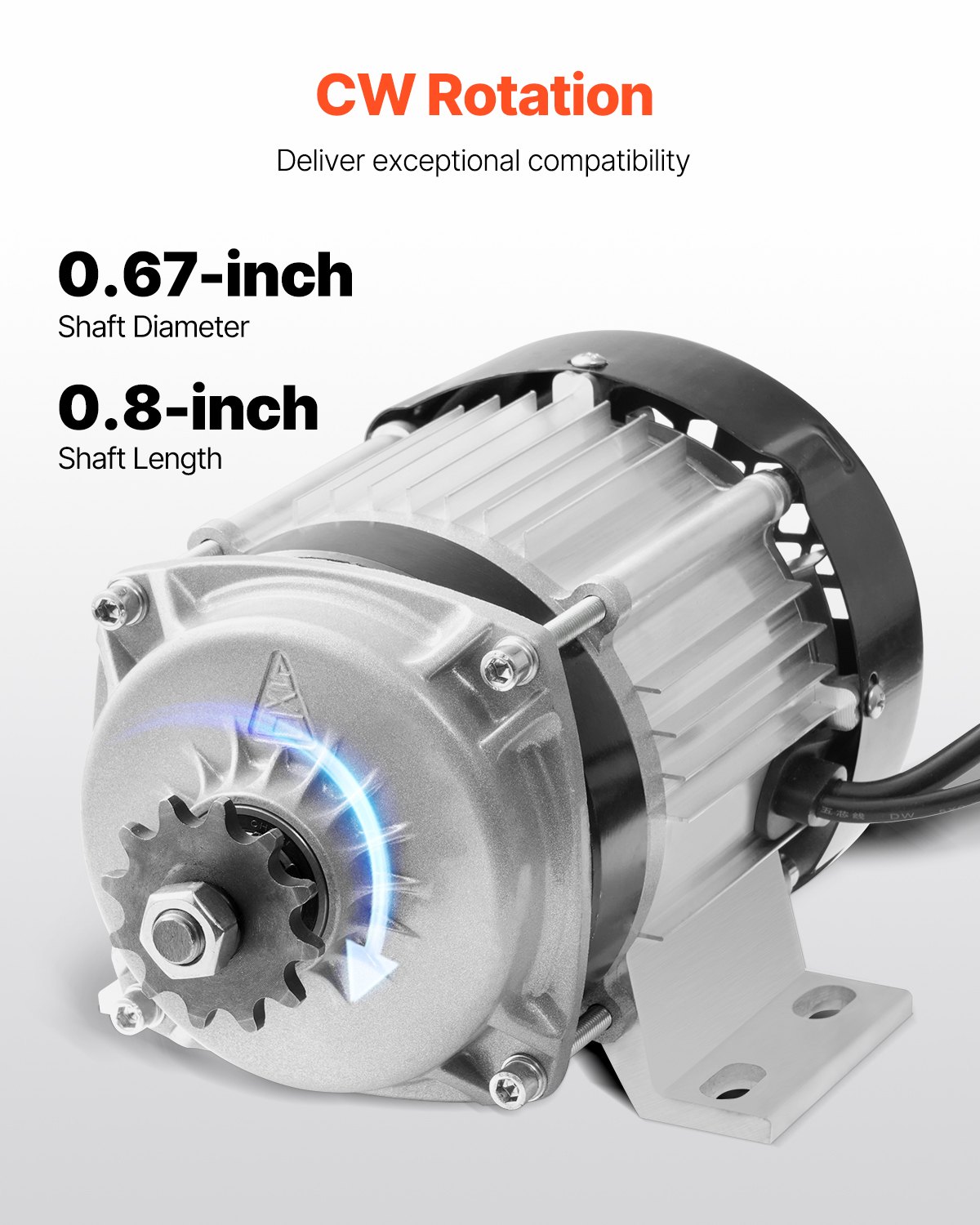

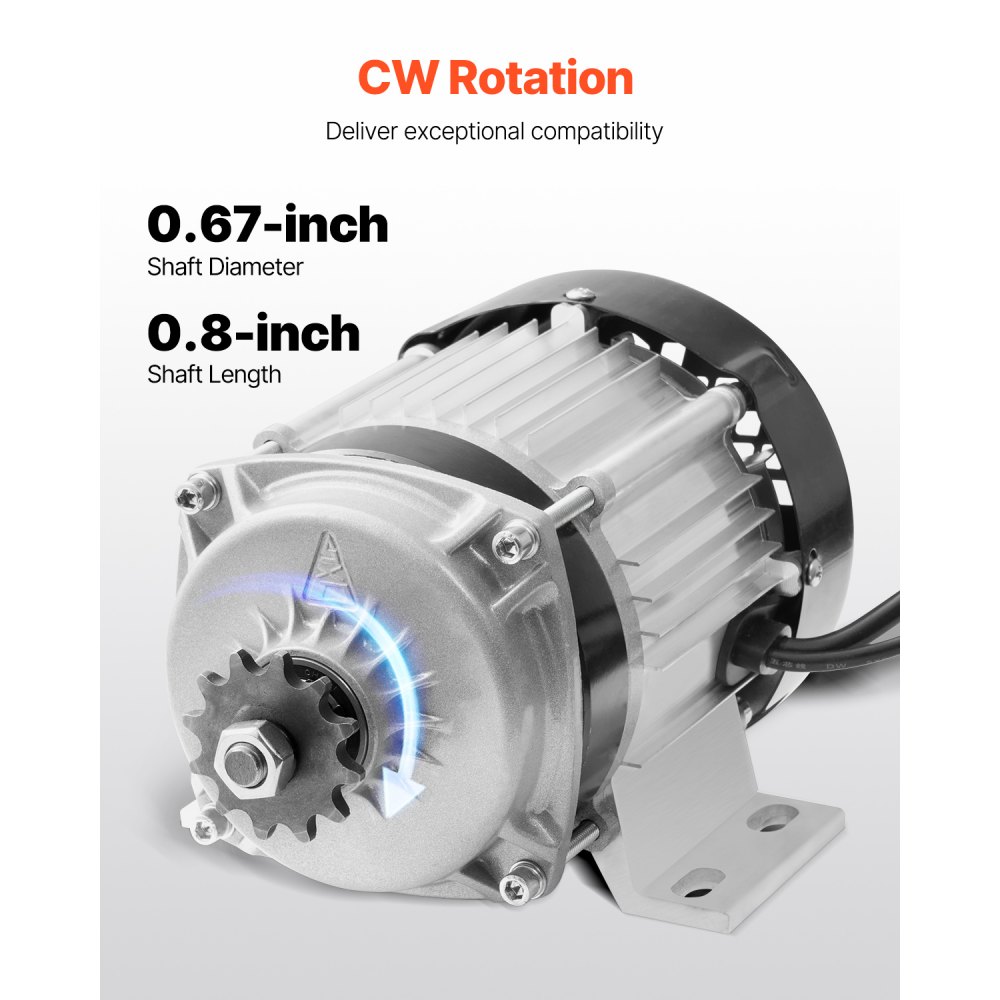

- Quiet, reliable, and versatile operation: The motor features a 100% copper core for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. CW rotation ensures smooth and efficient compatibility with a wide range of electric vehicles.

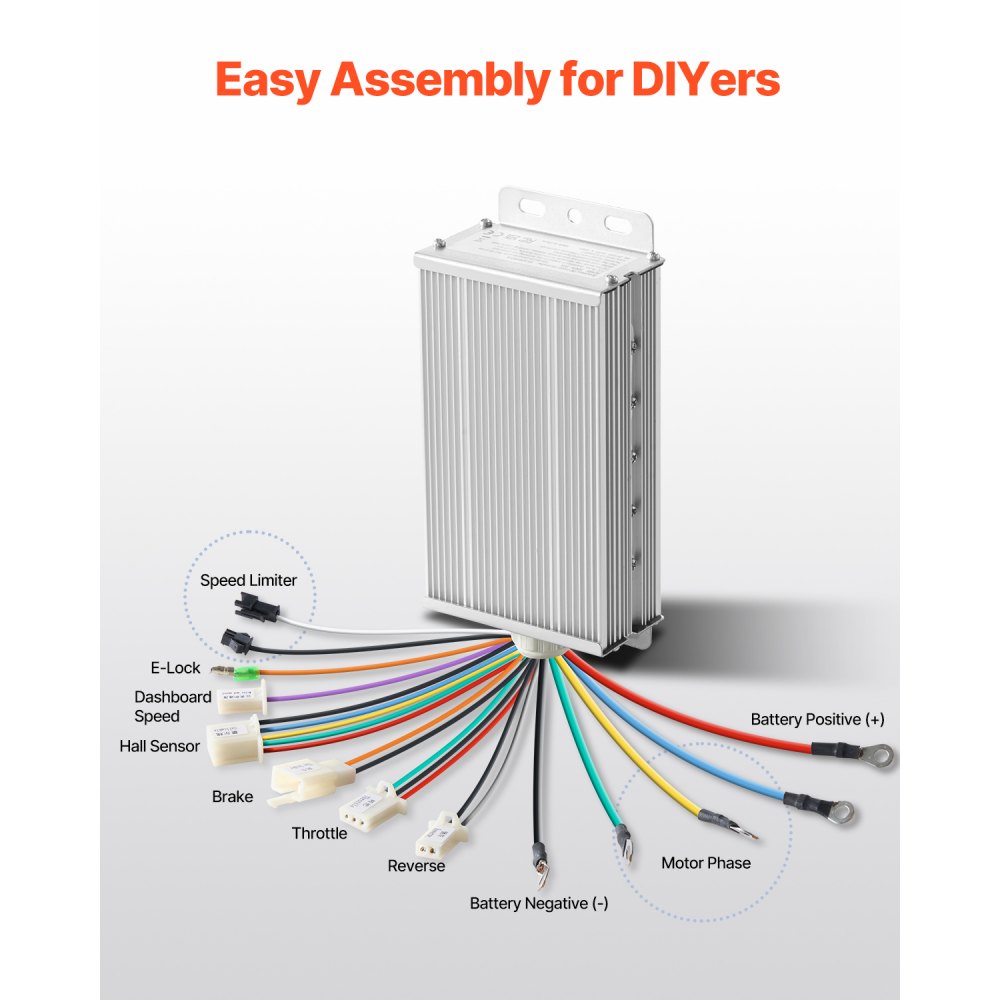

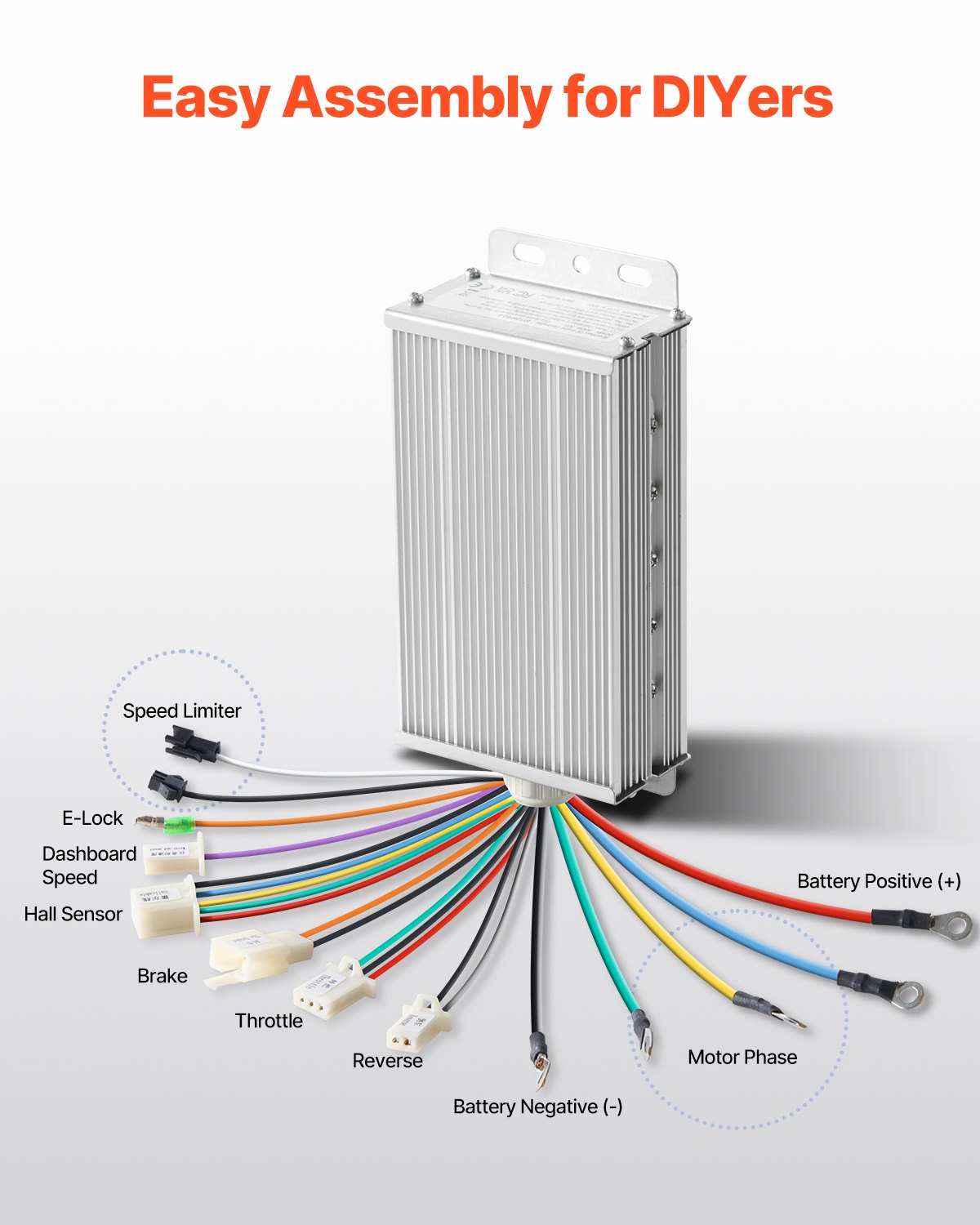

- Enhanced safety and control features: The improved controller integrates multiple safety features, including overload, undervoltage, and short-circuit protection. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility under varying conditions.

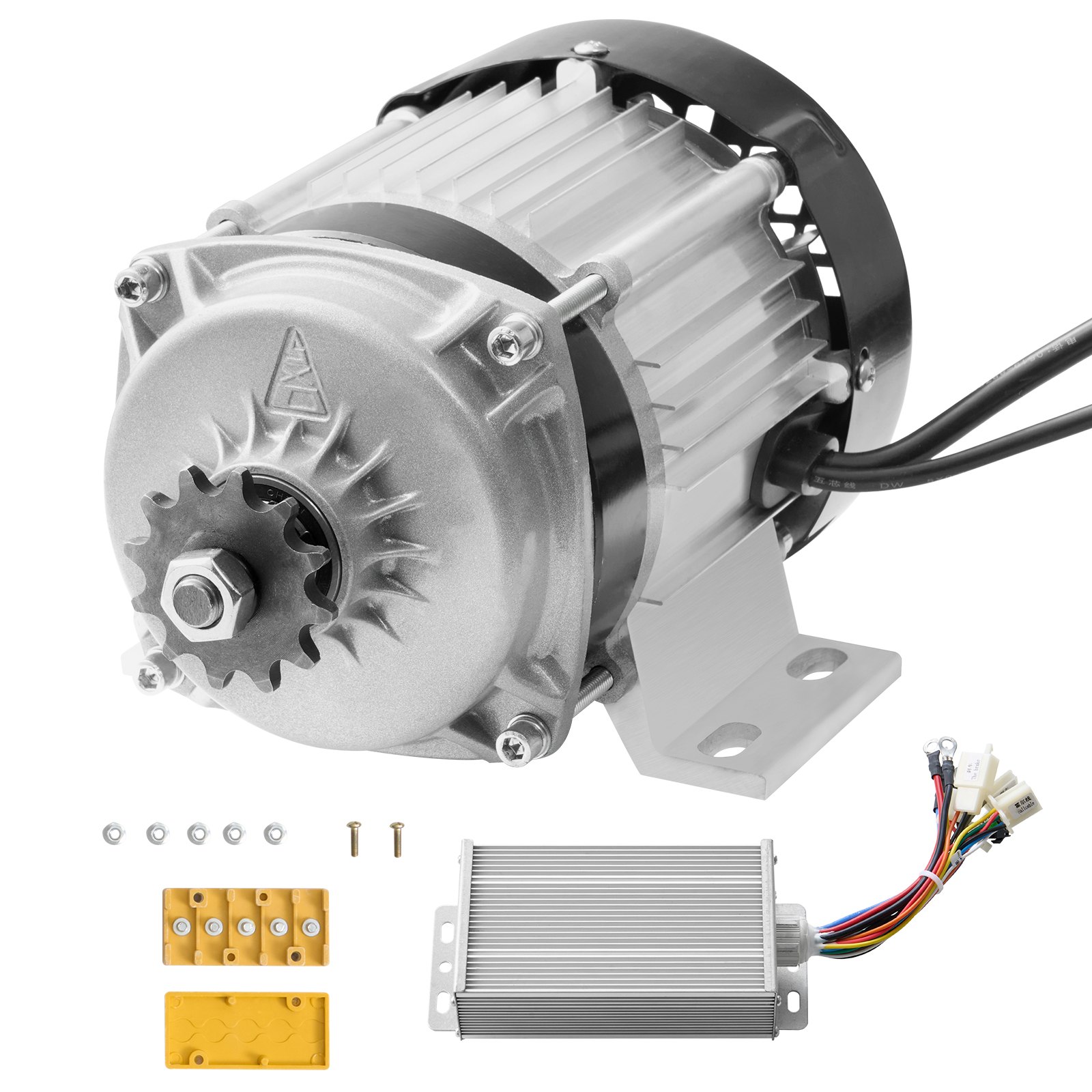

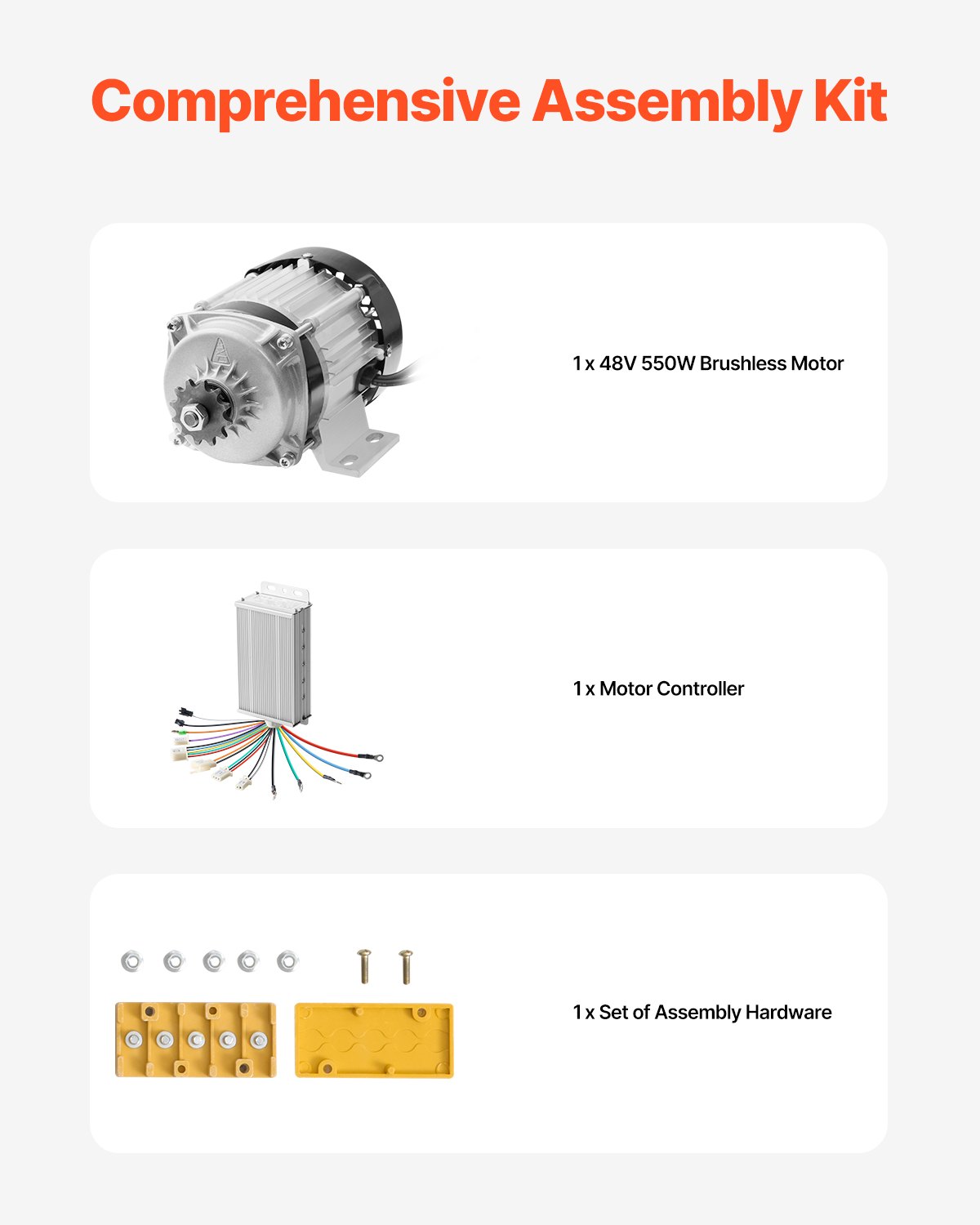

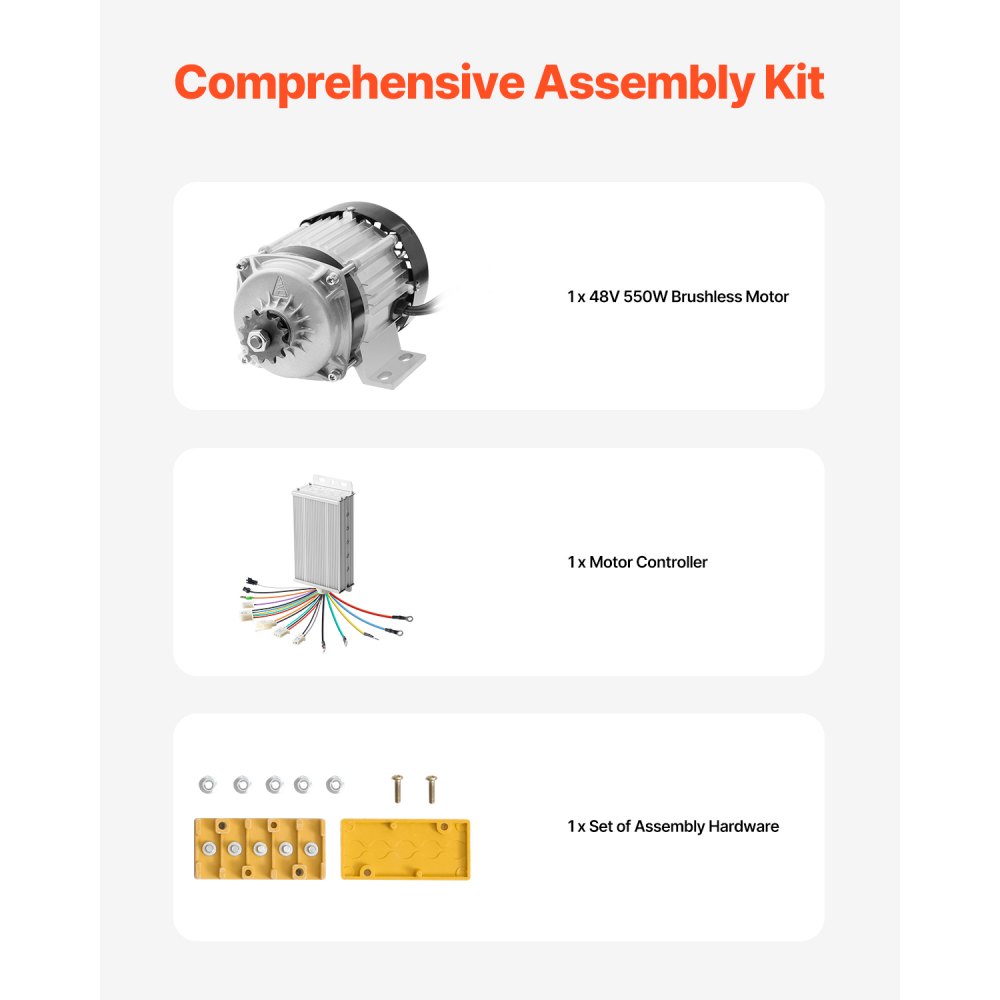

- Easy self-installation: The package includes: 1 x 48V 500W brushless motor, 1 x motor controller, 1 x set of mounting accessories, and 1 x user manual. This motor kit includes detailed wiring diagram instructions, ideal for DIY enthusiasts and hobbyists who want to upgrade or custom-build electric vehicles.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item

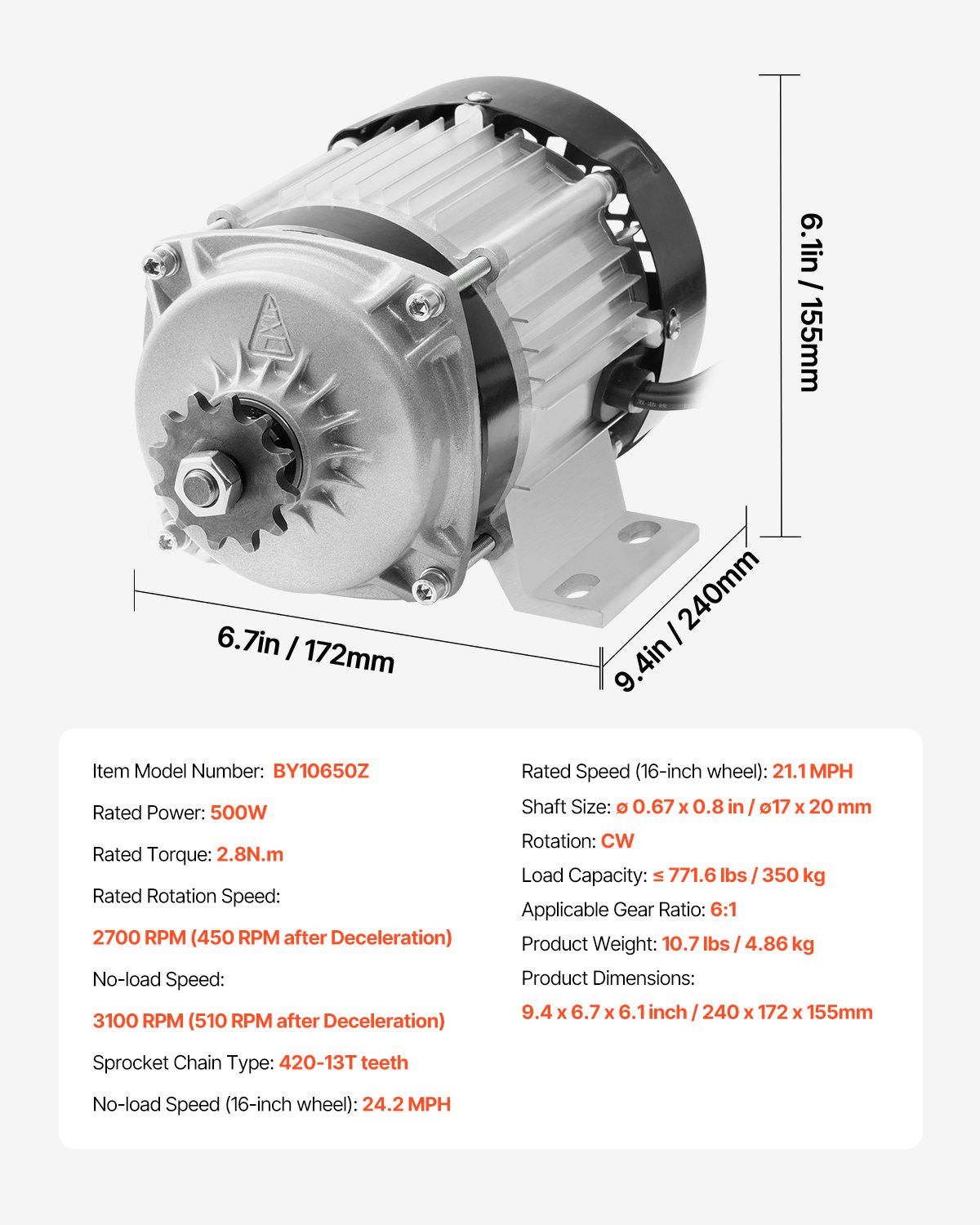

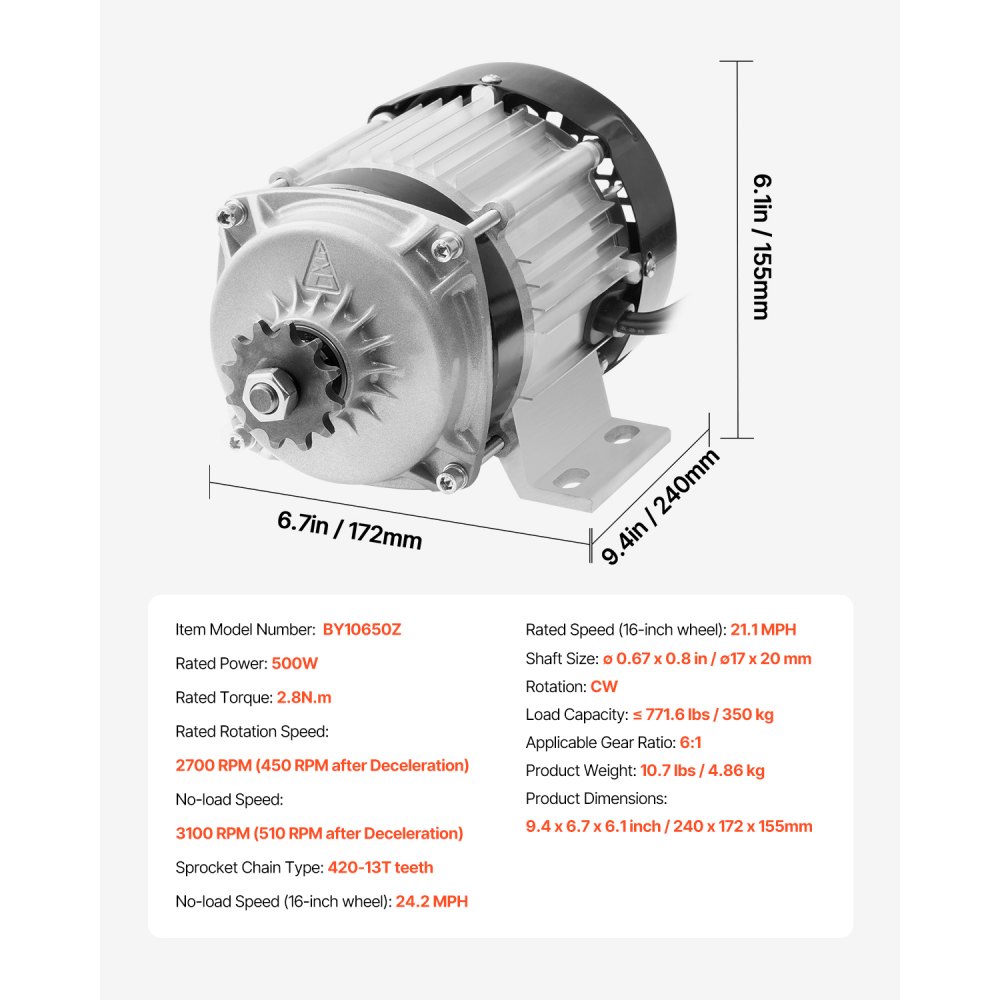

Product specification
- Article model number
- BY10650Z
- Rated power
- 500 W
- Rated torque
- 2.8 Nm
- Rated speed (450 rpm after deceleration)
- 2700 rpm
- Idle speed (510 rpm after delay)
- 3100 rpm
- Rotation
- CW
- Load capacity
- ≤ 771.6 lbs / 350 kg
- Noise level
- 70 dB
- Applicable translation ratio
- 6
- Product weight
- 10.71 lbs / 4.86 kg
- Product dimensions
- 9.45 x 6.77 x 6.10 inches / 240 x 172 x 155 mm
Description
Smooth and powerful driving
Upgrade your bike with confidence and experience more power, reliability and riding fun with the 500W 48V DC brushless motor, improved controller, 2.8 Nm rated torque and CW direction control.
Experience the ultimate thrill with an idle speed of 24.2 MPH! (This top speed is based on idle conditions with a 16-inch wheel – actual speed may vary depending on load, road conditions, and rider weight)
Complete your DIY projects with our brushless DC motor. Whether you want to increase speed, boost torque, or improve overall efficiency, it offers the perfect solution for customizing your bike.
It features an XT60 connector, which improves the stability of the power connection and ensures reliable performance. The insulated 3-position terminal block reduces the risk of short circuits, providing added safety on your ride.
The motor, with its 100% pure copper core, offers exceptional resistance to deformation and rust and features high conductivity for optimal efficiency. It is designed for extreme weather conditions and ensures a smooth and safe ride.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (0)
Typical questions asked about products: Is the product durable? ...
ZLWSDJTJ500WURJYWV9

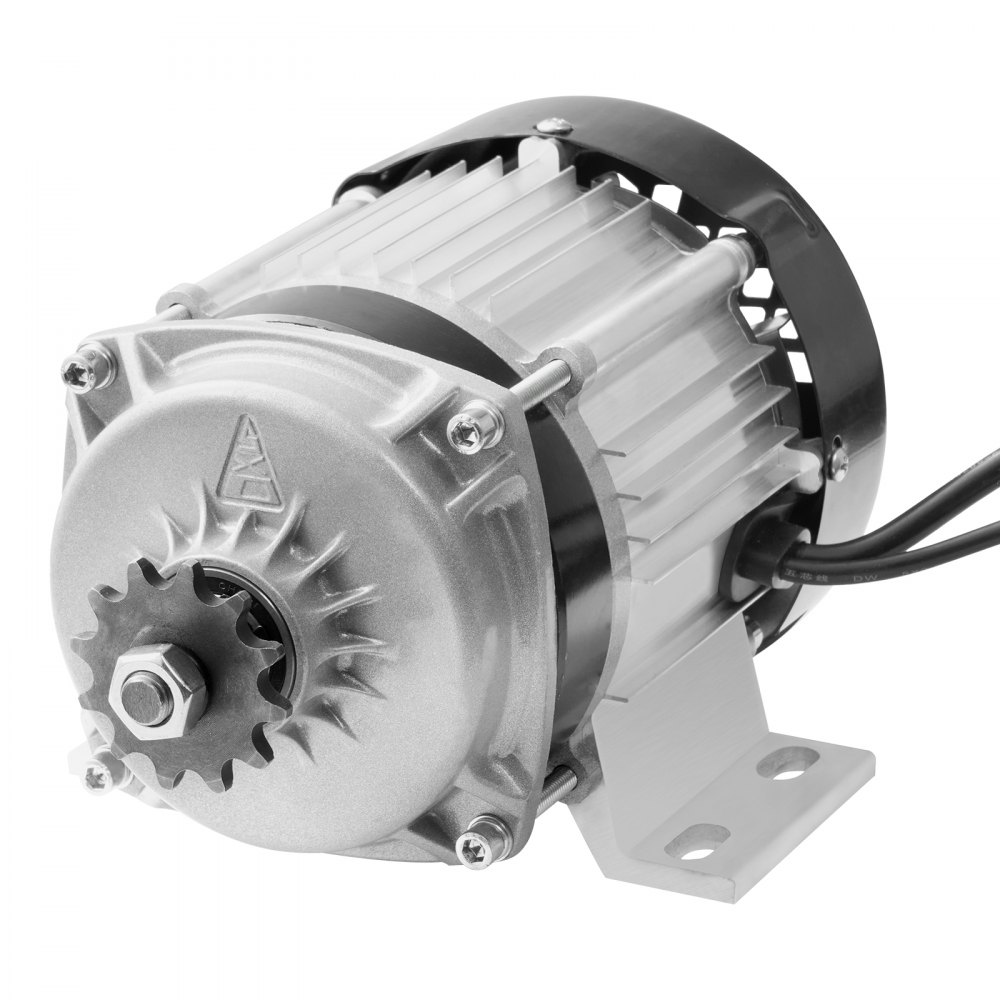

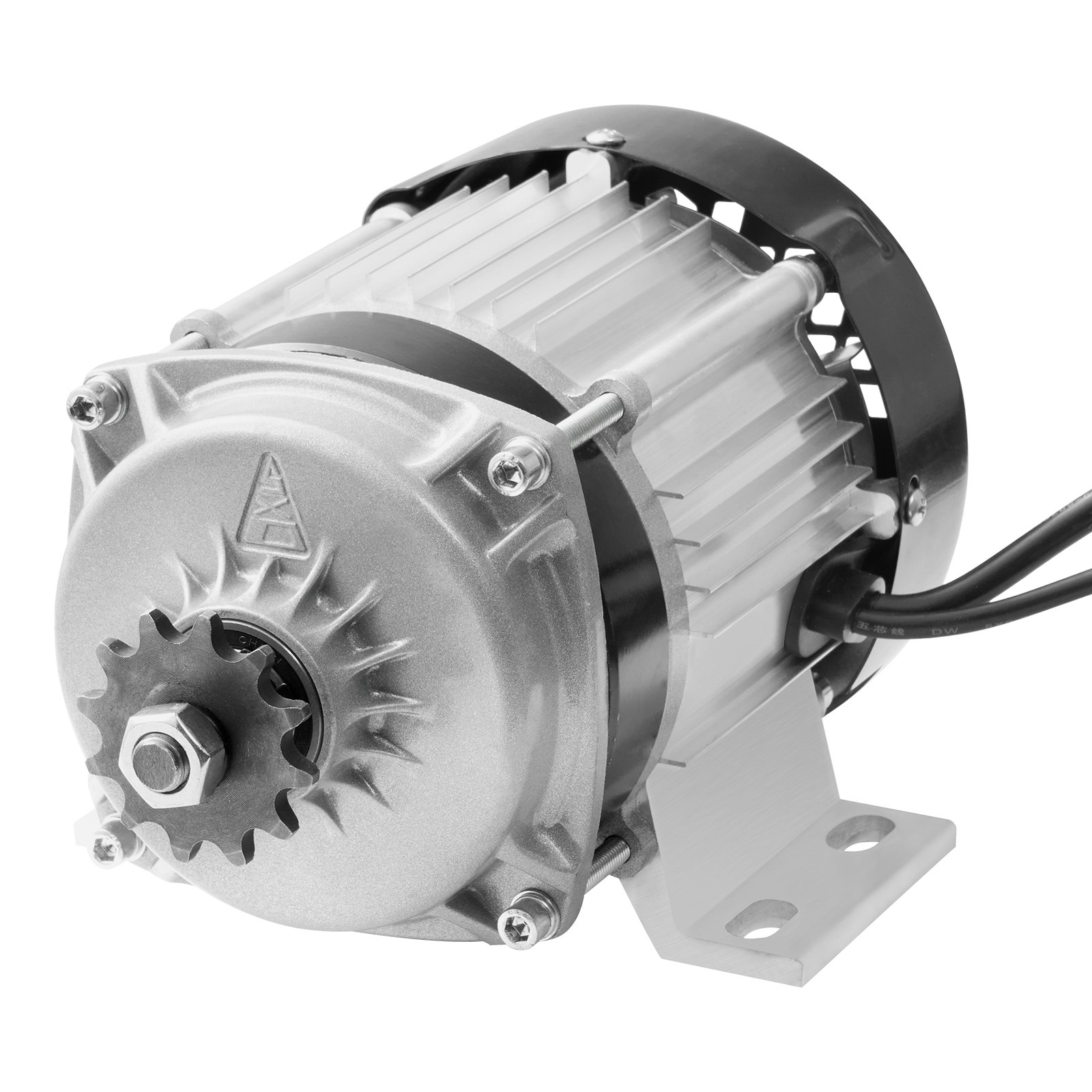

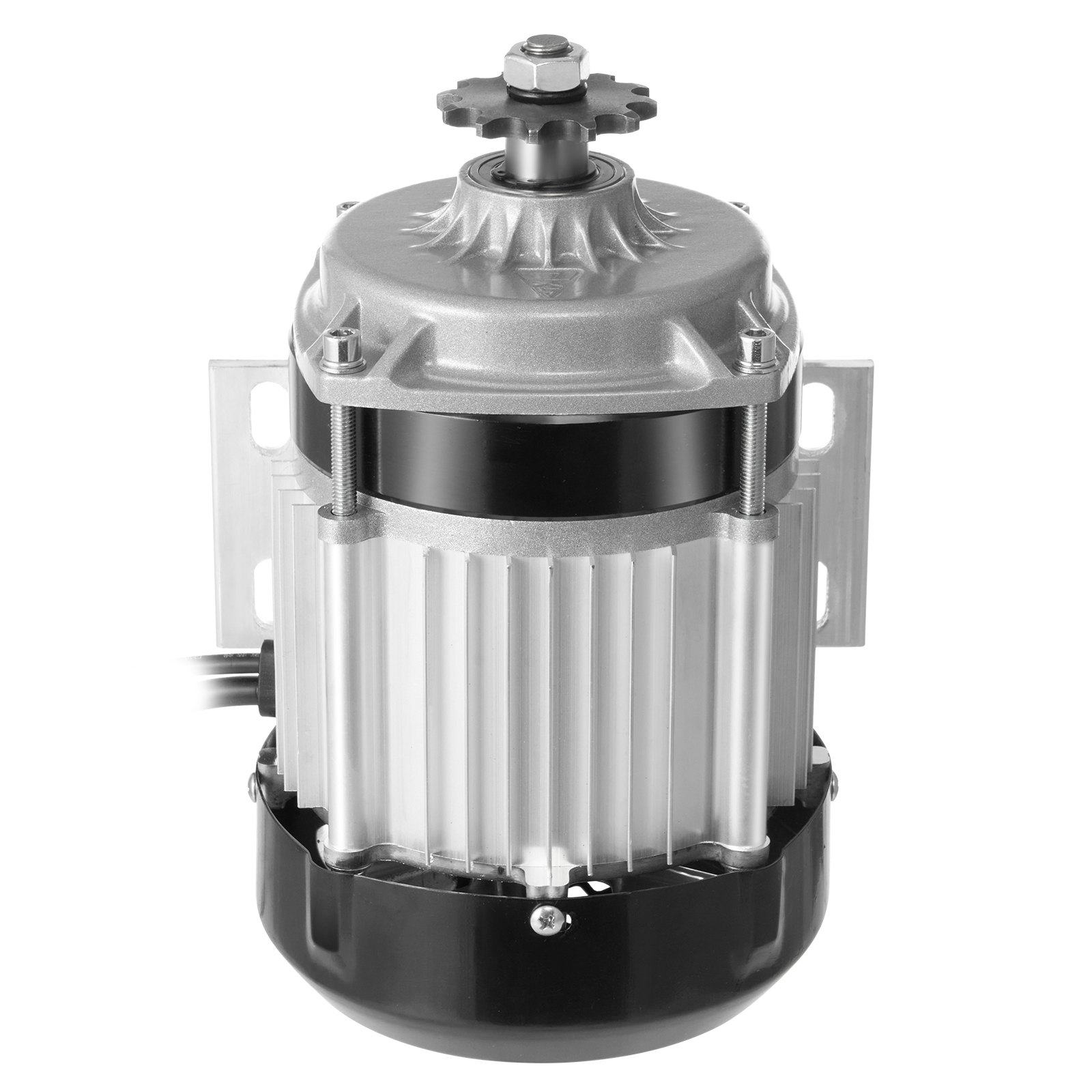

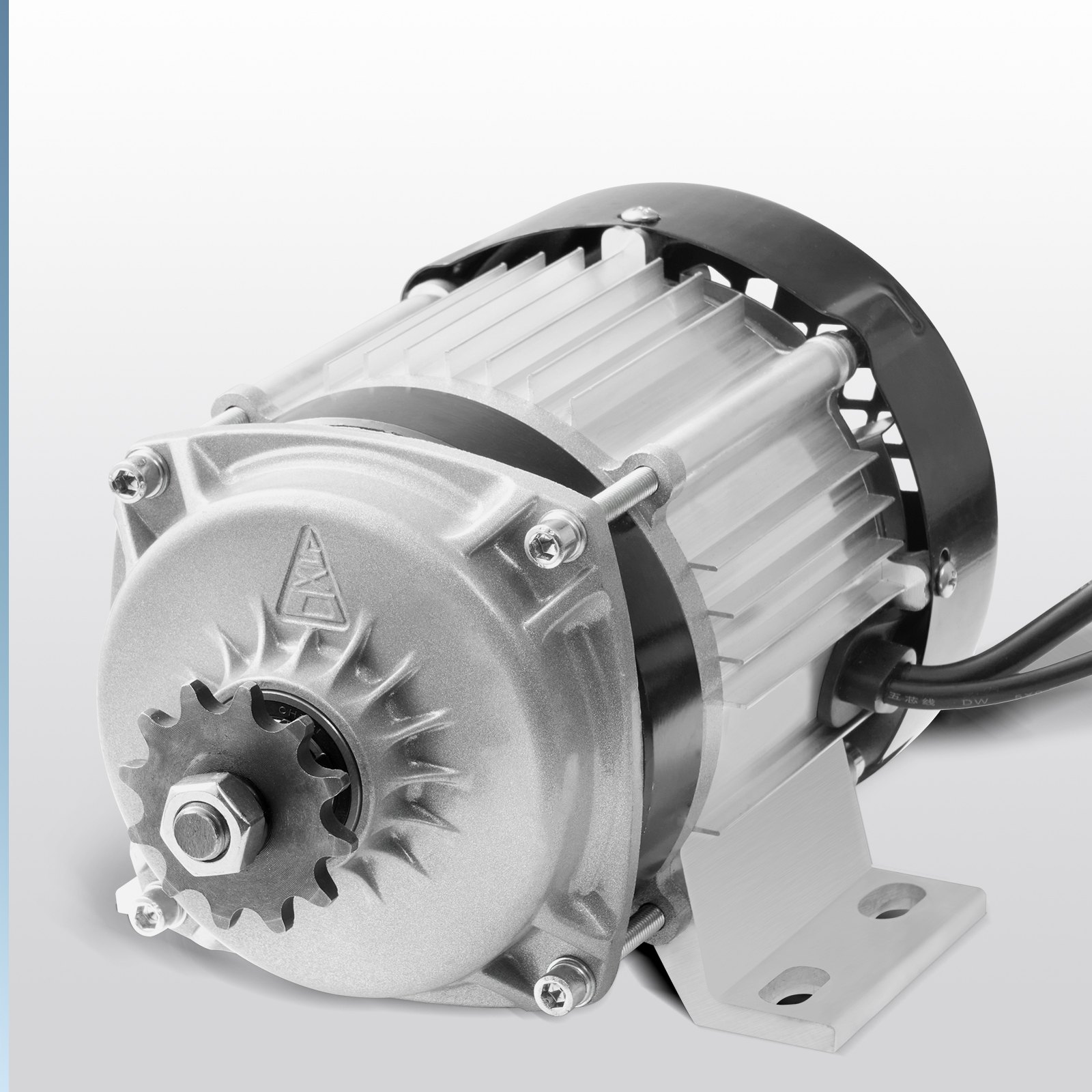

VEVOR 500W Brushless DC Electric Motor Kit, Brushless Electric Motor – 48V 2700 RPM Motor with Improved Speed Controller for Go-Karts, E-Bikes, Motorcycles, and Scooters
5 2 Reviews
101 99 €
