Una volta regolata per le proprie esigenze risulta molto precisa. Ottimo rapporto qualità prezzo!
SKU: GFK-160YTGZJ00001V2
Top highlights
- Precise filling with 5-3500ml range and <0.5% repeatability, controlled via LCD and microcomputer.
- Dual modes: manual pedal control or 3.2L/min automatic continuous filling.
- 304 stainless steel build with anti-drip nozzle, corrosion resistance, and liquid conservation.
AI Summarized from product information
Specifications
- Model GFK-160
- Voltage AC 180-260 V
- Power 30 W
- Maximum flow rate 0.8 Gal/min / 3.2 L/min
- Max. suction distance 2 m / 6.6 ft
- Repetition error < 0.5%
Reviews · 4.3
Reviews · 4.3
Ma***
in
on Nov 14,2026
on Nov 14,2026
Single Head 5-3500 mL
info
in
on Oct 18,2026
on Oct 18,2026
Single Head 5-3500 mL
Good werking produxt
About this item
Description

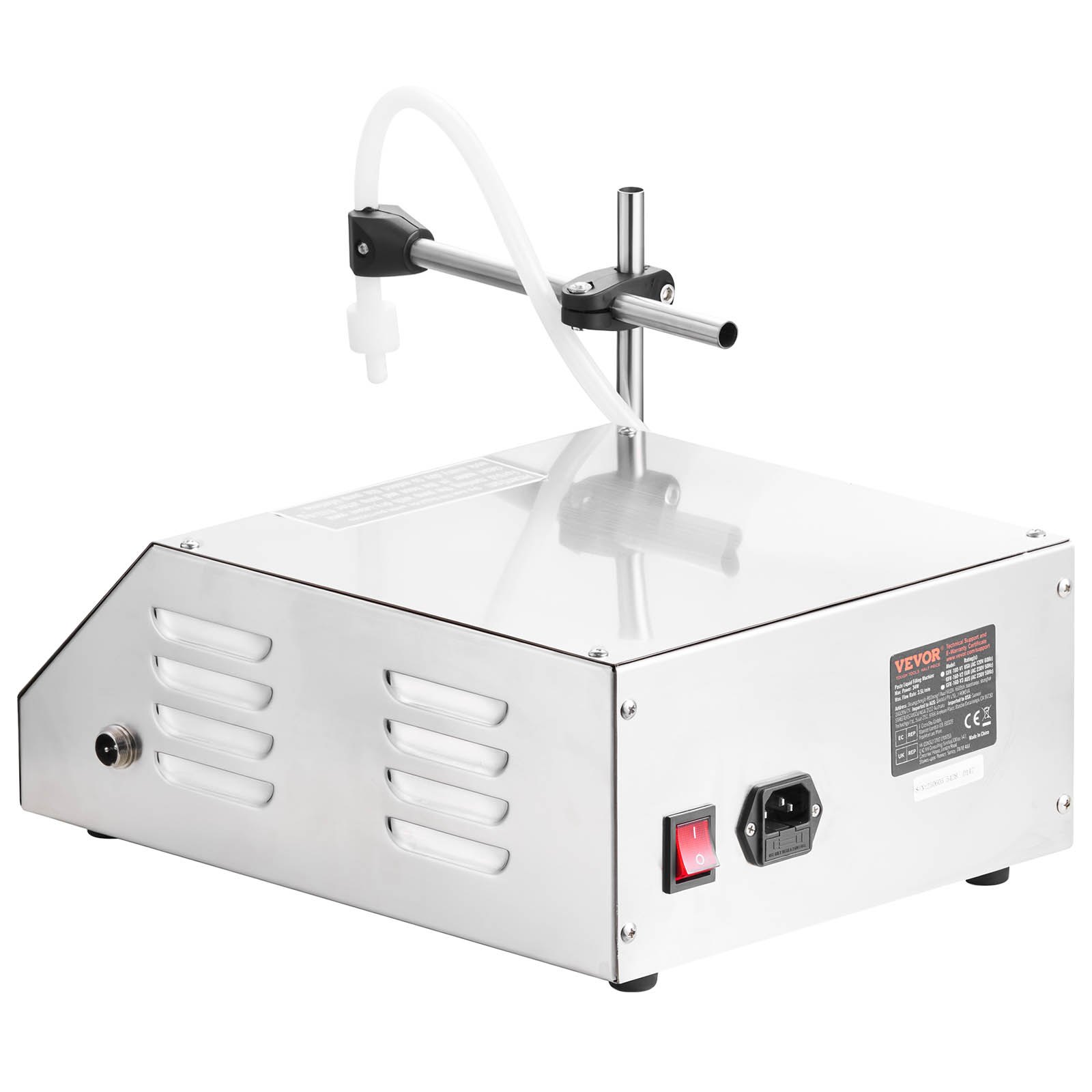

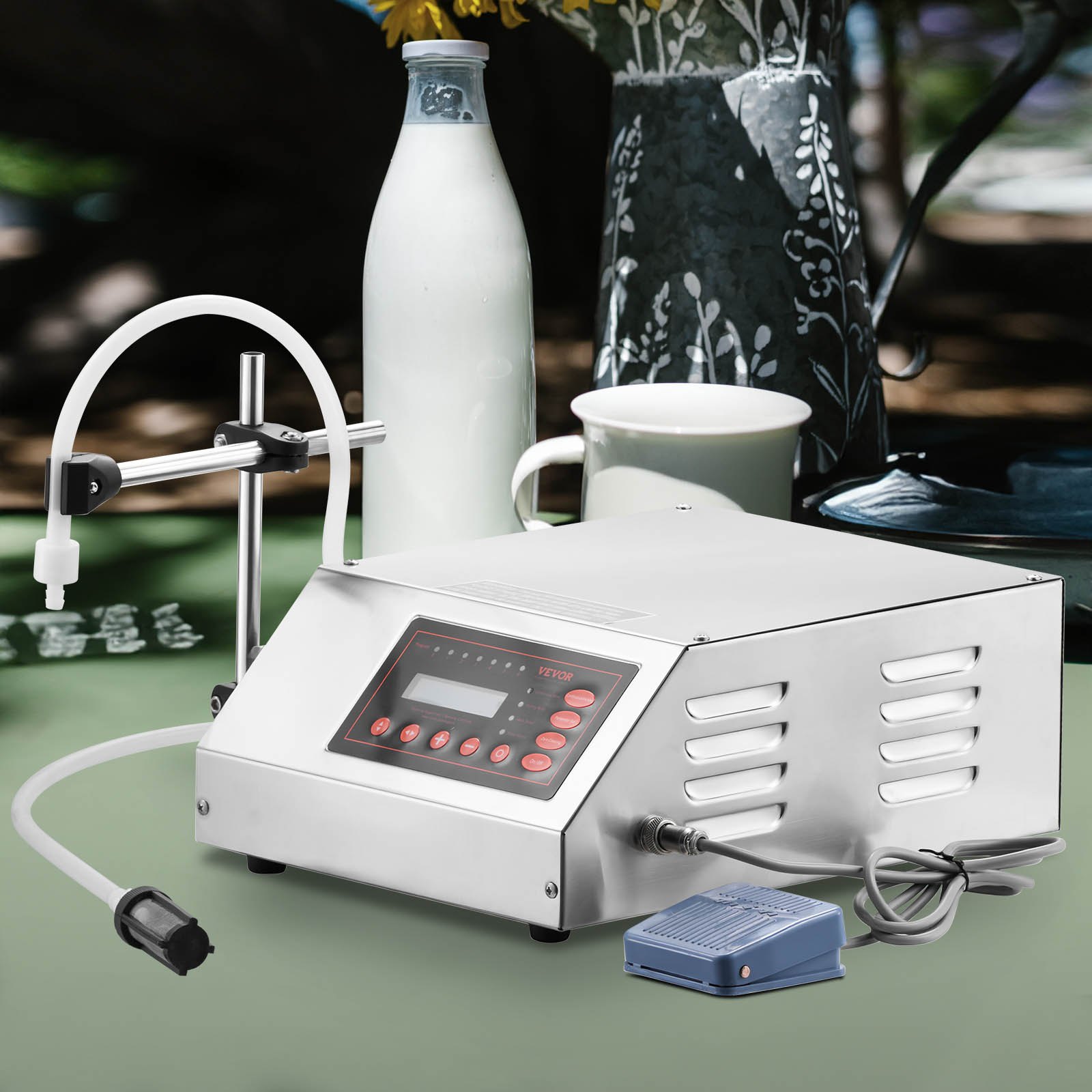

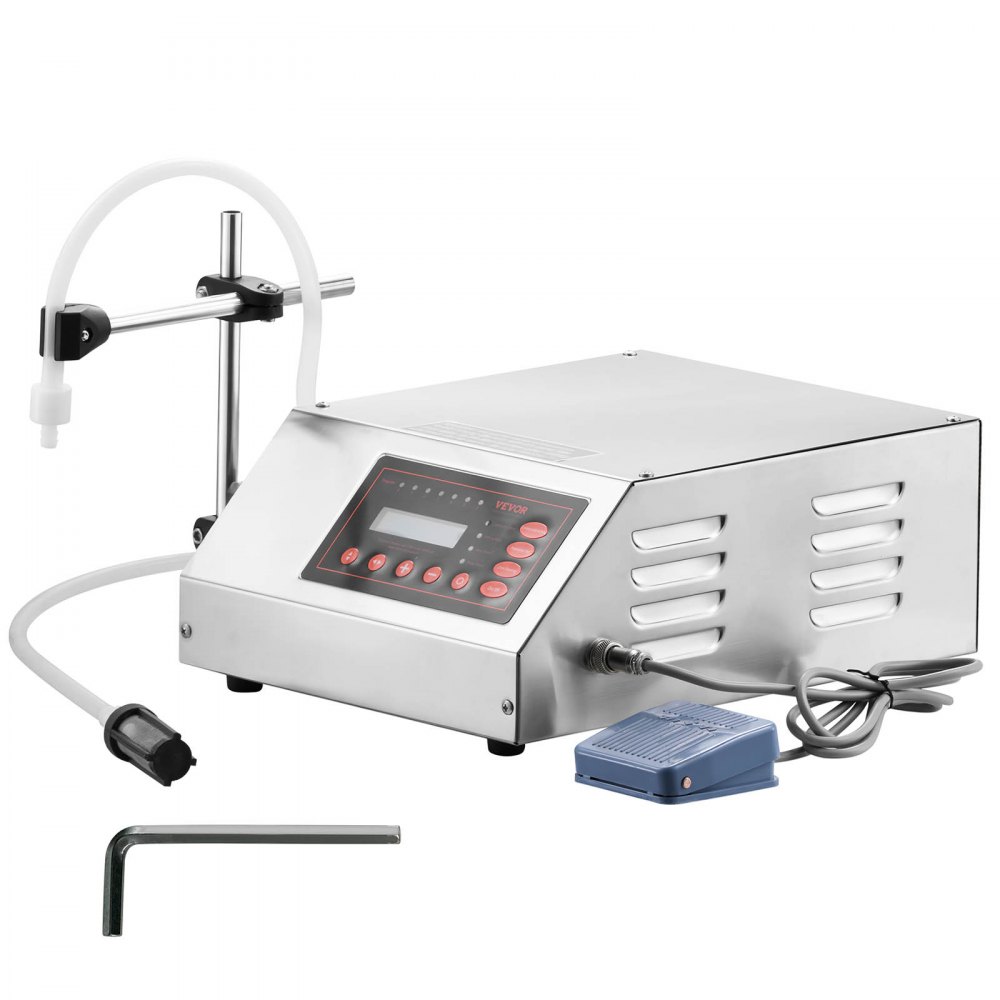

liquid filling machine
Anti-drip nozzle & 5-3500 ml quantitative filling & microcomputer control
This numerically controlled GFK series liquid filling machine from Updated uses a microcomputer to control the mini-pump via the filling time and the rotational speed of the electric motor, allowing the machine to fill liquids smoothly and with high accuracy. The machine features a self-priming pump that draws the liquid from your container and then dispenses it through the nozzle. It can be used to fill many different types of clear, thin liquids, including water, olive oil, beverages, vinegar, milk, etc. Note: Different liquids require a different tubing material. The tubing we supply is silicone.
- Note: You may find some marks on the machine upon receipt. These are caused by the protective film, which was heated and melted during processing. You can simply peel off the film, and the machine will be perfectly like new.
- Precise liquid filling

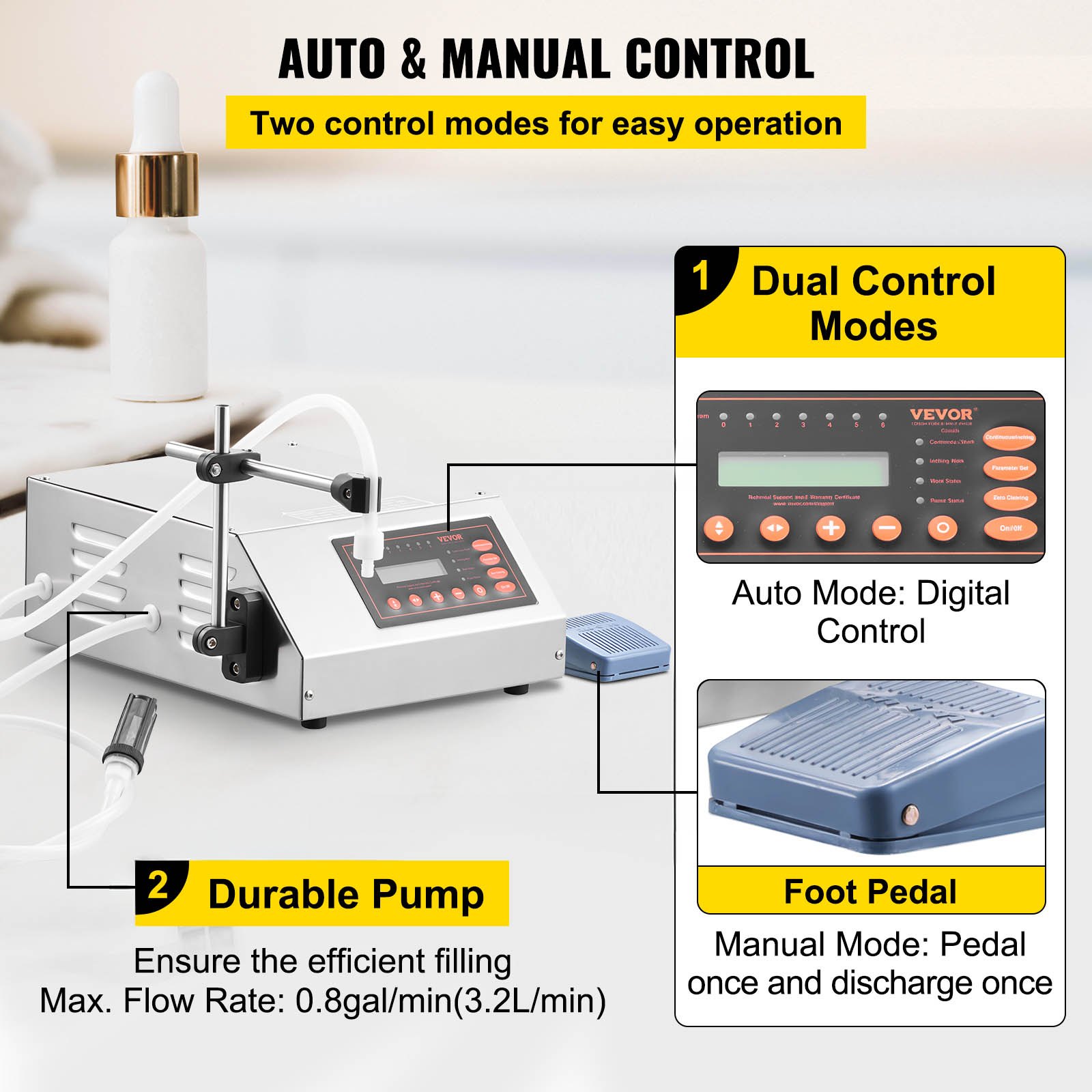

- Automatic & manual control
- Stainless steel structure
- Safety design

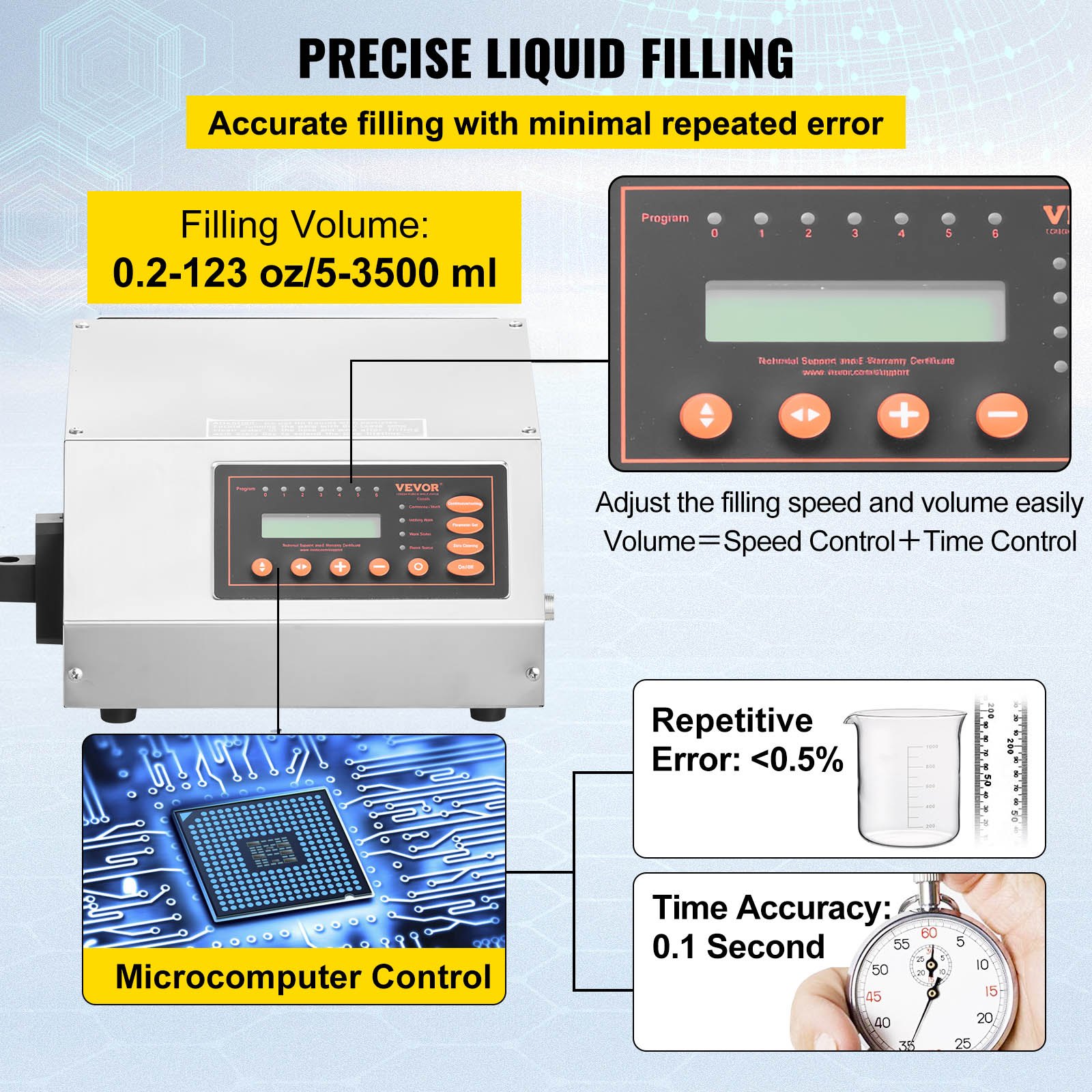

LCD Display Monitor
Our bottle filling machine is controlled by a single-chip microcomputer, ensuring high filling precision. Repeatable errors: < 0.5%. Filling volume and speed can be adjusted as needed via the LED display. Filling volume ranges from 5 to 3500 ml.

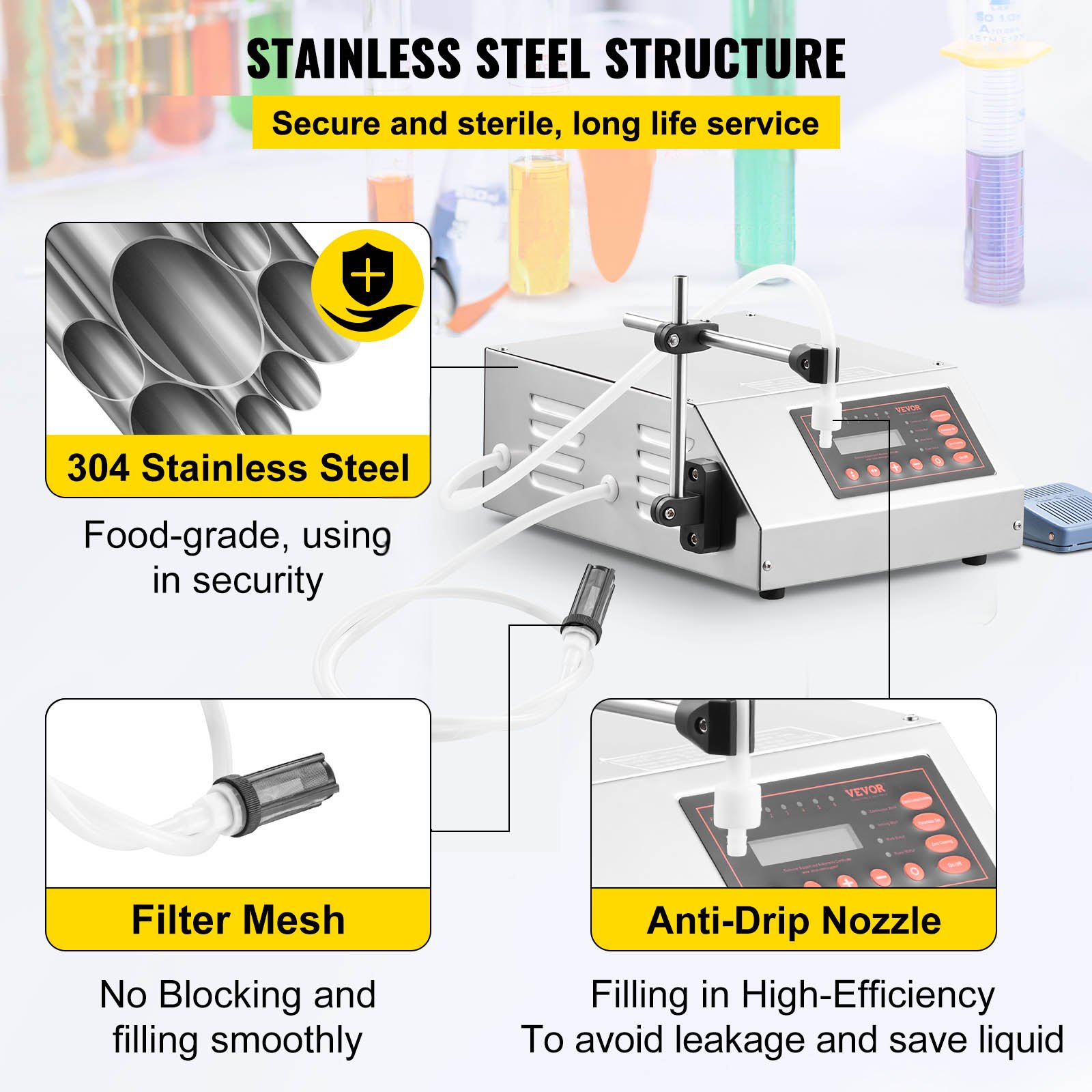

Stainless steel housing
All parts that come into contact with the product are made of 1.2 mm stainless steel. It is extremely easy to use, clean, and maintain. It is resistant to corrosion, acids, and alkalis. Furthermore, ventilation openings on both sides ensure rapid heat dissipation.
Anti-drip design
The outlet nozzle is equipped with two anti-drip systems that ensure high filling accuracy. There are also two filter screens at the water inlet to filter out impurities in the liquid and guarantee its purity.

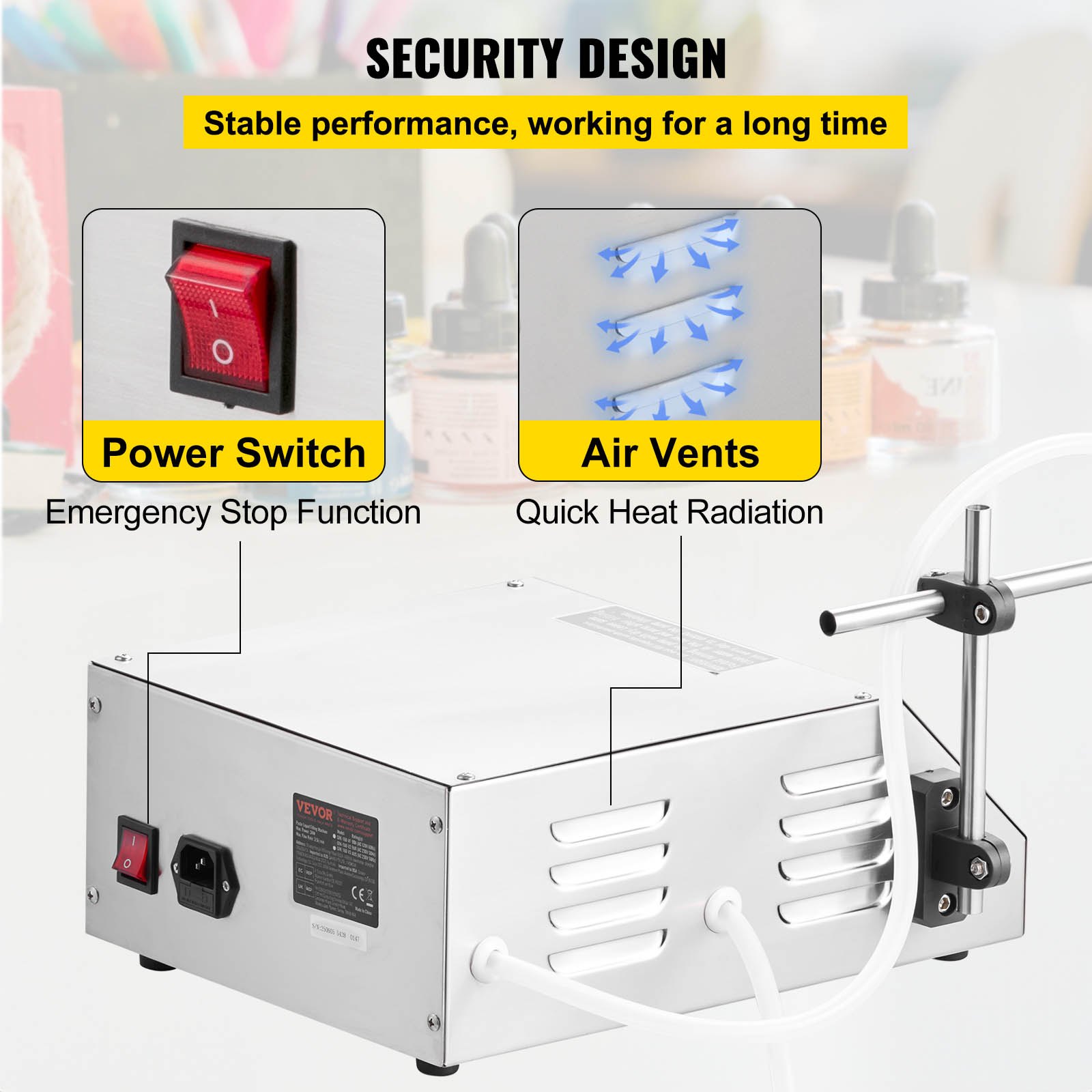

Power switch
A built-in safety shutdown is useful to protect the machine. It features self-absorption, heat protection, stable operation, and continues to function well even when constantly idling or running under load for extended periods.

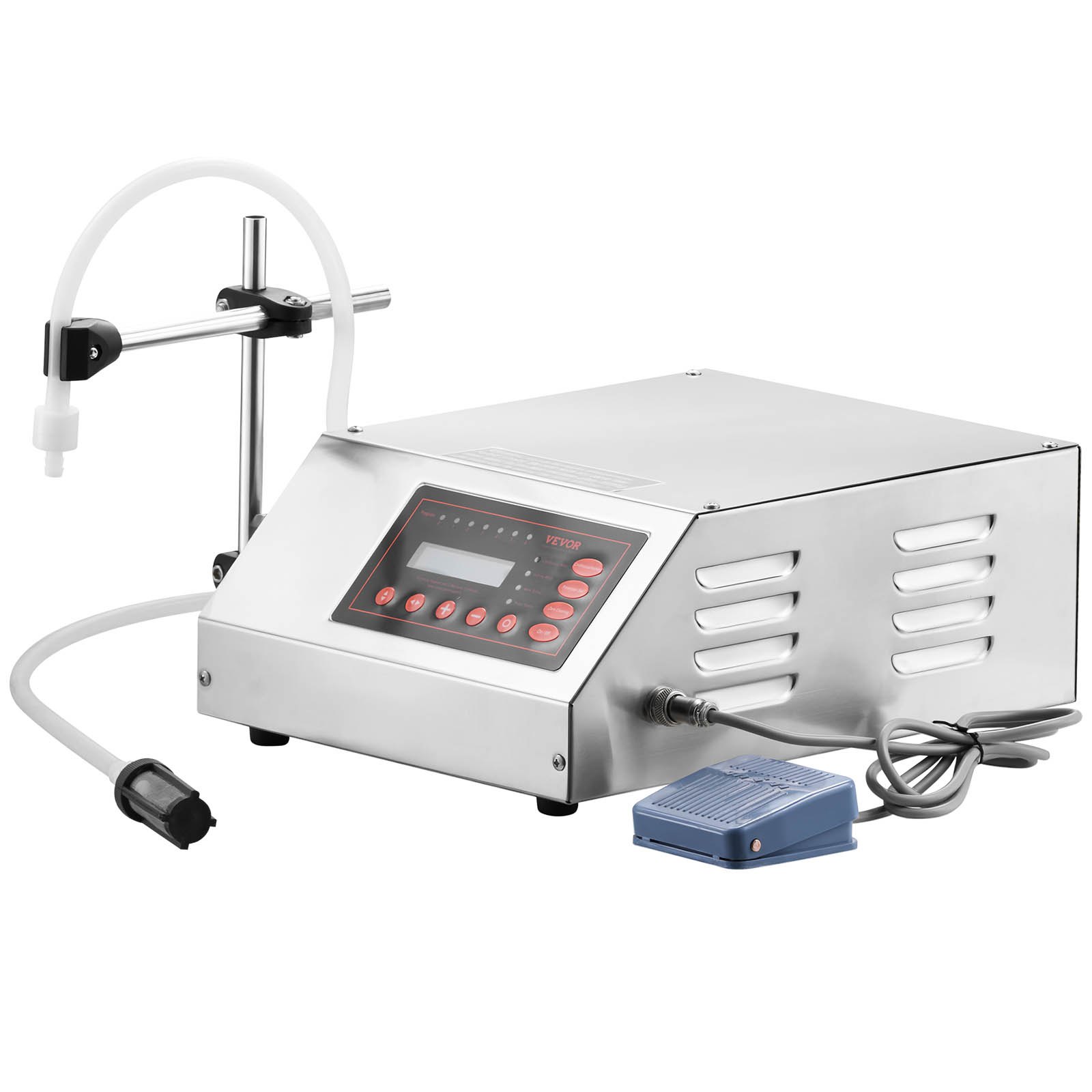

foot switch
The liquid filling machine is designed to be equipped with a foot switch for process control. A foot switch plus a self-priming function eliminates the need for pouring, making it convenient, safe to operate, and saving the user energy.

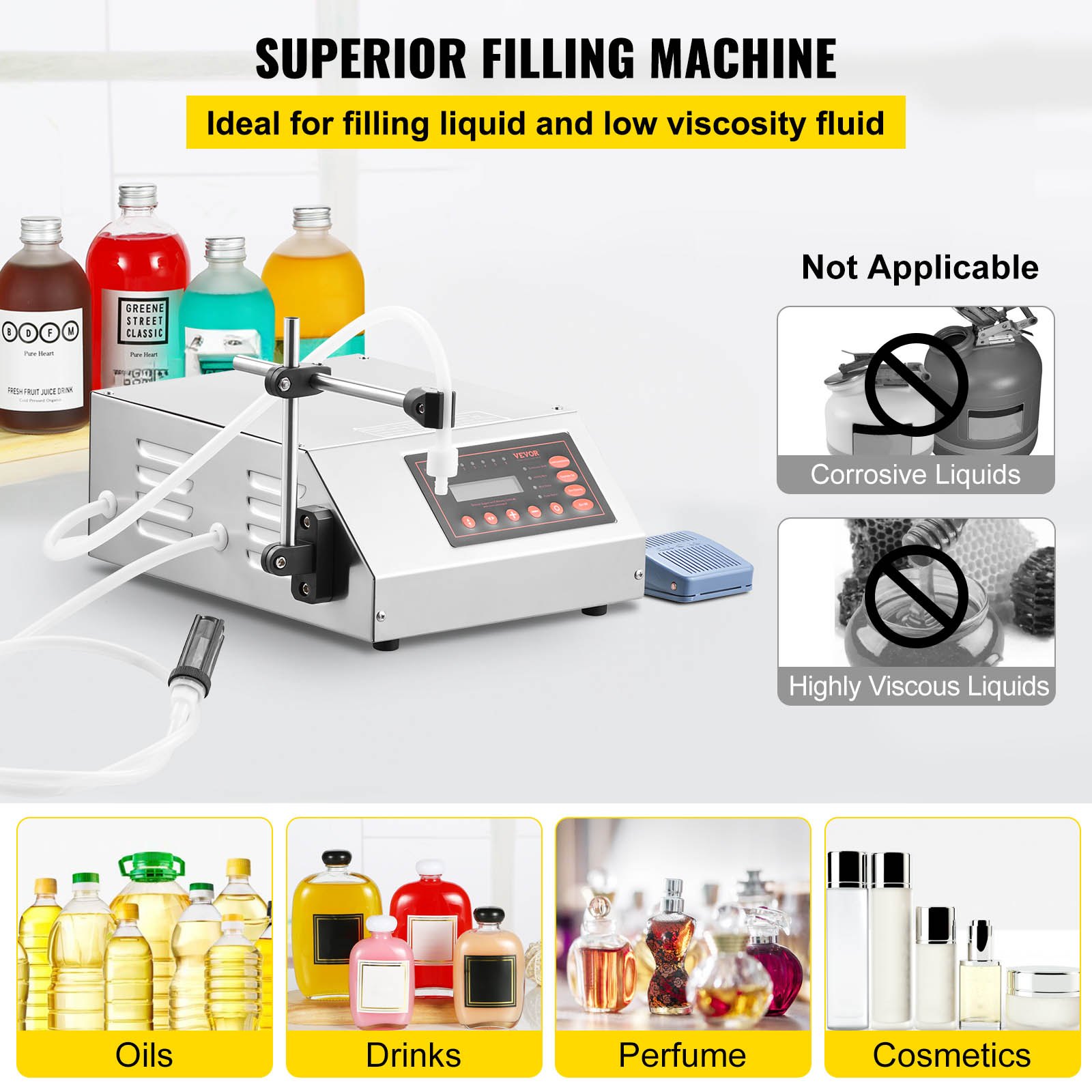

Comprehensive applications
Our filler is widely used in the food and beverage industry, the cosmetics and personal care industry, agriculture, the pharmaceutical industry, and the chemical industry. It is an ideal device for low-viscosity, particle-free liquids such as water, olive oil, fuel, beverages, etc.
- Model: GFK-160
- Voltage: AC 180-260 V
- Power: 30 W
- Maximum flow rate: 0.8 Gal/min / 3.2 L/min
- Max. suction distance: 2 m / 6.6 ft
- Repetition error: < 0.5%
- Filling volume: 0.18-123.2 ounces / 5-3500 ml
- Filling speed: 5-30 bottles/min
- Nozzle diameter: 8 mm (0.31 inches)
- Anti-drip function: Available
- Power failure memory function: Available
- Suitable soft hose: 17# (inner diameter: 6.4 mm, thickness: 1.6 mm, max. pressure: 0.24 MP)

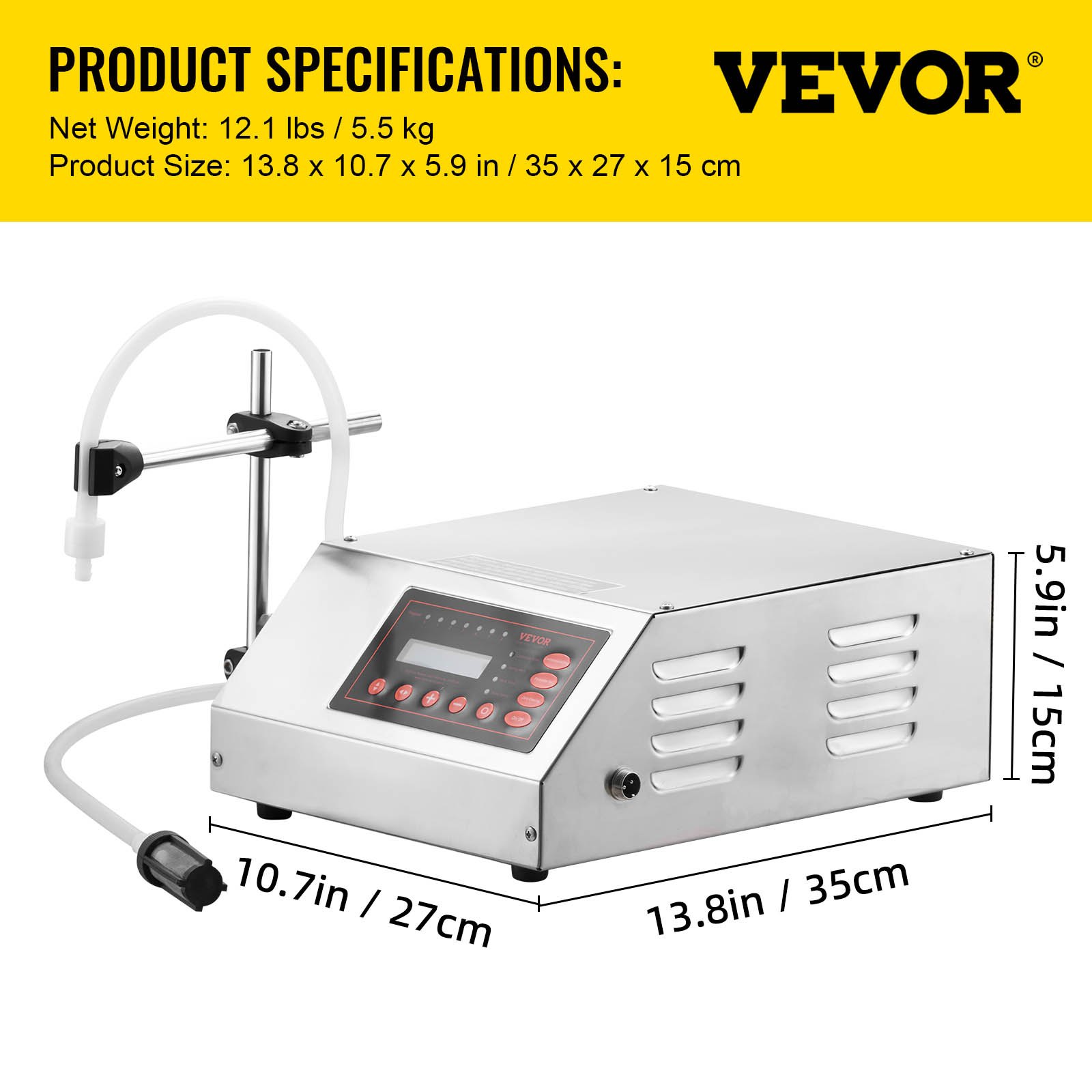

- Product dimensions (L x W x H): 13.8 x 10.7 x 5.9 inches / 35 x 27 x 15 cm
- Net weight: 12.1 lbs / 5.5 kg

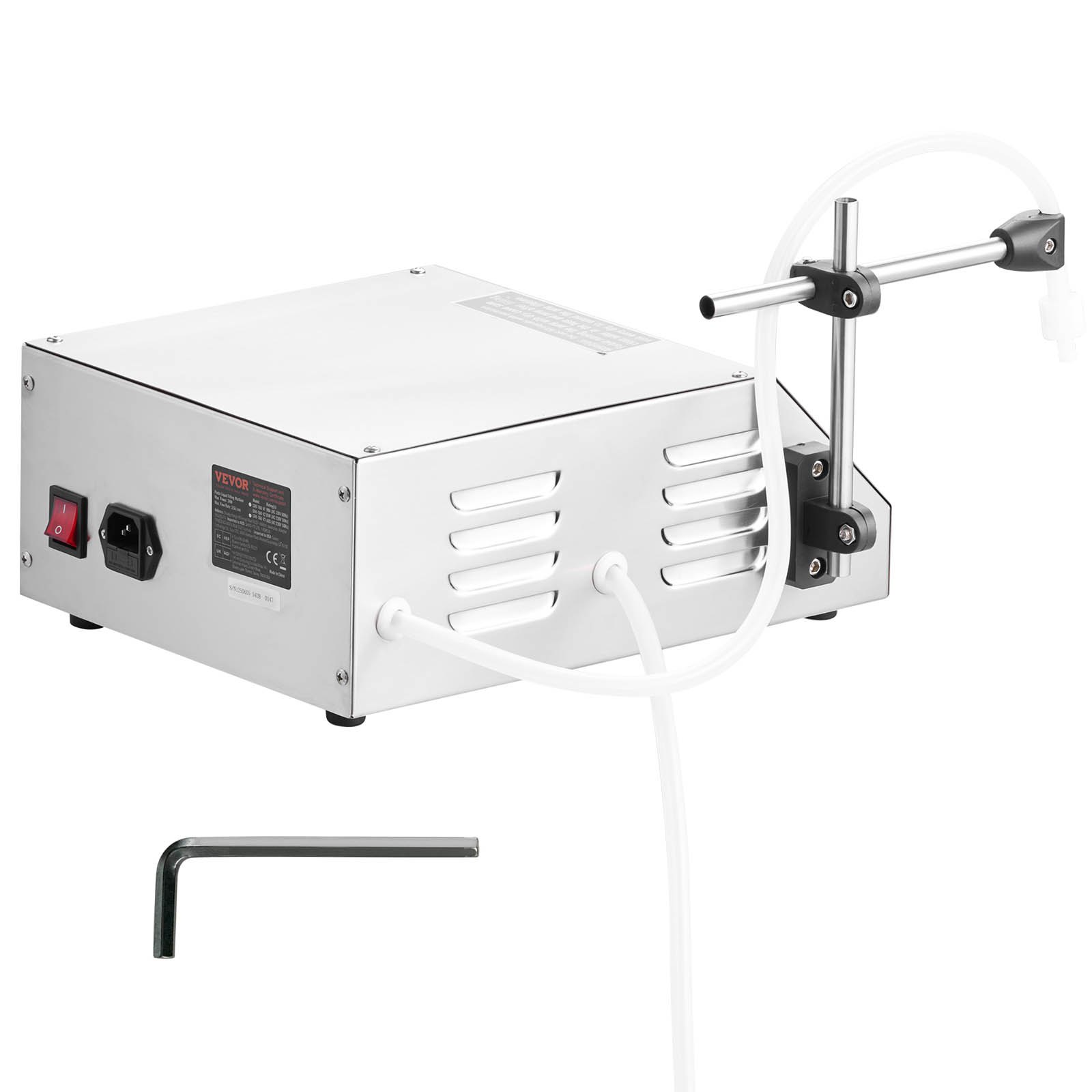

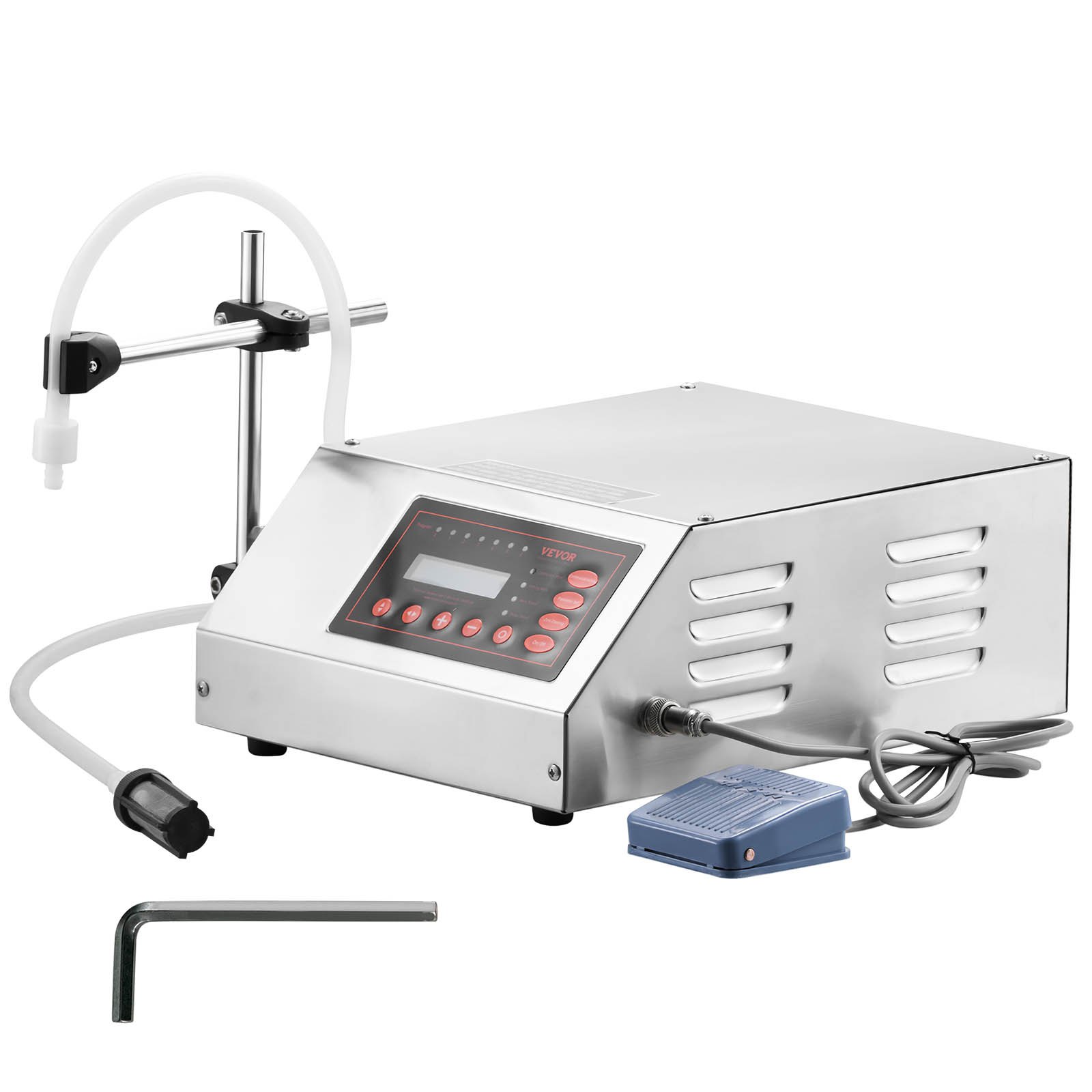

- 1 x filling machine
- 1 x power cable
- 1 x screwdriver
- 1 x Allen key
- 1 x manual
liquid filling machine
Anti-drip nozzle & 5-3500 ml quantitative filling & microcomputer control
This numerically controlled GFK series liquid filling machine from Updated uses a microcomputer to control the mini-pump via the filling time and the rotational speed of the electric motor, allowing the machine to fill liquids smoothly and with high accuracy. The machine features a self-priming pump that draws the liquid from your container and then dispenses it through the nozzle. It can be used to fill many different types of clear, thin liquids, including water, olive oil, beverages, vinegar, milk, etc. Note: Different liquids require a different tubing material. The tubing we supply is silicone.
- Note: You may find some marks on the machine upon receipt. These are caused by the protective film, which was heated and melted during processing. You can simply peel off the film, and the machine will be perfectly like new.
- Precise liquid filling
- Automatic & manual control
- Stainless steel structure
- Safety design
LCD Display Monitor
Our bottle filling machine is controlled by a single-chip microcomputer, ensuring high filling precision. Repeatable errors: < 0.5%. Filling volume and speed can be adjusted as needed via the LED display. Filling volume ranges from 5 to 3500 ml.
Stainless steel housing
All parts that come into contact with the product are made of 1.2 mm stainless steel. It is extremely easy to use, clean, and maintain. It is resistant to corrosion, acids, and alkalis. Furthermore, ventilation openings on both sides ensure rapid heat dissipation.
Anti-drip design
The outlet nozzle is equipped with two anti-drip systems that ensure high filling accuracy. There are also two filter screens at the water inlet to filter out impurities in the liquid and guarantee its purity.
Power switch
A built-in safety shutdown is useful to protect the machine. It features self-absorption, heat protection, stable operation, and continues to function well even when constantly idling or running under load for extended periods.
foot switch
The liquid filling machine is designed to be equipped with a foot switch for process control. A foot switch plus a self-priming function eliminates the need for pouring, making it convenient, safe to operate, and saving the user energy.
Comprehensive applications
Our filler is widely used in the food and beverage industry, the cosmetics and personal care industry, agriculture, the pharmaceutical industry, and the chemical industry. It is an ideal device for low-viscosity, particle-free liquids such as water, olive oil, fuel, beverages, etc.
- 1 x filling machine
- 1 x power cable
- 1 x screwdriver
- 1 x Allen key
- 1 x manual
- Model: GFK-160
- Voltage: AC 180-260 V
- Power: 30 W
- Maximum flow rate: 0.8 Gal/min / 3.2 L/min
- Max. suction distance: 2 m / 6.6 ft
- Repetition error: < 0.5%
- Filling volume: 0.18-123.2 ounces / 5-3500 ml
- Filling speed: 5-30 bottles/min
- Nozzle diameter: 8 mm (0.31 inches)
- Anti-drip function: Available
- Power failure memory function: Available
- Suitable soft hose: 17# (inner diameter: 6.4 mm, thickness: 1.6 mm, max. pressure: 0.24 MP)
- Product dimensions (L x W x H): 13.8 x 10.7 x 5.9 inches / 35 x 27 x 15 cm
- Net weight: 12.1 lbs / 5.5 kg
