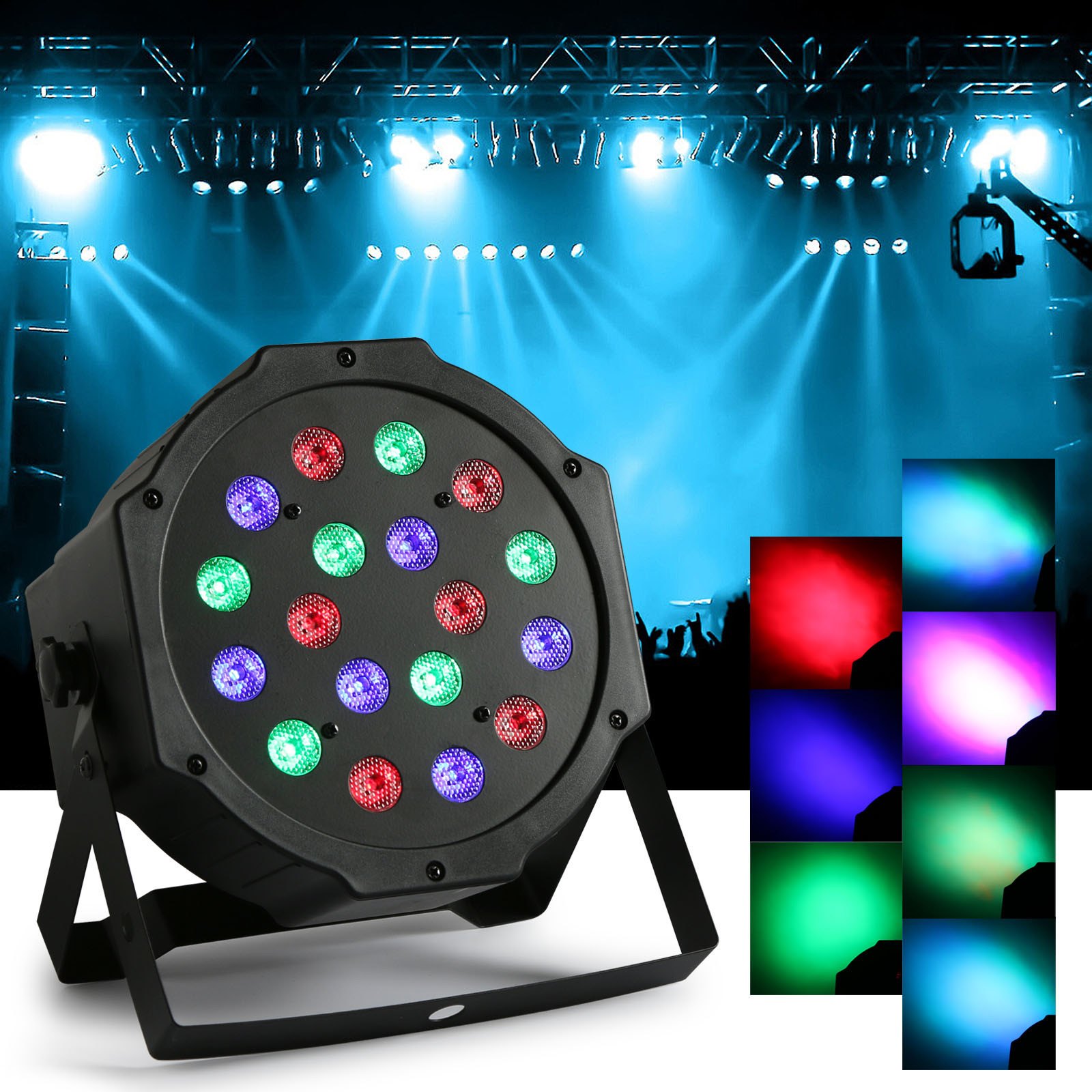

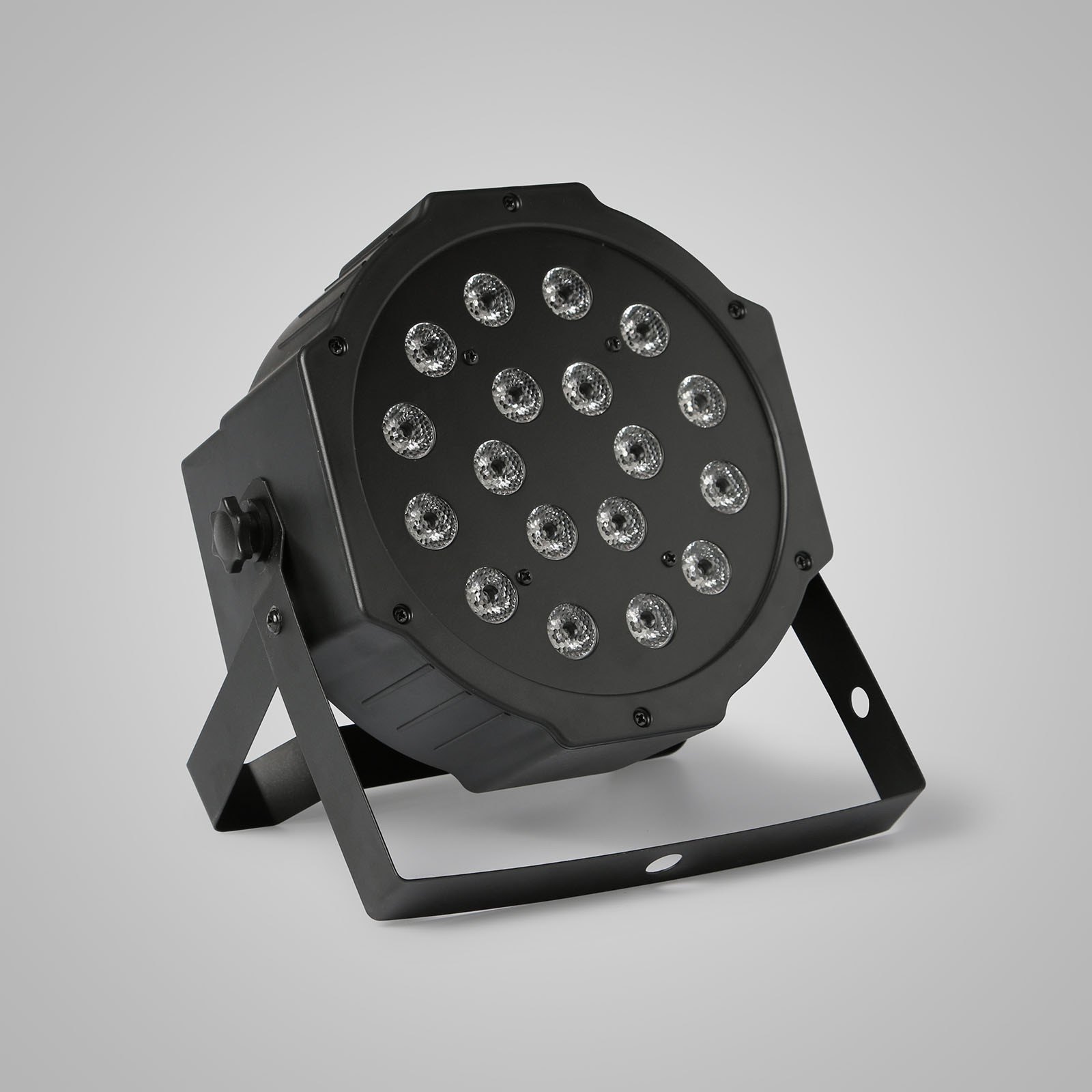

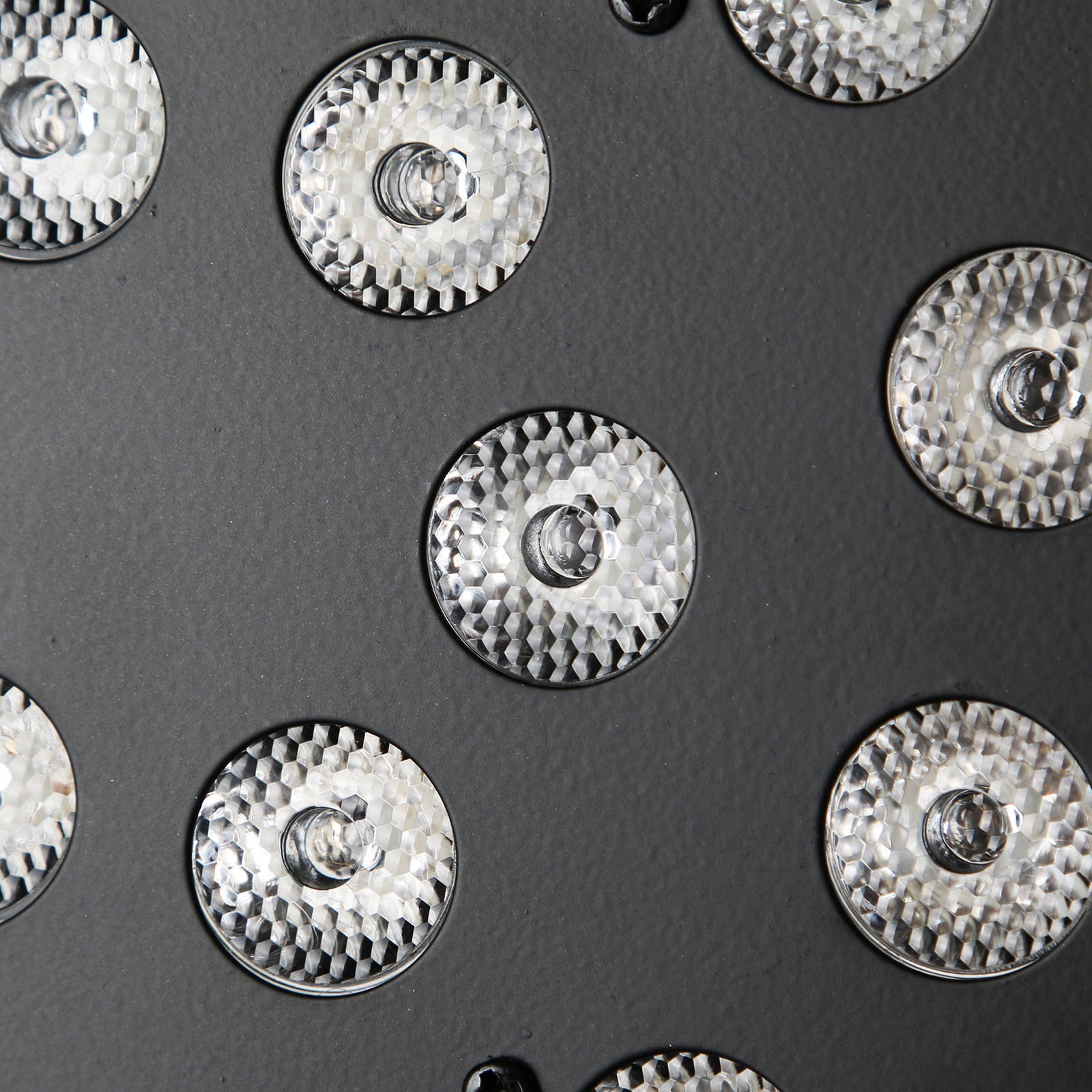

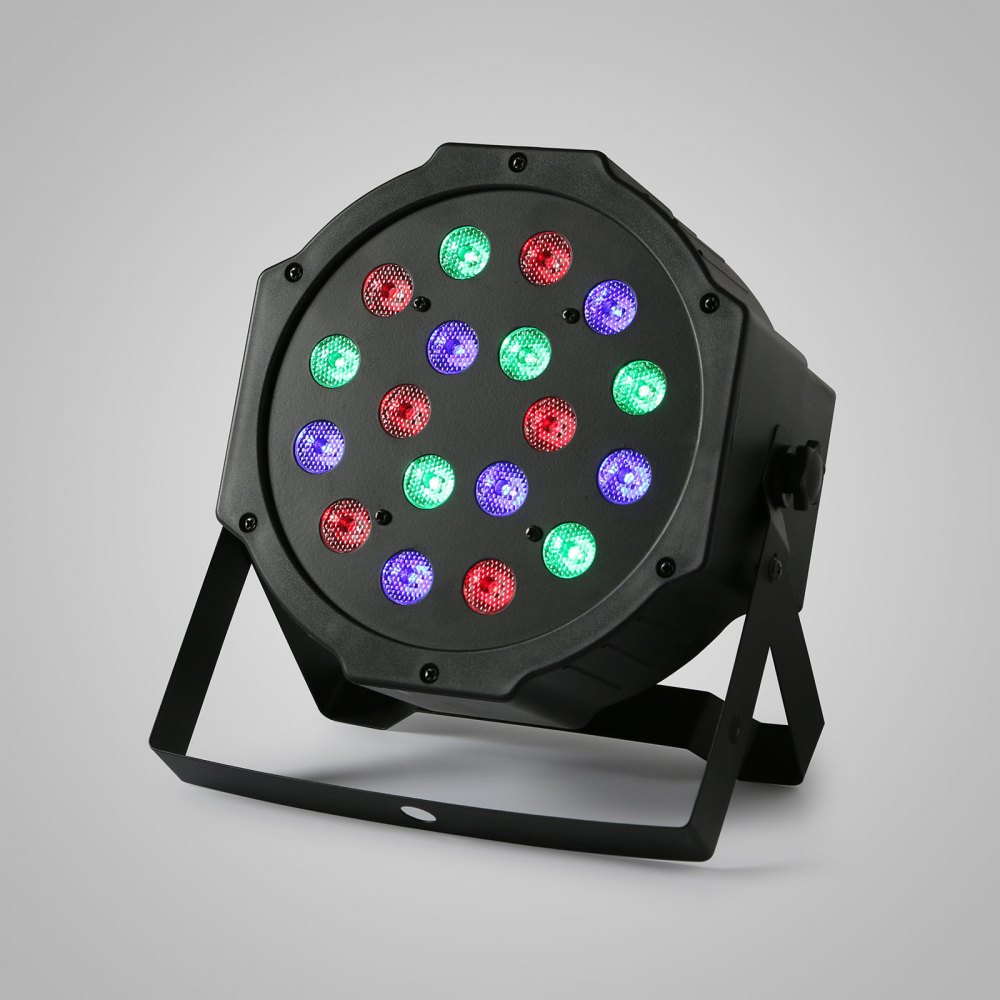

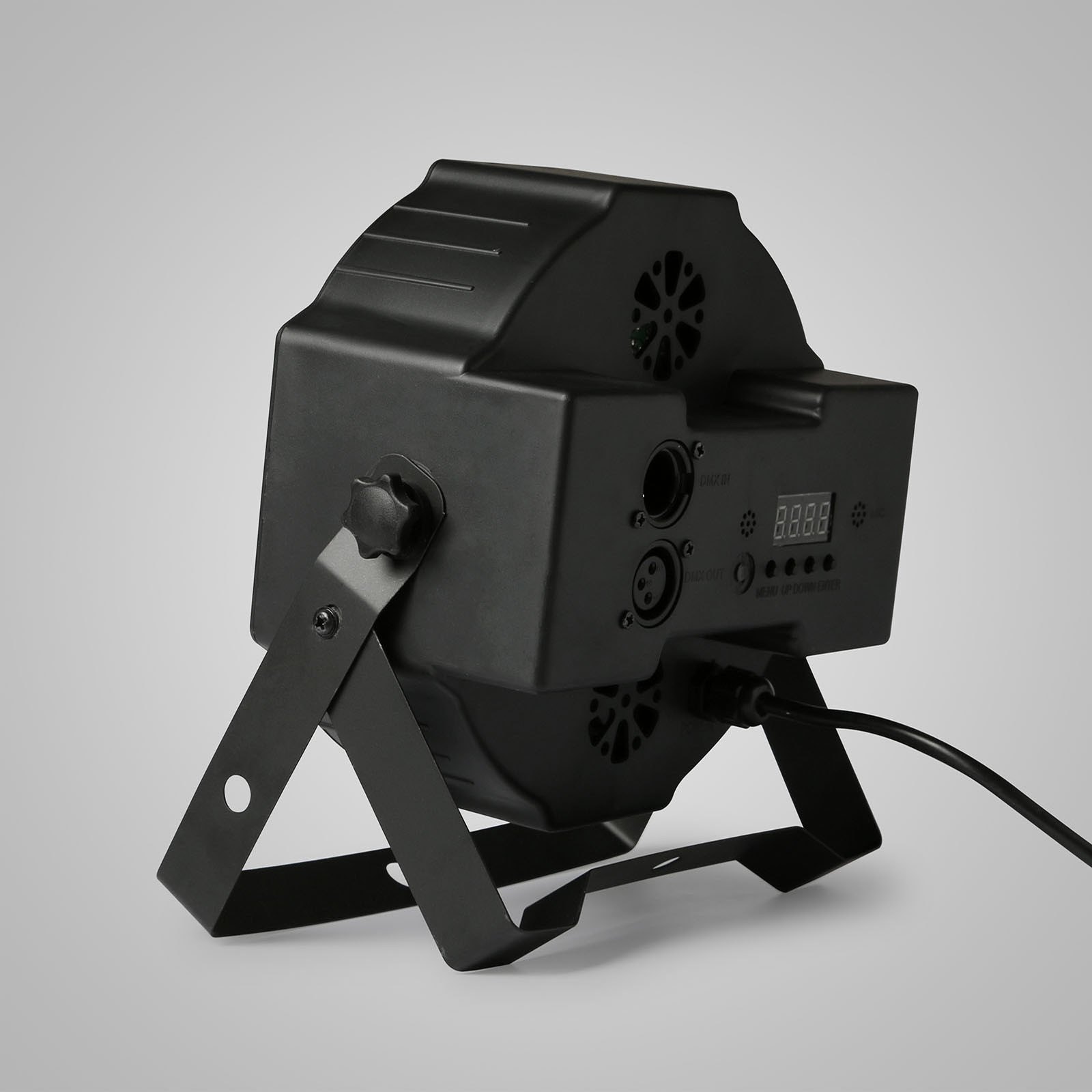

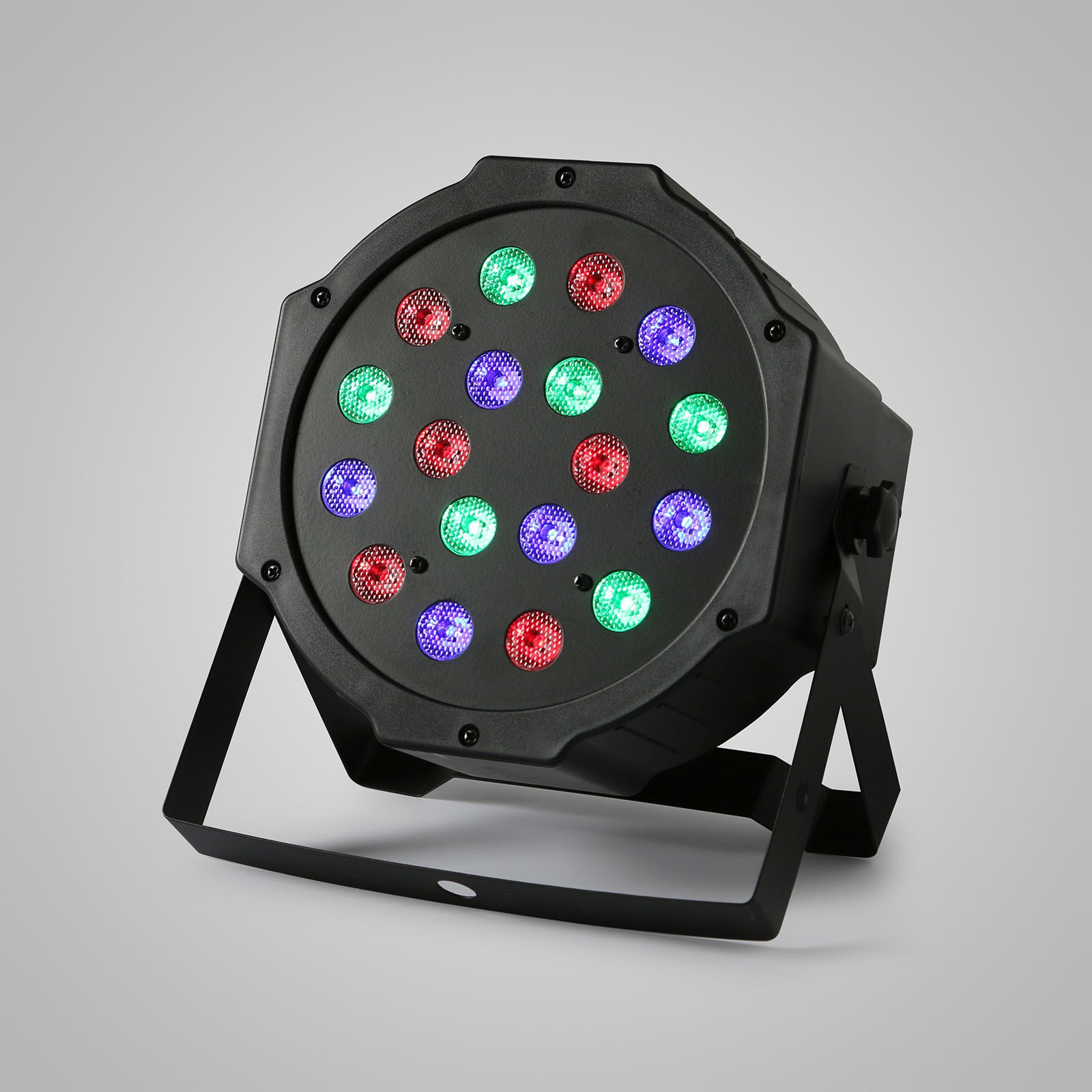

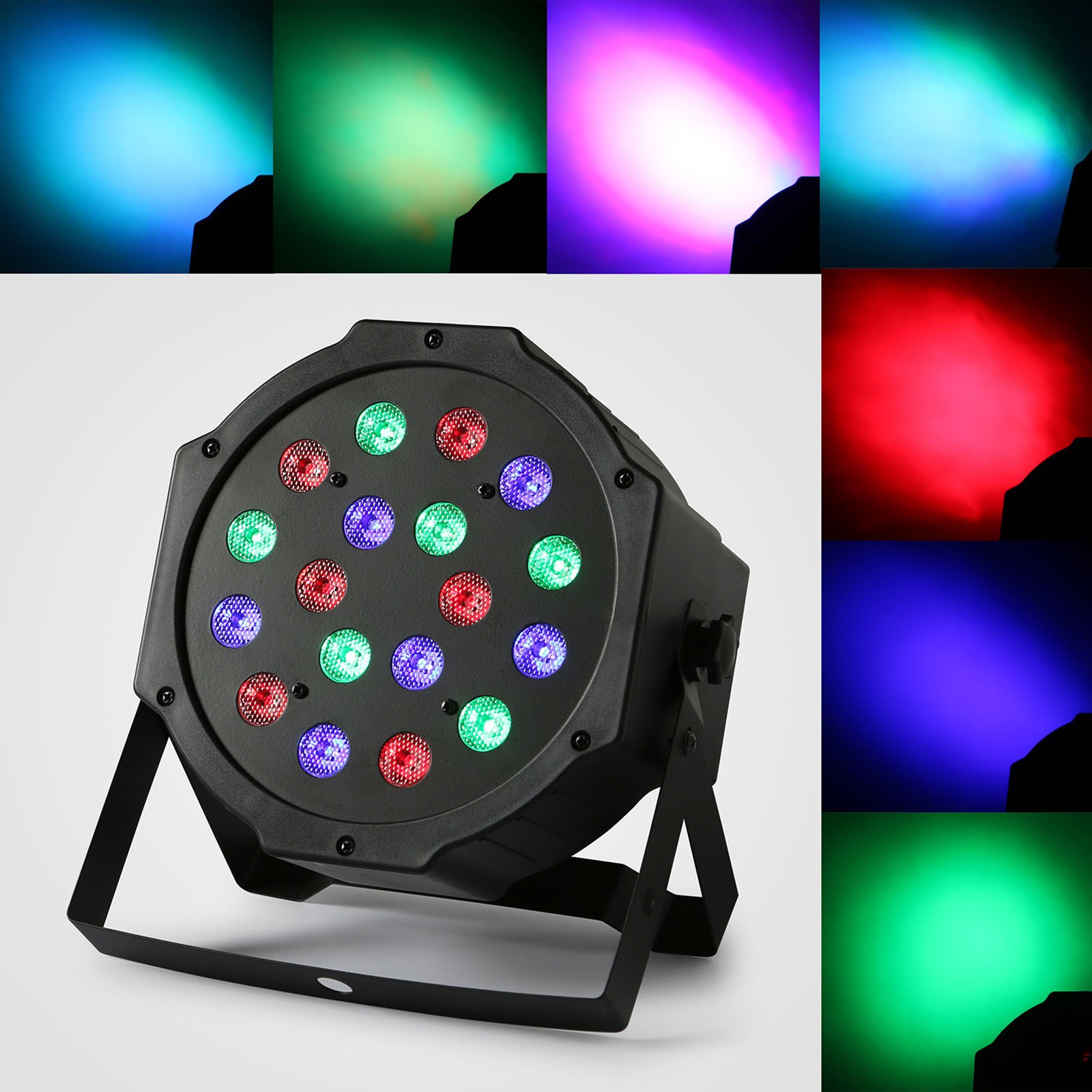

Esta luz de escenario RGB LED de 7 canales con control DMX-512 es una opción perfecta para que tengas todo tipo de escenario, luces de fiesta y decores tu lugar. Se utiliza para Club, DJ show, Fiesta en casa, Salón de baile, Bandas, Show bar, etc. Utiliza la última tecnología LED, adopta 18 (rojo 6 + verde 6 + azul 6), cada LED de grado superior de alta potencia, alto brillo y Bajo consumo de energía, color brillante y encendido. Con el controlador DMX-512 estándar para controlar, el rojo, el verde y el azul pueden ser atenuadores independientes, también pueden generar numerosos tipos de efectos de color, efectos estroboscópicos con velocidad ajustable, etc.

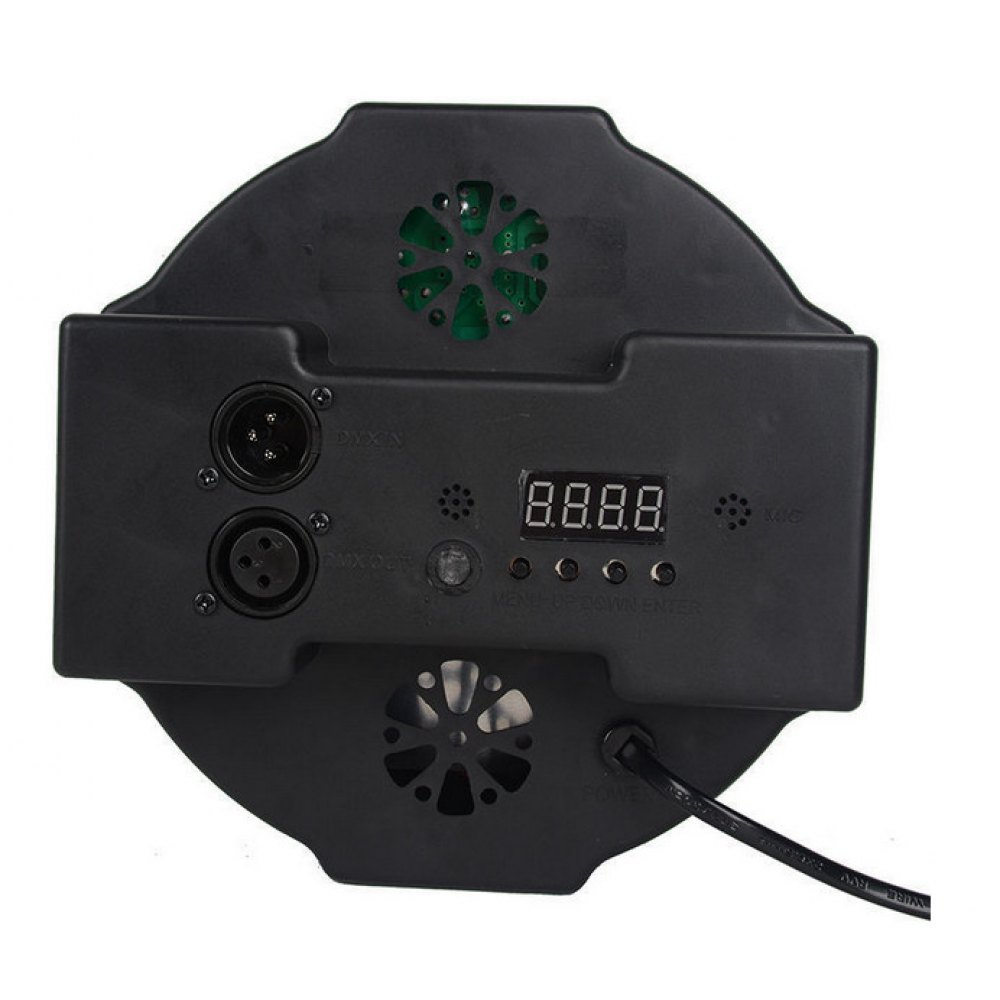

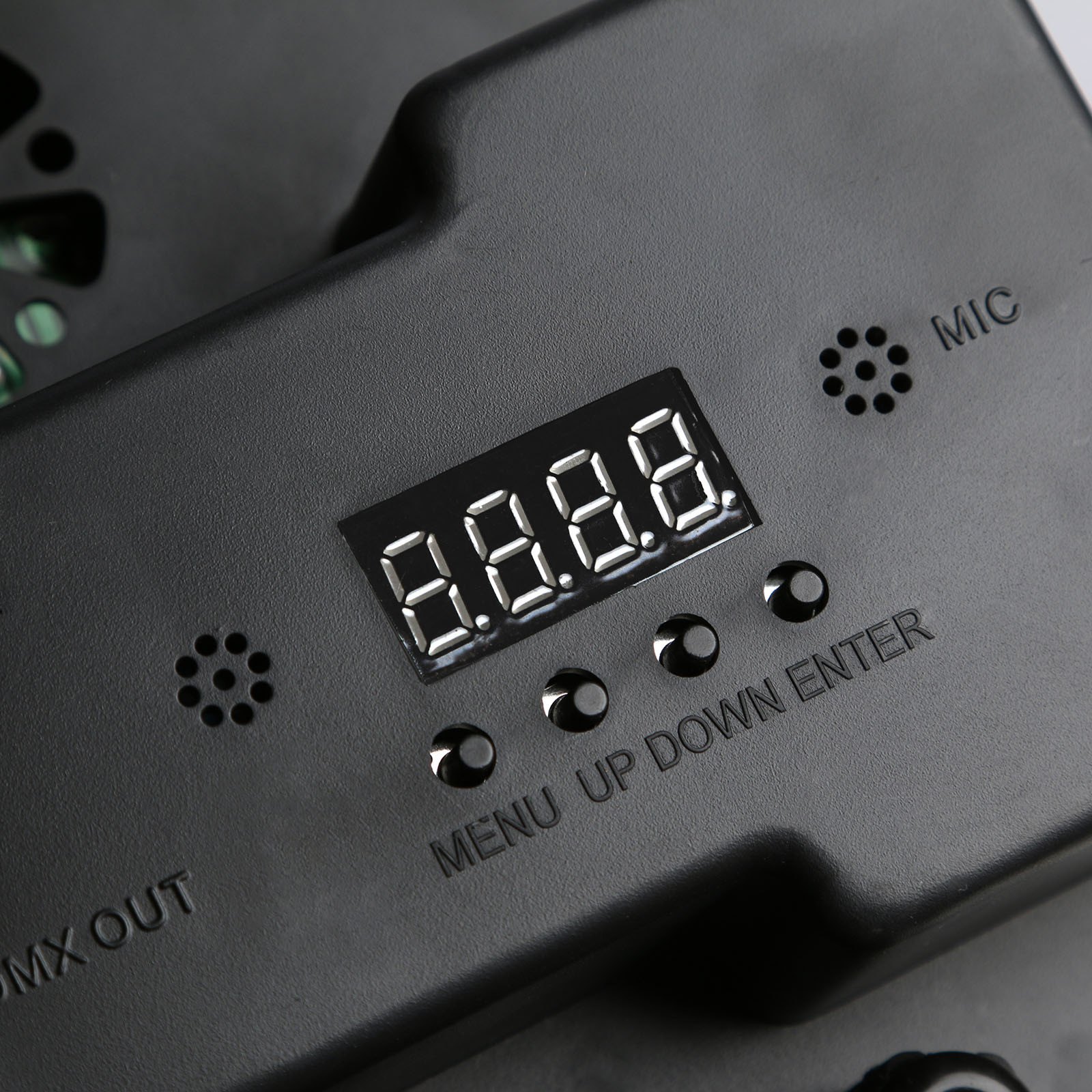

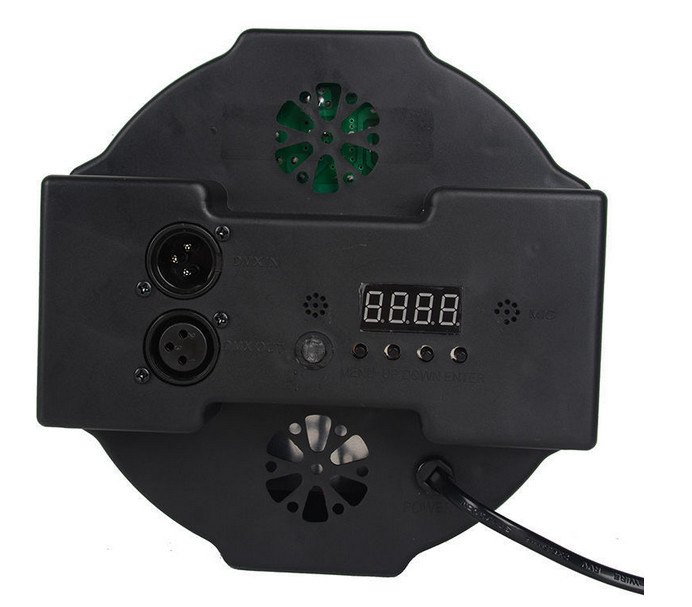

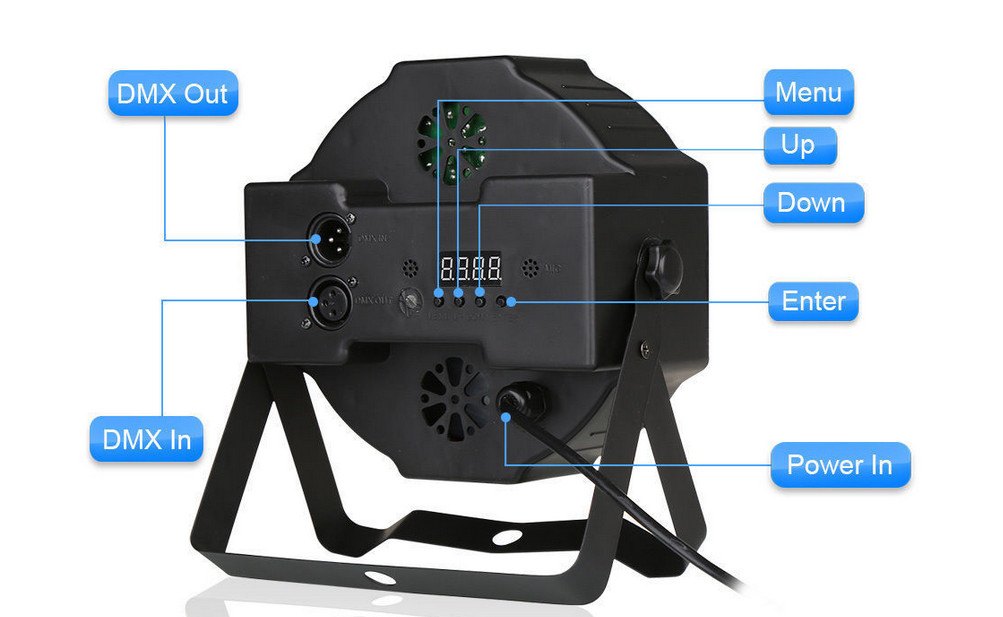

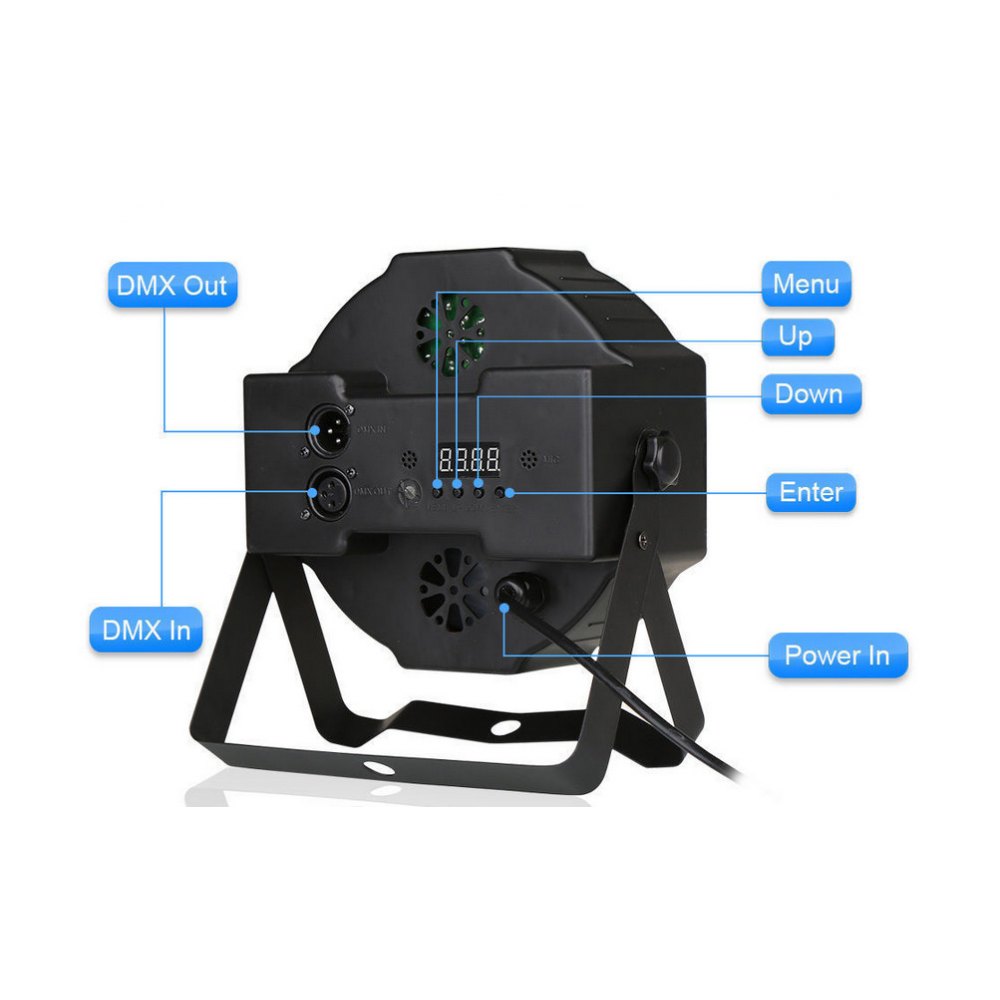

Button | Mode | ||
Control Mode | d001-d512 | DMX Control | |
CC01-CC64 | Colour Control | ||
rb01-rb16 | Gradual Change (The Bigger Number the faster speed) | ||
PL01-PL16 | Pulse variable (The Bigger Number the faster speed) | ||
Sd01-Sd16 | Jump (The Bigger Number the faster speed) | ||
Sound | Voice-Control | ||
r000-r255 | RED Colour Manual dimmer (The Bigger Number the faster speed) | ||
G000-G255 | Green Colour Manual dimmer (The Bigger Number the faster speed) | ||
b000-b255 | Blue Colour Manual dimmer (The Bigger Number the faster speed) | ||
Channel Table | Chanel | Value | Function Details |
CH1 | 0-255 | Tuned optical (a combination of CH2 and CH3, CH4) | |
CH2 | 0 | No Red | |
1-255 | Red Light Brightness Control (From dark to light) | ||
CH3 | 0 | No Green | |
1-255 | Green Light Brightness Control (From dark to light) | ||
CH4 | 0 | No Blue | |
1-255 | Blue Light Brightness Control (From dark to light) | ||
CH5 | 0-7 | No Strobe | |
8-255 | Strobe (The bigger number the faster speed) | ||
CH6 | 0-10 | Manual Control(CH1-CH5) | |
11-60 | Choose Colour(Control by CH7) | ||
61-110 | Gradual Change(Control by CH7), | ||
(The bigger number the faster speed) | |||
111-160 | Pulse Variable(Control by CH7) | ||
(The bigger number the faster speed) | |||
161-210 | Jump(Control by CH7), | ||
(The bigger number the faster speed) | |||
211-255 | Voice-Control | ||
CH7 | 0-255 | Choose Colour (The bigger number the faster speed) | |
Note: the 1st Number will be when choose DMX | |||
Master & Slave Control: | |||
Two or more light connect by the line, choose one of them to be master and the other one all set at “d001”. | |||
