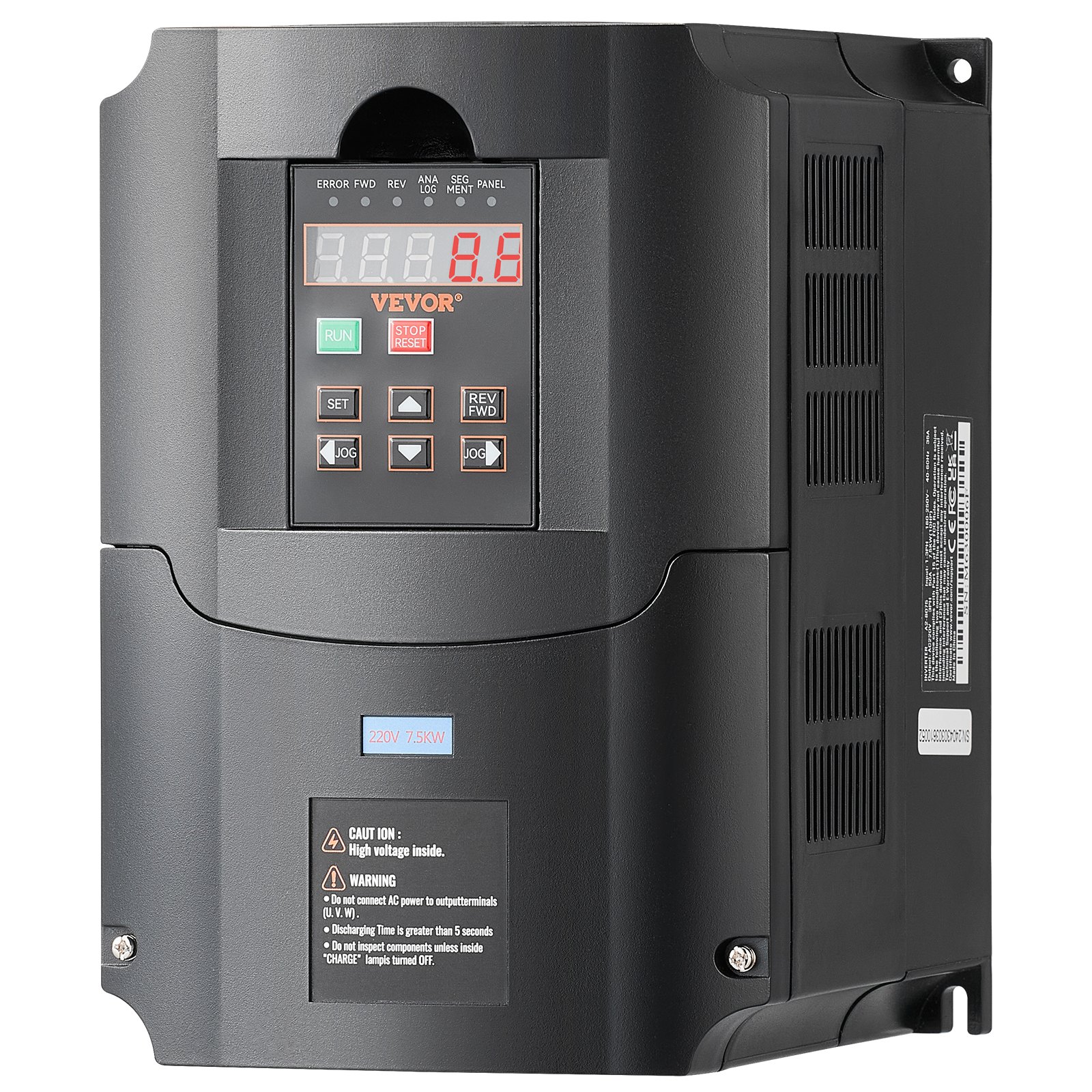

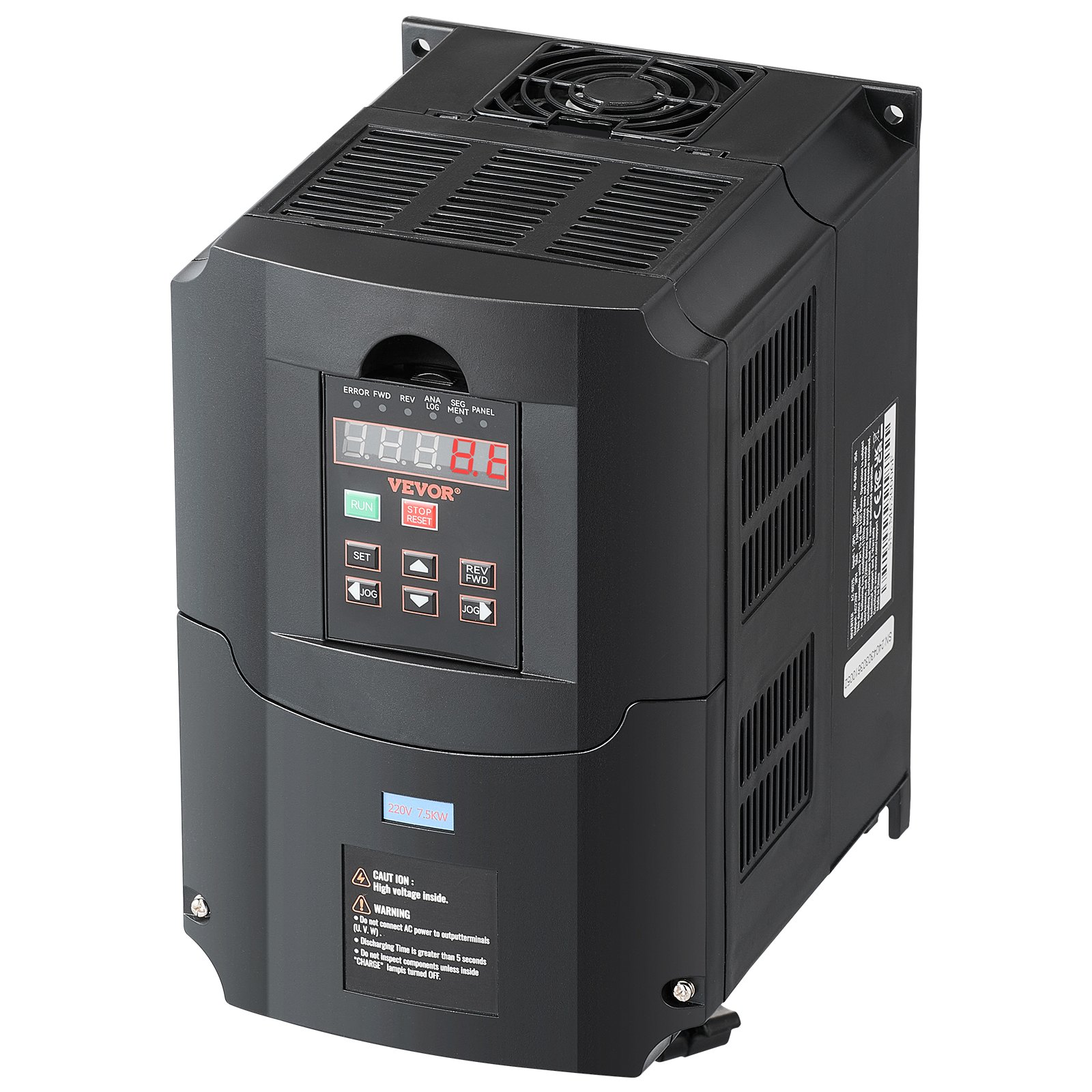

VEVOR frequency converter VFD 10 HP, 7.5 kW, 35 A, 1- or 3-phase 220 V input to 3-phase 220 V output, 40-60 Hz input, 0-400 Hz output, VFD for spindle motor CNC speed control
4.4 194 Reviews
169 90 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- Key parameters: Power: 7.5 kW, Horsepower: 10 hp, Input current: 35 A. Input phase: single-phase 220 V or three-phase 220 V; Output phase: three-phase 220 V. Input frequency: 40–60 Hz; Output frequency: 0–400 Hz.

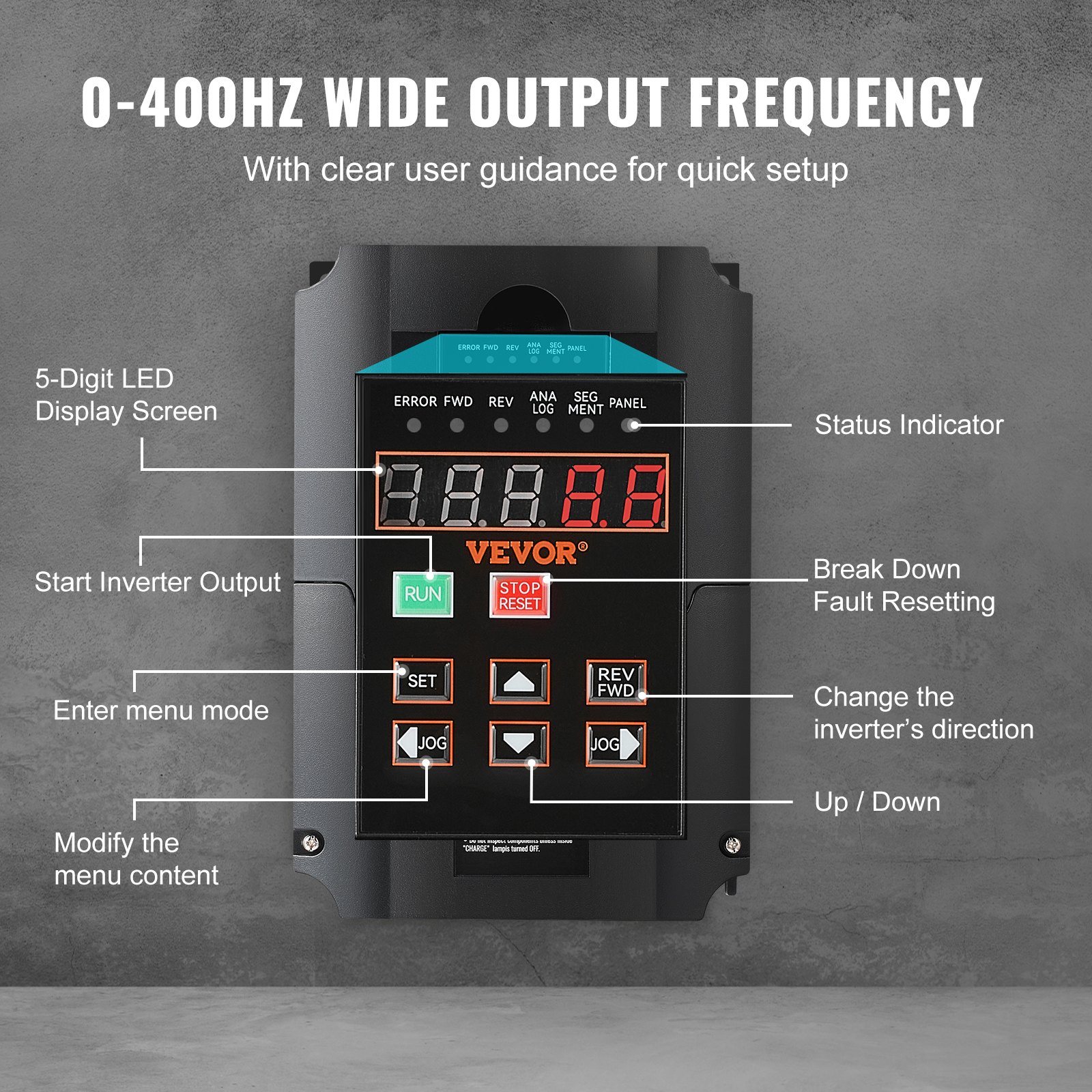

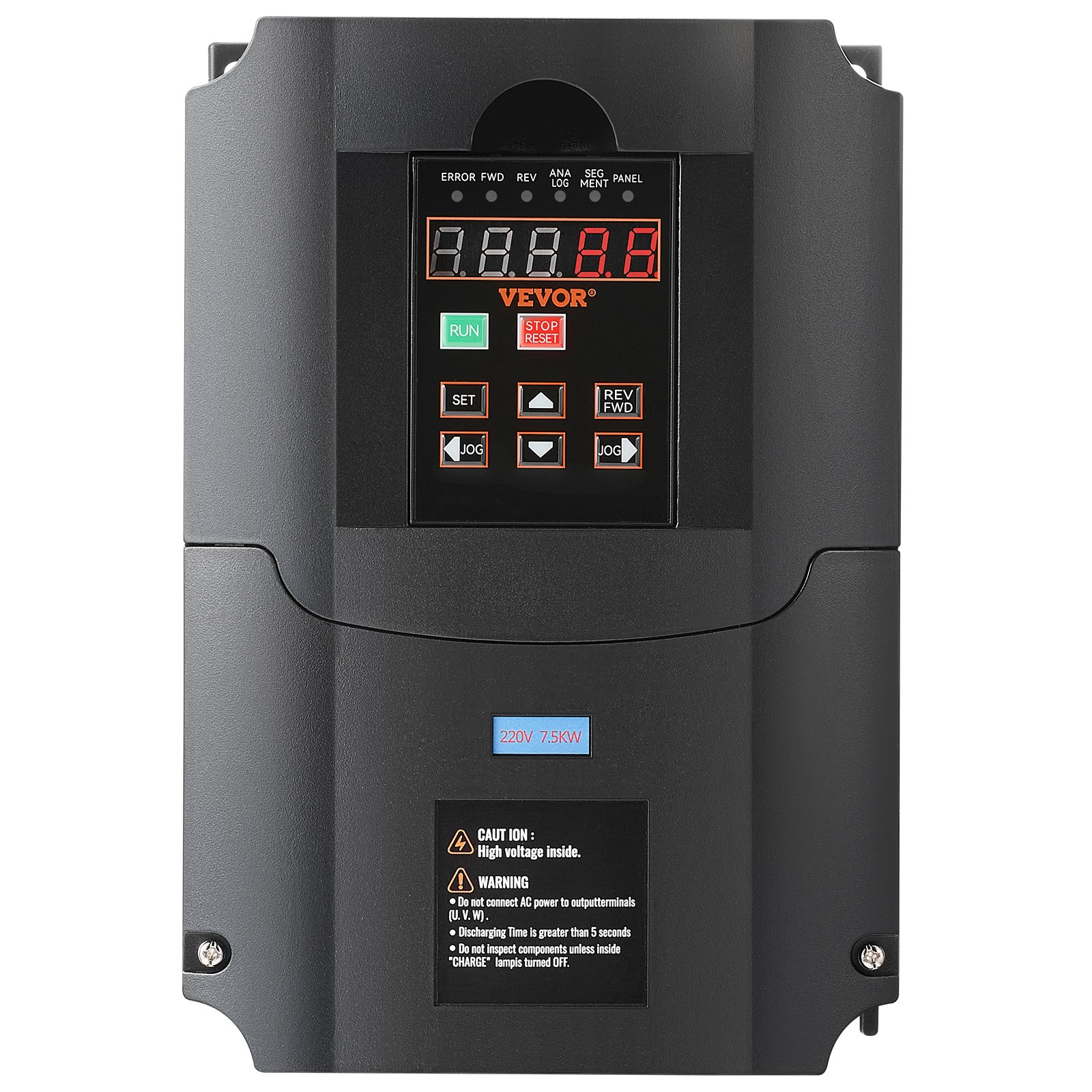

- Intuitive display and buttons: Our variable frequency drive (VFD) features an intuitive display and user-friendly buttons, allowing users to get started quickly. The detachable control panel can be connected to the appropriate interface for remote control, providing added convenience and flexibility.

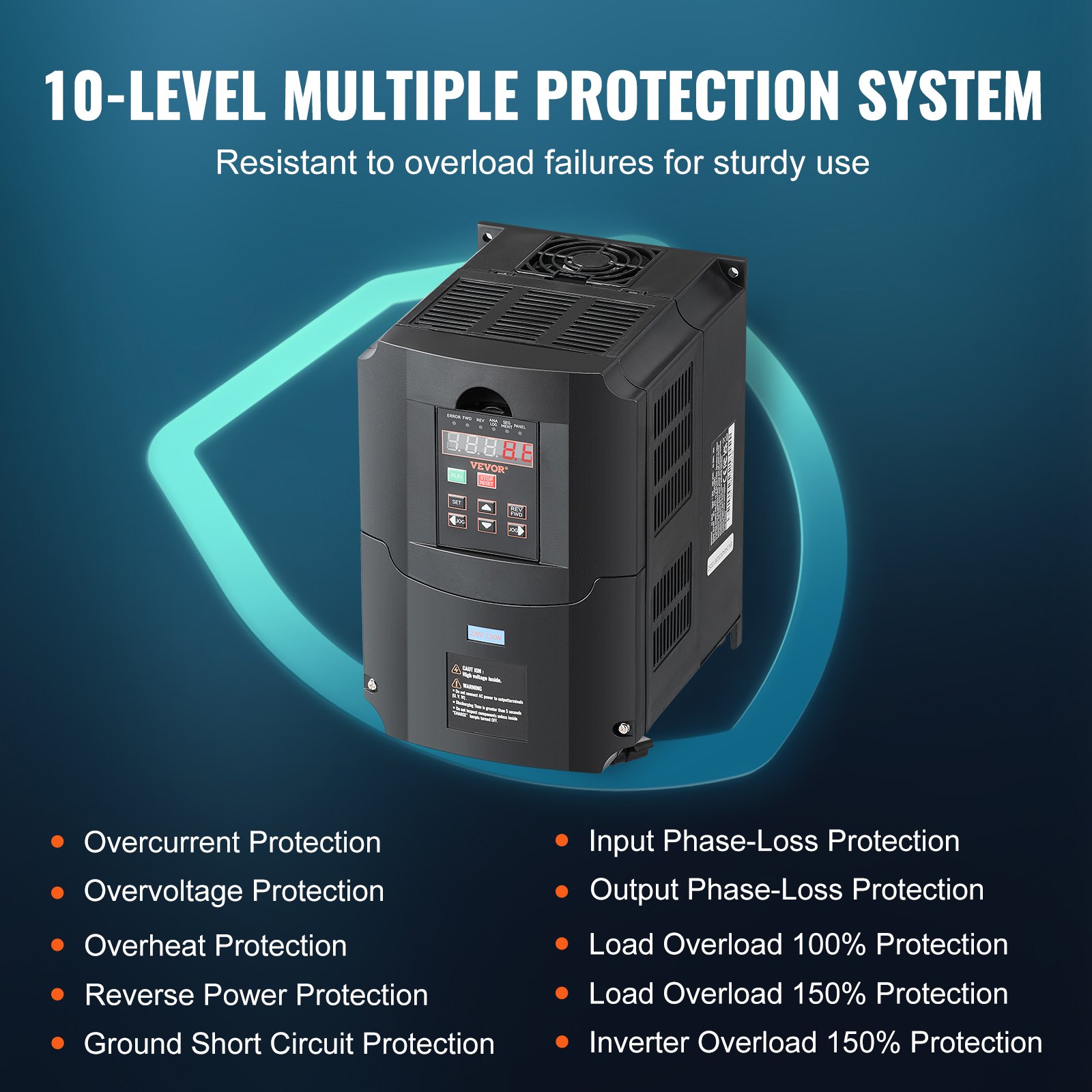

- Safety and durability redefined: The VFD features a comprehensive protection system that safeguards against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and increase the VFD's lifespan. Its multi-sided, multi-hole design ensures rapid cooling during extended use.

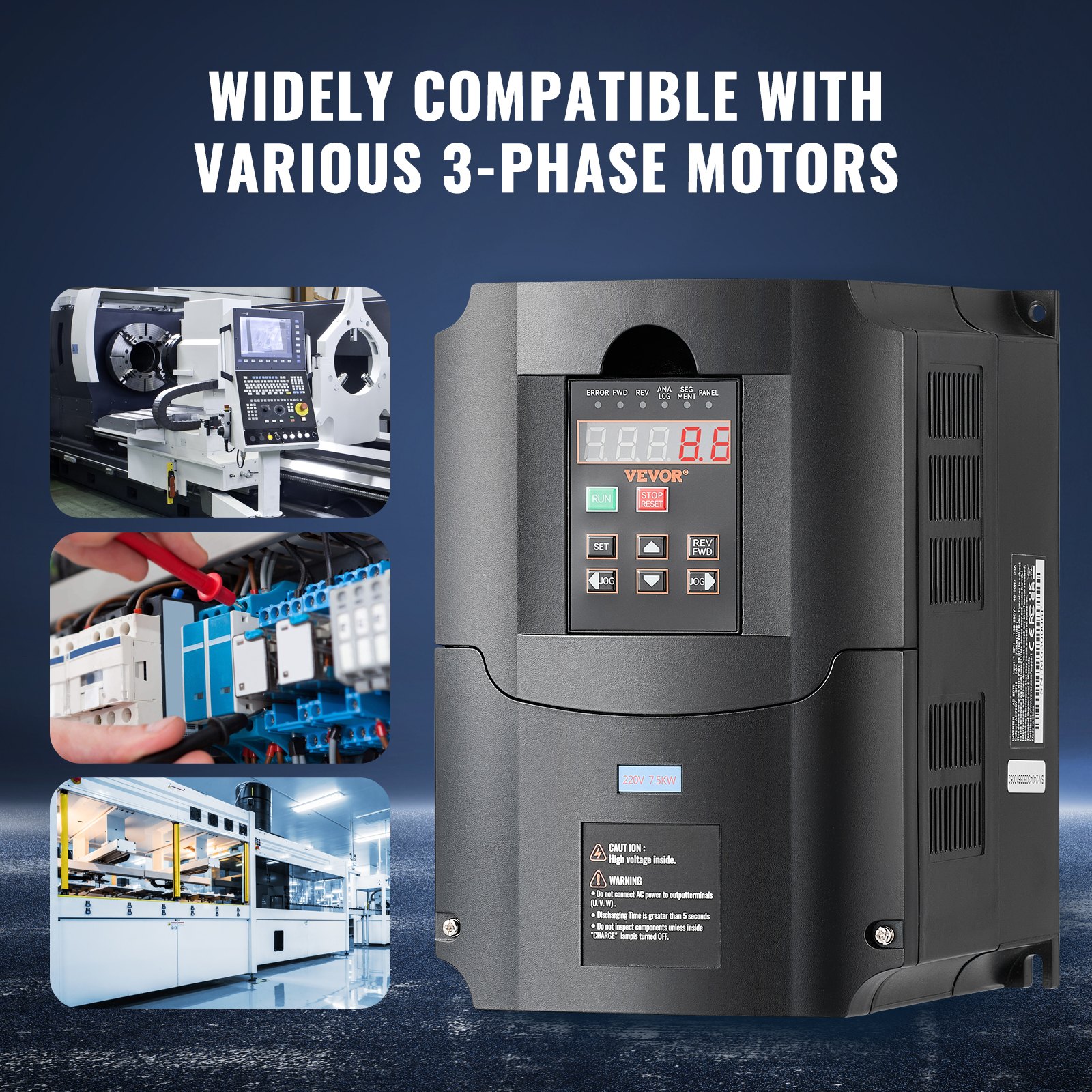

- Master of versatility: Our VFD is ideal for driving three-phase motors in various machines, including CNC milling machines, CNC machining centers, milling machines, drilling machines, compressors, pumps, grinding machines, elevators, centrifuges, and other speed-controlled machines. For higher motor loads and optimal results, choose a higher-powered VFD.
- Friendly reminder: The motor power should not exceed that of the frequency converter, and a lower power rating is perfectly acceptable. Depending on the varying load, the power may need to be reduced for optimal performance, especially under high load conditions.
Product specification
- Article model number A2-8075
- Input voltage 220 V (single-phase or three-phase)
- Input current 35 A
- Output voltage 220 V (three-phase)
- Power 7.5 kW
- Input frequency 40-60 Hz
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Top Reviews
About this item
Product specification
- Article model number
- A2-8075
- Input voltage
- 220 V (single-phase or three-phase)
- Input current
- 35 A
- Output voltage
- 220 V (three-phase)
- Power
- 7.5 kW
- Input frequency
- 40-60 Hz
- Output frequency
- 0-400 Hz
- Power
- 10 hp
- Main material
- Flame-retardant ABS
- Net weight
- 5.6 lbs / 2.56 kg

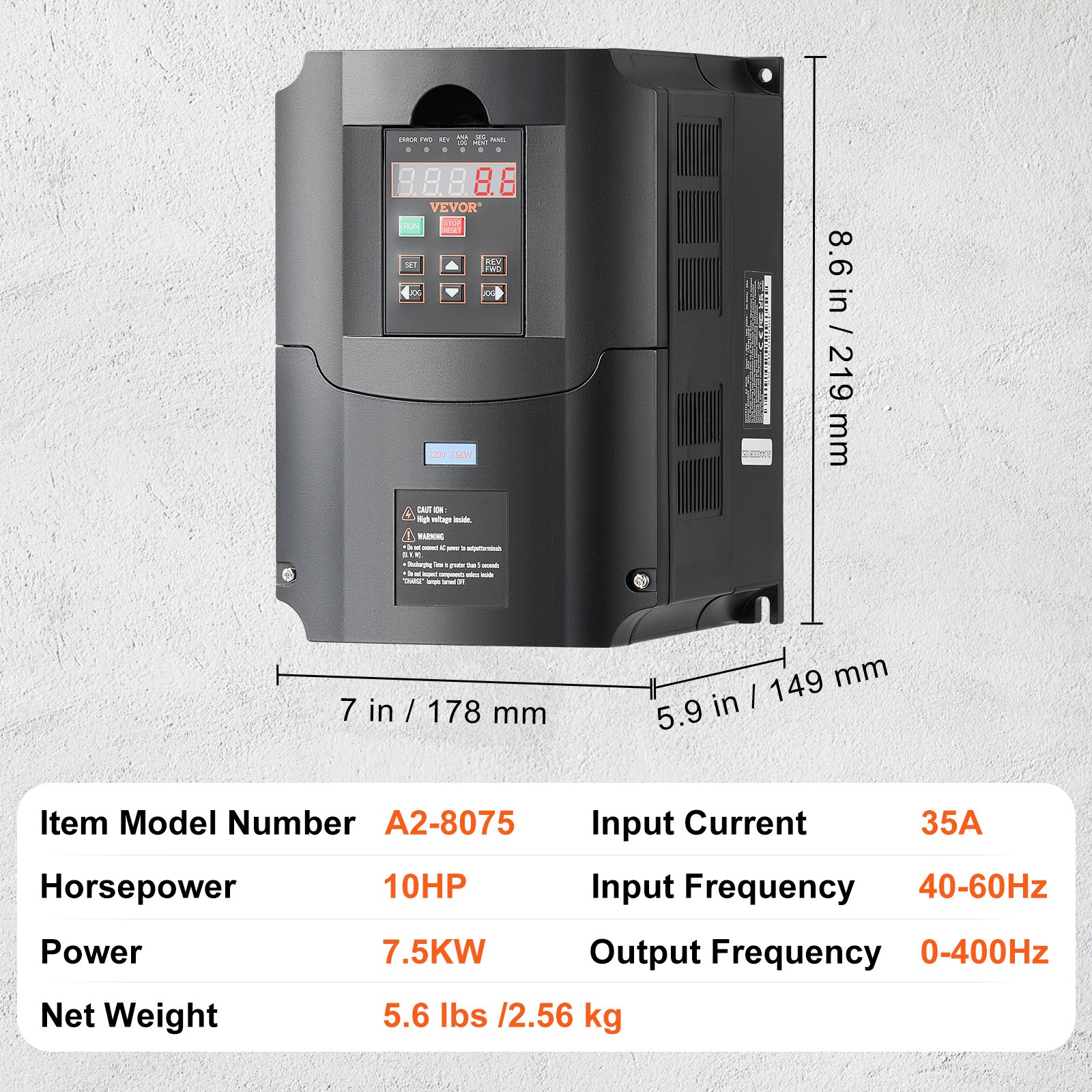

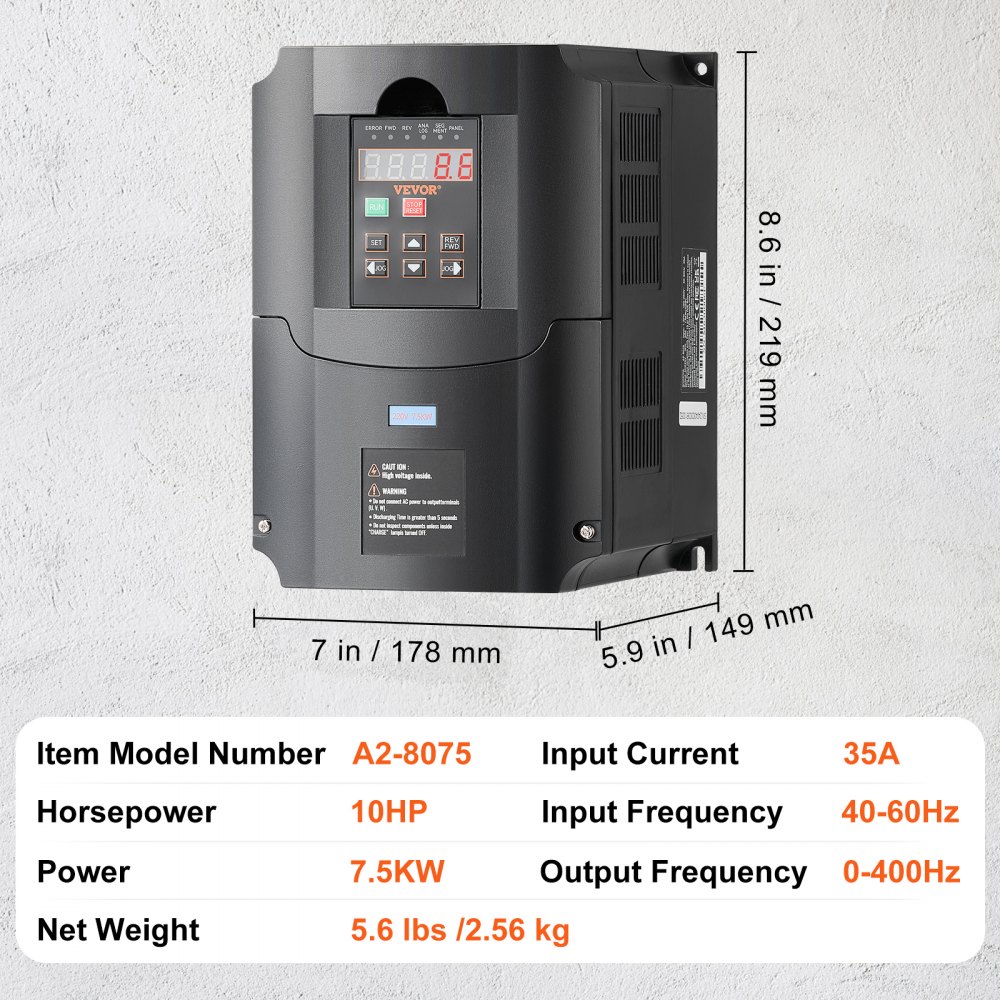

- Product dimensions
- 8.6 x 5.9 x 7.0 inches / 219 x 149 x 178 mm
Description
7.5 kW, 35 A, 10 HP frequency converter

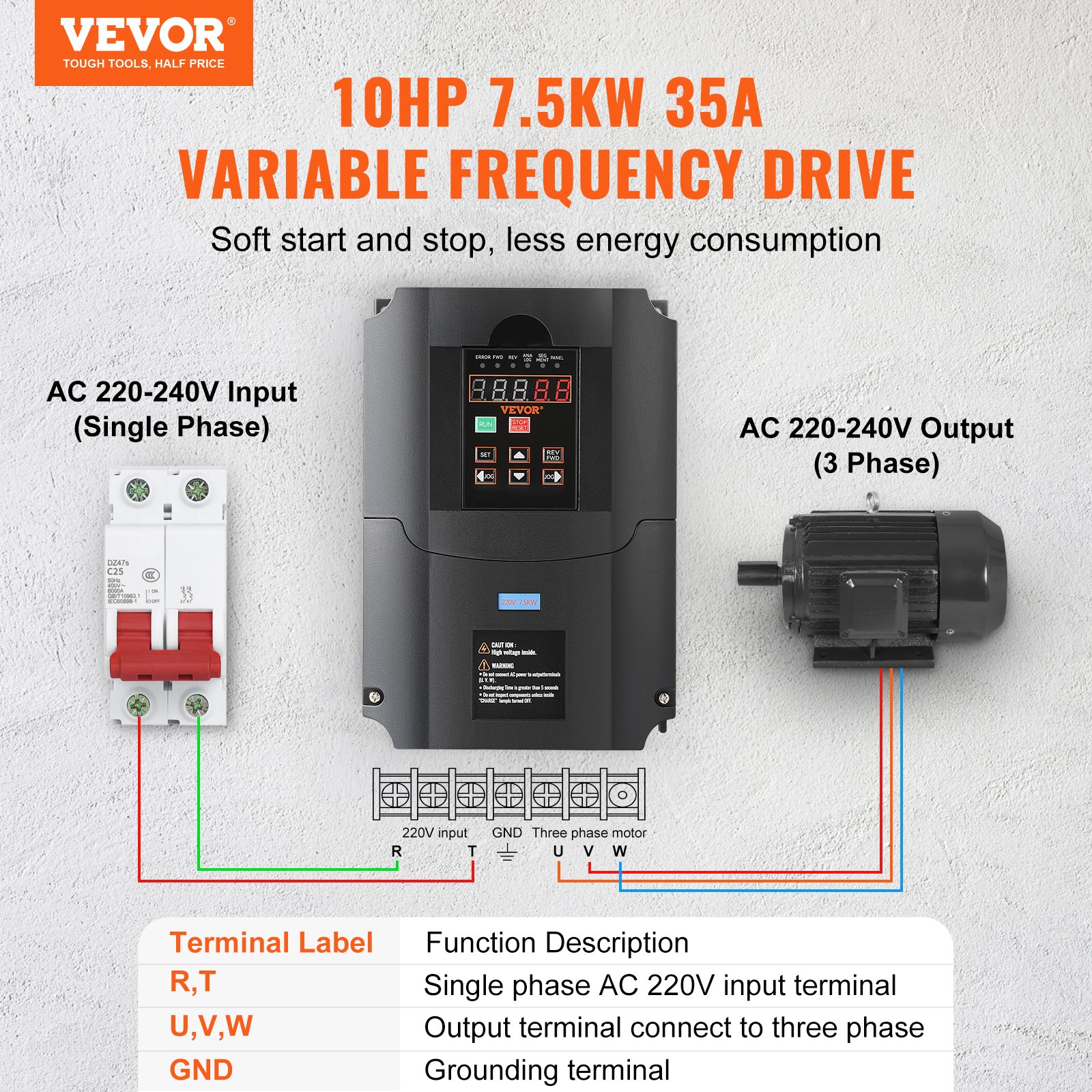

The frequency converter's input is single-phase 220 V (1PH) or three-phase 220 V (3PH), and its output is three-phase 220 V (3PH). Simple wiring, an intuitive display, and comprehensive protection functions improve energy efficiency and minimize machine failures.
The frequency inverter features an intuitive display and easy-to-use buttons for trouble-free start-up. It has a detachable control panel that can be connected to the corresponding interface for remote control, providing added convenience.
Our VFD is equipped with an intelligent protection system that offers protection against overcurrent, overload, overvoltage, and phase loss. It is made of flame-retardant ABS and ensures high performance and quality from the inside out, so you can use it with complete peace of mind.

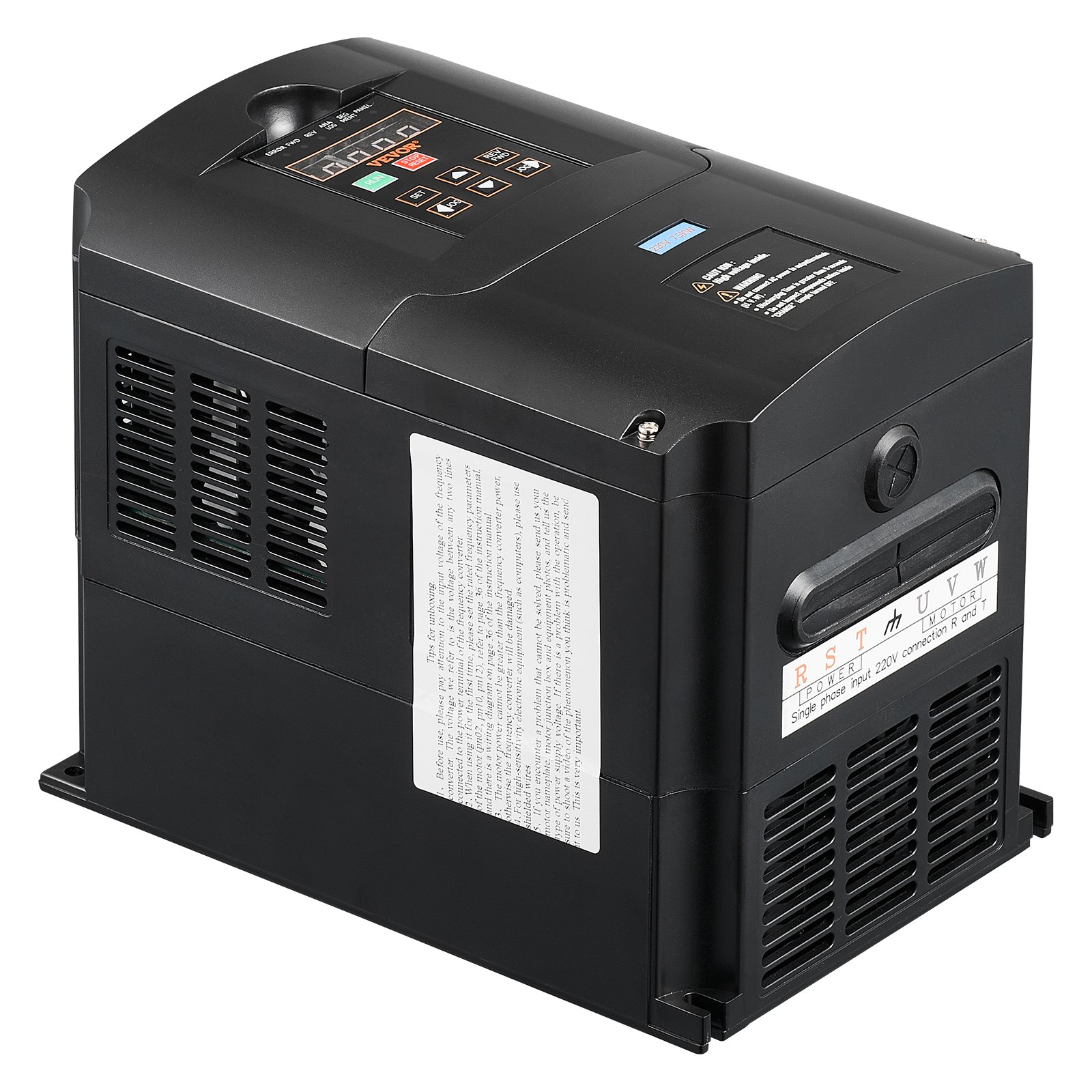

Stable and efficient operation relies on large cooling fans and a design with multiple heat dissipation holes, which prevents overheating and overload during prolonged operation.
① Turn off the power when connecting cables. ② To protect the VFD, press the red "Stop" button and turn off the power when not in use. ③ Avoid humid or hot environments. ④ You should choose a VFD with higher power.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (4)
Es lo mismo inversor que variador?
De este modo, le recomendaremos el producto más adecuado. Así se evitará que, debido a un malentendido, elija un producto incorrecto.
Si esta respuesta no resuelve su problema, póngase en contacto con nosotros de nuevo para solicitar ayuda.
By vevor
Helpful
(
0
)
En sentido literal, es lo mismo.
Sin embargo, debido a las grandes diferencias culturales que existen,
para evitar malentendidos,
puede explicarnos cuál es su objetivo,
es decir, qué quiere hacer, qué espera conseguir, etc., o bien qué requisitos cumple y qué objetivo desea alcanzar.
By vevor
Helpful
(
0
)
Se le podrían conectar dos motores cinc de 3kw a la vez ?
Si se inician y se detienen al mismo tiempo, se pueden conectar al mismo tiempo.
By vevor
Helpful
(
0
)
Tengo un elevador de coches con motor trifasico y la electricidad que tengo es monofásico con este variado de frecuencia puedo hacerlo funcionar
Gracias Victor
Sí, con este convertidor de frecuencia puedes hacerlo funcionar.
By vevor
Helpful
(
0
)
Hola me gustaría hacer una consulta tengo 10 placas solares de 570 w y una bomba de agua trifásica 4 kw y me falta variador para usar placas me serve para el usó
No, porque los paneles solares requieren un inversor dedicado; de lo contrario, será difícil que funcionen correctamente. A menos que tenga un cargador solar dedicado y una fuente de alimentación de respaldo, no se puede usar si no hay una batería de respaldo. se puede utilizar.
By vevor
Helpful
(
0
)
