Features & Details
- 【HIGH THERMAL EFFICIENCY】 - Turbulent flow moves the two media in opposite directions, generating strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series is CE certified.
- 【ENERGY OPTIMIZED】 - This stainless steel heat exchanger can heat water to the preset temperature, which is very energy-efficient with no electricity consumption and no oxygen consumption.
- 【ROBUST CONSTRUCTION】 - This 40-plate heat exchanger features 316L stainless steel plates brazed together at the edges and contact point matrix to form a reliable and robust component, creating a durable, integral part that withstands high pressure and high temperature. Four thickened MNPT ports facilitate easier installation.
- 【COMPACT DESIGN】 -The corrugated plate design of these plate coolers allows for a significantly smaller construction and footprint with equivalent or better performance compared to other heat transfer devices - resulting in significant space savings.
- 【HIGHLY VERSATILE】 - This heat exchanger offers the highest level of thermal efficiency and durability in a compact and lightweight unit, ideal for industrial oil cooling, refrigerant evaporators and condensers, as well as residential and commercial HVAC hydraulic systems.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 15 reviews
Reviews 4.9
All reviews are from verified purchases
See all 15 reviews
About this item
Product specification
- Model
- EATB12
- Material
- 316 l + 99.9% copper
- Connections
- 19 mm / 3/4" MNPT
- Number of plates
- 40
- Design pressure (max.)
- 3.0 MPa
- Test pressure (min)
- 4.5 MPa
- Design temperature (°C)
- Max. +225
- Design Temperature (℃)
- Min -196

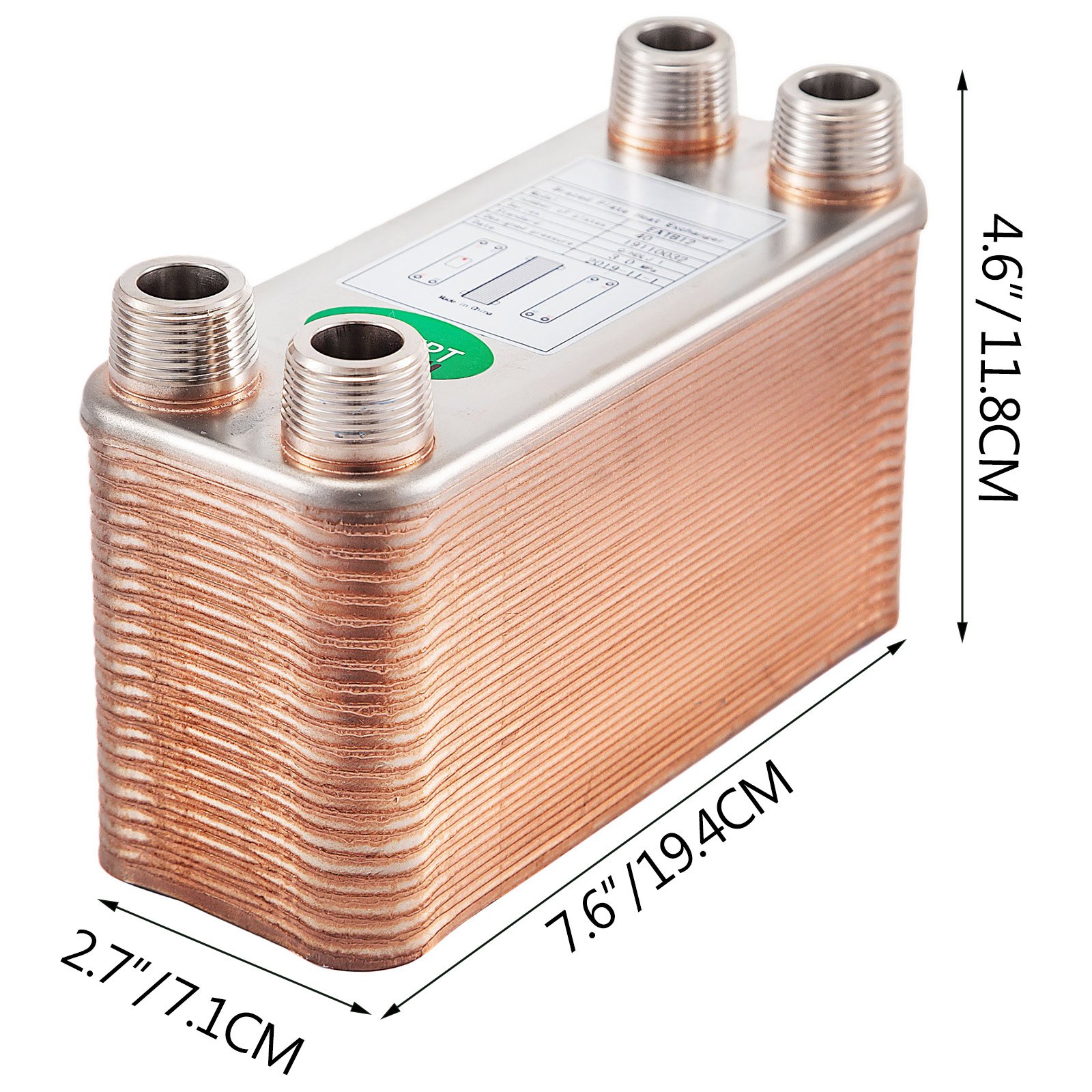

- Dimensions
- 19.4cm x 7.1cm x 11.8cm
Description

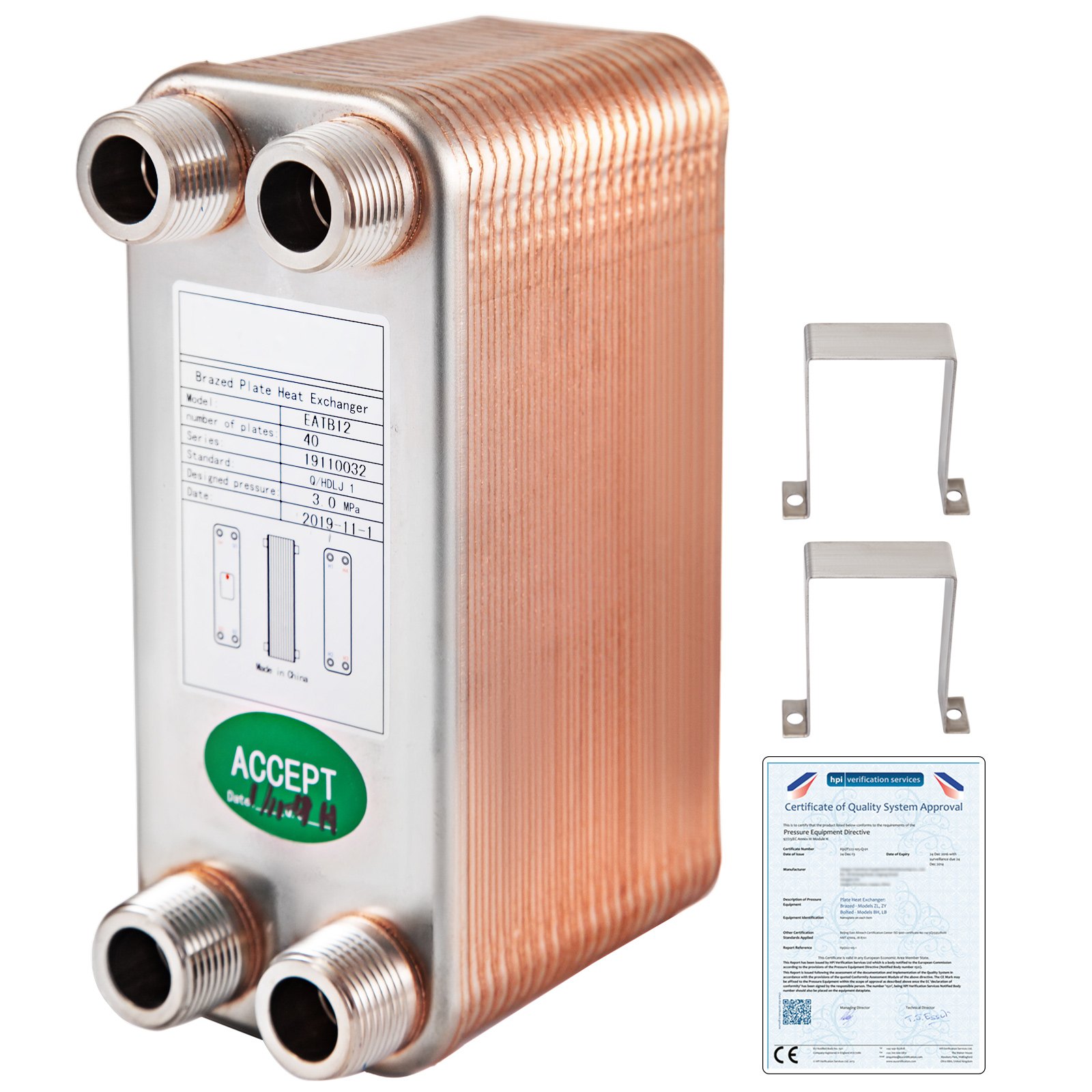

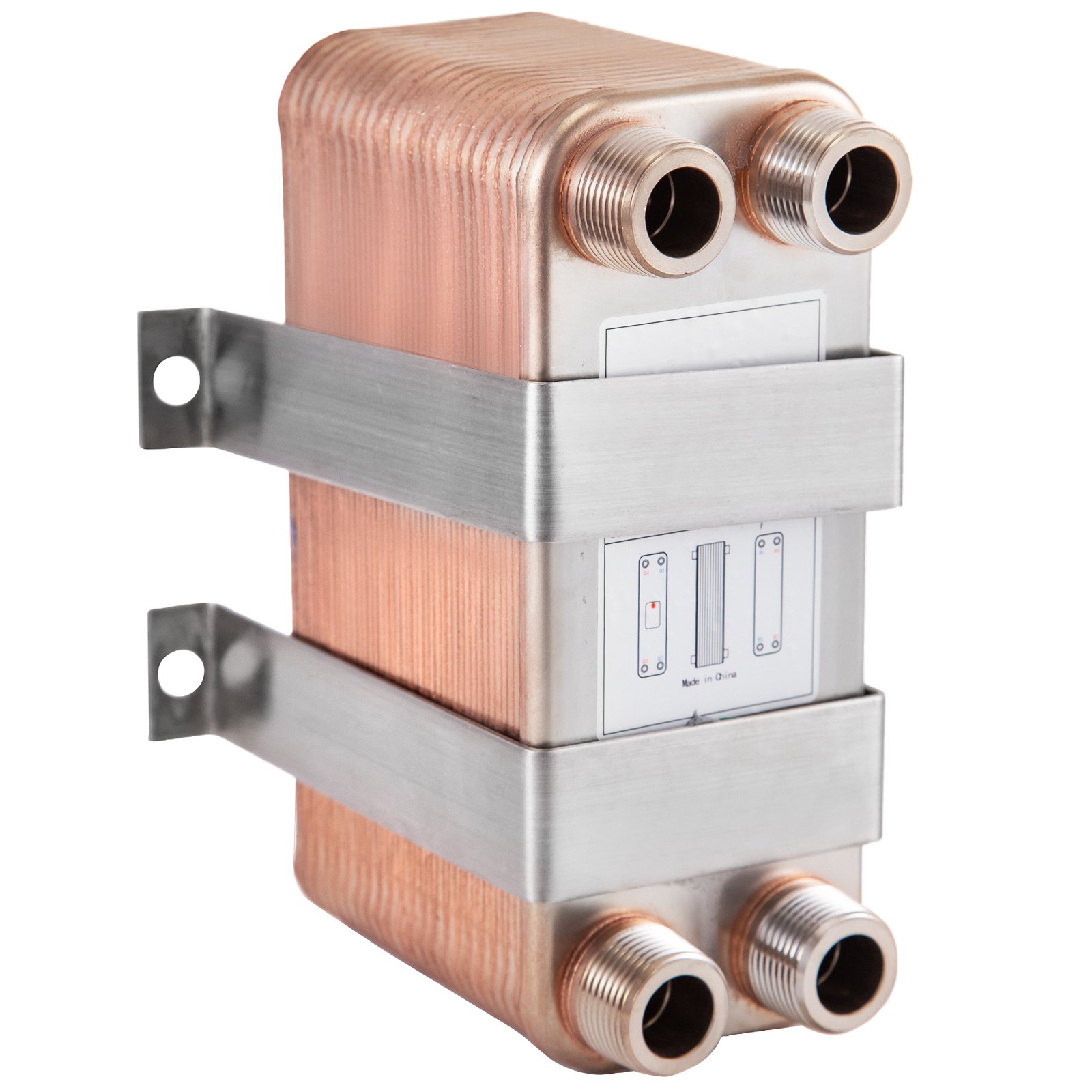

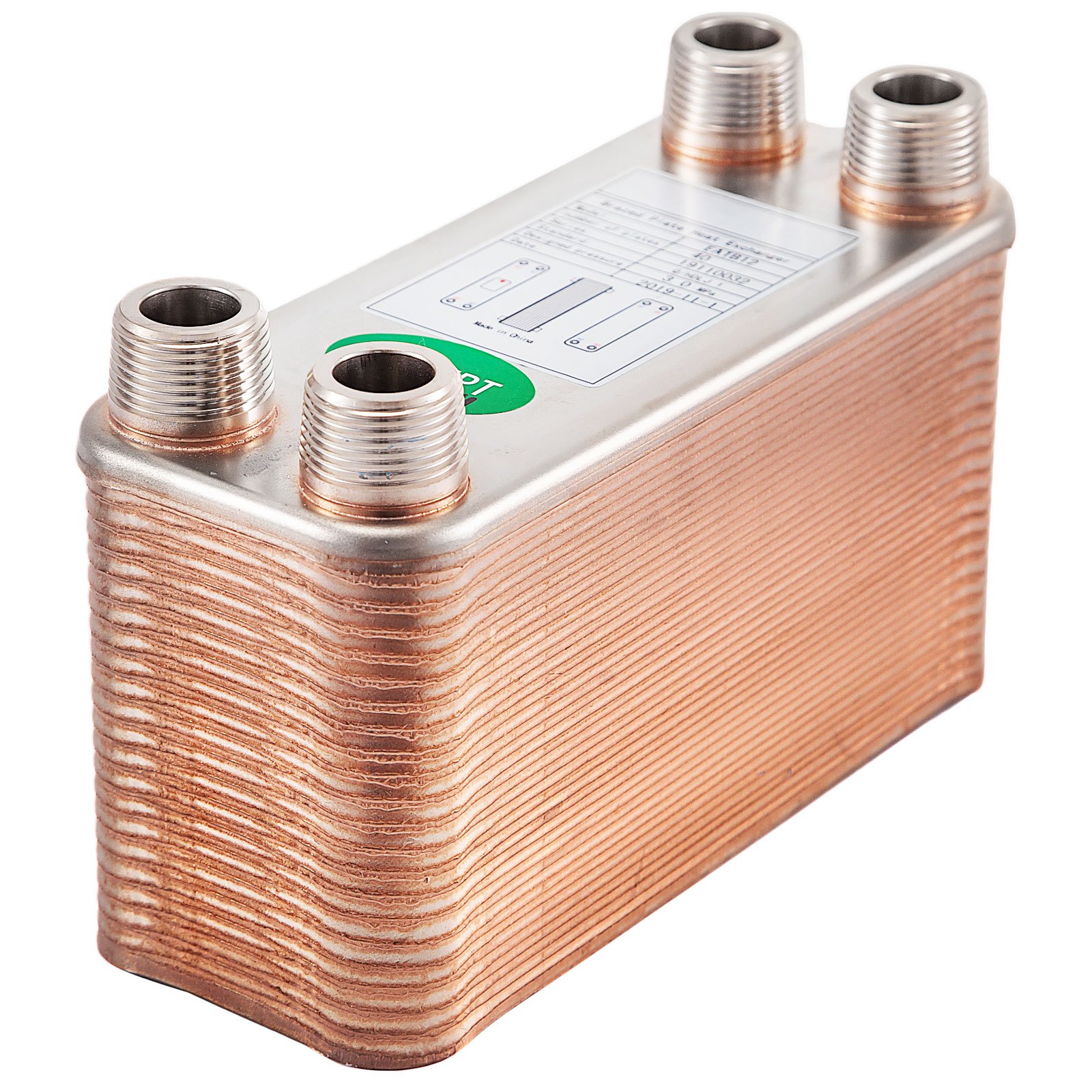

Brazed plate heat exchanger 40 plate heat exchanger
Our brand-new heat exchanger features a compact and lightweight housing with excellent thermal performance. Made from 316L stainless steel and 99.9% copper, it ensures a long service life. Therefore, it is perfectly suited for solar heating, heat recovery from oil-fired units, engine cooling, evaporation and condensation, and more.
- High thermal efficiency
- Energy optimized
- Robust construction
- Compact design

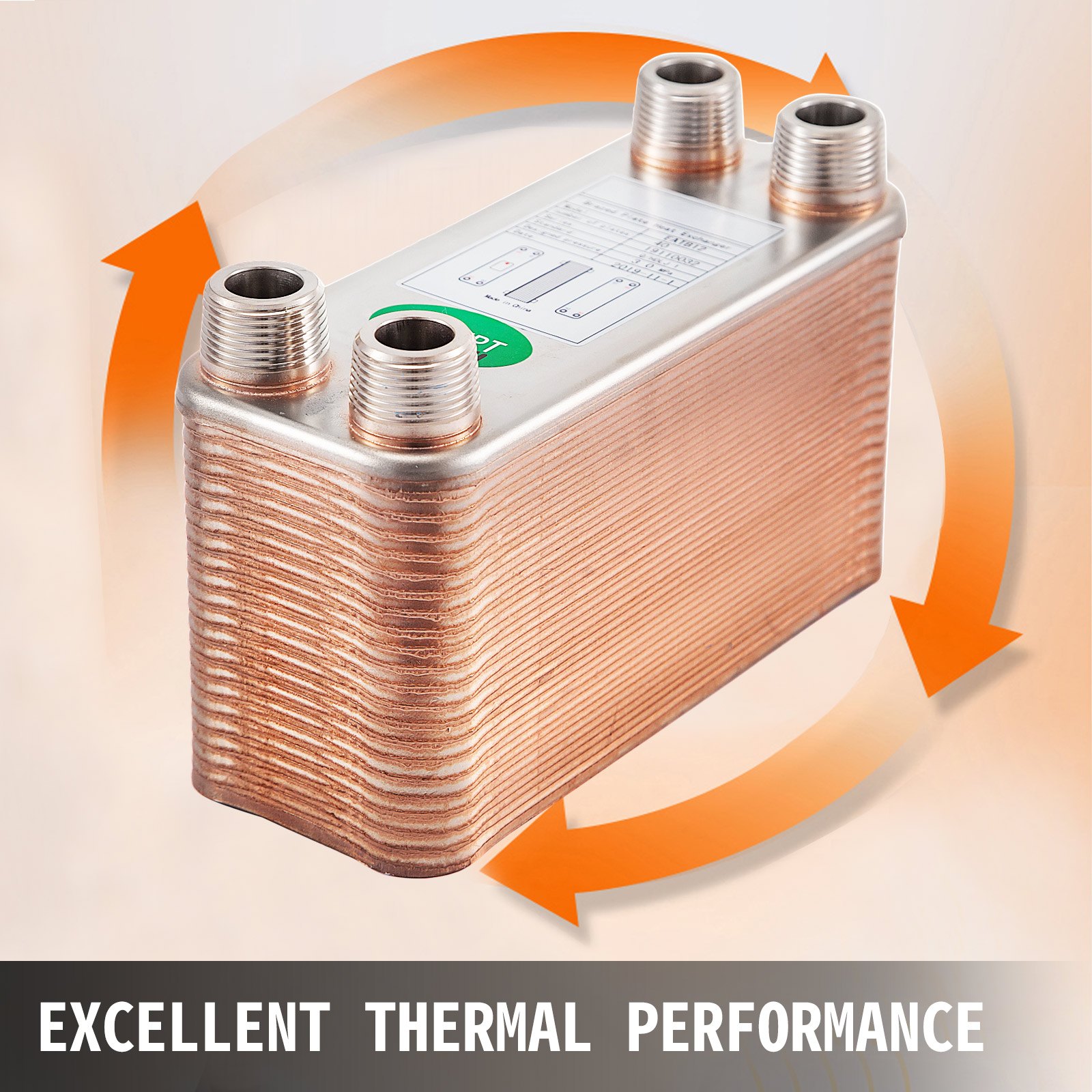

Excellent heat output
Extremely efficient herringbone design for maximum heat transfer.

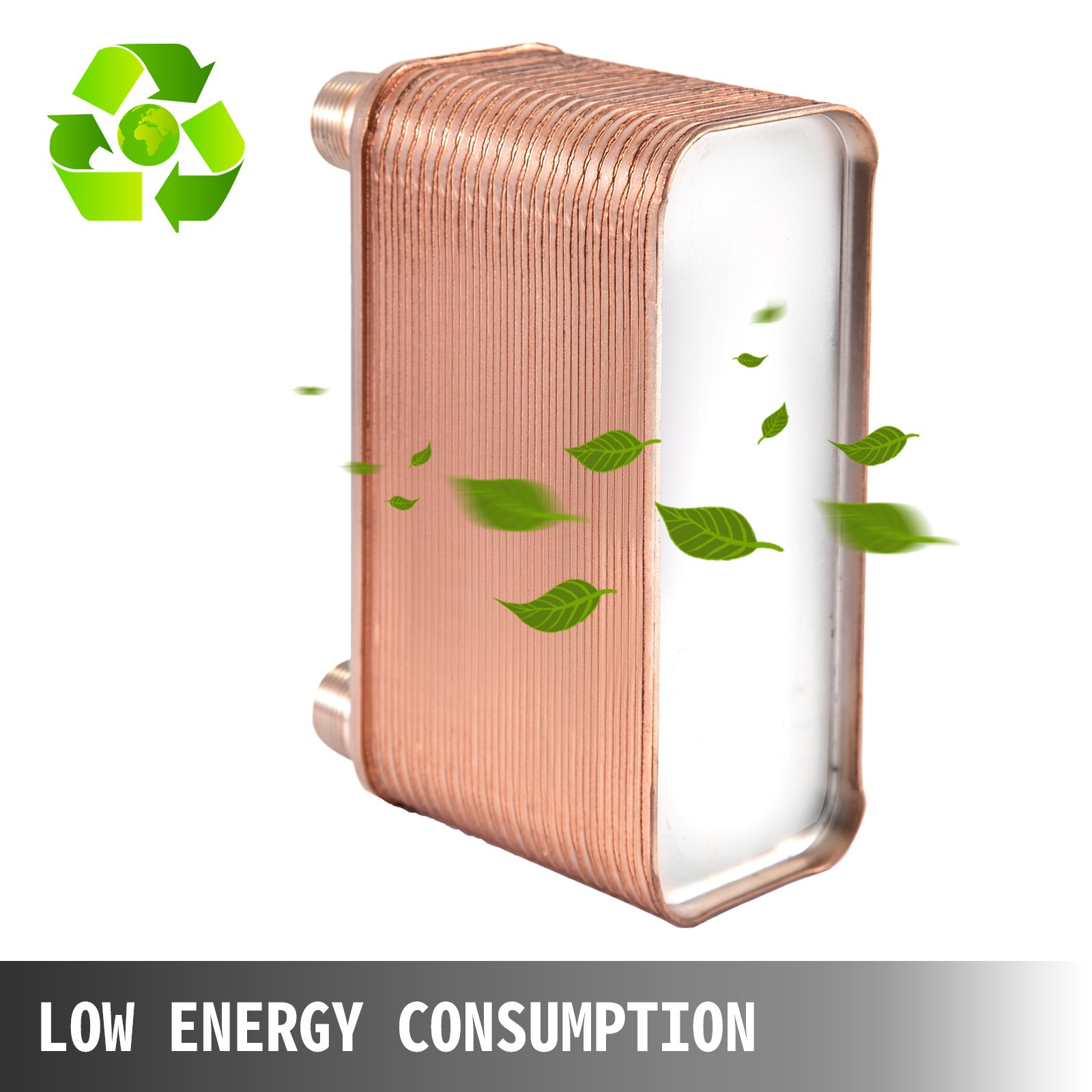

Low energy consumption
Low energy consumption due to very low pressure drop across the heat exchanger.

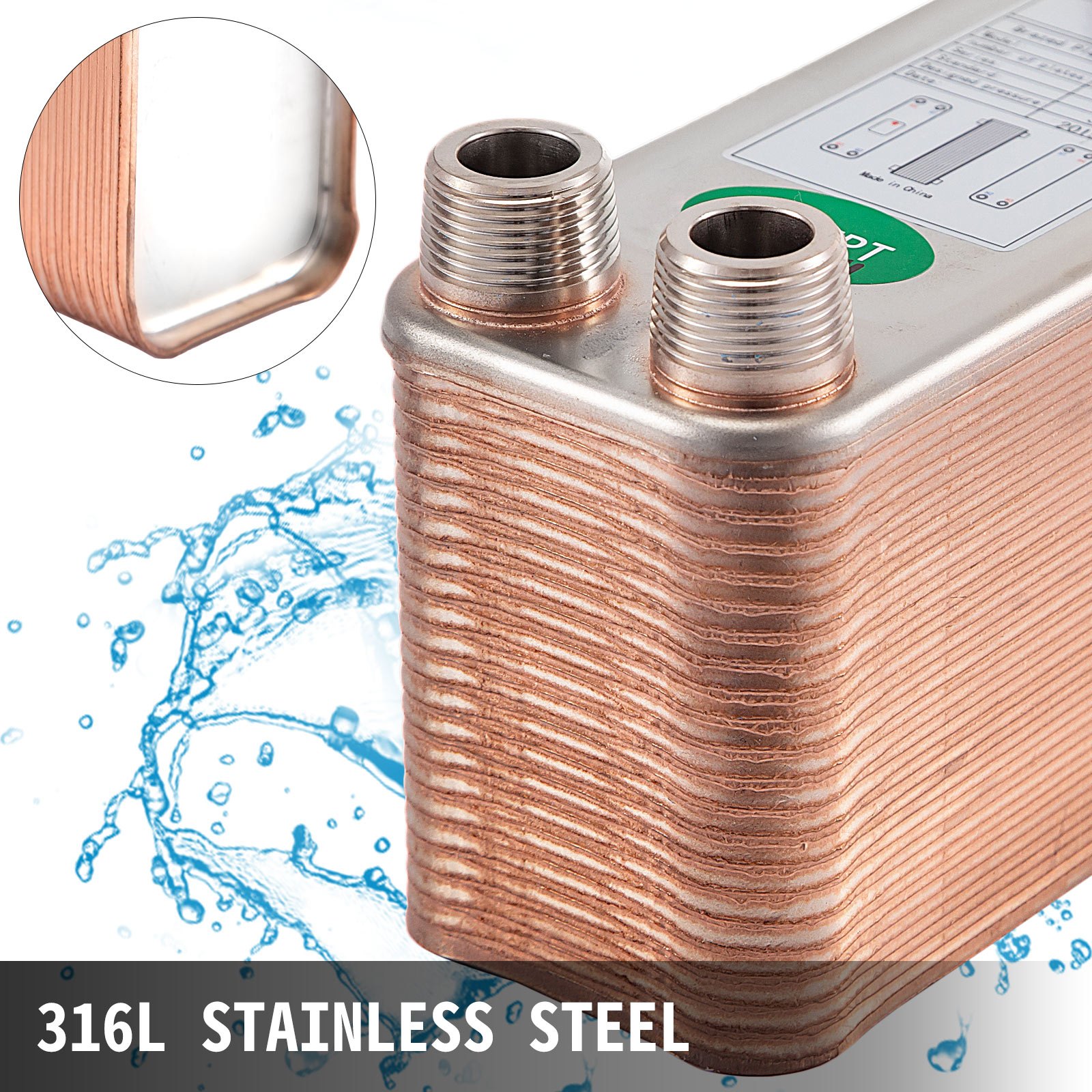

316L stainless steel
The applied 316L stainless steel is highly corrosion-resistant, reliable and durable.

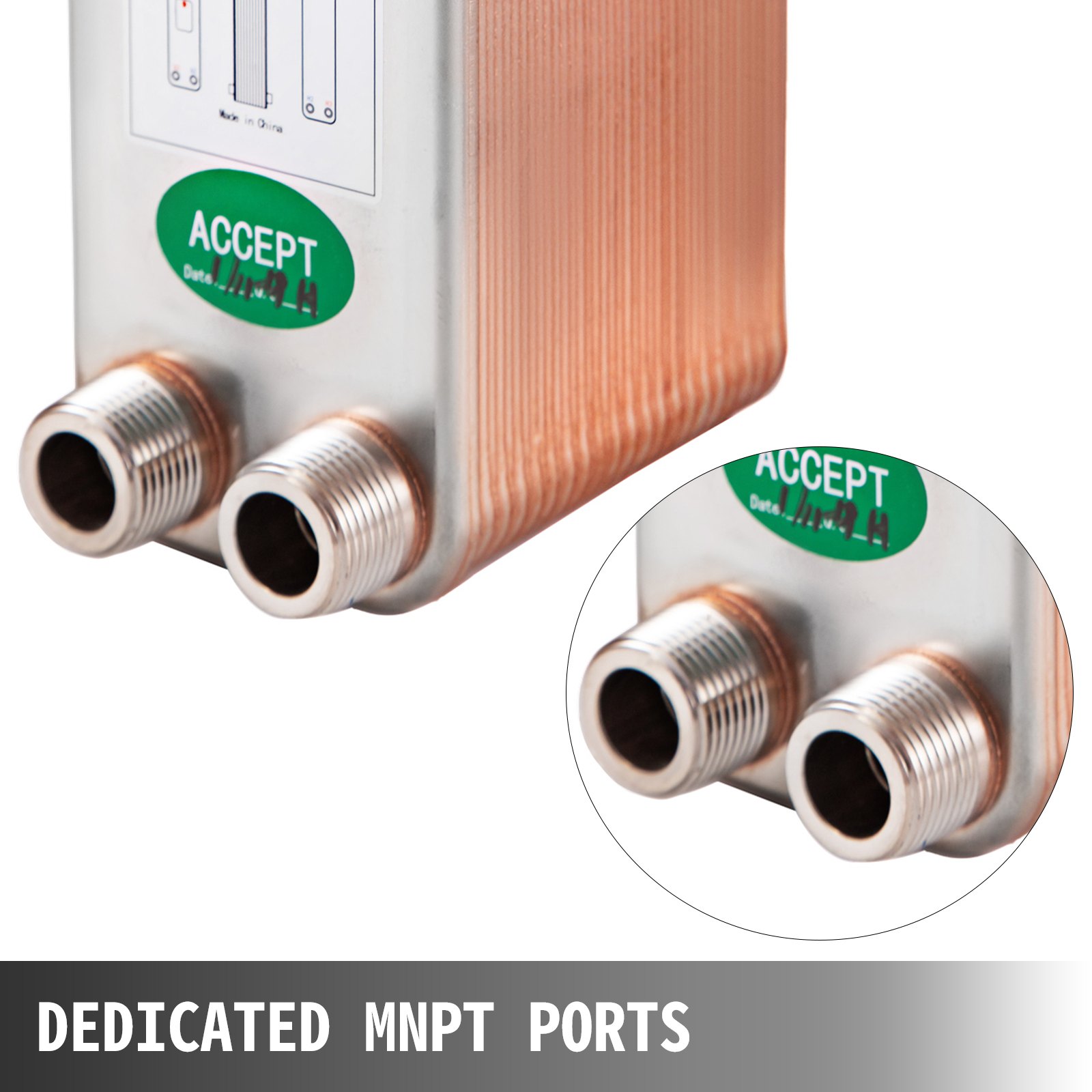

Dedicated MNPT ports
Four thickened 19 mm / 3/4" MNPT ports for easier installation.

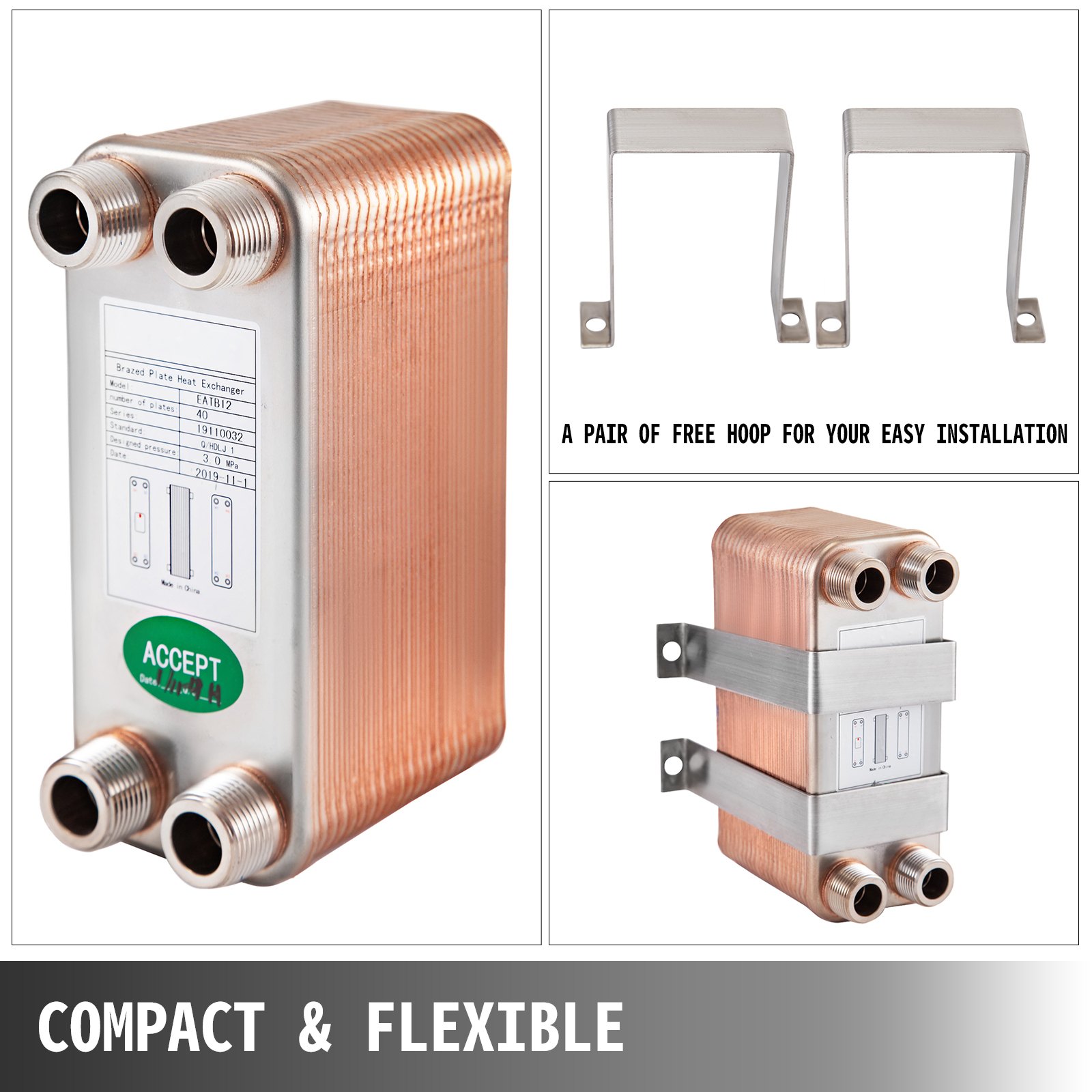

Compact & flexible
The footprint can be only one tenth that of a shell and tube heat exchanger, and due to its compact size, it also offers more freedom in system design.

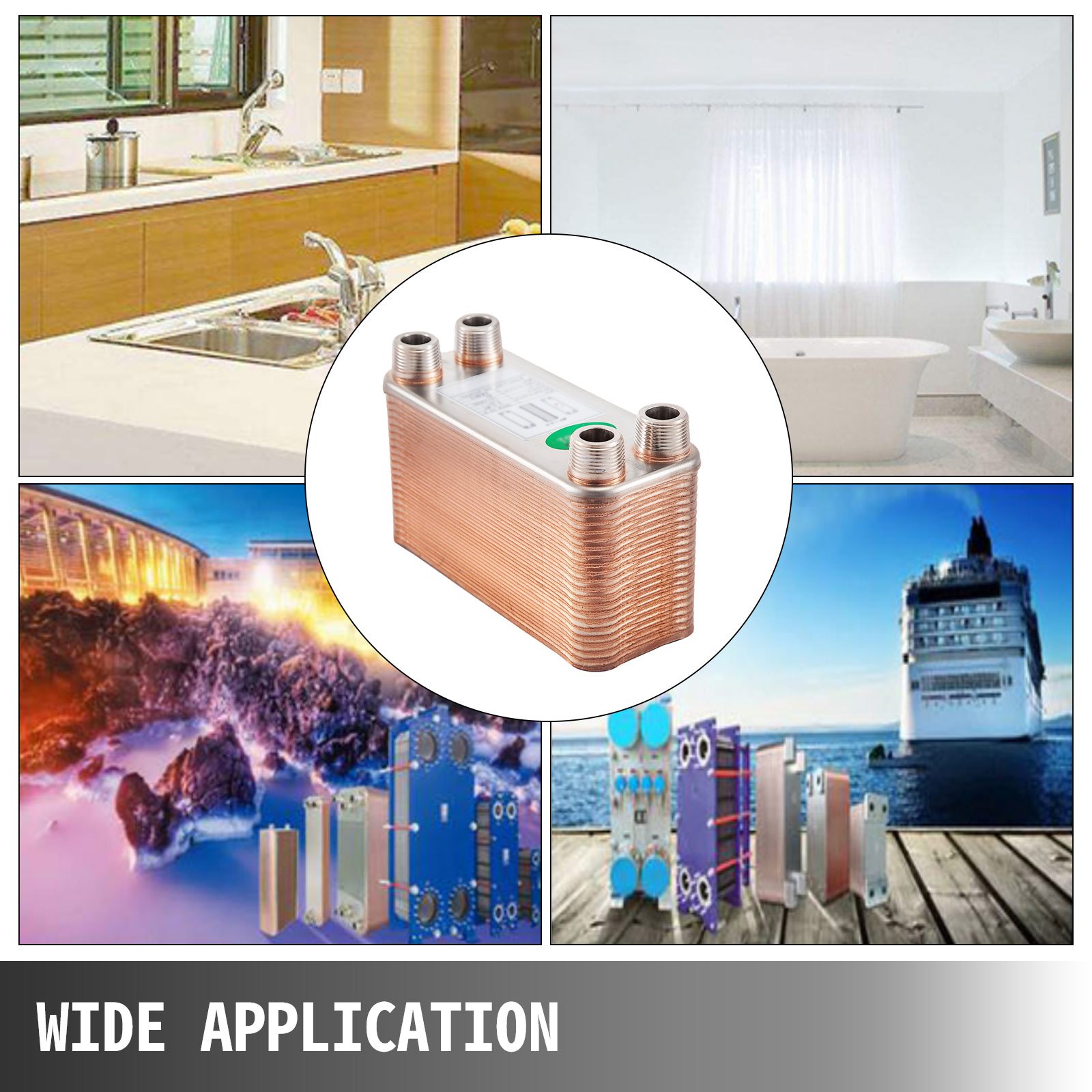

Wide application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- Model: EATB12
- Material: 316 l + 99.9% copper
- Connections: 19 mm / 3/4" MNPT
- Number of plates: 40
- Design pressure (max.): 3.0 MPa
- Test pressure (min): 4.5 MPa
- Design temperature (°C): Max. +225
- Design Temperature (℃): Min -196
- Dimensions: 19.4cm x 7.1cm x 11.8cm
- 1 x heat exchanger

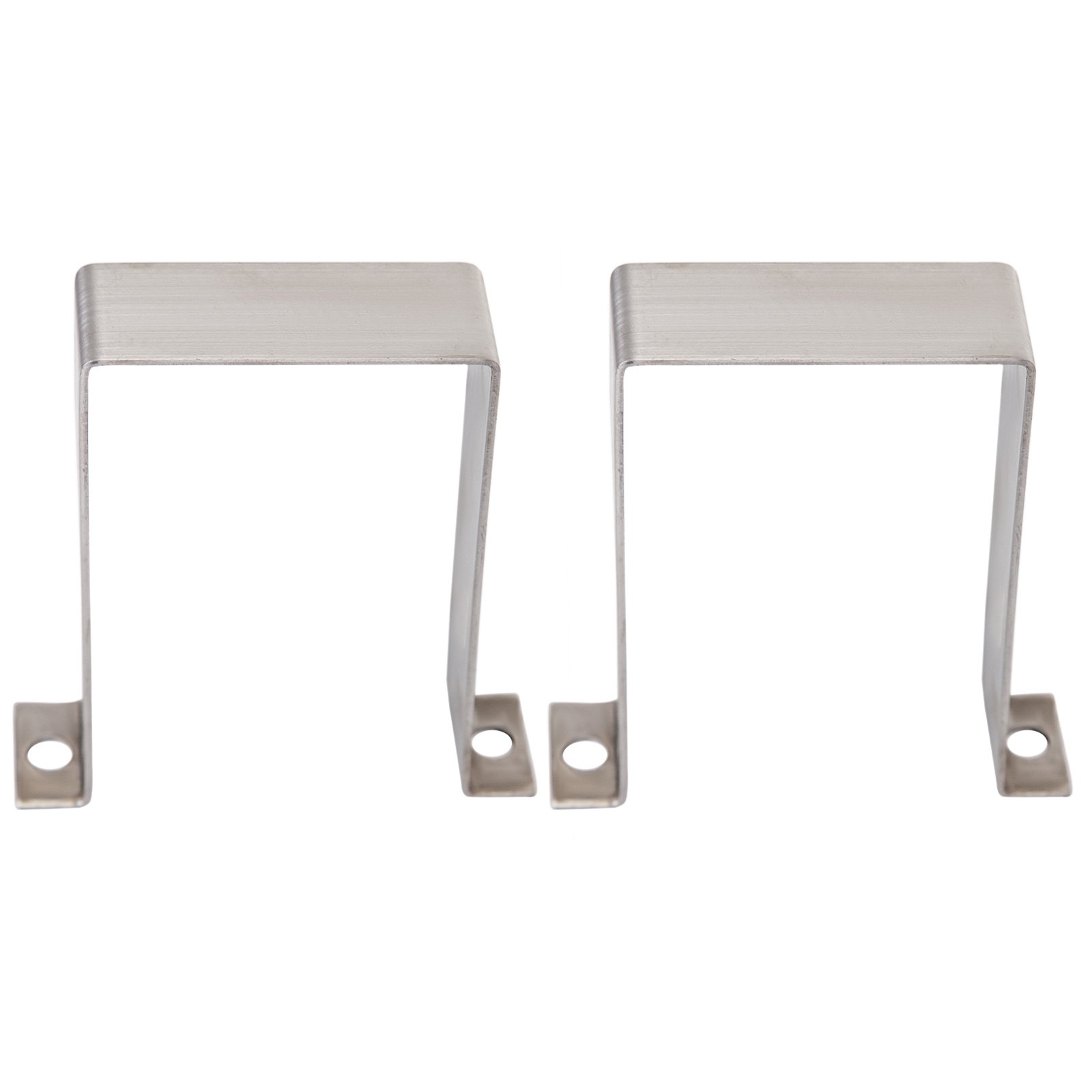

- 1 x a pair of tires
Brazed plate heat exchanger 40 plate heat exchanger
Our brand-new heat exchanger features a compact and lightweight housing with excellent thermal performance. Made from 316L stainless steel and 99.9% copper, it ensures a long service life. Therefore, it is perfectly suited for solar heating, heat recovery from oil-fired units, engine cooling, evaporation and condensation, and more.
- High thermal efficiency
- Energy optimized
- Robust construction
- Compact design
Excellent heat output
Extremely efficient herringbone design for maximum heat transfer.
Low energy consumption
Low energy consumption due to very low pressure drop across the heat exchanger.
316L stainless steel
The applied 316L stainless steel is highly corrosion-resistant, reliable and durable.
Dedicated MNPT ports
Four thickened 19 mm / 3/4" MNPT ports for easier installation.
Compact & flexible
The footprint can be only one tenth that of a shell and tube heat exchanger, and due to its compact size, it also offers more freedom in system design.
Wide application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- 1 x heat exchanger
- 1 x a pair of tires
- Model: EATB12
- Material: 316 l + 99.9% copper
- Connections: 19 mm / 3/4" MNPT
- Number of plates: 40
- Design pressure (max.): 3.0 MPa
- Test pressure (min): 4.5 MPa
- Design temperature (°C): Max. +225
- Design Temperature (℃): Min -196
- Dimensions: 19.4cm x 7.1cm x 11.8cm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (4)
Me gustaría saber la pérdida de presión según el caudal y rendimiento.
El caudal máximo de este producto es de 8 m³/h (35,224 GPM). Generalmente, se instalan válvulas en el lado del agua para regular el caudal y, por lo tanto, ajustar la eficiencia de transferencia de calor.
By vevor
Helpful
(
0
)
Hola es adecuado para pasar cerveza por el ? Esta fabricado en acero en su mayor.parte o en cobre ?
Este producto es un intercambiador de calor de placas soldadas con cobre, con cuerpo de acero inoxidable y soldadura de cobre puro al 99,99 %. El cobre es un metal pesado y no se recomienda para aplicaciones de alta gama. No contamos con certificación alimentaria. Sin embargo, muchos clientes utilizan este producto para aplicaciones alimentarias. Aunque el cobre es un metal pesado, es estable a temperaturas moderadas, generalmente sin superar los 100 °C. También recomendamos una limpieza regular
By vevor
Helpful
(
0
)
Cuál es su peso?
El peso del producto es de aproximadamente 2,8 kg.
By vevor
Helpful
(
0
)
Sirve para agua de mar?
Hola, no es recomendable porque el contenido de sal en el agua de mar es relativamente alto y hay muchos microorganismos, por lo que el recambio de placa se corroe fácilmente.
By vevor
Helpful
(
0
)
