Features & Details
- 【LAW-SAVING & HYDRAULIC 10T】 - This is a percussion stamping press set with a detachable hydraulic pump. The maximum pressing force is 10 tons. It features excellent sealing and no oil leakage. A safety valve automatically releases the pressure when it reaches the maximum limit.
- 【DURABLE DIE & PUNCH SET】 - The stripping die set comes with six punching tools (22 / 27.5 / 34 / 43 / 49 / 60 mm) that drill holes from 0.86 to 2.36 inches (approx. 6 cm) and fully meet your needs. Two drawbars are solid and designed for durability. Maximum thickness for steel: 0.13 inches (approx. 3.3 mm); maximum thickness for stainless steel: 0.08 inches (approx. 2 mm).
- 【EASY TO USE】 - The knockout set is quick and easy to use. The excellent interaction between the drill bit and puller allows you to easily achieve a clean and even hole. The long plastic handle ensures a smooth and effective transfer of force, improving work efficiency.
- 【PORTABLE BOX】 - The bolt punch tool is stored in a durable plastic toolbox that is not easily broken, thus saving space. It is compact, lightweight, and easy to transport. It also reduces the chance of missing parts.
- 【WIDE APPLICATION】 - This manual metal stud punch tool can be used for drilling professional equipment, punching 11-gauge structural steel, iron plates, and also for personal DIY needs, furniture assembly, etc.
Frequently Bought Together
Reviews 4.6
All reviews are from verified purchases
Average rating based on 5 reviews
Reviews 4.6
All reviews are from verified purchases
See all 5 reviews
About this item
Product specification
- Die material
- steel
- Stroke
- 25 mm / 1 inch
- Maximum pressure
- 10 tons
- Maximum thickness for steel
- 3.2 mm / 0.13 in / 11 ga
- Maximum thickness for stainless steel
- 2 mm / 0.08 in / 13 ga
- Stamp dies
- 22 / 27.5 / 34 / 43 / 49 / 60 mm (0.866 / 1.08 / 1.34 / 1.7 / 1.93 / 2.36 inches)
- Draw bolts
- 3.1 in L x φ0.31 & 3.2 in L x φ0.3 in
- Draw bolts (metric system)
- 7.9 cm L x φ0.79 cm & 8.1 cm L x φ0.76 cm
- (Compatible with GREENLEE and other domestic stamping tools)
- Stamps materials
- steel, stainless steel, brass, copper, aluminum
- (soft alloys only, not for use with 7075 or other superalloys), fiberglass, plastic and more.
- Dimensions
- 430 x 260 x 260 mm / 17 x 10 x 10 inches
- Total weight
- 11 kg / 25 lbs
Description

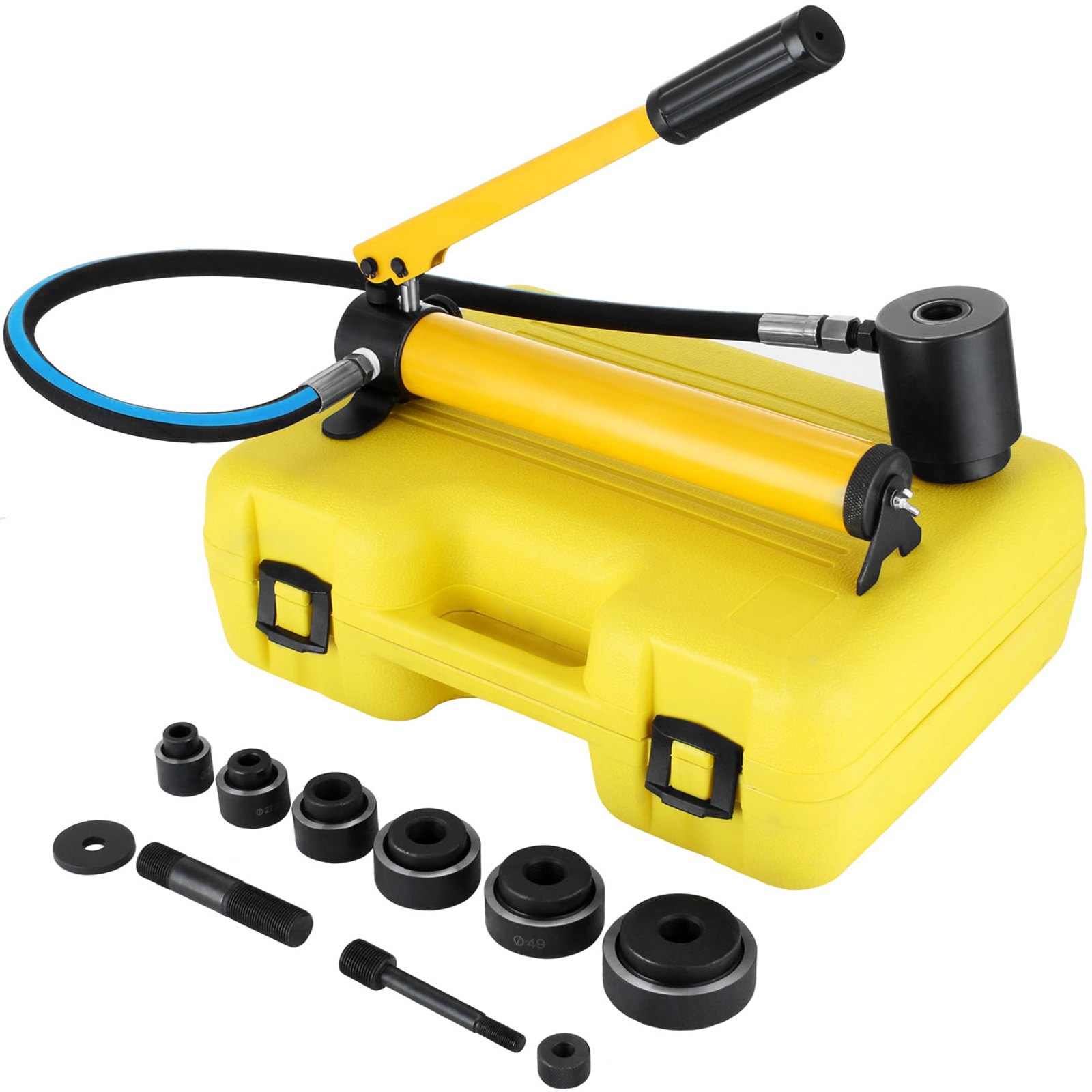

Hydraulic stripping and punching tool
This hydraulic breakout hole punch set features a compact and durable design with high hardness and quality, and is easy to use for creating a perfectly uniform hole. It comes with six drill bits for punching holes of various sizes. It is suitable for construction and maintenance work.
- Labor-saving & hydraulic 10 T
- Set of durable matrices and stamps
- Easy to use
- Portable box

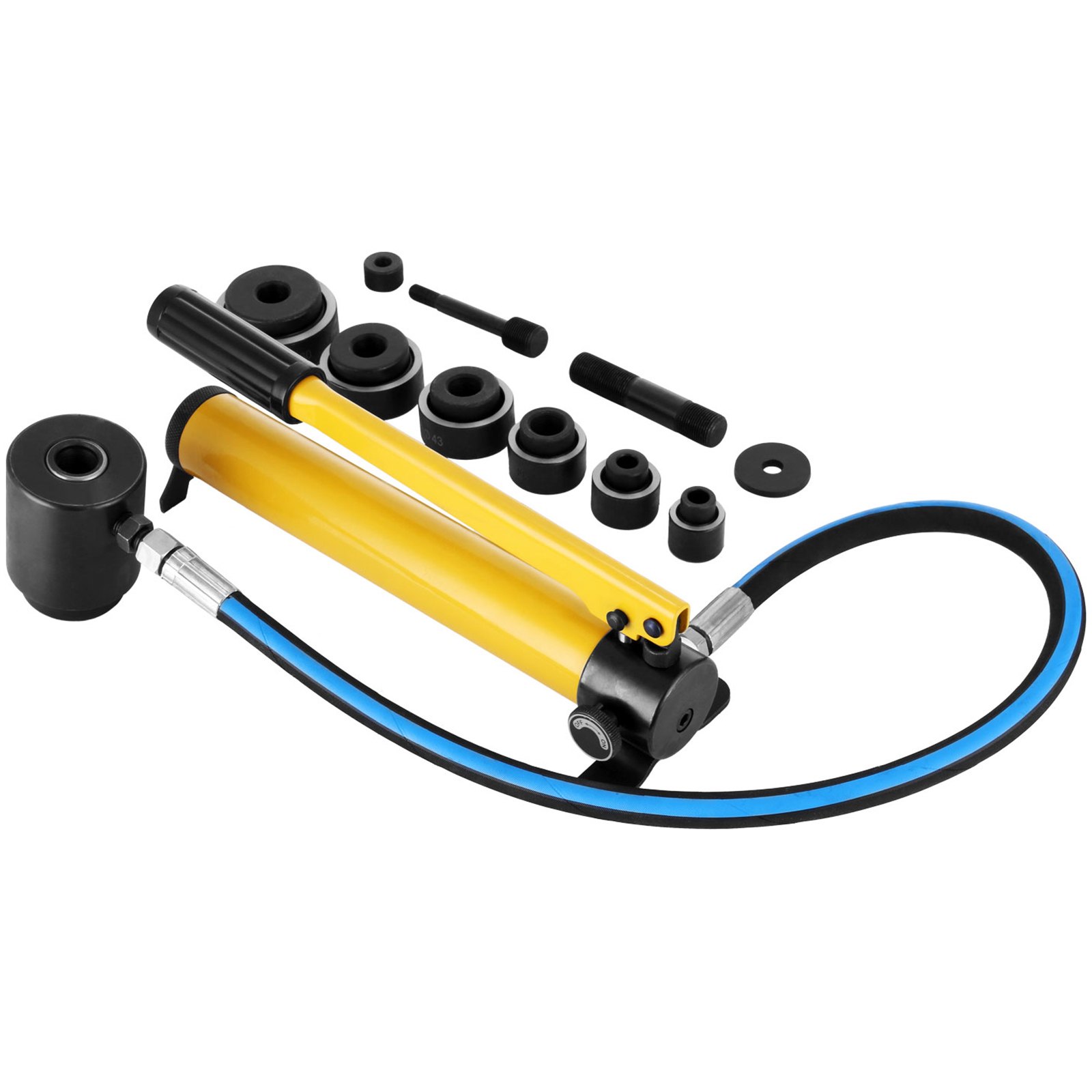

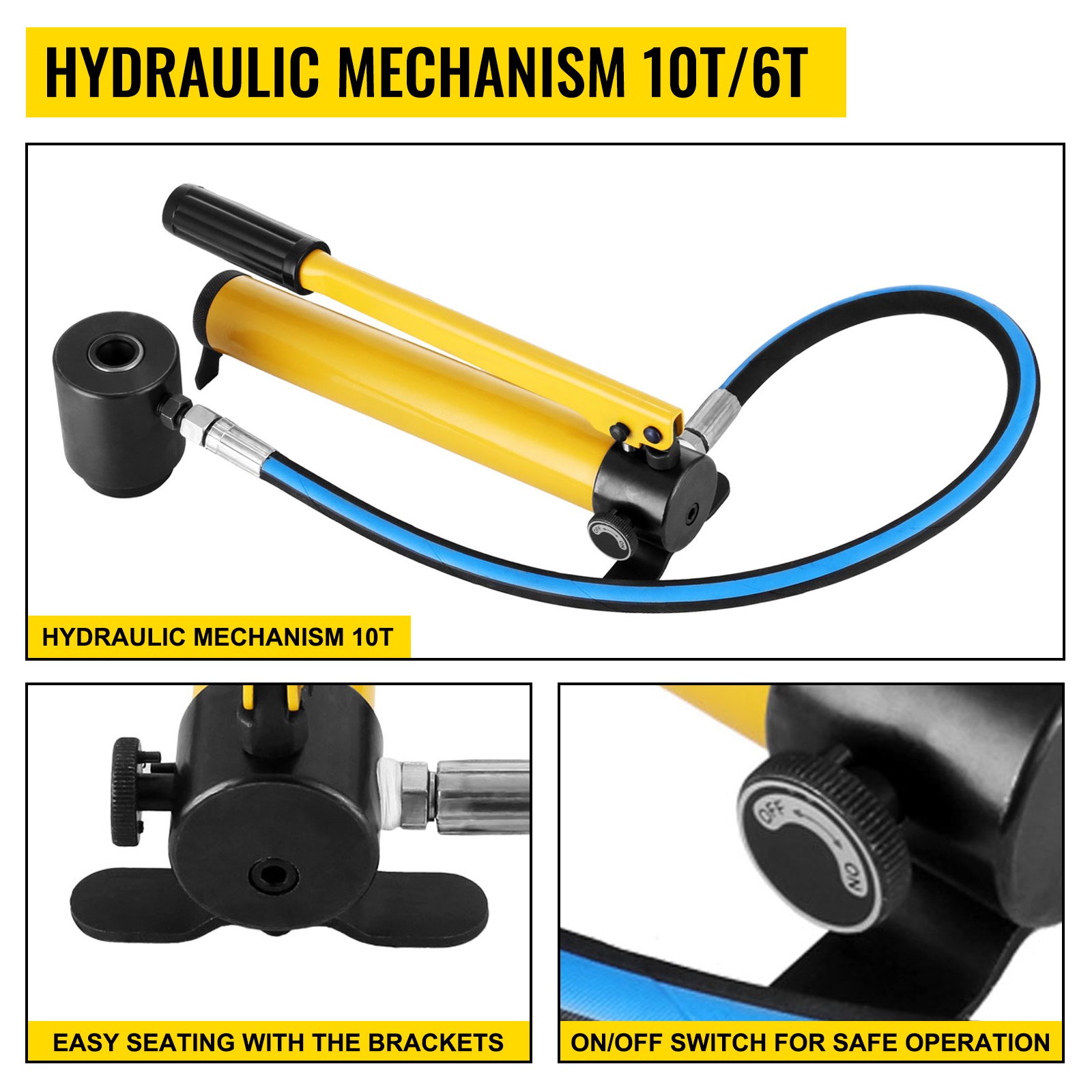

Hydraulic mechanism 10 T
Maximum pressure: 10 tons. The punch set is equipped with a hydraulic pump and a 3.1-inch oil hose, making it suitable for use in confined spaces. The hydraulic mechanism makes punching holes effortless.

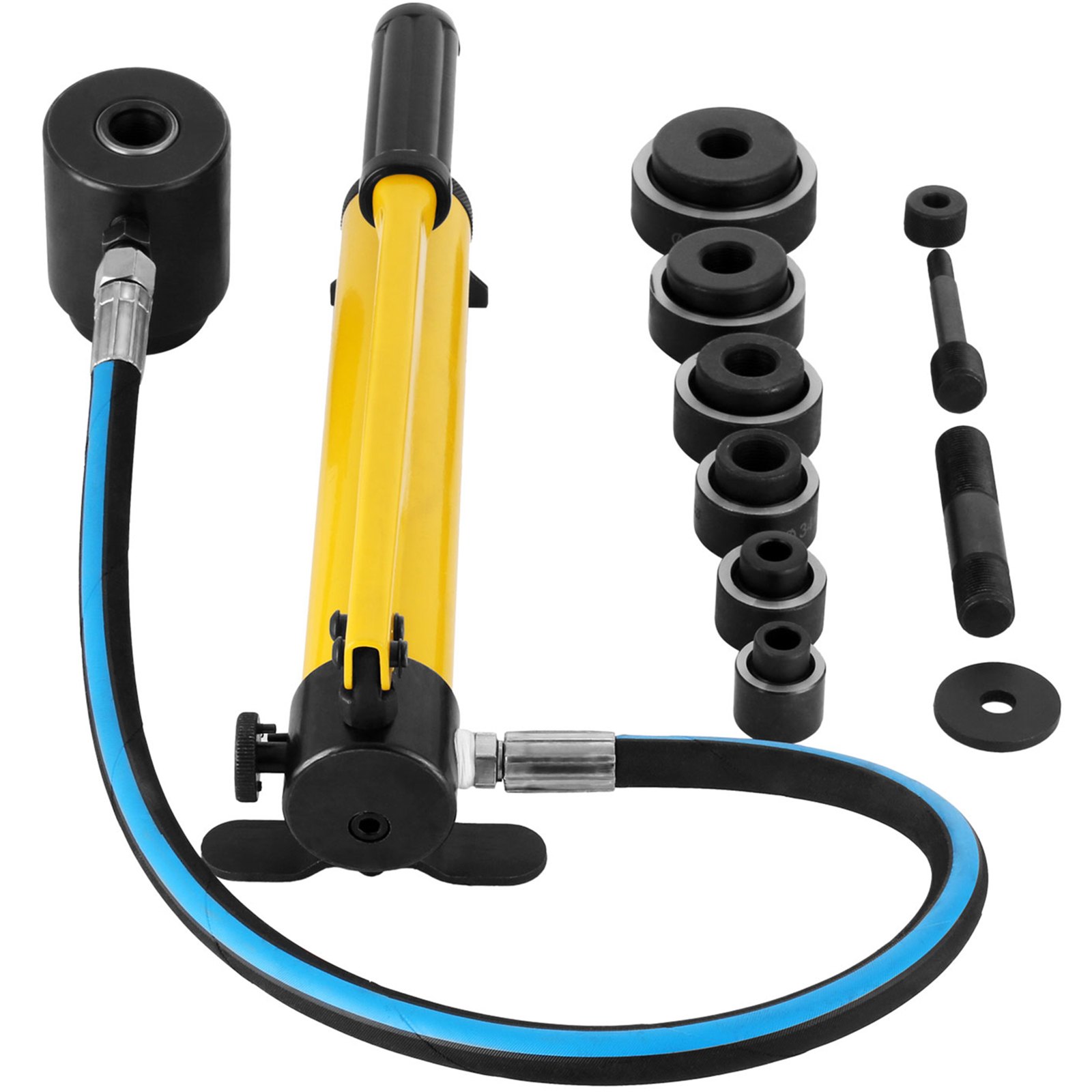

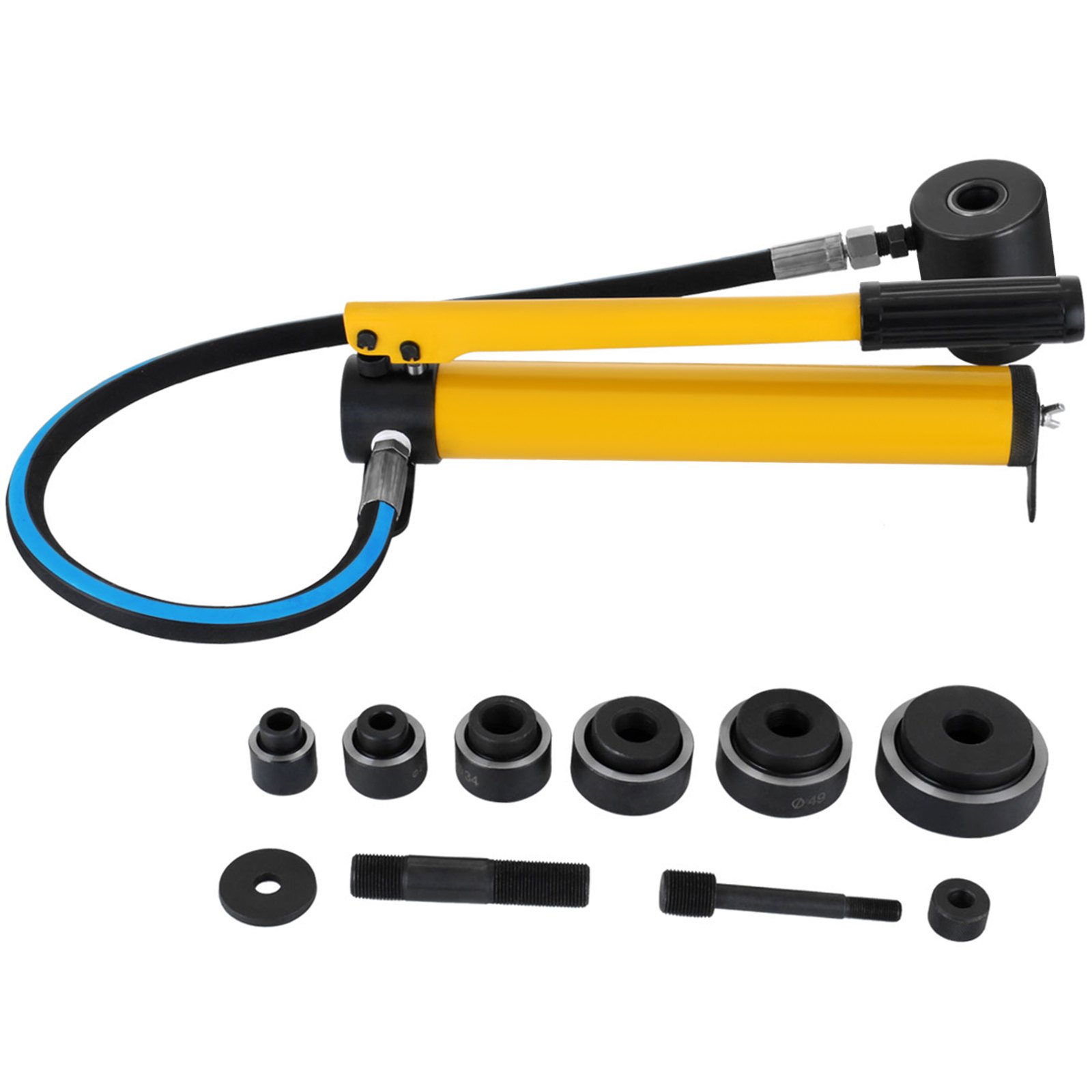

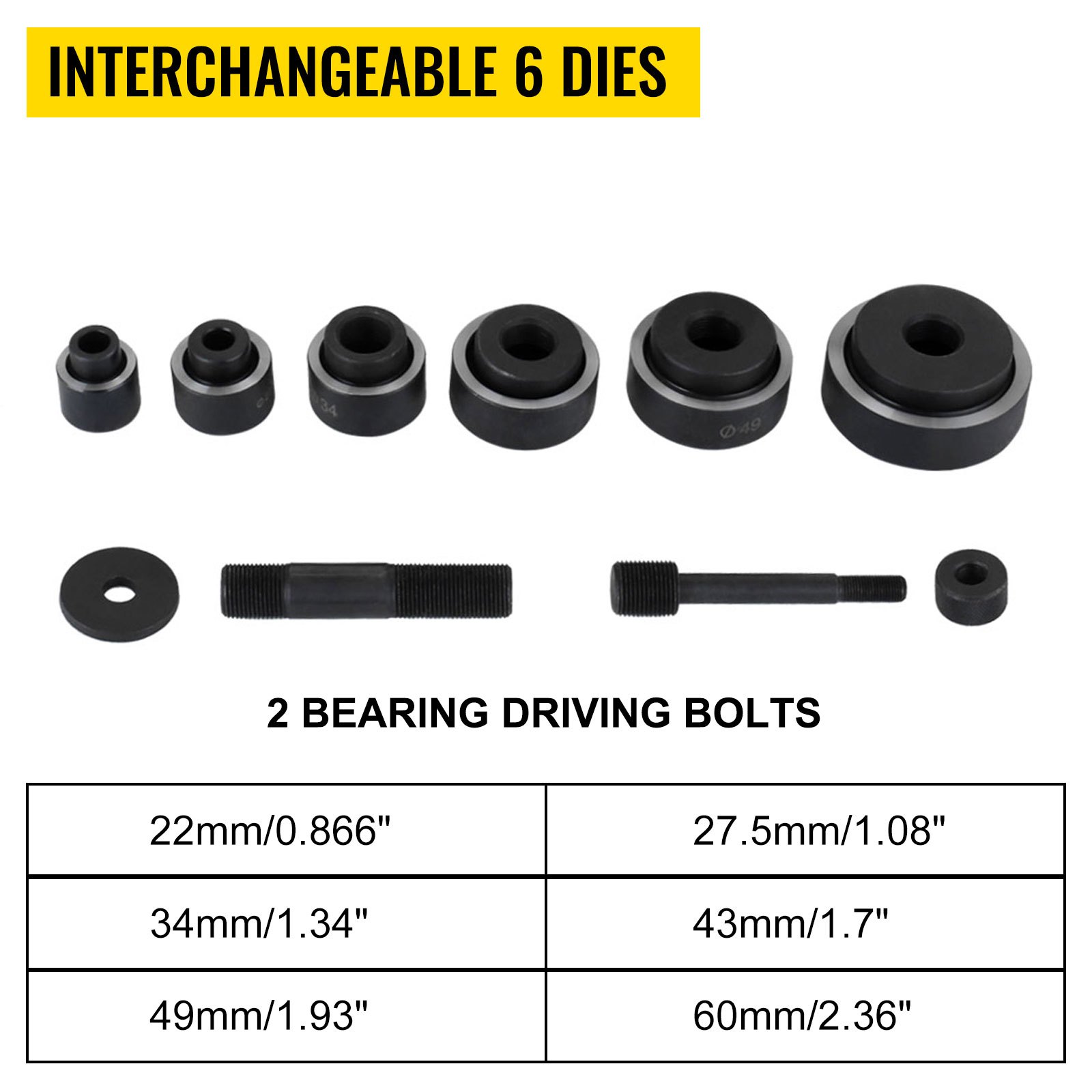

Interchangeable 6 dies
There are six steel drill bits included, in sizes 22, 27.5, 34, 43, 49, and 60 mm, suitable for drilling both large and small diameter holes. The two drive pins are robust and built for a long service life.

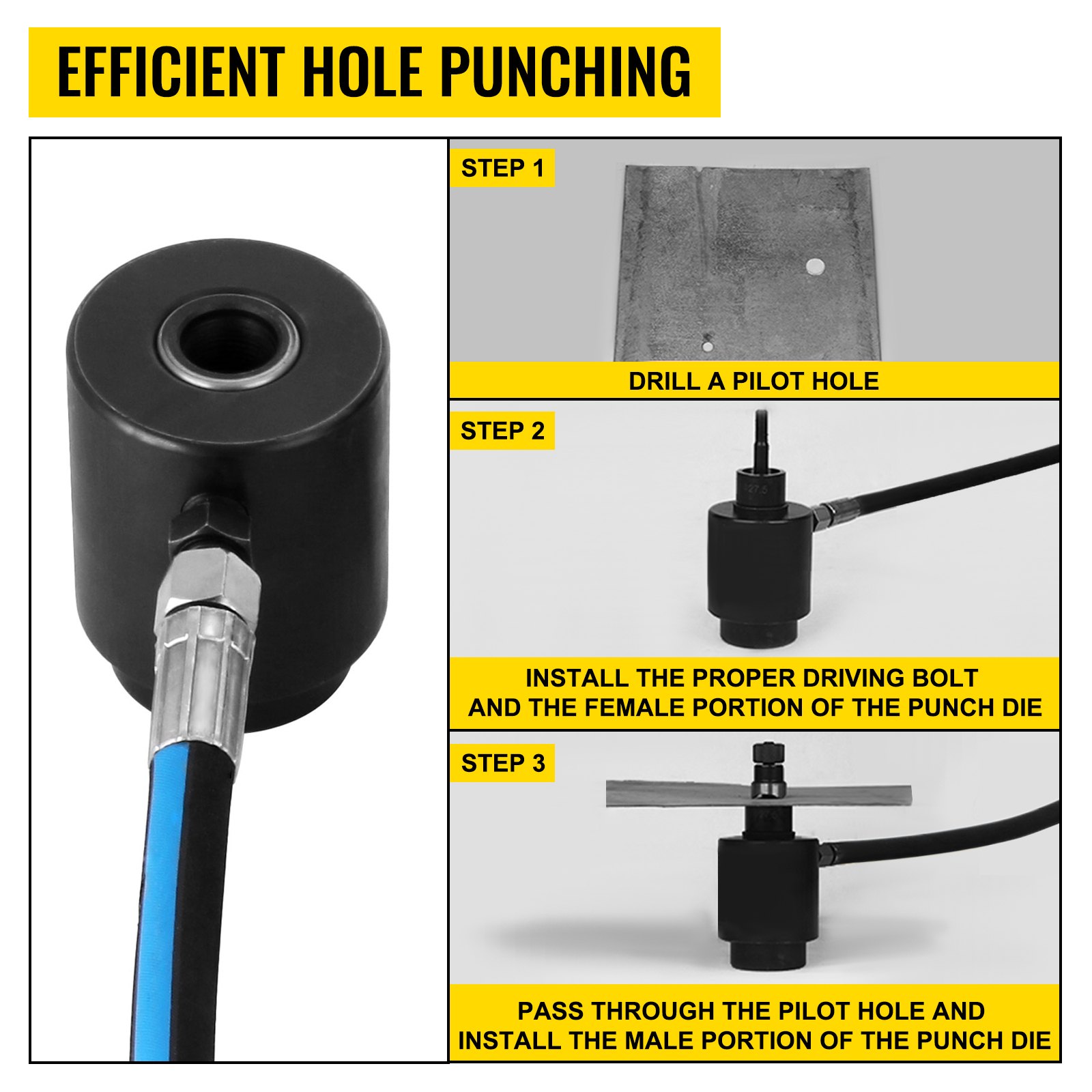

Efficient punching
This hole punch set makes it easy to create a perfect hole. You can complete the process by following the steps shown. It is suitable for 11 ga steel and 14 ga stainless steel.

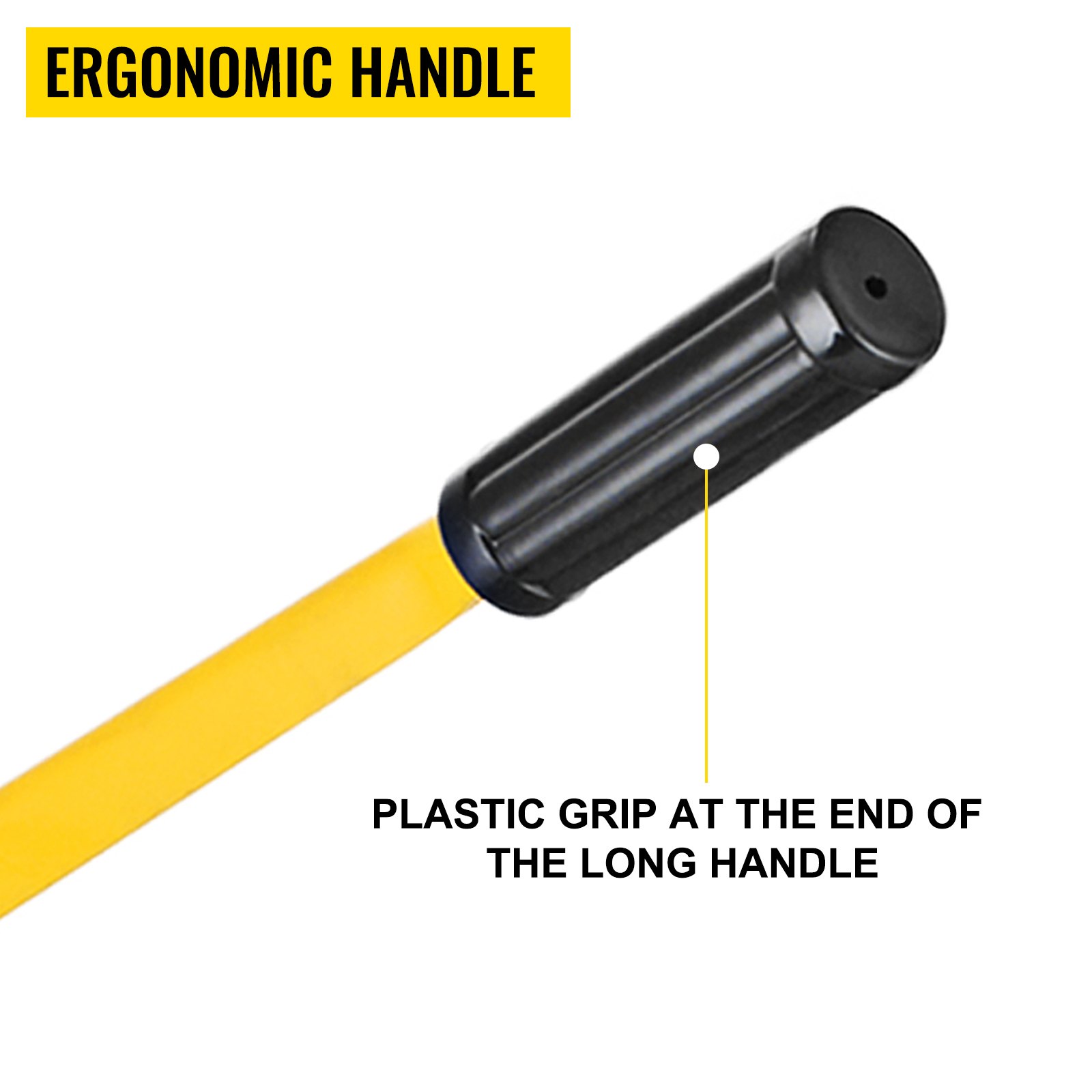

Ergonomic handle
A thickened plastic handle provides a comfortable and non-slip grip, suitable for extended use. Operating this hole punch set is convenient and energy-efficient.

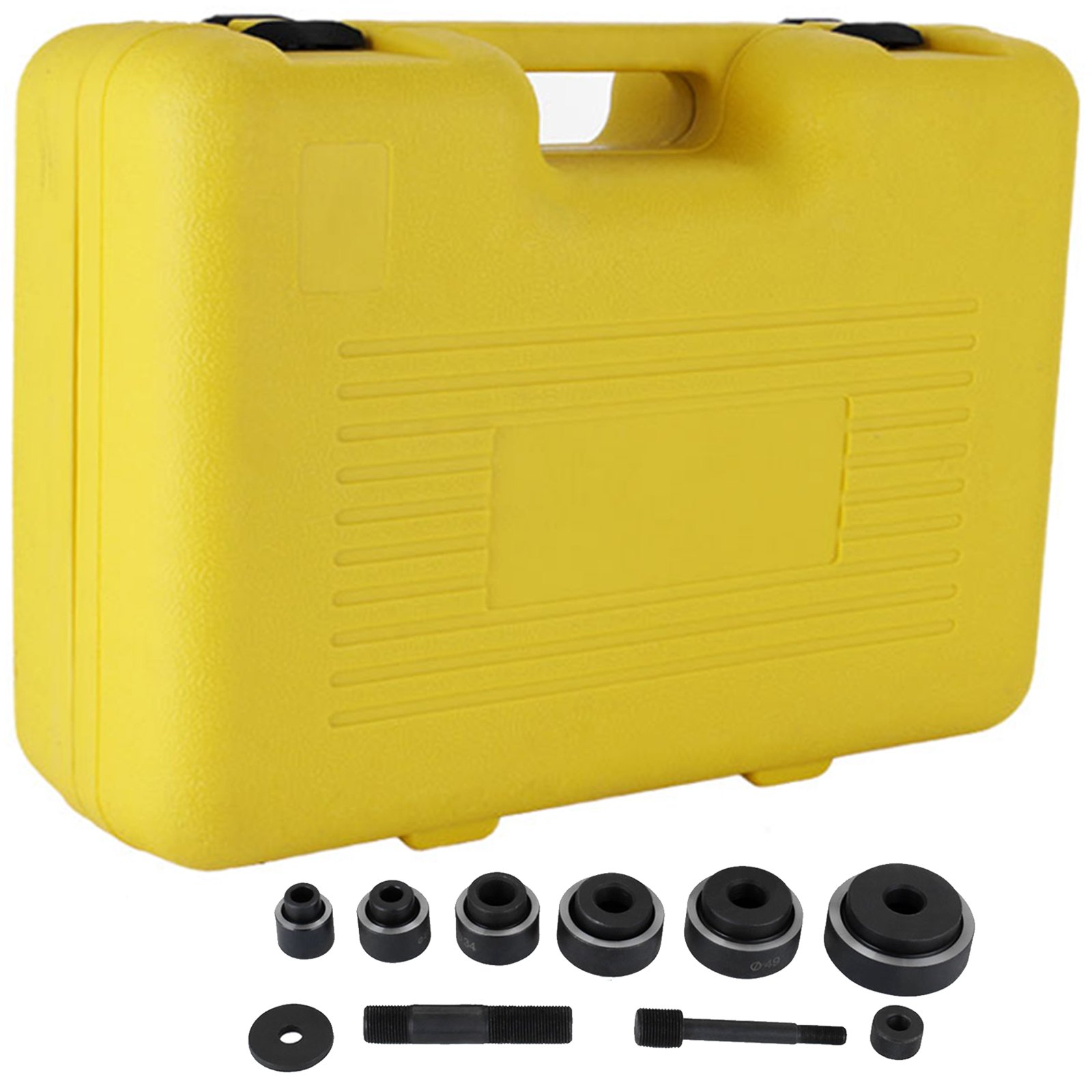

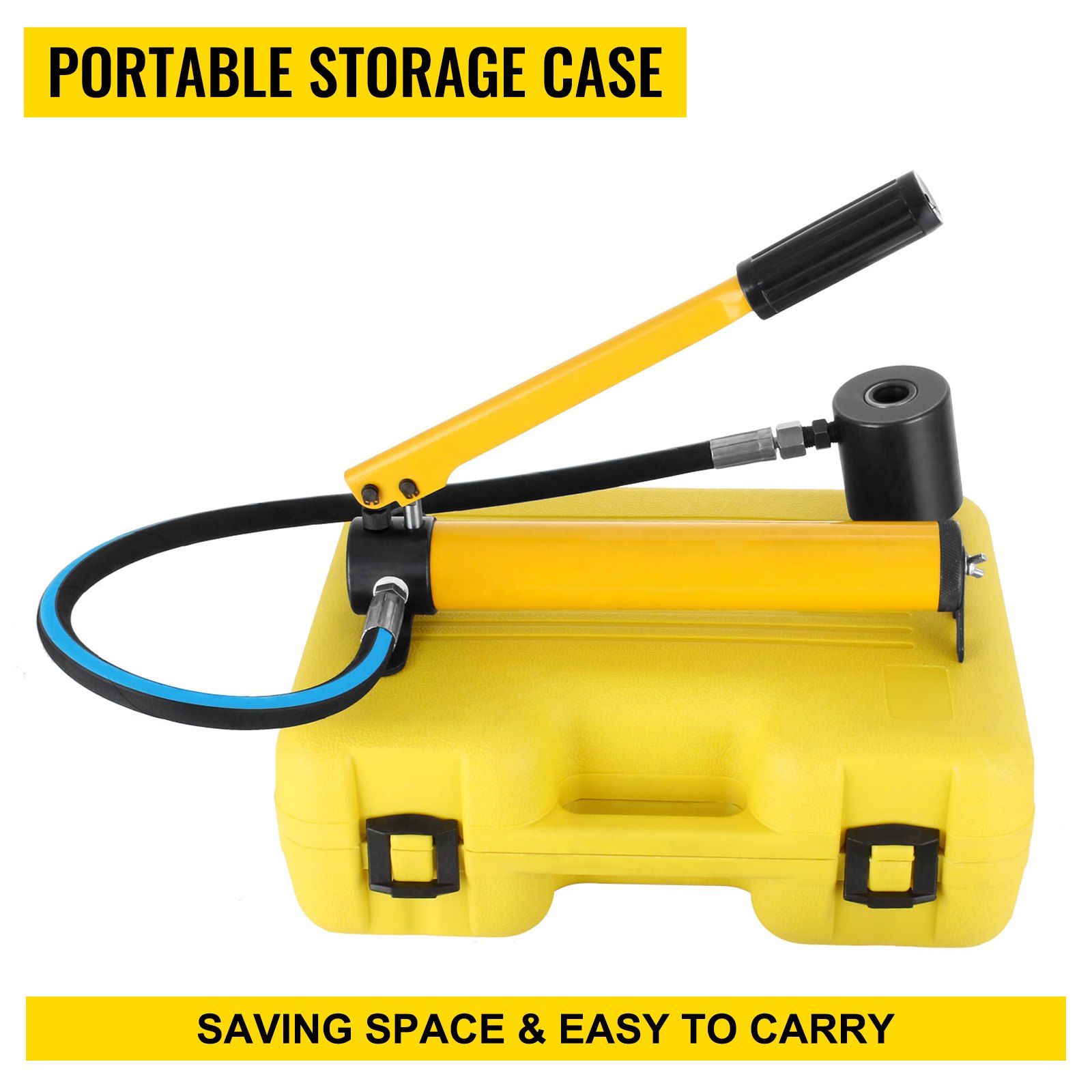

Portable storage case
This hydraulic stripping and punching set is compact and easy to store in its plastic tool case. This saves space and makes the hydraulic punching set easy to transport. The tool case is durable and practical.
Wide application
This hydraulic punch drive set is suitable for construction site and maintenance work, personal DIY and furniture assembly, for punching sheet metal such as structural steel, stainless steel, etc.
- Die material: steel
- Stroke: 25 mm / 1 inch
- Maximum pressure: 10 tons
- Maximum thickness for steel: 3.2 mm / 0.13 in / 11 ga
- Maximum thickness for stainless steel: 2 mm / 0.08 in / 13 ga
- Stamp dies: 22 / 27.5 / 34 / 43 / 49 / 60 mm (0.866 / 1.08 / 1.34 / 1.7 / 1.93 / 2.36 inches)
- Draw bolts: 3.1 in L x φ0.31 & 3.2 in L x φ0.3 in
- Draw bolts (metric system): 7.9 cm L x φ0.79 cm & 8.1 cm L x φ0.76 cm
- (Compatible with GREENLEE and other domestic stamping tools)
- Stamps materials: steel, stainless steel, brass, copper, aluminum
- (soft alloys only, not for use with 7075 or other superalloys), fiberglass, plastic and more.

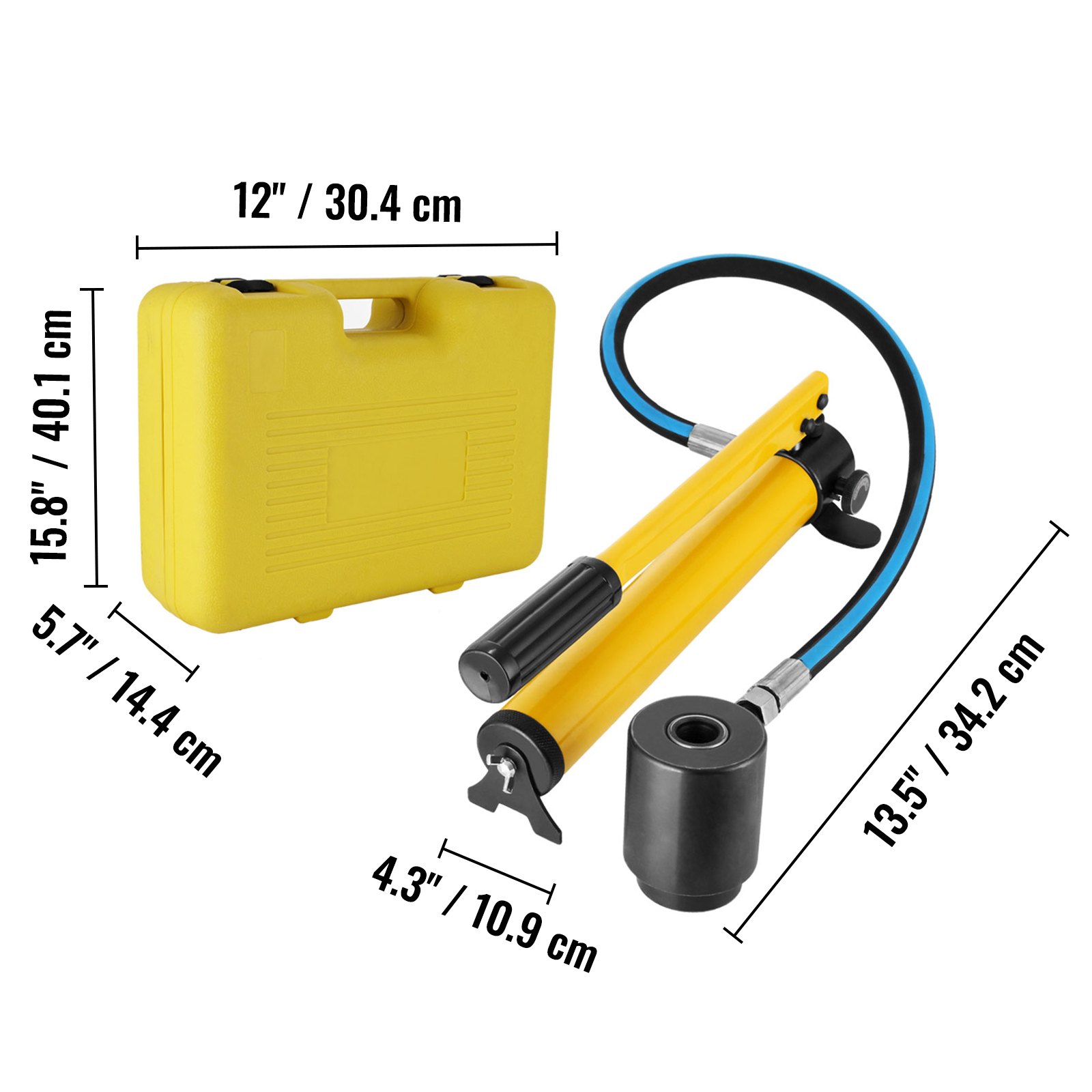

- Dimensions: 430 x 260 x 260 mm / 17 x 10 x 10 inches
- Total weight: 11 kg / 25 lbs
- 1 x 10-ton pump
- 1 x plunger with hose
- 6 x dies & stamps
- 2 x spacers
- 2 x pull bolts
- 1 x piston shaft
- 1 x plastic carrier bag
- 1 x manual
Hydraulic stripping and punching tool
This hydraulic breakout hole punch set features a compact and durable design with high hardness and quality, and is easy to use for creating a perfectly uniform hole. It comes with six drill bits for punching holes of various sizes. It is suitable for construction and maintenance work.
- Labor-saving & hydraulic 10 T
- Set of durable matrices and stamps
- Easy to use
- Portable box
Hydraulic mechanism 10 T
Maximum pressure: 10 tons. The punch set is equipped with a hydraulic pump and a 3.1-inch oil hose, making it suitable for use in confined spaces. The hydraulic mechanism makes punching holes effortless.
Interchangeable 6 dies
There are six steel drill bits included, in sizes 22, 27.5, 34, 43, 49, and 60 mm, suitable for drilling both large and small diameter holes. The two drive pins are robust and built for a long service life.
Efficient punching
This hole punch set makes it easy to create a perfect hole. You can complete the process by following the steps shown. It is suitable for 11 ga steel and 14 ga stainless steel.
Ergonomic handle
A thickened plastic handle provides a comfortable and non-slip grip, suitable for extended use. Operating this hole punch set is convenient and energy-efficient.
Portable storage case
This hydraulic stripping and punching set is compact and easy to store in its plastic tool case. This saves space and makes the hydraulic punching set easy to transport. The tool case is durable and practical.
Wide application
This hydraulic punch drive set is suitable for construction site and maintenance work, personal DIY and furniture assembly, for punching sheet metal such as structural steel, stainless steel, etc.
- 1 x 10-ton pump
- 1 x plunger with hose
- 6 x dies & stamps
- 2 x spacers
- 2 x pull bolts
- 1 x piston shaft
- 1 x plastic carrier bag
- 1 x manual
- Die material: steel
- Stroke: 25 mm / 1 inch
- Maximum pressure: 10 tons
- Maximum thickness for steel: 3.2 mm / 0.13 in / 11 ga
- Maximum thickness for stainless steel: 2 mm / 0.08 in / 13 ga
- Stamp dies: 22 / 27.5 / 34 / 43 / 49 / 60 mm (0.866 / 1.08 / 1.34 / 1.7 / 1.93 / 2.36 inches)
- Draw bolts: 3.1 in L x φ0.31 & 3.2 in L x φ0.3 in
- Draw bolts (metric system): 7.9 cm L x φ0.79 cm & 8.1 cm L x φ0.76 cm
- (Compatible with GREENLEE and other domestic stamping tools)
- Stamps materials: steel, stainless steel, brass, copper, aluminum
- (soft alloys only, not for use with 7075 or other superalloys), fiberglass, plastic and more.
- Dimensions: 430 x 260 x 260 mm / 17 x 10 x 10 inches
- Total weight: 11 kg / 25 lbs
