SKU: DQXJSTCFS40X40X15V0
Top highlights
- Durable 1.5 mm cold-rolled steel with CE and RoHS certification for wear resistance and equipment protection.
- IP66 waterproof with foam sealing strip to block dirt and water in harsh environments.
- Reinforced lock and hinge ensure security and durability.
AI Summarized from product information
Specifications
- Model SPT
- Color Grey white (RAL7035)
- Material 0.059'' / 1.5 mm carbon steel
- Coating Epoxy-polyester powder coating
- Mounting plate 0.079'' / 2 mm removable galvanized backplate
- IP rating Designed to meet IP66 and NEMA 1, 2, 4, 4X and 12 specifications
Reviews · 4.7
Reviews · 4.7
stcyhldnsmi
in
on Oct 05,2026
on Oct 05,2026
Carbon Steel 40×40×15cm
ju***
in
on Oct 05,2026
on Oct 05,2026
Carbon Steel 40×40×15cm
Parece robusto falta esperar que pase un invierno para comprobar si es estanco.
About this item
Description

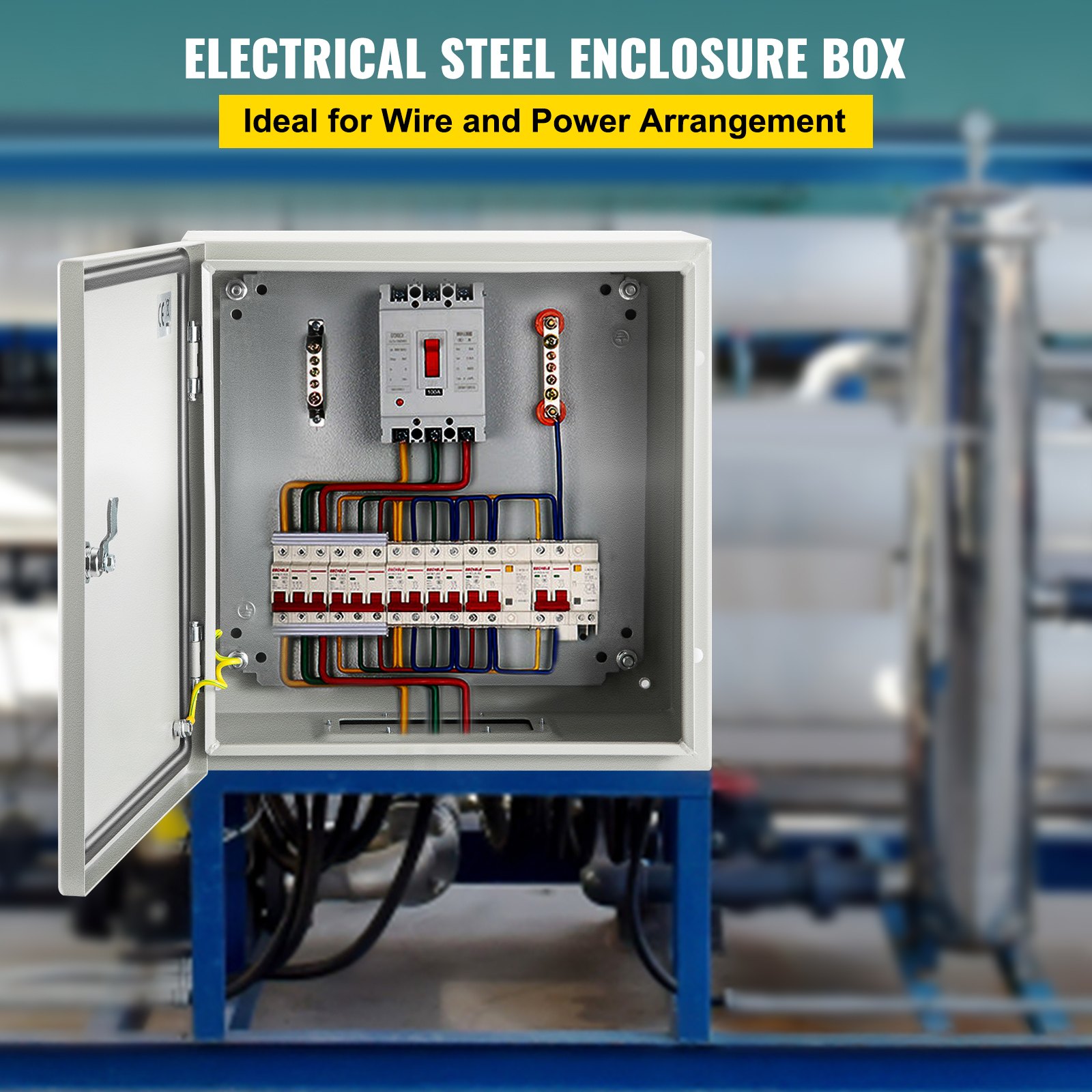

Electrical control cabinet – Start with your safety equipment!
IP66 protection rating, high security and DIY projects
The electrical enclosure is made of high-quality carbon steel. A precise locking design, high-strength hinges, sealing strips, and IP66 protection rating safeguard your plugs, power cables, and other equipment from the elements. Therefore, it is essential to ensure that the electrical circuit is protected from liquids and corrosion.
- Robust steel construction
- Waterproof according to IP66
- Reinforced lock and hinge
- Easy to use
- Exquisite detail design

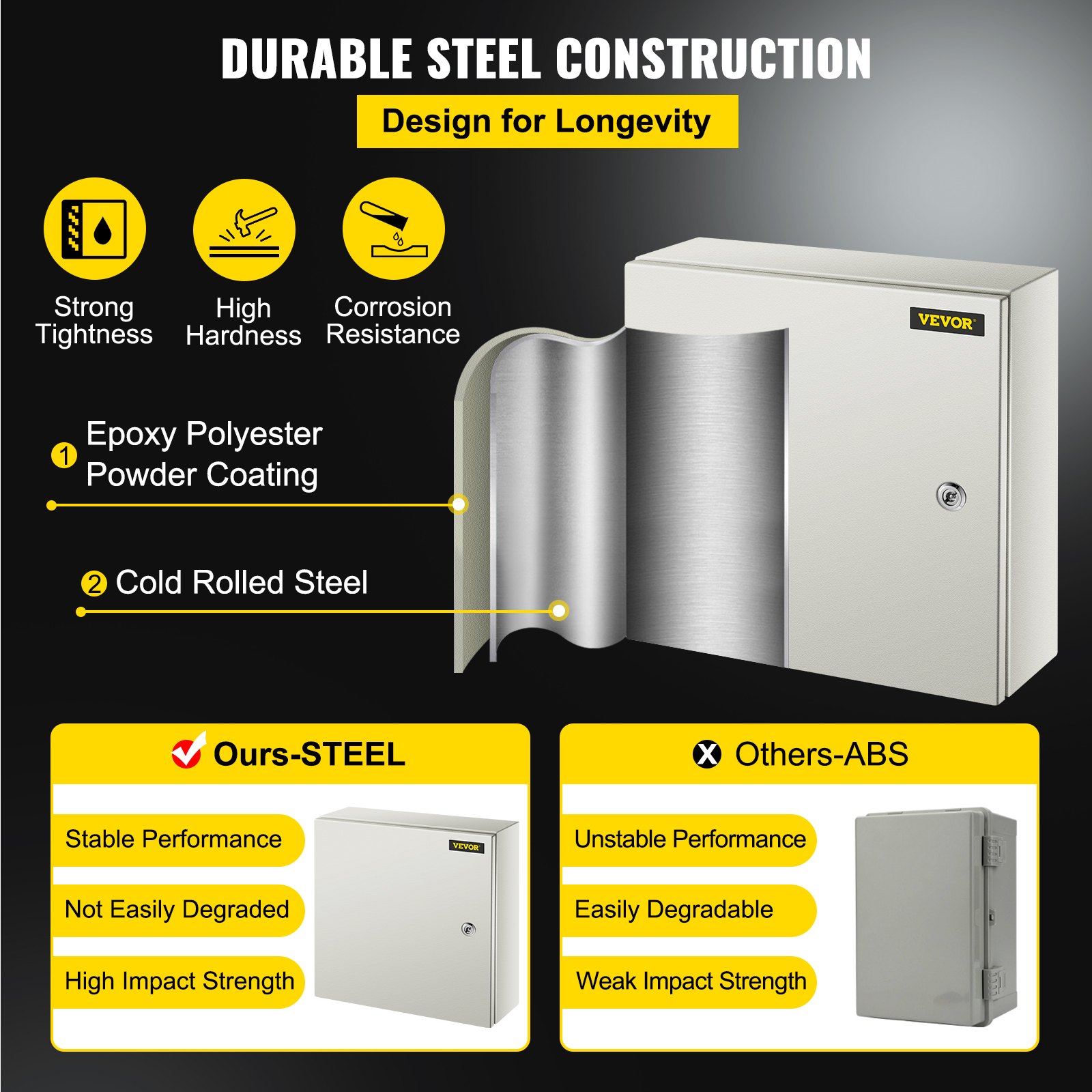

High-quality steel material
The electrical box is made of 0.059"/1.5 mm cold-rolled steel and is characterized by high toughness, compressive strength, and corrosion resistance. The shell consists of an epoxy-polyester powder coating, which has good mechanical and leveling properties.
Protection class IP66
The IP66 protection rating means dustproof and protected against moisture, water, rain, snow, oil, etc., to protect internal electrical equipment and keep all your electrical devices safe and dry.

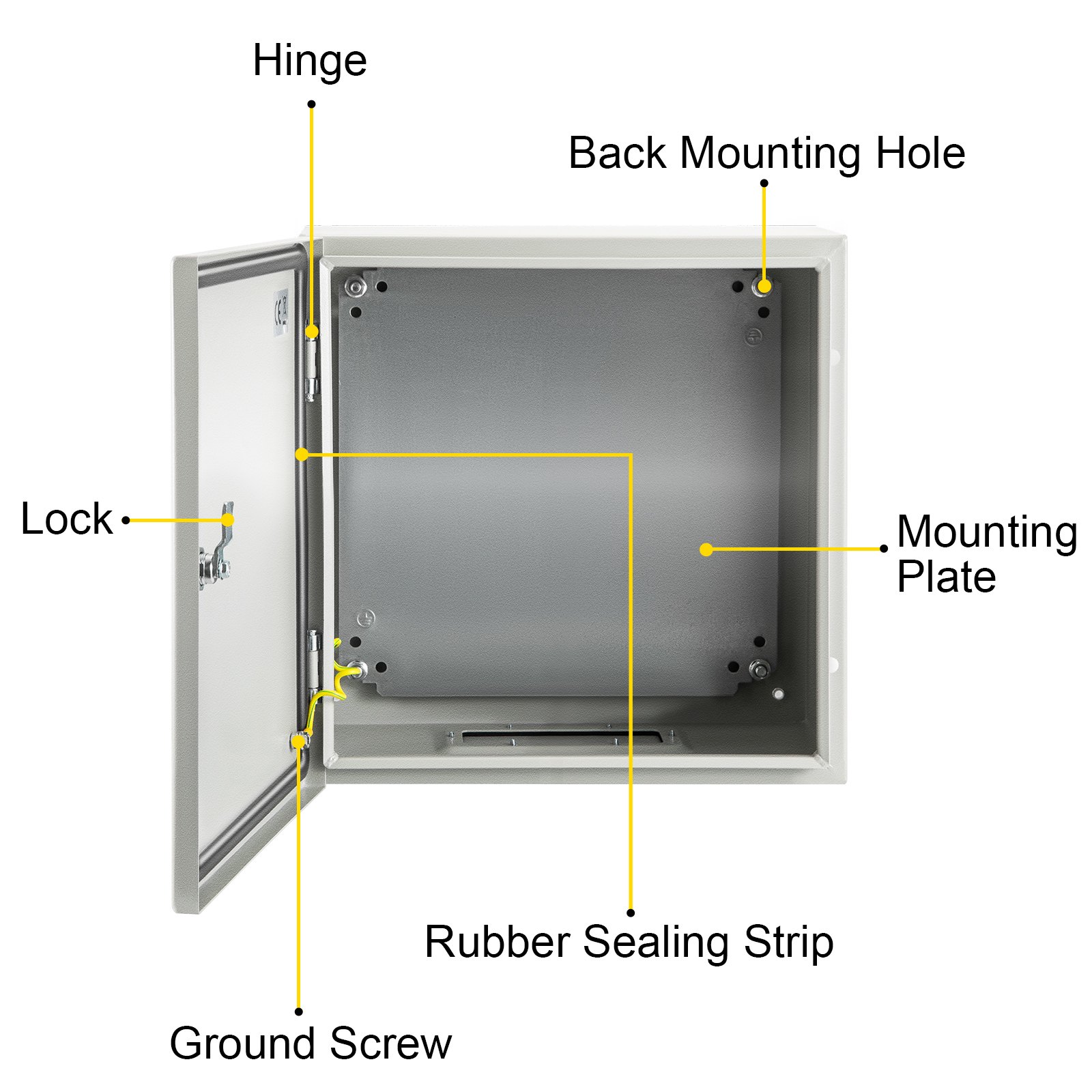

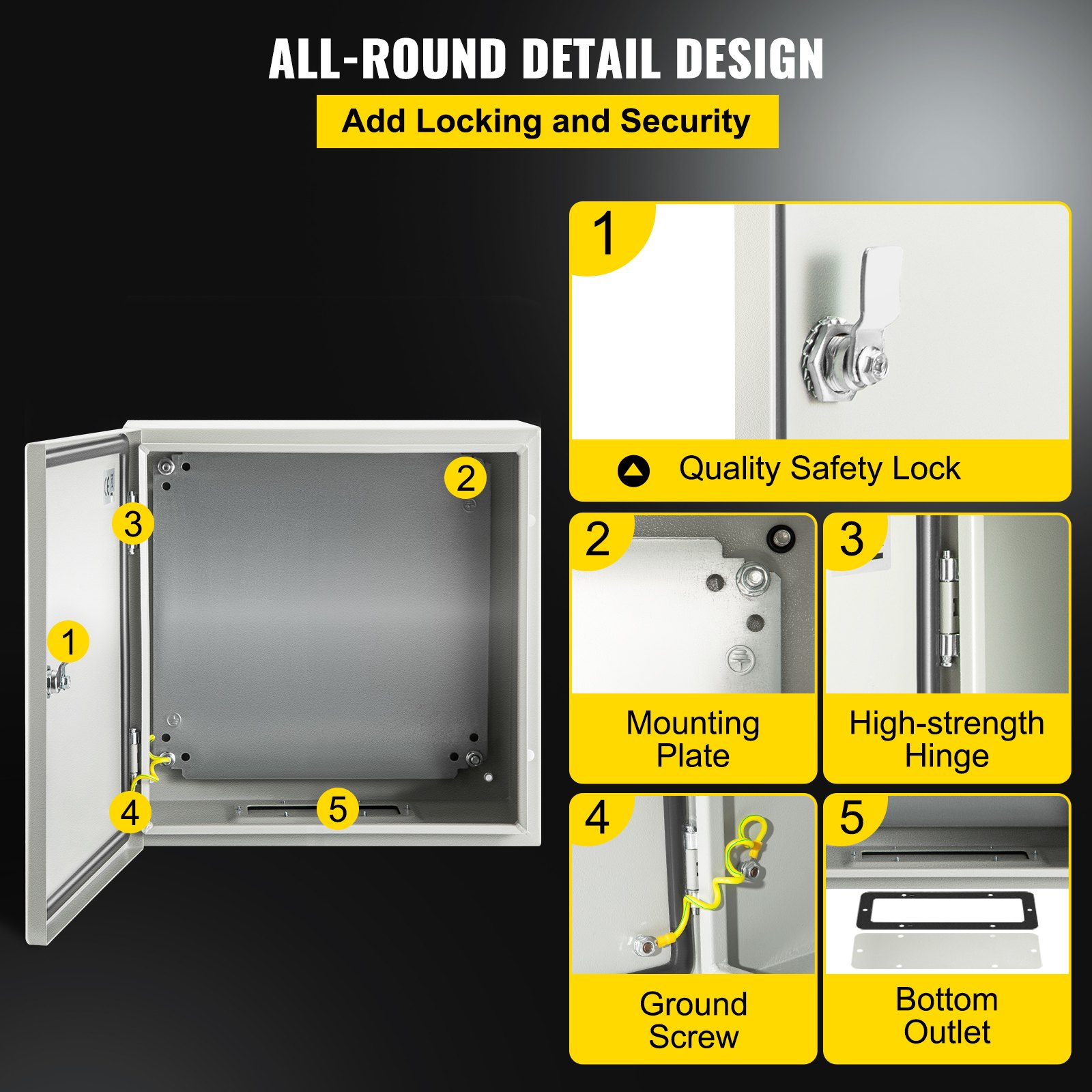

Hinge and lock safety
The inner lock core is made of metal to prevent damage from excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing does not cause damage.

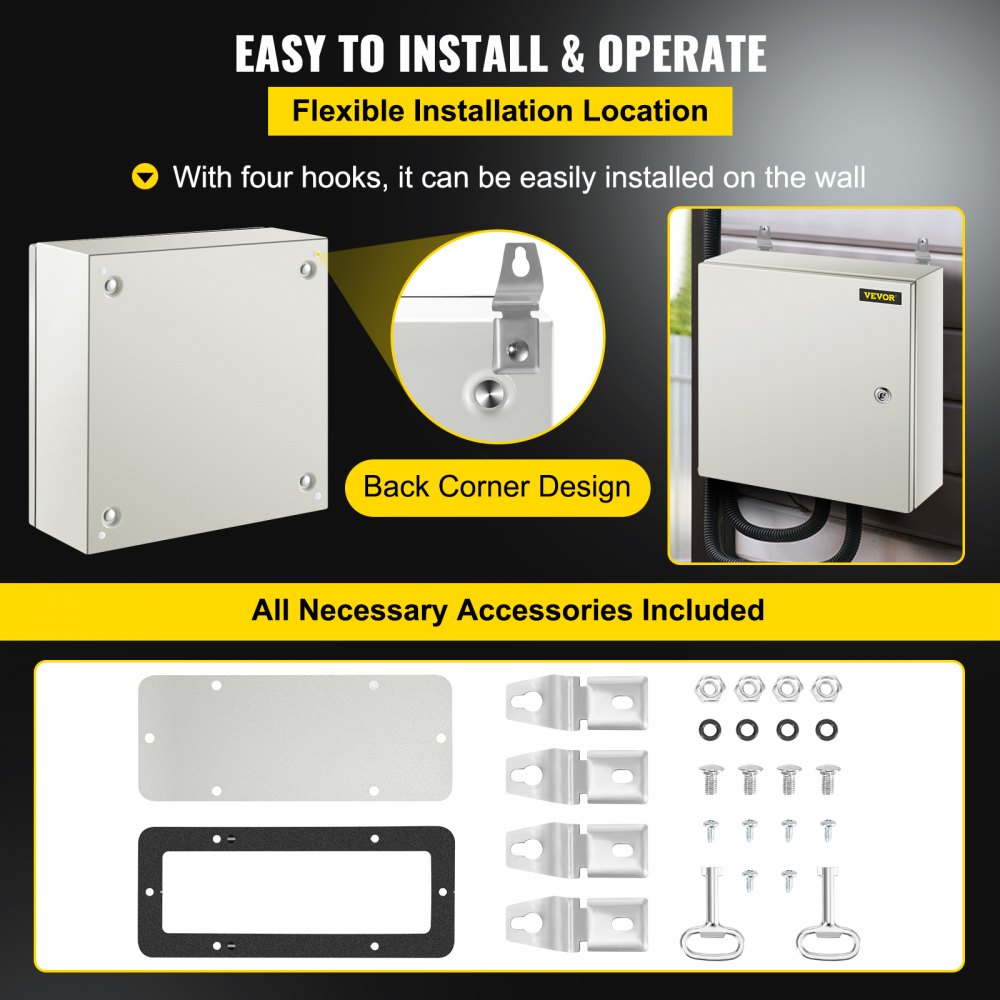

Easy to install and use

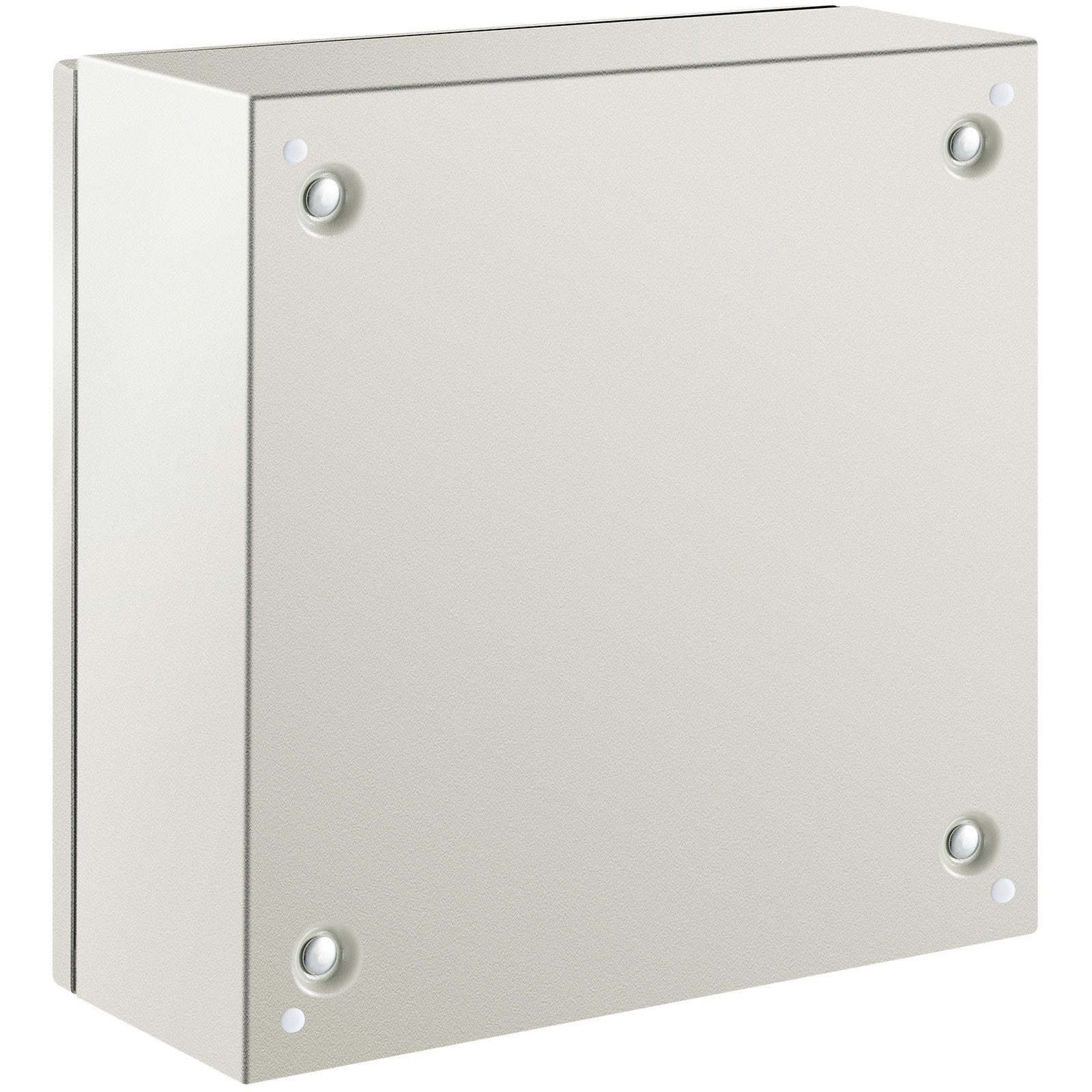

The removable, galvanized 2 mm backplate allows for easy installation of circuit boards, connectors, or other electrical components that need to be secured. Four mounting holes are also located on the back for easy wall mounting.

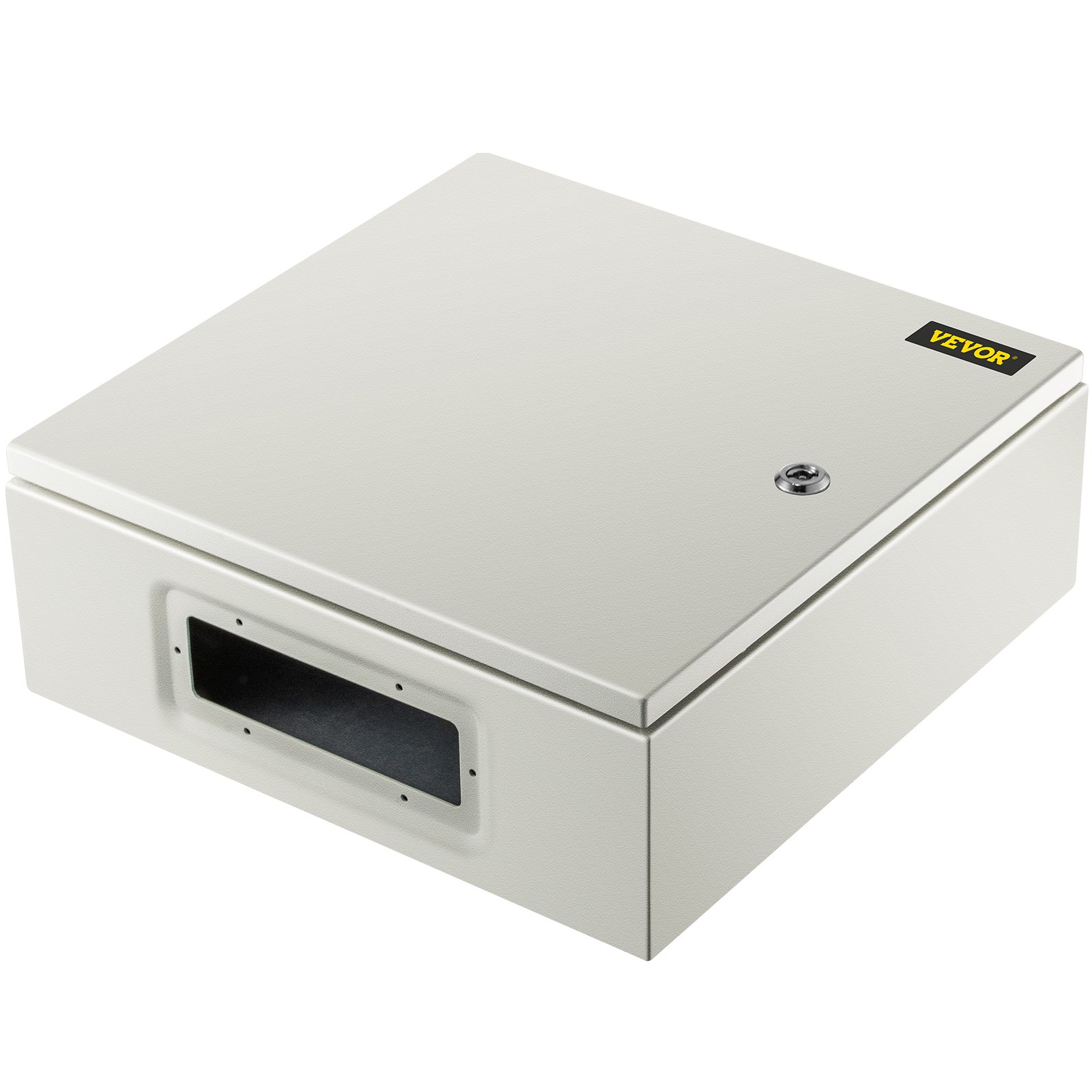

Thoughtful design
The removable outlet hole on the bottom facilitates cable entry and exit. The grounding cable inside the box is pre-installed, and the rounded corners are designed to prevent cable damage.
Extensive application

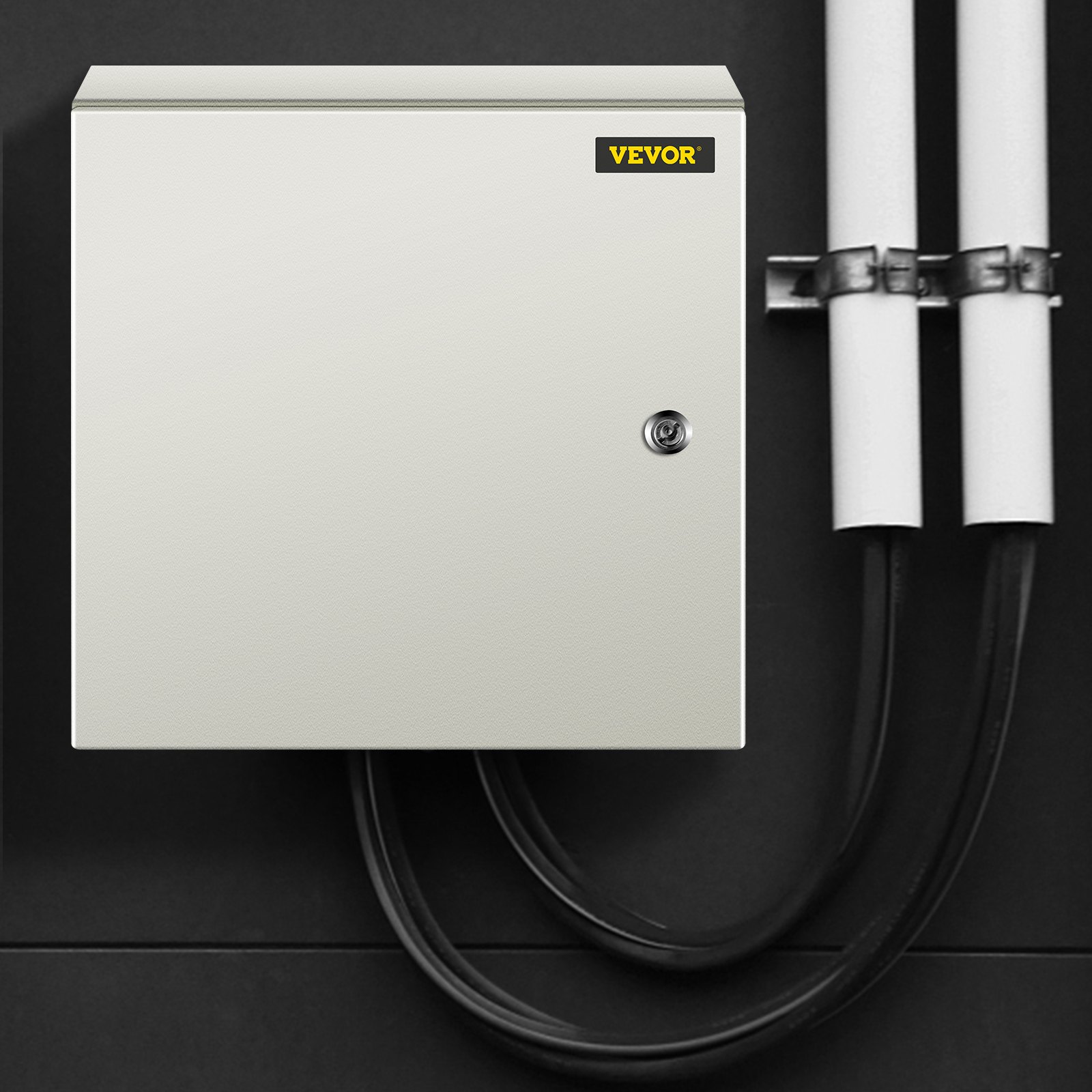

Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. They are applicable to factories, construction sites, shopping malls, plazas, residential areas, courtyards, etc.
- Model: SPT
- Color: Grey white (RAL7035)
- Material: 0.059'' / 1.5 mm carbon steel
- Coating: Epoxy-polyester powder coating
- Mounting plate: 0.079'' / 2 mm removable galvanized backplate
- IP rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X and 12 specifications
- Connection type: Hinge
- Feature: lockable, waterproof
- Dimensions of the galvanized backplate: 13.8" x 13.8" / 35 x 35 cm

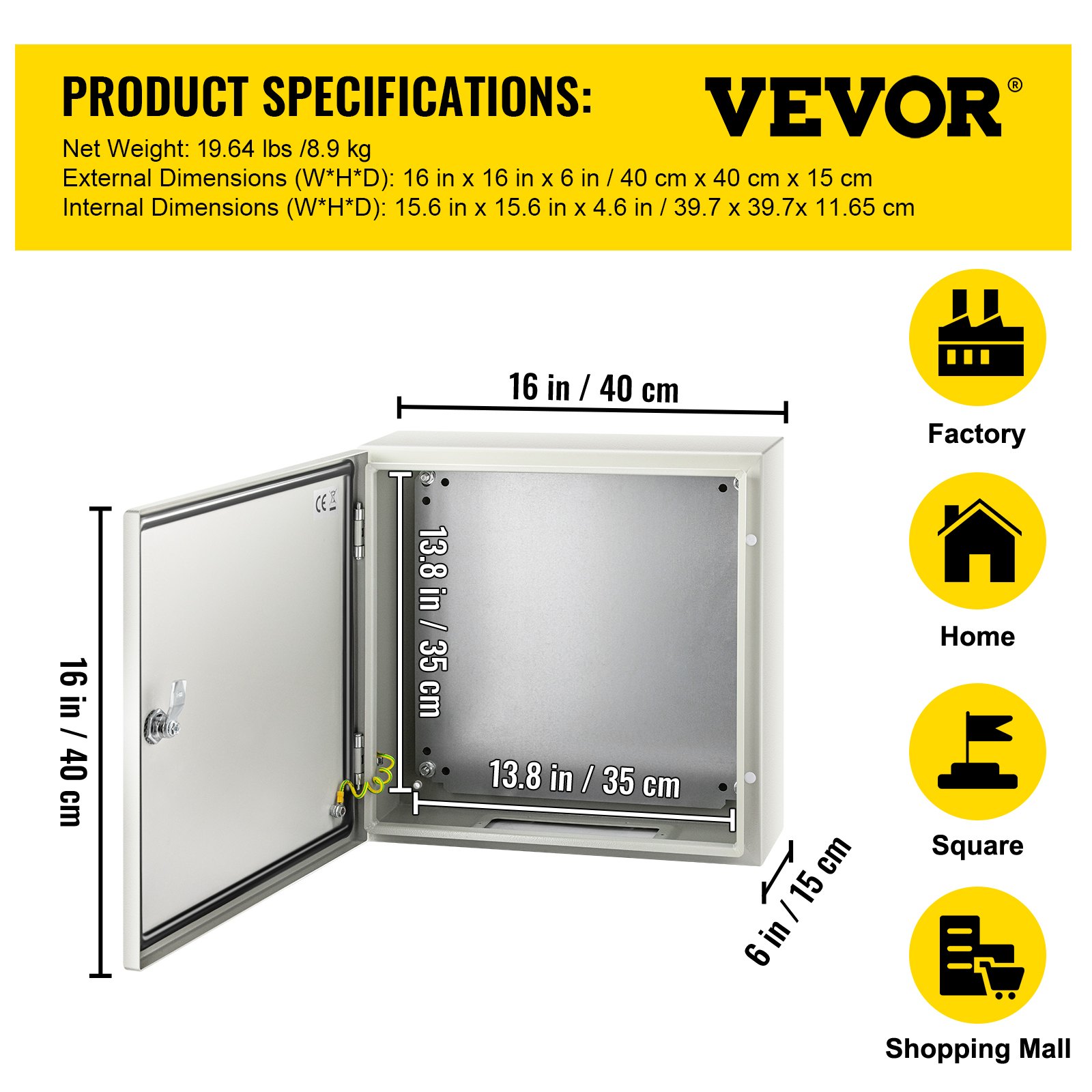

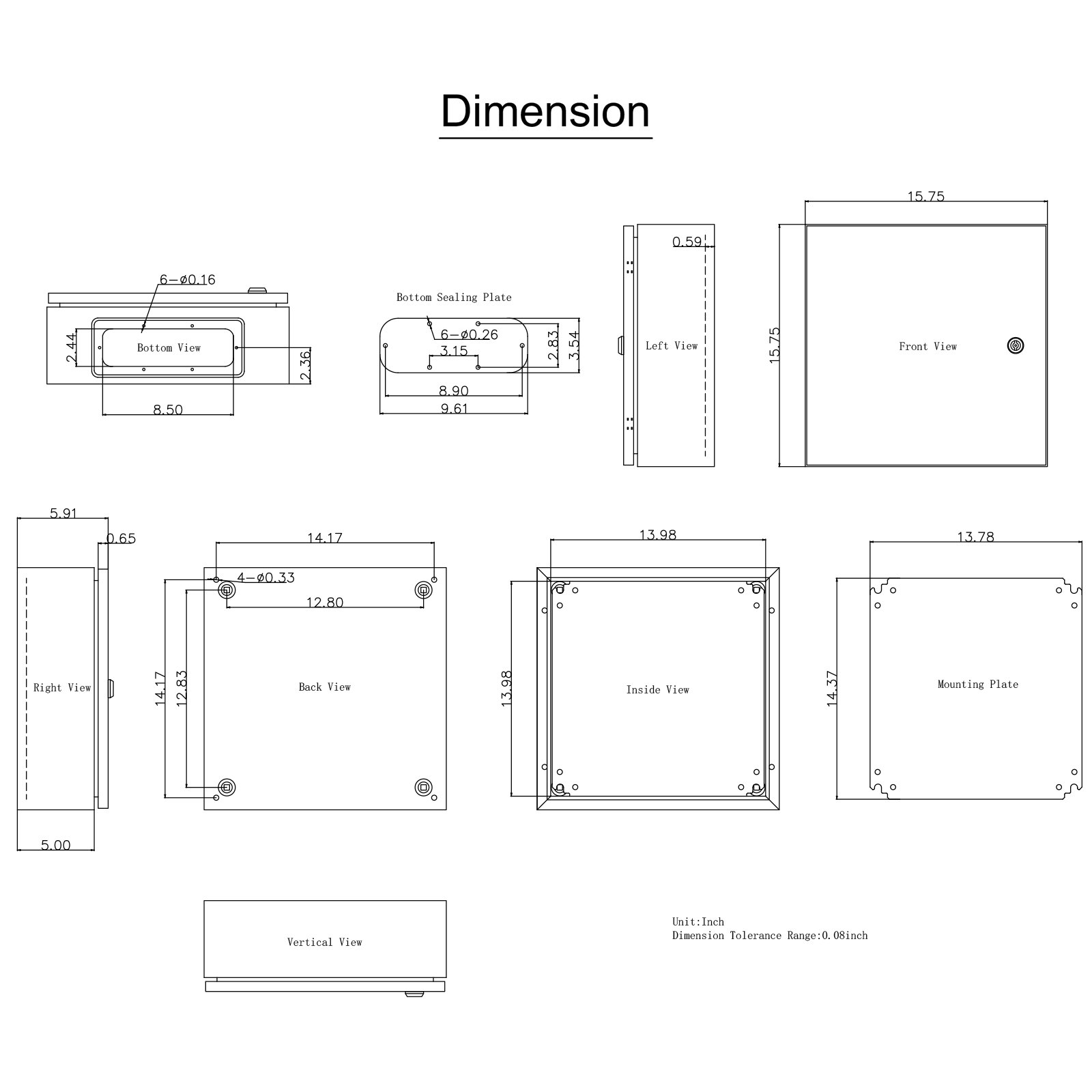

- External dimensions (H x W x D): 16'' x 16'' x 6'' / 40 x 40 x 15 cm
- Internal dimensions (H x W x D): 15.6'' x 15.6'' x 4.6'' / 39.7 x 39.7 x 11.65 cm
- Product weight: 10.1 kg
- Certification: CE/RoHS certification

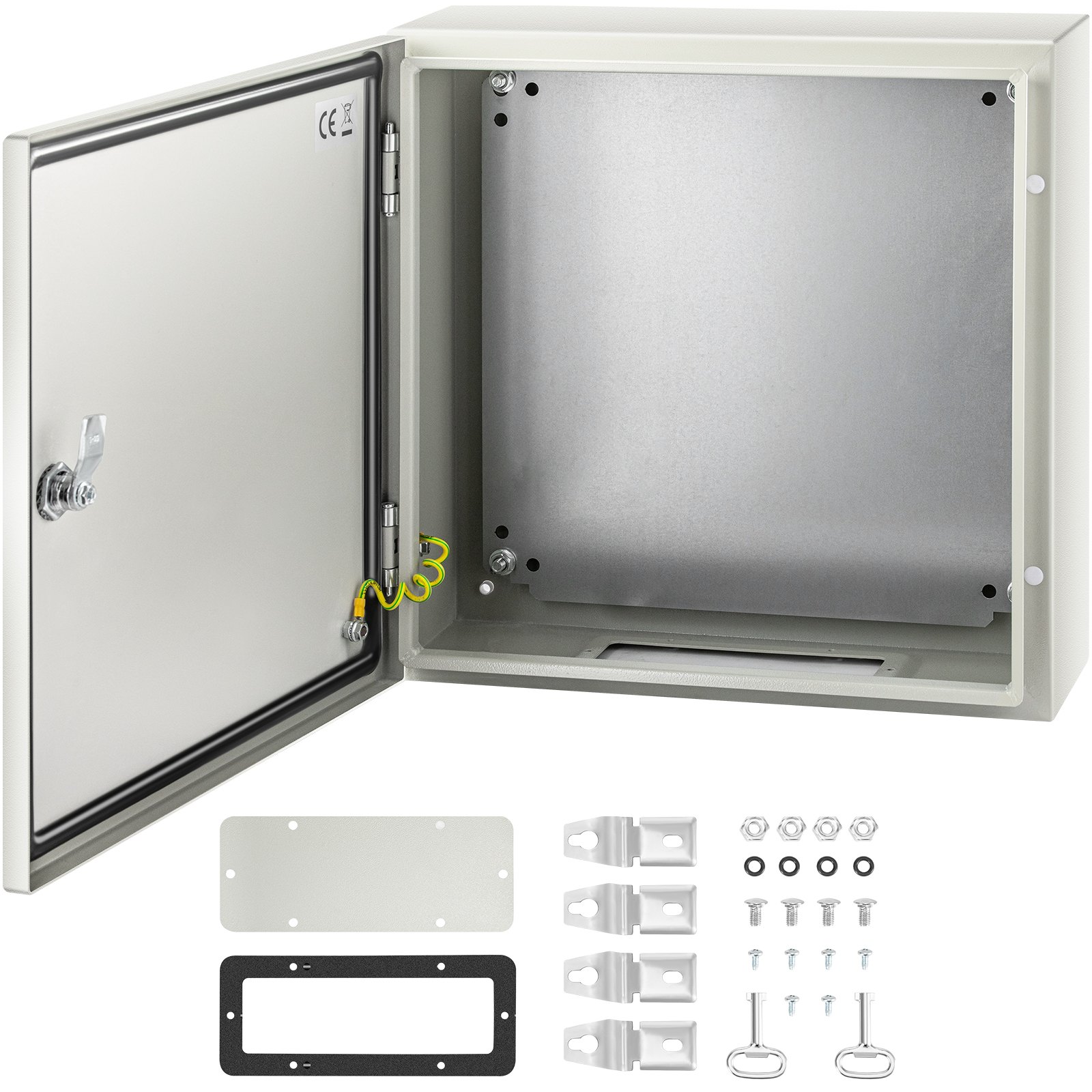

- 1 x electrical box
- 2 x keys
- 1 x Mounting plate (The mounting plate was pre-assembled in the box)
- 1 x set of wall mounting brackets
- 1 x lower sealing plate
Electrical control cabinet – Start with your safety equipment!
IP66 protection rating, high security and DIY projects
The electrical enclosure is made of high-quality carbon steel. A precise locking design, high-strength hinges, sealing strips, and IP66 protection rating safeguard your plugs, power cables, and other equipment from the elements. Therefore, it is essential to ensure that the electrical circuit is protected from liquids and corrosion.
- Robust steel construction
- Waterproof according to IP66
- Reinforced lock and hinge
- Easy to use
- Exquisite detail design
High-quality steel material
The electrical box is made of 0.059"/1.5 mm cold-rolled steel and is characterized by high toughness, compressive strength, and corrosion resistance. The shell consists of an epoxy-polyester powder coating, which has good mechanical and leveling properties.
Protection class IP66
The IP66 protection rating means dustproof and protected against moisture, water, rain, snow, oil, etc., to protect internal electrical equipment and keep all your electrical devices safe and dry.
Hinge and lock safety
The inner lock core is made of metal to prevent damage from excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing does not cause damage.
Easy to install and use
The removable, galvanized 2 mm backplate allows for easy installation of circuit boards, connectors, or other electrical components that need to be secured. Four mounting holes are also located on the back for easy wall mounting.
Thoughtful design
The removable outlet hole on the bottom facilitates cable entry and exit. The grounding cable inside the box is pre-installed, and the rounded corners are designed to prevent cable damage.
Extensive application
Electrical junction box enclosures are suitable for indoor and outdoor applications to protect circuits and prevent corrosion. They are applicable to factories, construction sites, shopping malls, plazas, residential areas, courtyards, etc.
- 1 x electrical box
- 2 x keys
- 1 x Mounting plate (The mounting plate was pre-assembled in the box)
- 1 x set of wall mounting brackets
- 1 x lower sealing plate
- Model: SPT
- Color: Grey white (RAL7035)
- Material: 0.059'' / 1.5 mm carbon steel
- Coating: Epoxy-polyester powder coating
- Mounting plate: 0.079'' / 2 mm removable galvanized backplate
- IP rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X and 12 specifications
- Connection type: Hinge
- Feature: lockable, waterproof
- Dimensions of the galvanized backplate: 13.8" x 13.8" / 35 x 35 cm
- External dimensions (H x W x D): 16'' x 16'' x 6'' / 40 x 40 x 15 cm
- Internal dimensions (H x W x D): 15.6'' x 15.6'' x 4.6'' / 39.7 x 39.7 x 11.65 cm
- Product weight: 10.1 kg
- Certification: CE/RoHS certification
