Features & Details
- Product Details: Our hydraulic pump is equipped with a 12V DC motor (power: 1.6-3 kW) and a 4-quart reservoir. The maximum discharge pressure at port A (SAE #6) is 3200 PSI and at port B (SAE #6) it is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for power upwards and gravity downwards.
- Easy to use: This 12V hydraulic power unit comes fully assembled. Wiring is simple and includes an instruction manual. We provide a 15-foot remote control and an additional SAE#6 connector as a spare.
- Reliable quality: The hydraulic pump is made of robust metal, so the oil tank is not easily cracked or damaged. As a drive unit, this is a perfect replacement pump for remote-controlled hydraulic systems. Equipped with a pressure relief valve, it prevents overpressure, ensuring safety and reliability.
- Fast start-up: With its powerful motor, this electric hydraulic pump starts quickly and delivers oil quickly; it can provide strong performance for hydraulic systems such as tipper trailers and tipping beds, and is able to complete lifting operations in a short time.
- Wide application: The hydraulic tipping device is frequently used in forklifts, small and medium-sized lifting platforms. It is compatible with many tipping trailers and moving machines and is a direct replacement for remote-controlled 12V DC hydraulic systems.
Frequently Bought Together
Reviews 4.9
All reviews are from verified purchases
Average rating based on 14 reviews
Reviews 4.9
All reviews are from verified purchases
See all 14 reviews
About this item

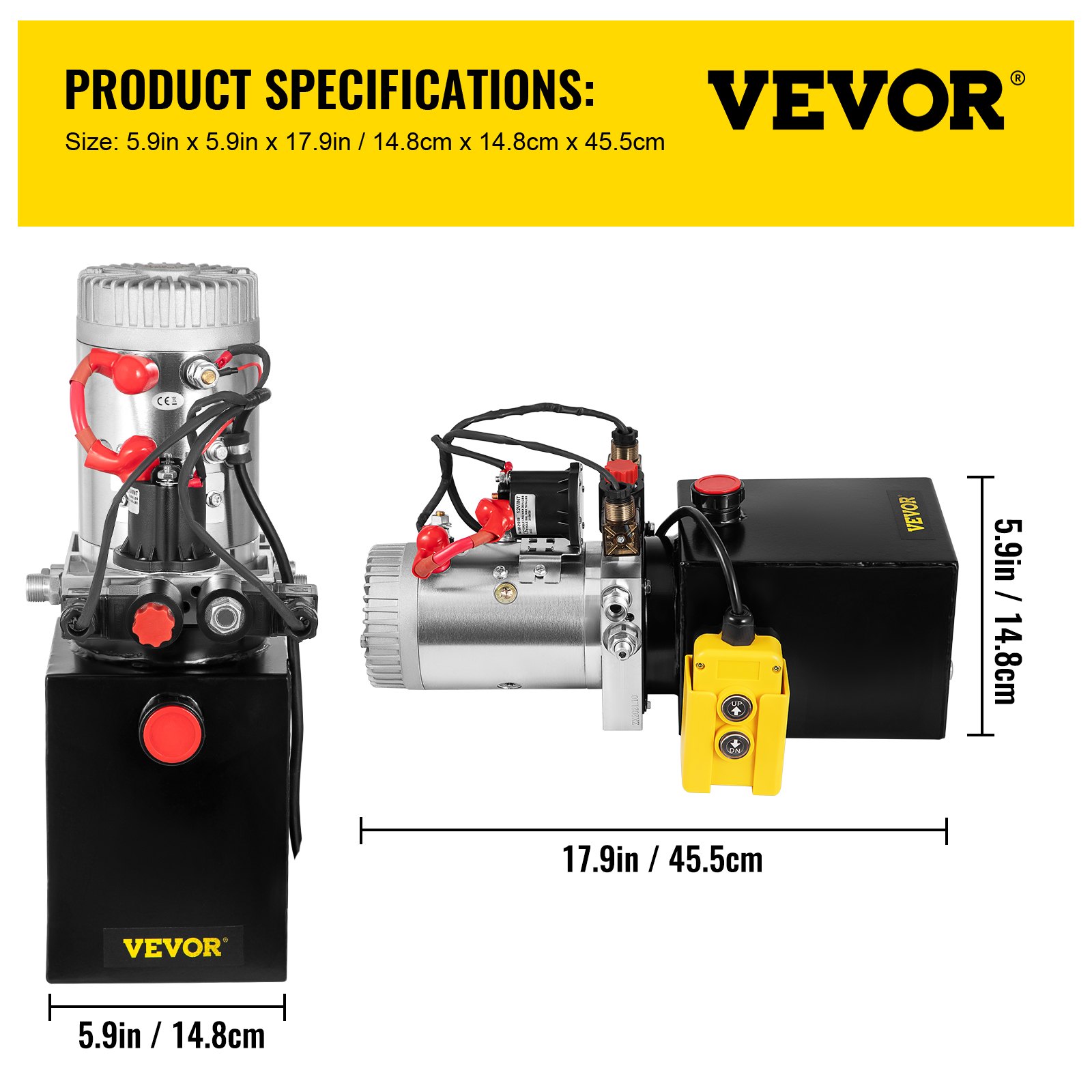

Product specification
- Tank material
- Metal
- Hydraulic pump displacement
- 0.825 GPM
- Pressure relief valve
- 22 MPa (3200 PSI Max. relief setting for increased lifting capacity at the A-port)
- Rated speed
- 2850 rpm
- Engine power
- 1.6-3 kW
- Motor voltage
- DC12-DV24
- Fuel tank
- 4 quarts / 4 liters
- Double-acting on/off switching
- 1500 hp max. Relief setting at B-connection
- 4 quart metal tank
- SAE #6 connection, horizontal mounting
- Handheld control unit with approx. 4.5 m (15 ft) sampling cable and start solenoid valve
Description

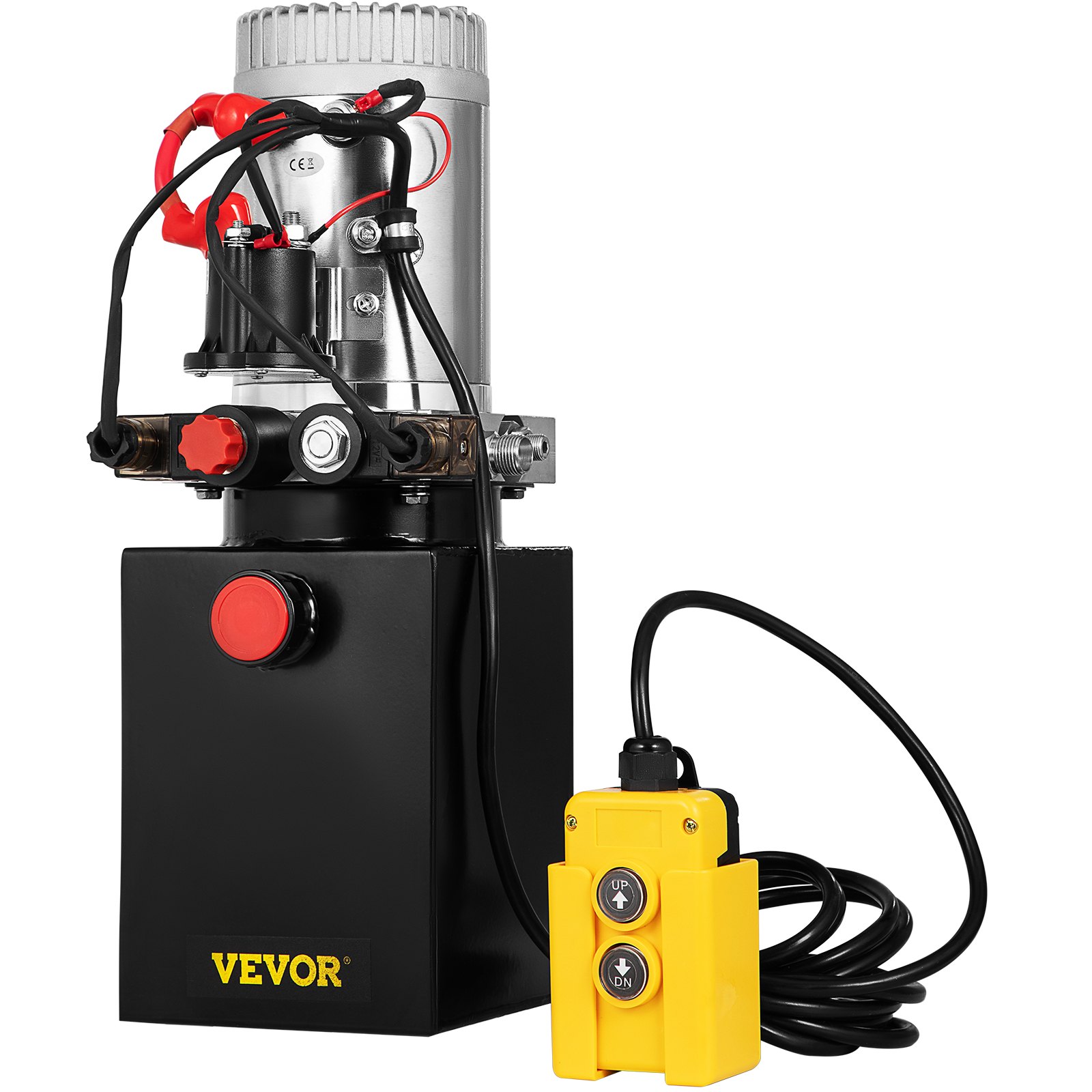

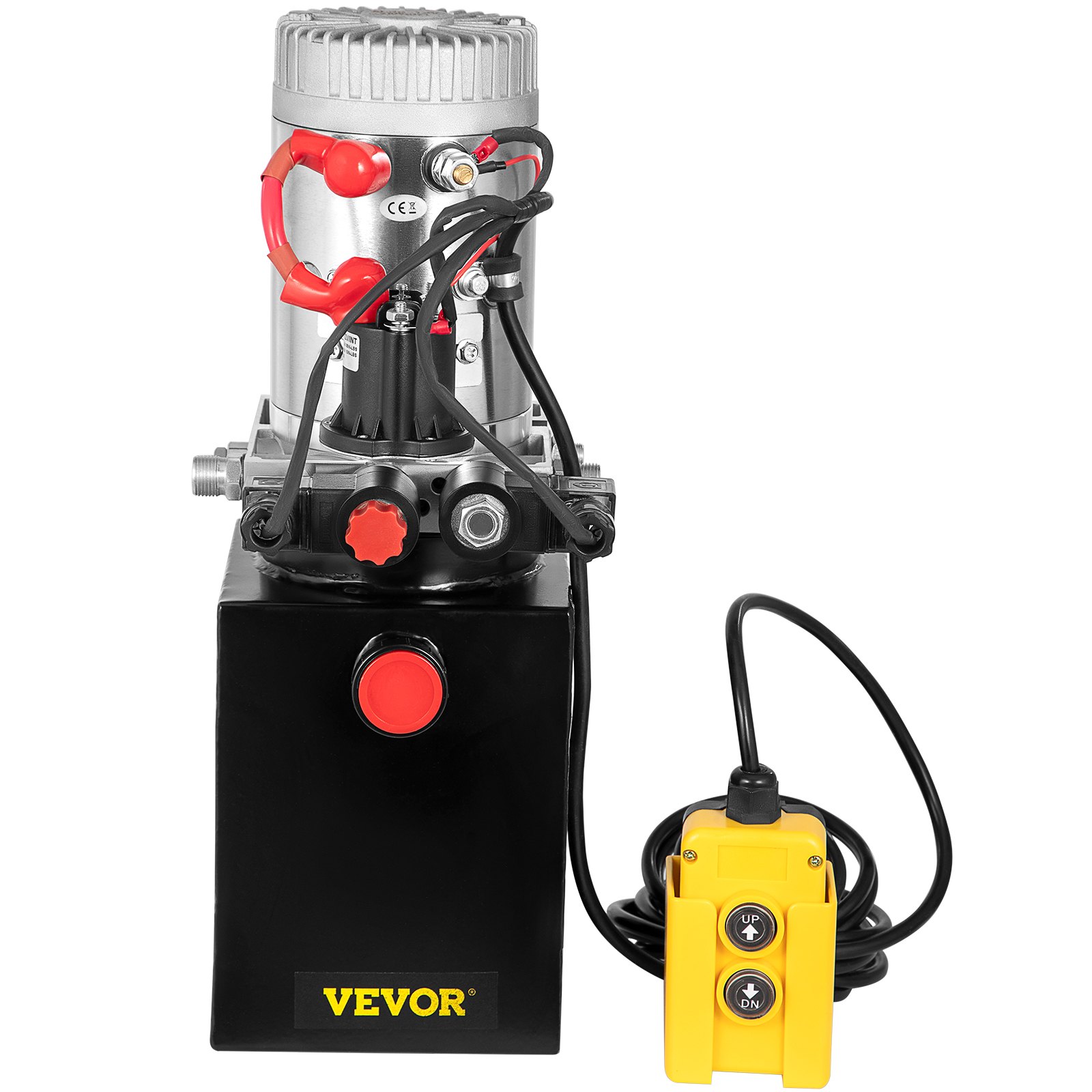

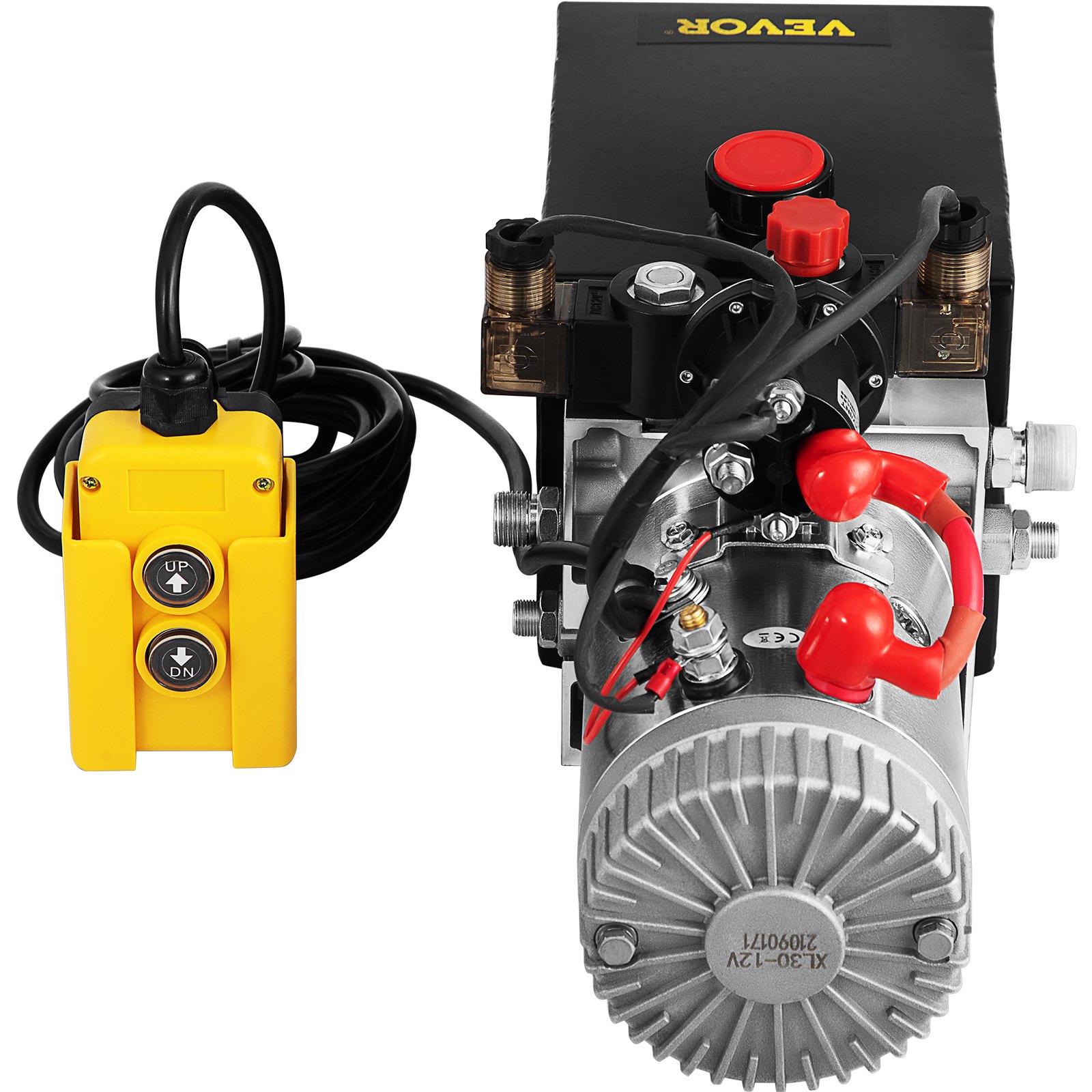

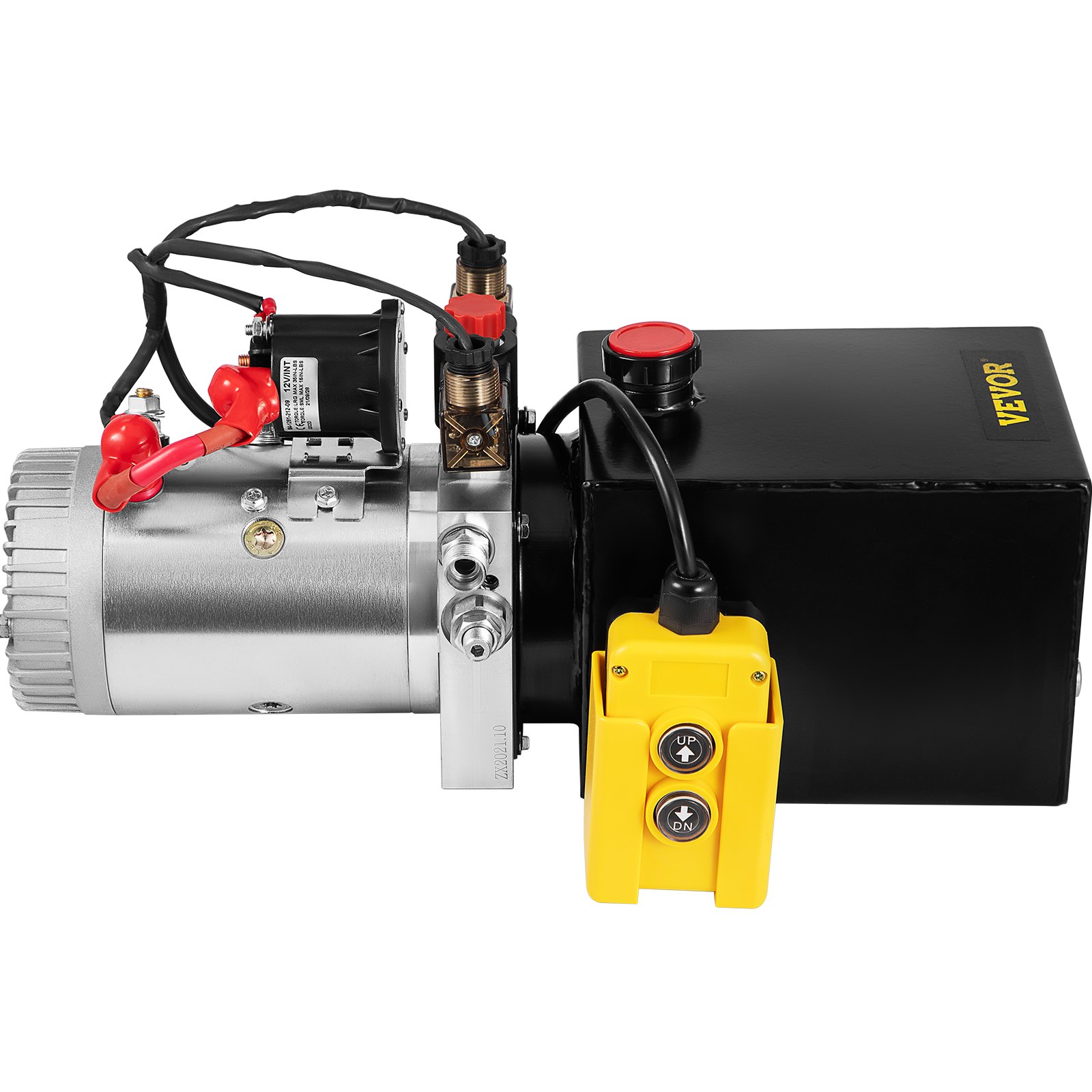

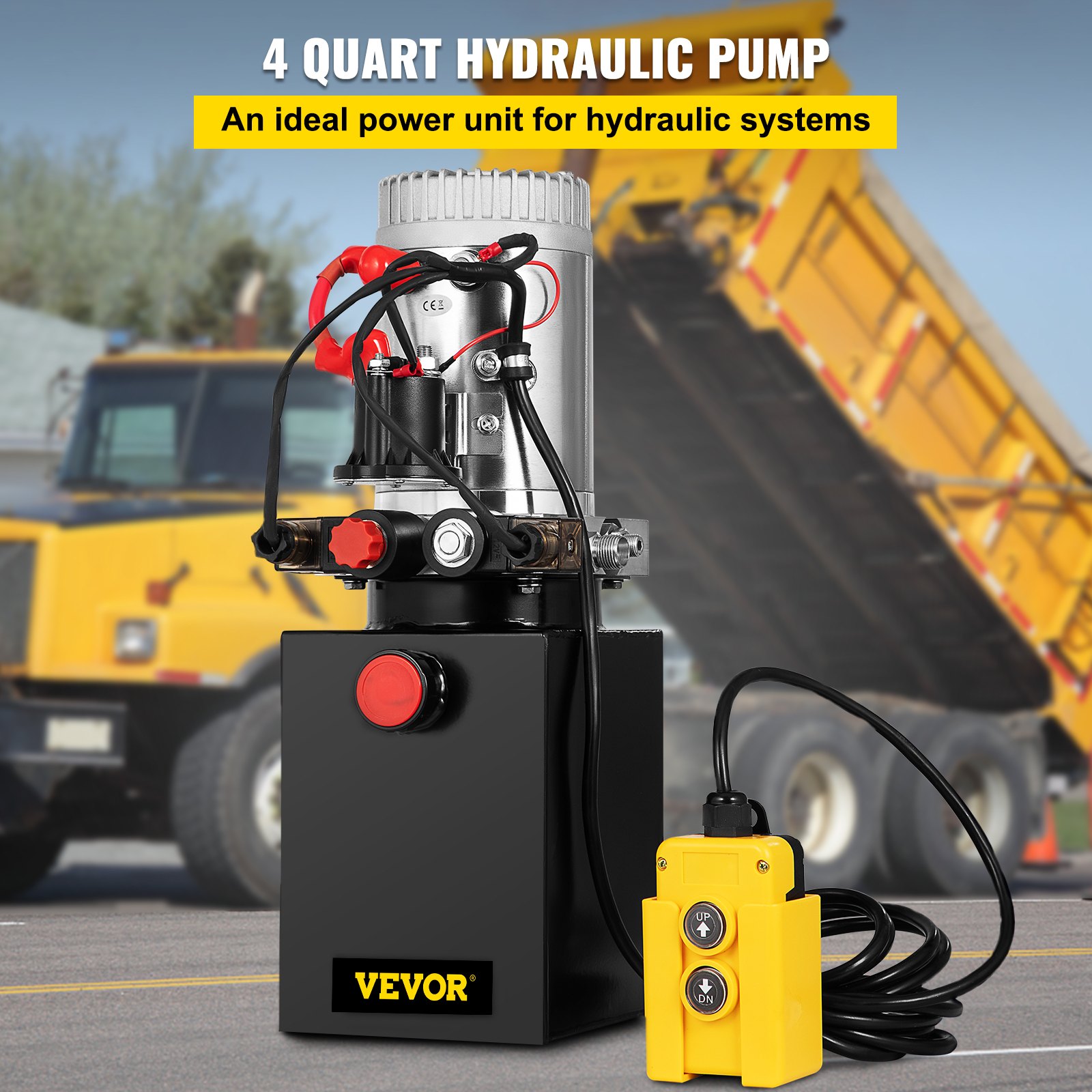

4 quart double-acting hydraulic pump
This hydraulic pump is a double-acting unit for lifting and lowering. It features a robust 6-liter metal tank and is equipped with a 12V DC motor, delivering powerful performance for hydraulic systems such as tipper trailers, forklifts, lifting platforms, etc.
- Note: All our hydraulic pumps are supplied with an M18*1.5 connection and an additional SAE6 connection (9/16"), which can be interchanged as required.
- Easy to use
- Reliable quality
- Quick start
- Wide application

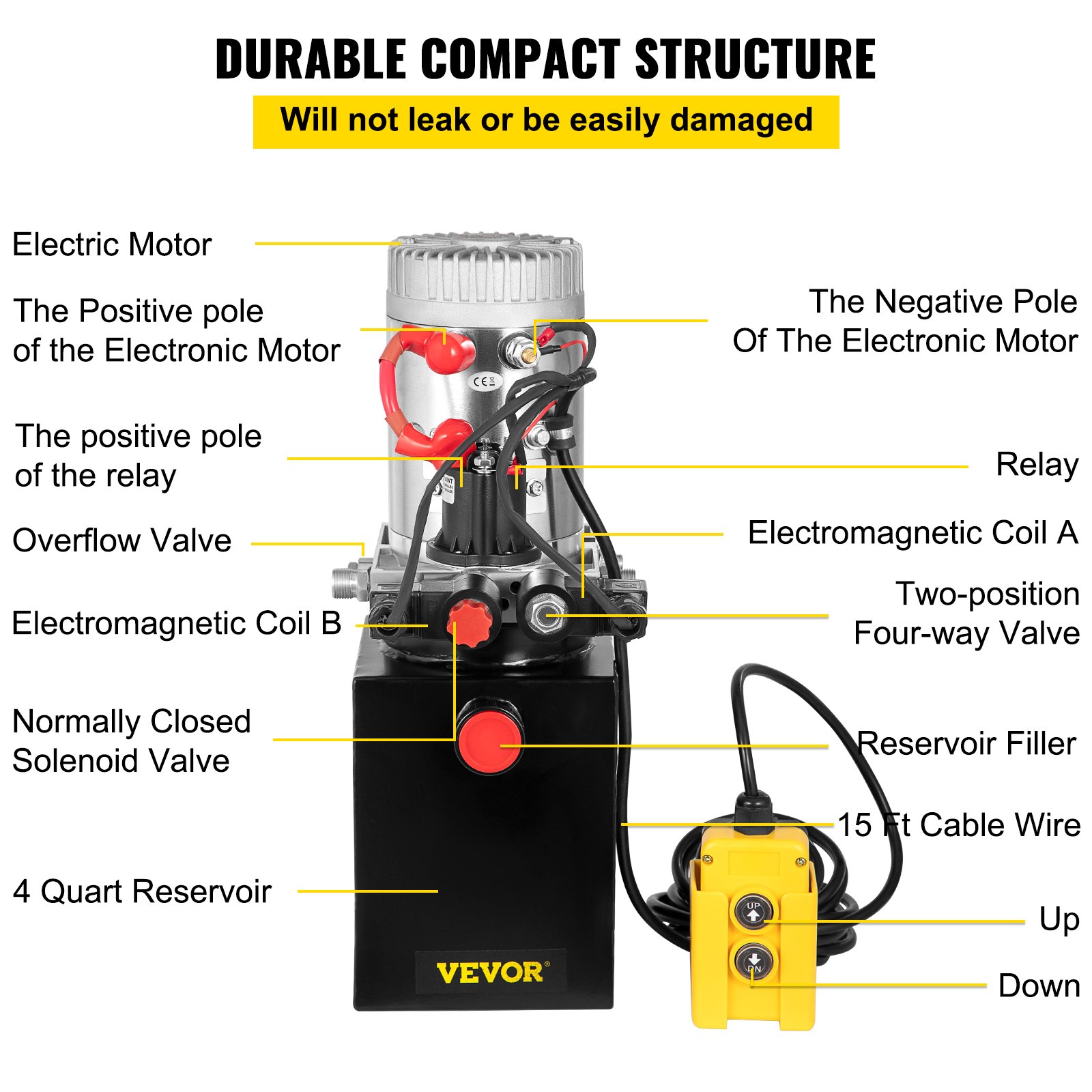

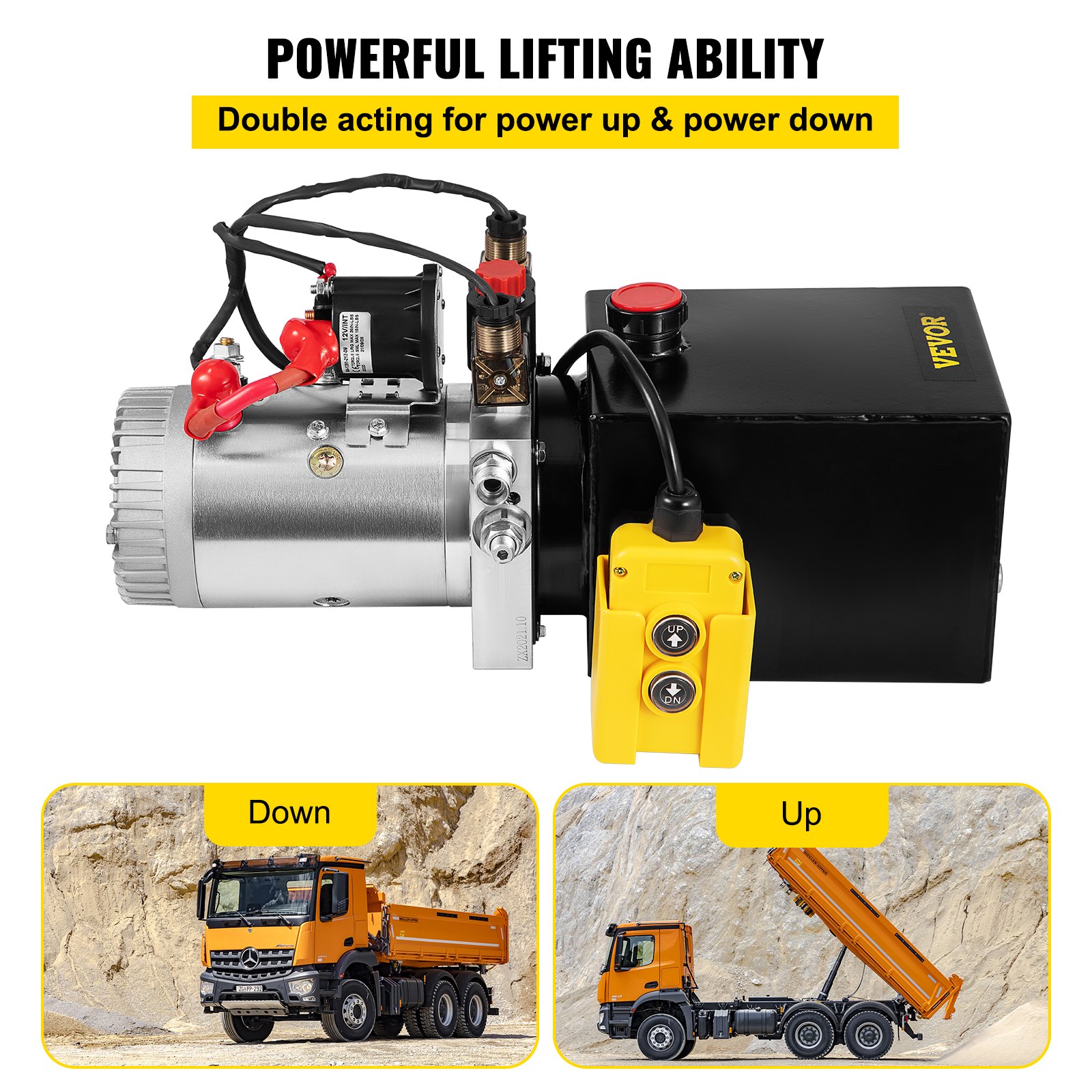

Double-acting unit
This double-acting hydraulic power unit features a 12V DC motor (power: 1.6-3 kW) and a 4-quart metal reservoir; it has SAE#6 ports with a maximum relief setting of 3200 PSI at port A and 1500 PSI at port B. The flow rate is 2 GPM. Rated speed: 2850 rpm.
Comfortable design

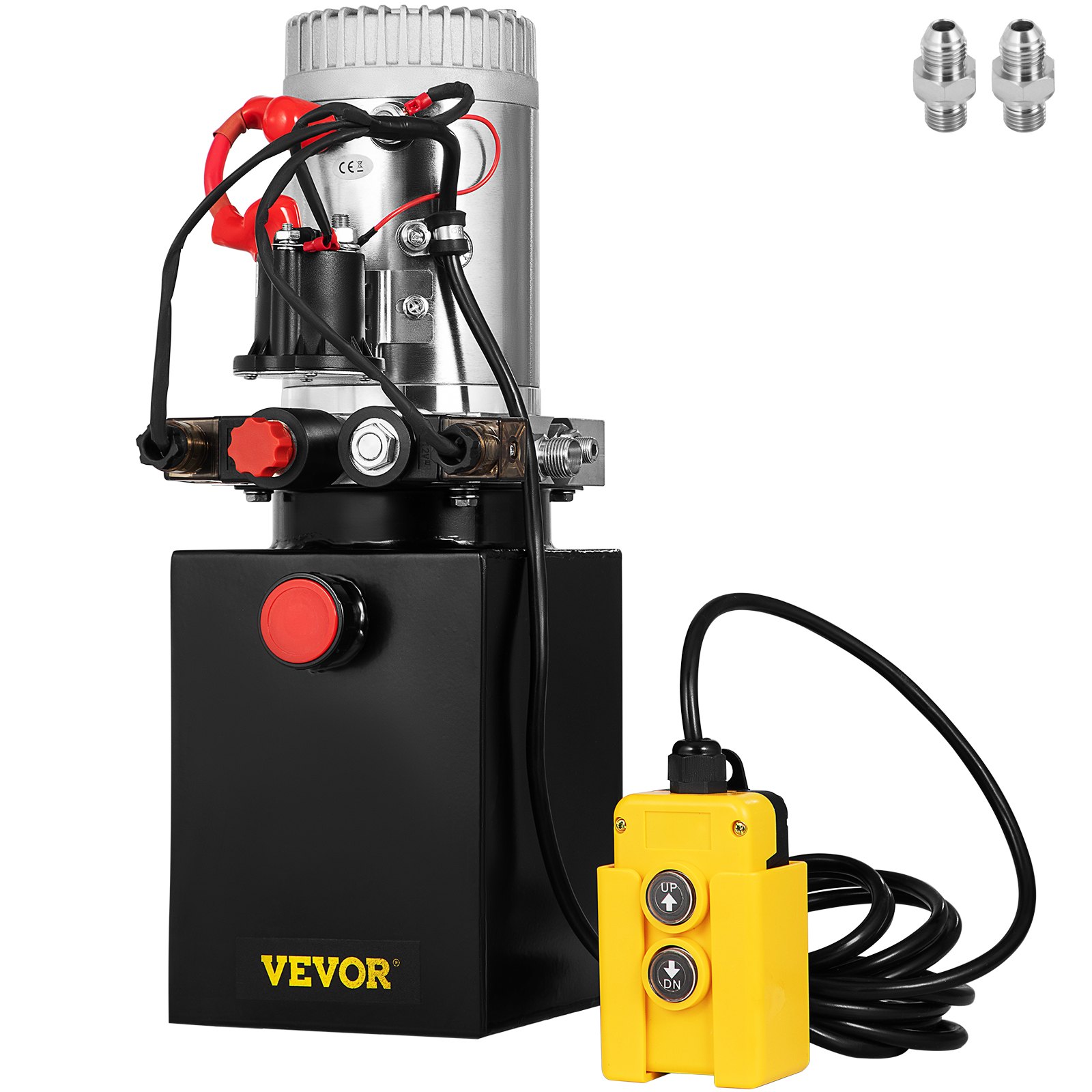

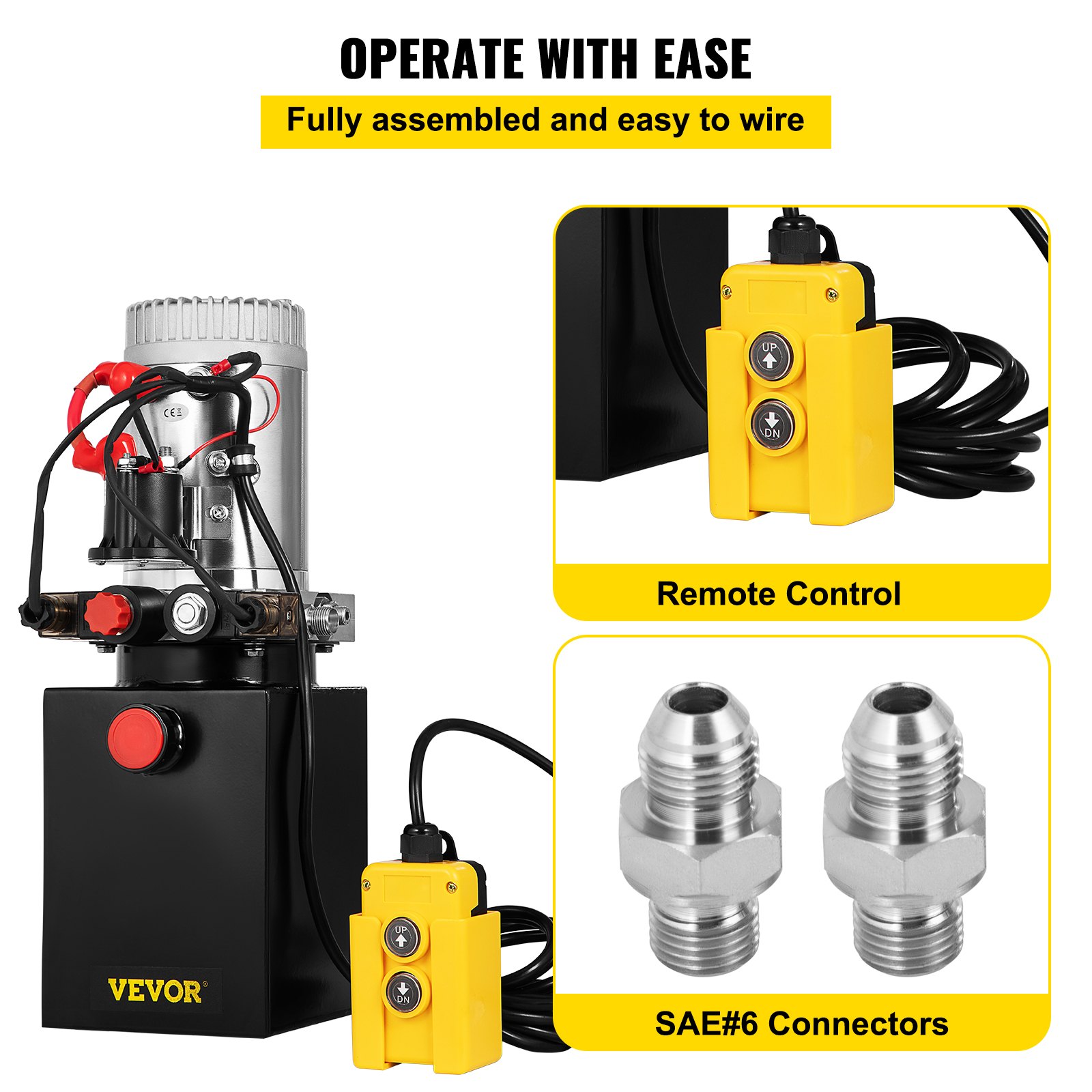

Our electric hydraulic pump comes fully assembled. It includes a handheld remote control and two additional SAE#6 connectors for replacement. The entire unit is easy to wire and operate.

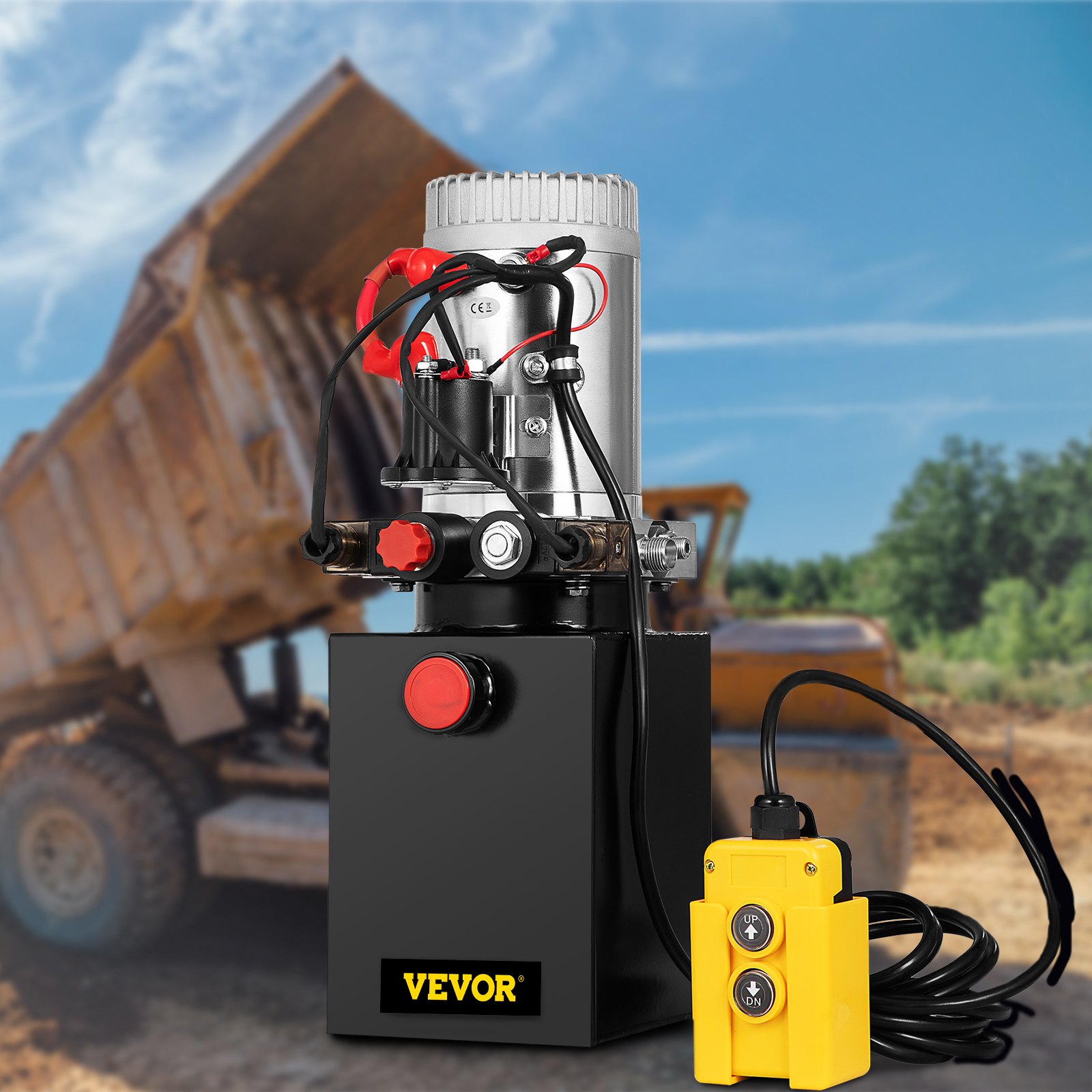

Quick start & Lift
Thanks to its powerful 12V DC electric motor, our hydraulic pump for tipper trailers starts quickly and ensures rapid oil delivery. Furthermore, it delivers strong performance, lifting heavy objects in a short time.
Durable
You can rely on the quality of this electric hydraulic pump, as it is made of specially treated, robust metal and the entire structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

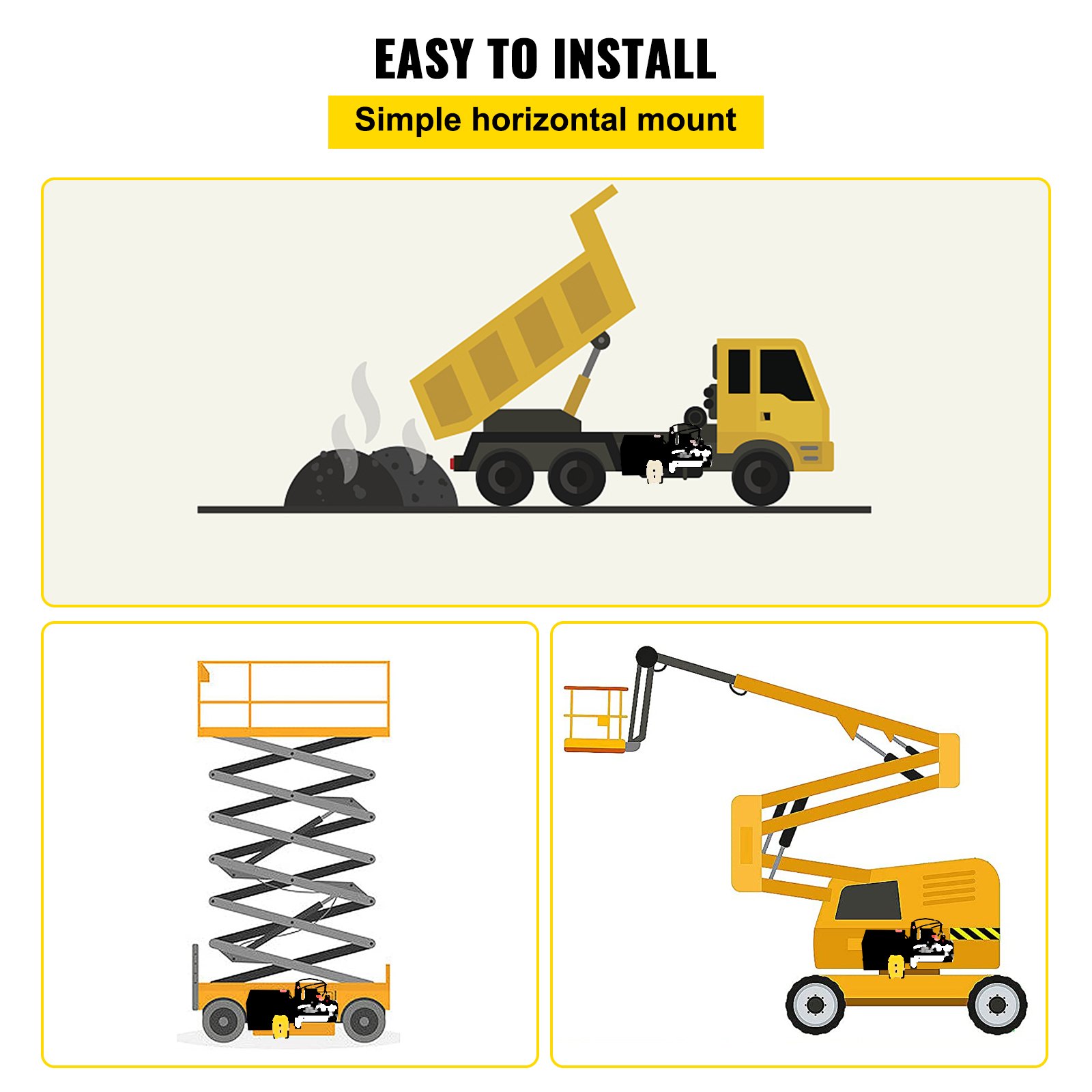

Easy installation
All our 12V hydraulic power units are delivered pre-assembled, and we provide an instruction manual to ensure easy installation and use of the hydraulic pump. Horizontal mounting is recommended.
Wide application
As a great powerhouse, this hydraulic pump can be used for many things, such as truck tailgates, leveling of motorhomes, scissor lifts, tipper trailers, pallet trucks, snowplows, lifting platforms, road signs, material transport, wheelchair lifts, etc.
- Tank material: Metal
- Hydraulic pump displacement: 0.825 GPM
- Pressure relief valve: 22 MPa (3200 PSI Max. relief setting for increased lifting capacity at the A-port)
- Rated speed: 2850 rpm
- Engine power: 1.6-3 kW
- Motor voltage: DC12-DV24
- Fuel tank: 4 quarts / 4 liters
- Double-acting on/off switching
- 1500 hp max. Relief setting at B-connection
- 4 quart metal tank
- SAE #6 connection, horizontal mounting
- Handheld control unit with approx. 4.5 m (15 ft) sampling cable and start solenoid valve
- 1 × Double-acting 4-quart hydraulic pump
- 1 × Instruction manual
- Various related accessories (including plugs)
4 quart double-acting hydraulic pump
This hydraulic pump is a double-acting unit for lifting and lowering. It features a robust 6-liter metal tank and is equipped with a 12V DC motor, delivering powerful performance for hydraulic systems such as tipper trailers, forklifts, lifting platforms, etc.
- Note: All our hydraulic pumps are supplied with an M18*1.5 connection and an additional SAE6 connection (9/16"), which can be interchanged as required.
- Easy to use
- Reliable quality
- Quick start
- Wide application
Double-acting unit
This double-acting hydraulic power unit features a 12V DC motor (power: 1.6-3 kW) and a 4-quart metal reservoir; it has SAE#6 ports with a maximum relief setting of 3200 PSI at port A and 1500 PSI at port B. The flow rate is 2 GPM. Rated speed: 2850 rpm.
Comfortable design
Our electric hydraulic pump comes fully assembled. It includes a handheld remote control and two additional SAE#6 connectors for replacement. The entire unit is easy to wire and operate.
Quick start & Lift
Thanks to its powerful 12V DC electric motor, our hydraulic pump for tipper trailers starts quickly and ensures rapid oil delivery. Furthermore, it delivers strong performance, lifting heavy objects in a short time.
Durable
You can rely on the quality of this electric hydraulic pump, as it is made of specially treated, robust metal and the entire structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Easy installation
All our 12V hydraulic power units are delivered pre-assembled, and we provide an instruction manual to ensure easy installation and use of the hydraulic pump. Horizontal mounting is recommended.
Wide application
As a great powerhouse, this hydraulic pump can be used for many things, such as truck tailgates, leveling of motorhomes, scissor lifts, tipper trailers, pallet trucks, snowplows, lifting platforms, road signs, material transport, wheelchair lifts, etc.
- 1 × Double-acting 4-quart hydraulic pump
- 1 × Instruction manual
- Various related accessories (including plugs)
- Tank material: Metal
- Hydraulic pump displacement: 0.825 GPM
- Pressure relief valve: 22 MPa (3200 PSI Max. relief setting for increased lifting capacity at the A-port)
- Rated speed: 2850 rpm
- Engine power: 1.6-3 kW
- Motor voltage: DC12-DV24
- Fuel tank: 4 quarts / 4 liters
- Double-acting on/off switching
- 1500 hp max. Relief setting at B-connection
- 4 quart metal tank
- SAE #6 connection, horizontal mounting
- Handheld control unit with approx. 4.5 m (15 ft) sampling cable and start solenoid valve
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (6)
Tiene etiqueta CE para poder ser homologado.
Sí, el producto tiene etiqueta CE.
By vevor
Helpful
(
0
)
QUE FUENTE DE ALIMENTACIÓN NECESITO PARA EL CORRECTO FUNCINAMIENTO DE LA BOMBA 12V EN UNA INSTALACIÓN DOMESTICA DE 220V.
Este producto requiere una fuente de alimentación de 12 voltios y se recomienda utilizar baterías.
By vevor
Helpful
(
0
)
se puede pedir un motor de 220 v para substituir el que tengo de 12 v
Sí, pero no tenemos motor de doble efecto de 220v.
By vevor
Helpful
(
0
)
Cuantos kg levanta es para un remolque de coche de 1500 kg
El producto se puede aplicar a un remolque de coche de 1500 kg.
By vevor
Helpful
(
0
)
Compré , el producto y es muy bueno Exelente calidad
De que amperaje de la fuente externa podría conectar para que trabaje mi equipo ,?
Lo compre para otro proyecto , no lo voy a instalar en algún camión
,
Su corriente de arranque es 120A, la corriente de trabajo es 80A.
By vevor
Helpful
(
0
)
