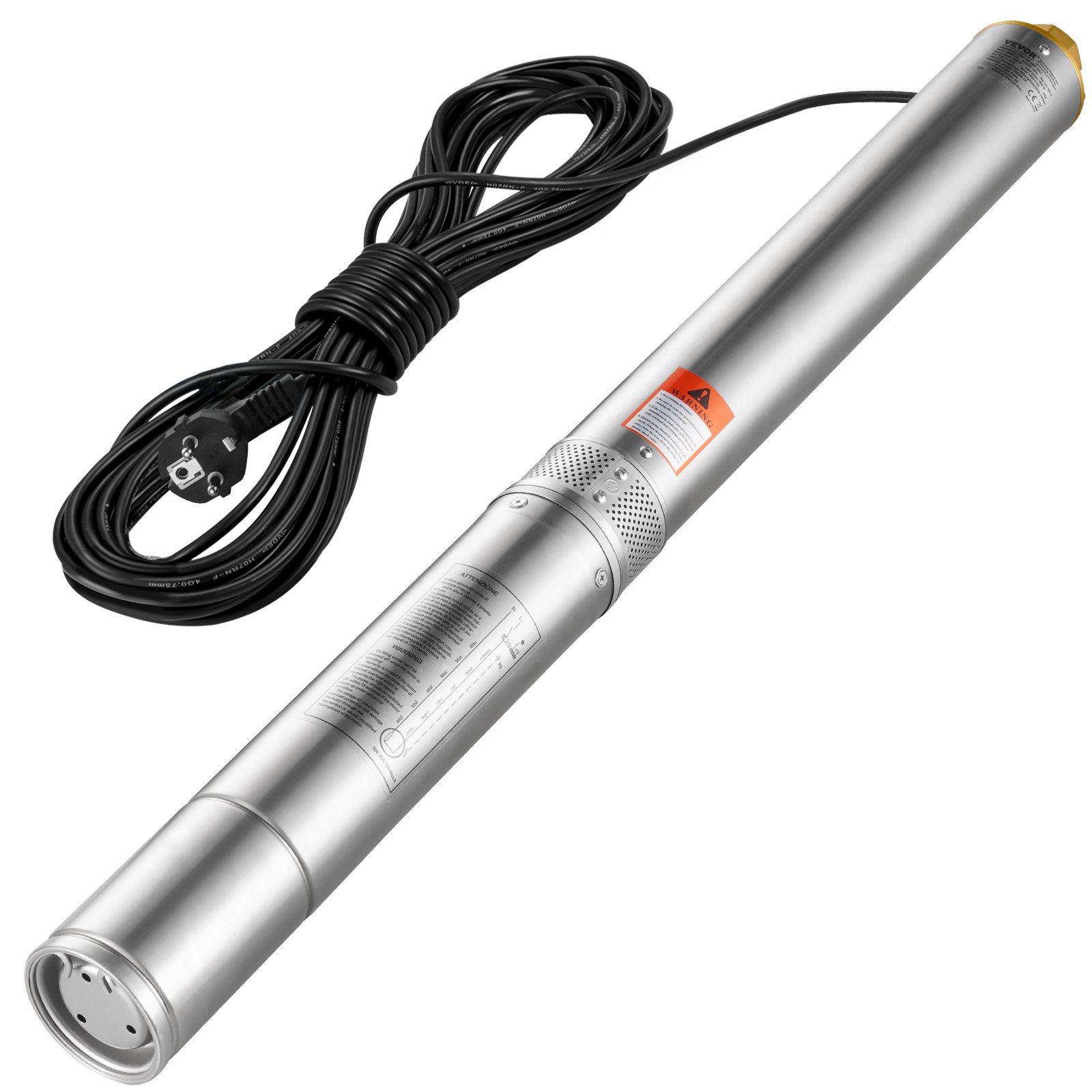

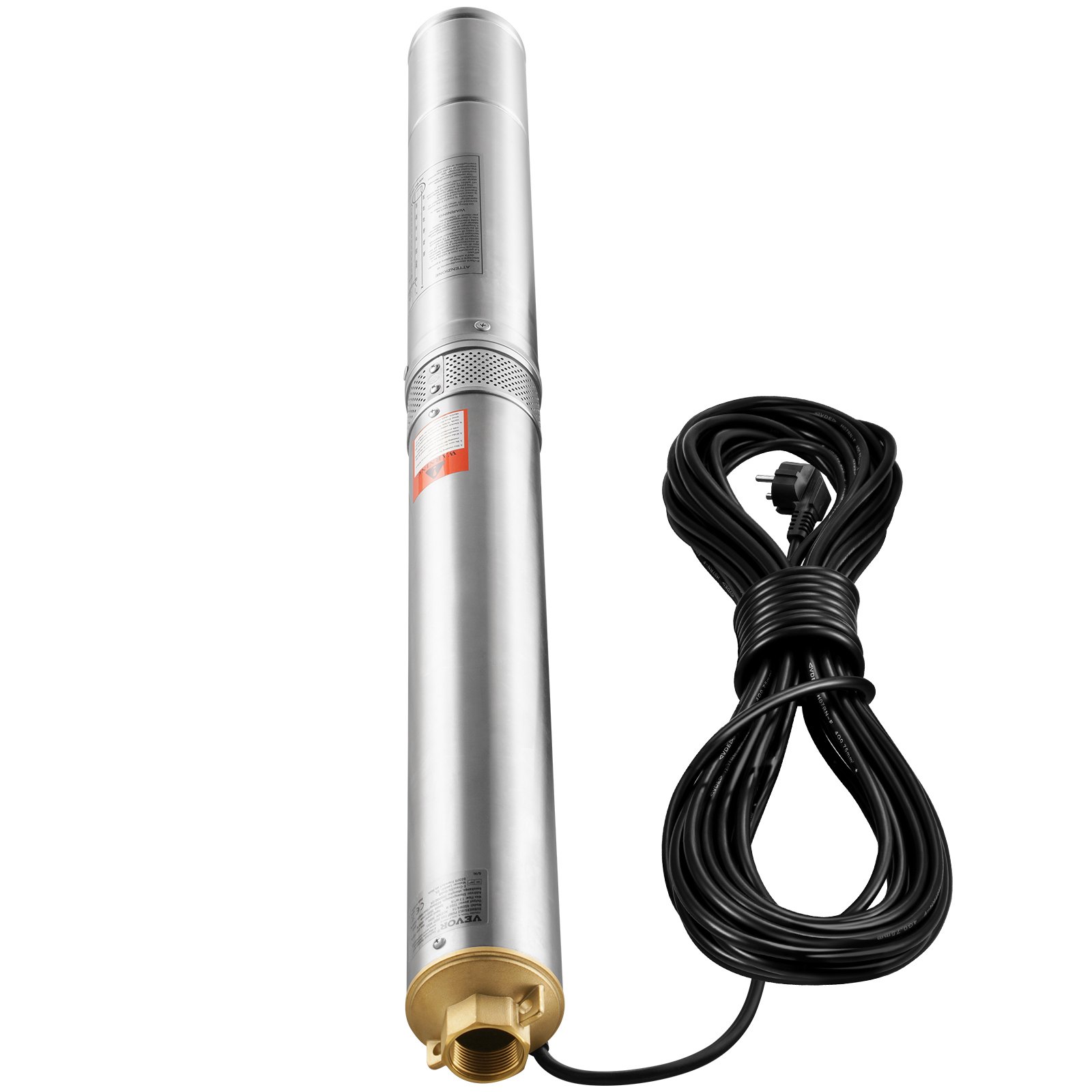

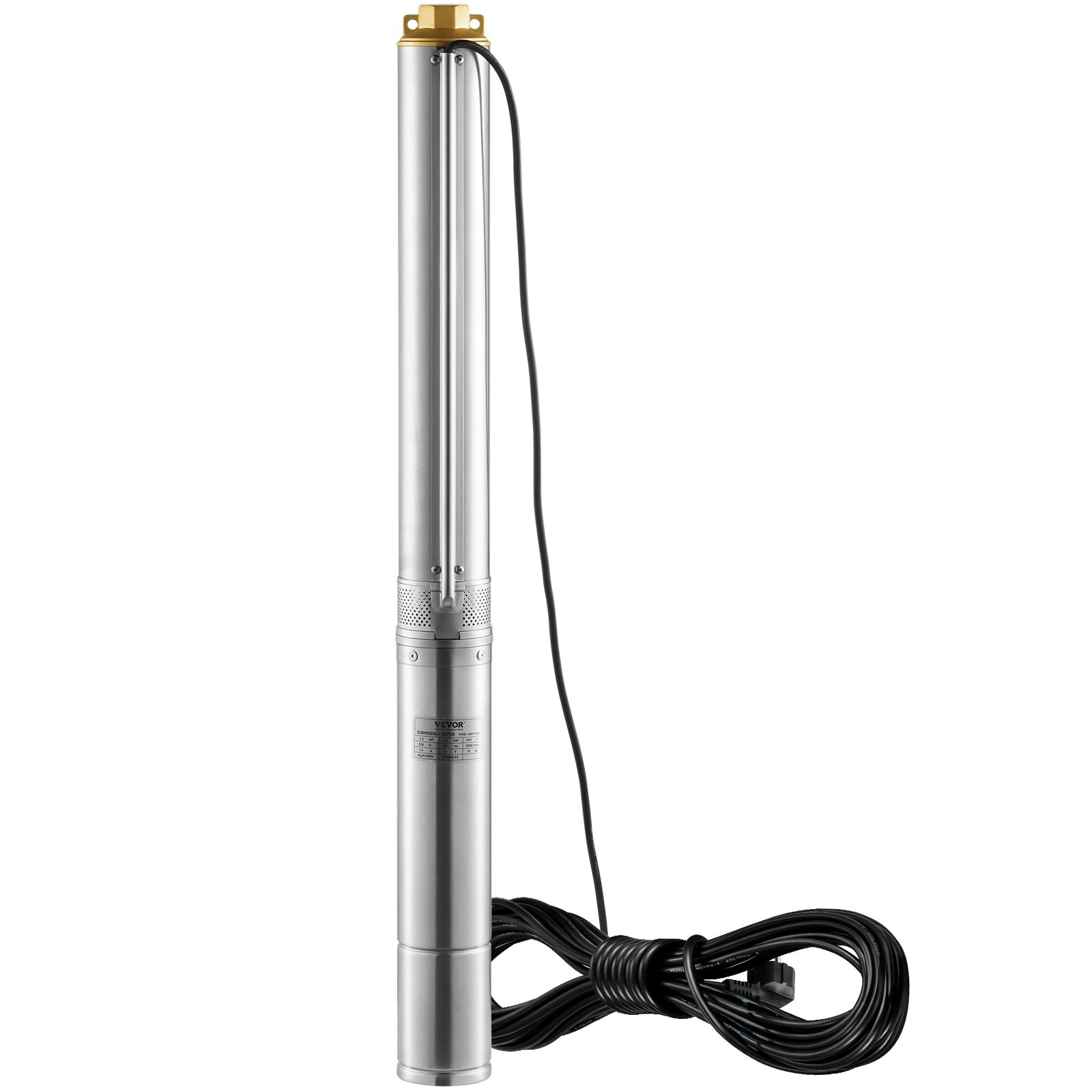

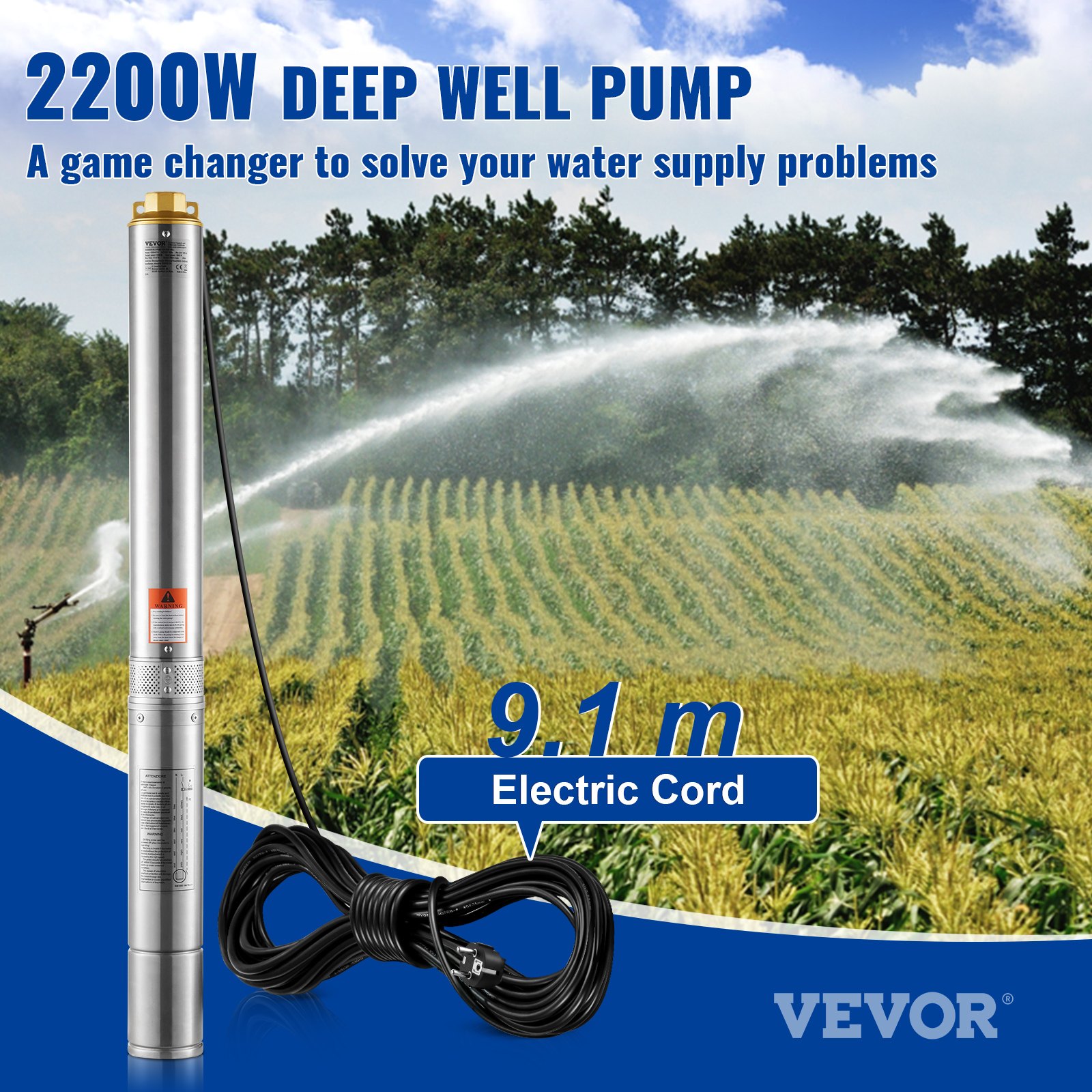

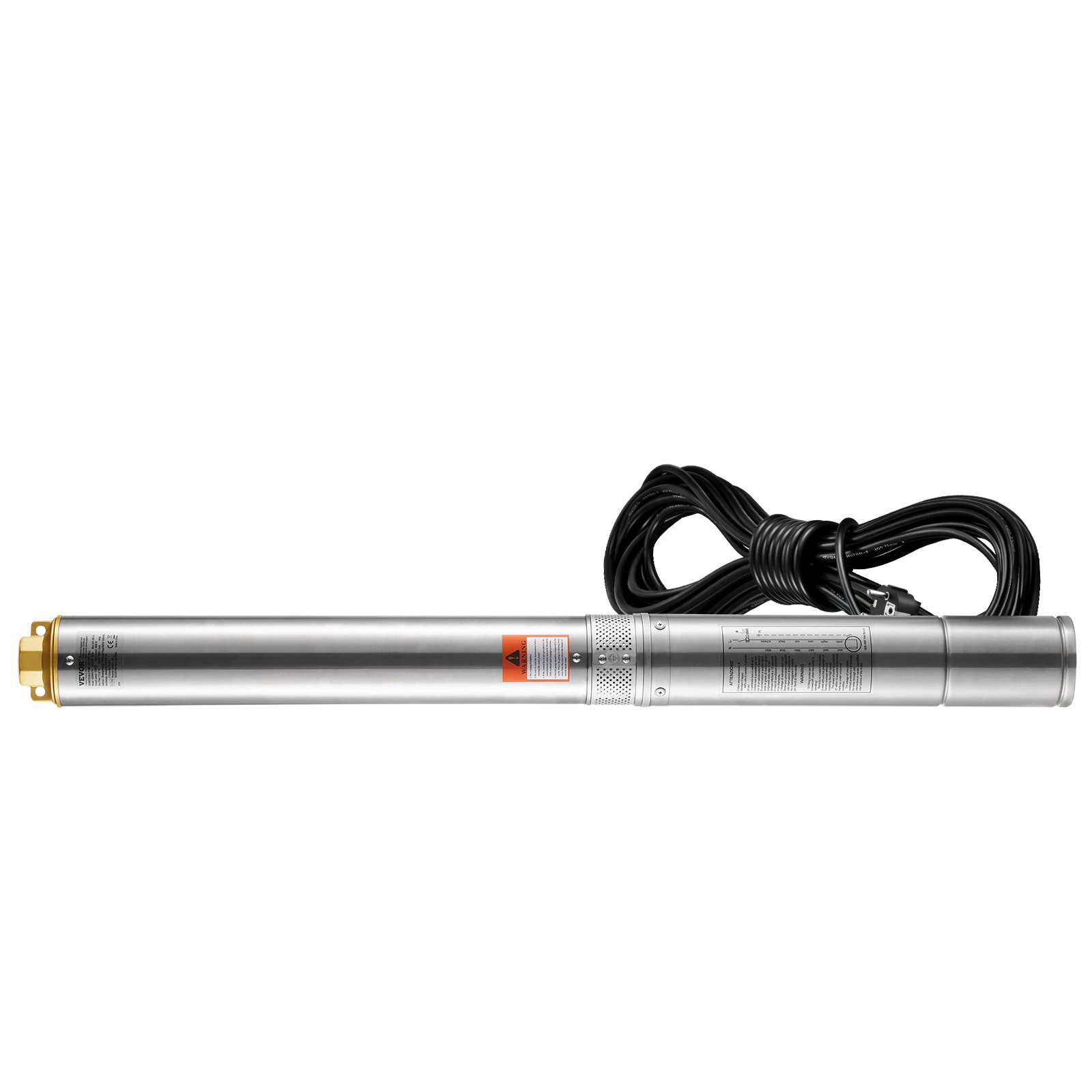

VEVOR Deep Well Submersible Pump, 3 HP/2200 W, 230 V/50 Hz, 9.8 m³/h Flow Rate, 144 m Delivery Head, with 9.1 m Power Cable, Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Water Protection Class
4.6 67 Reviews
208 90 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- Improved pump flow and delivery head: Power: 2200 W, 230 V; Flow rate: G1.5. This deep well submersible pump is equipped with 20-stage thermoplastic impellers and offers a maximum flow rate of 9.8 m³/h and a maximum delivery head of 144 m. It comes with a 9.1 m long power cable, making life much easier without modern plumbing. Pump away your worries with ease and relax. No challenge is too great.
- Upgraded stainless steel: The entire frame of our deep well pump is unique on the market. It's made of stainless steel, including the outlet and connecting components. You don't have to worry about it rusting or corroding after prolonged submersion. It's IP68 waterproof. Don't waste any more time! The perfect choice is right in front of you.
- Reliable copper motor: Experiencing problems with submersible well pumps failing? The powerful copper motor with its precision rotor ensures consistently stable operation. The integrated overheat protection automatically stops the motor if it becomes blocked or runs erratically to prevent burnout. NOTE: DO NOT use without water or at a low water level to avoid running dry.

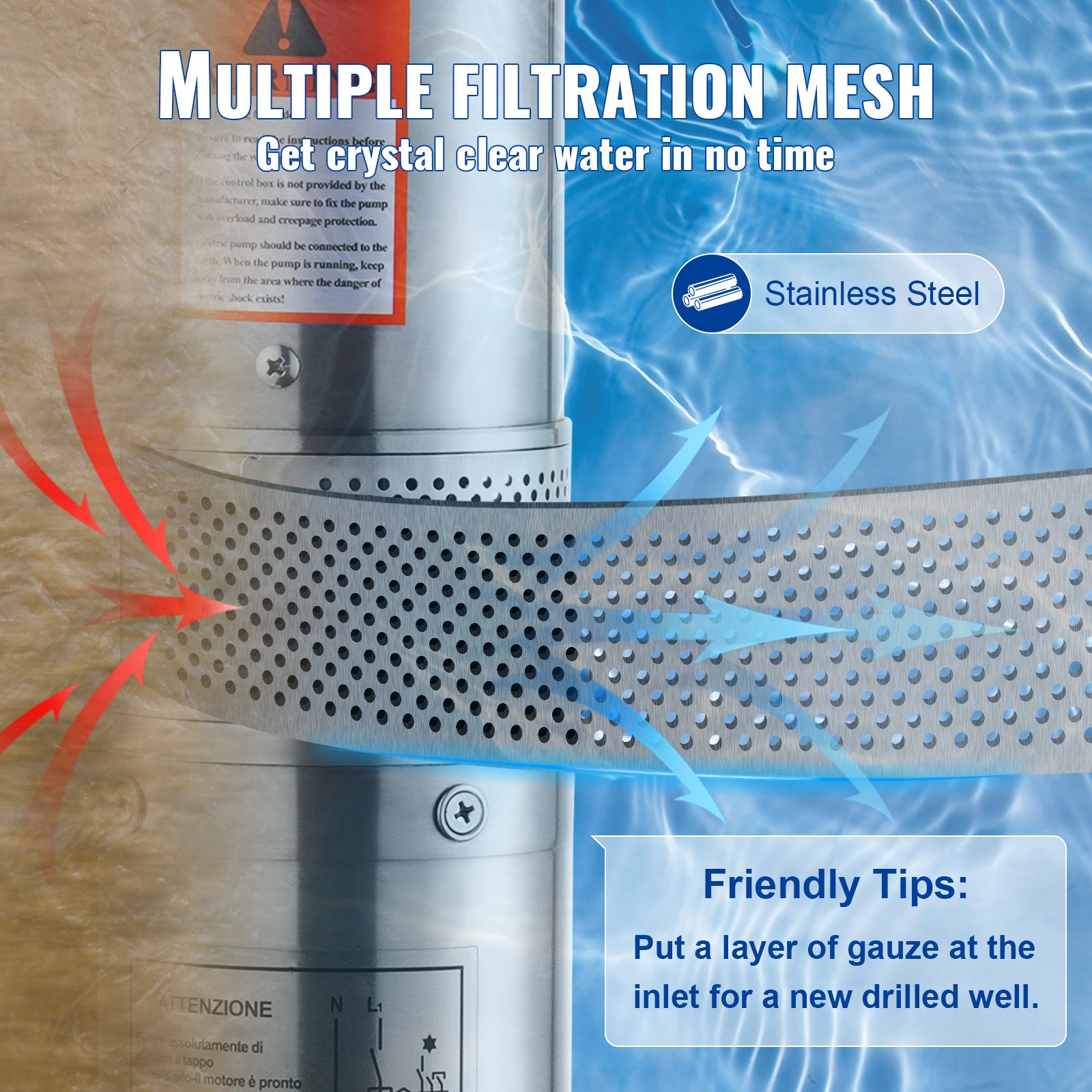

- Hassle-free check valve and filter: This well pump has a built-in check valve to prevent backflow (an additional check valve is highly recommended). The stainless steel filter mesh is designed to filter out impurities. You can add a layer of gauze before the filter inlet of a newly drilled well that may contain excessive granular sediment. Keep contaminants out without the hassle.
- Versatile use: Whether you need to solve water supply problems for industry, farmland, or your home, you can rely on this deep well pump. It's ideal as a water source in the garden and as a sprinkler for the kids. You can use the pump to draw water from deep wells, reservoirs, canals, rivers, and other water sources.

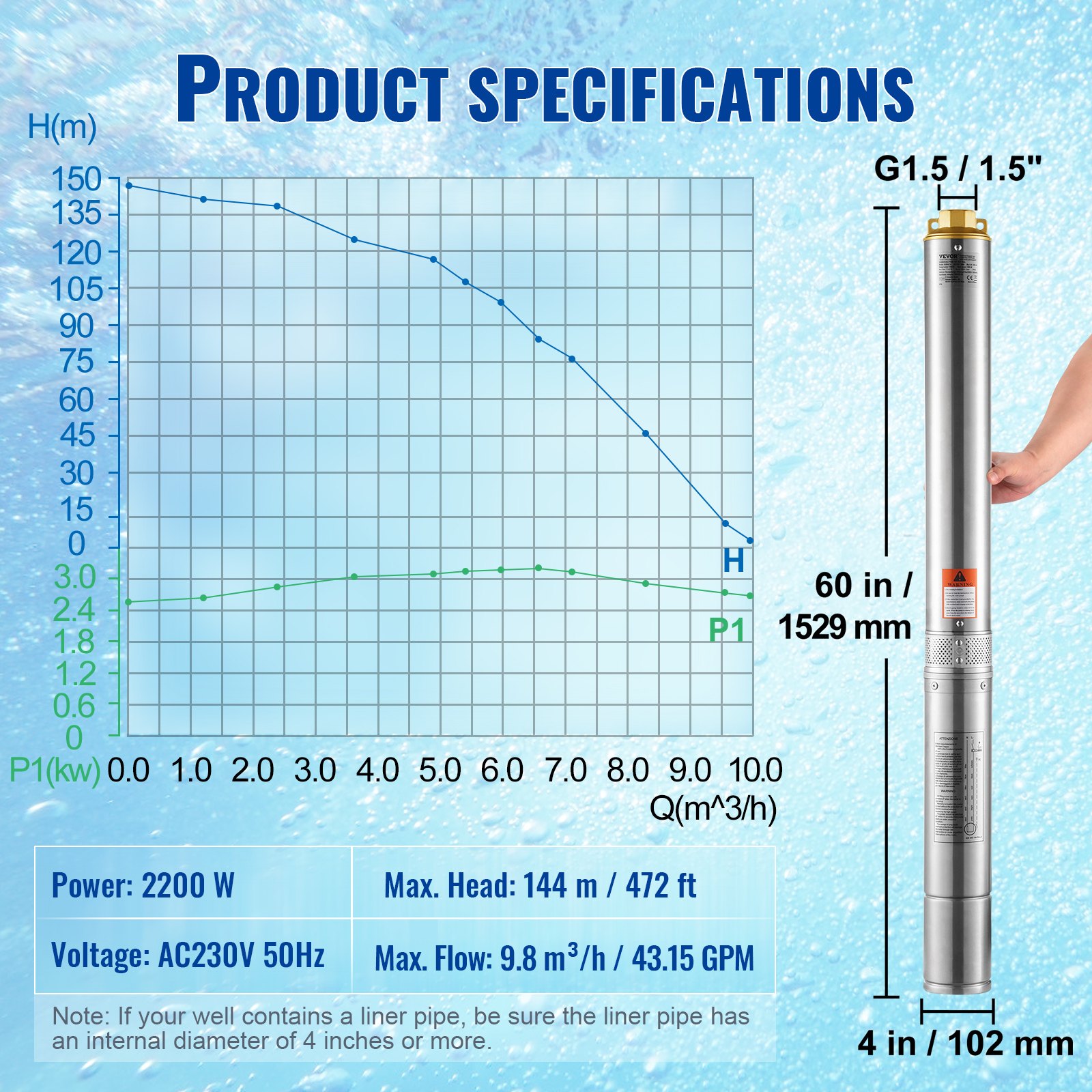

Product specification
- Article model number 4SDM6/20
- Material Stainless steel
- Power 3 HP / 2200 W
- Voltage AC 230V, 50 Hz
- Max. flow rate 9.8 m³/h / 43.15 GPM
- Maximum delivery head 144 m / 472 ft
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 4.6
All reviews are from verified purchases
Average rating based on 67 reviews
Reviews 4.6
All reviews are from verified purchases
See all 67 reviews
About this item
Product specification
- Article model number
- 4SDM6/20
- Material
- Stainless steel
- Power
- 3 HP / 2200 W
- Voltage
- AC 230V, 50 Hz
- Max. flow rate
- 9.8 m³/h / 43.15 GPM
- Maximum delivery head
- 144 m / 472 ft
- Discharge size
- G1.5
- Length of power cable
- 9.1 m
- Wheel speeds
- 20
- Max. speed
- 2850 rpm
- Protection rating
- IP68
Description
2200 W deep well submersible pump
Are you worried about your family's or farmland's water supply? Then get ready to get your well running again in no time! Our deep well submersible pump offers a high flow rate and ensures a consistent flow even at considerable depths below the surface. Thanks to its high-quality stainless steel construction, this deep well pump will maintain its excellent performance for years to come. Pump it up today and enjoy life to the fullest with our submersible well pump. Don't hesitate to get one!
- Improved pump flow rate and delivery head
- Improved stainless steel
- Reliable copper motor
- Trouble-free check valve and filter

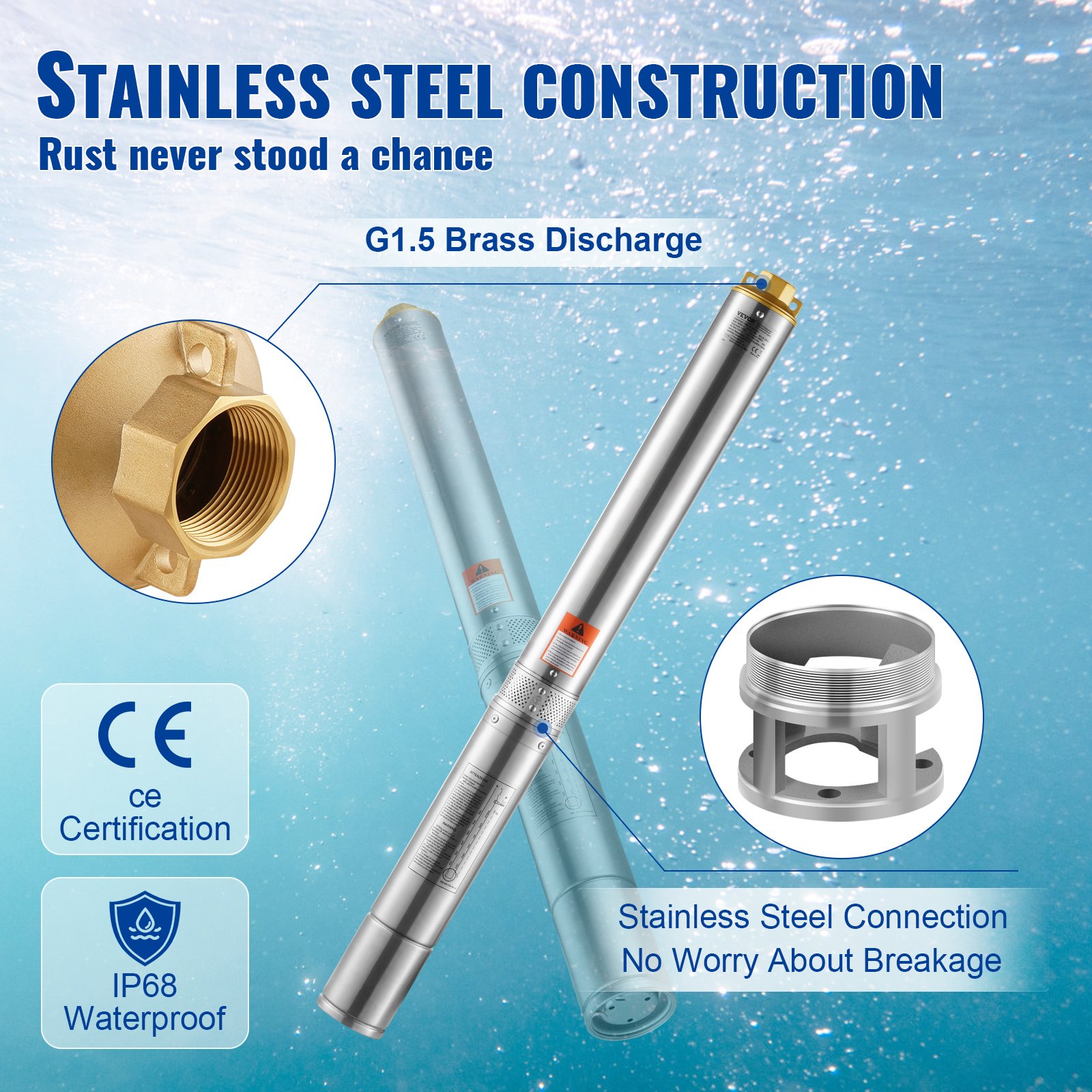

Stainless steel construction
Thanks to its reinforced stainless steel construction, this deep well pump is an excellent choice, as it prevents corrosion, rust and breakage, giving you peace of mind.

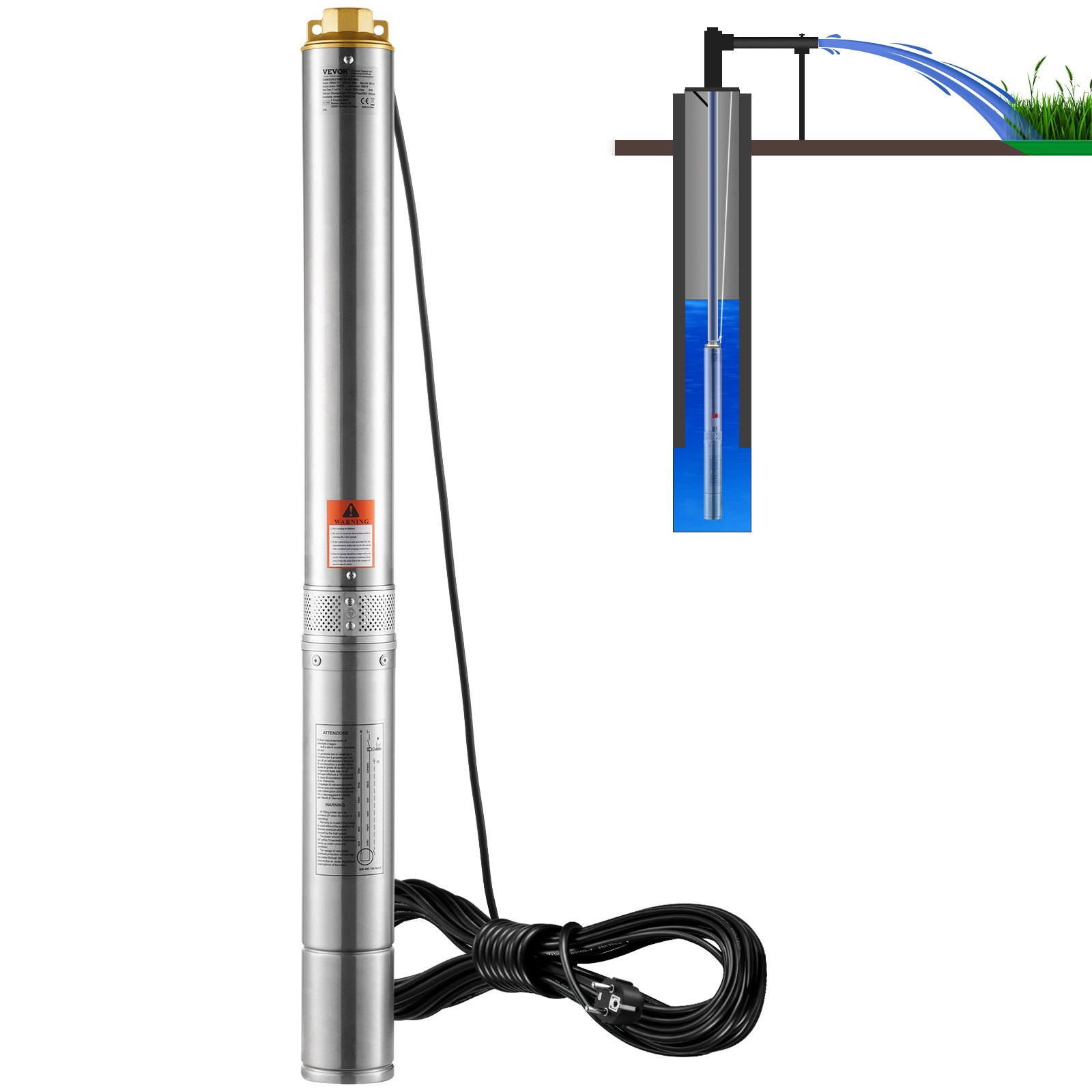

Installed in no time
You can install the deep well submersible water pump vertically or horizontally. Please ensure the pump is fully immersed in water to avoid prolonged periods of running dry.
Developed for you
Our well pump is equipped with high-performance impellers for extended service life and eyelets for wire/nylon ropes. Double ball bearings and stainless steel rotor shafts ensure low noise and wear resistance.

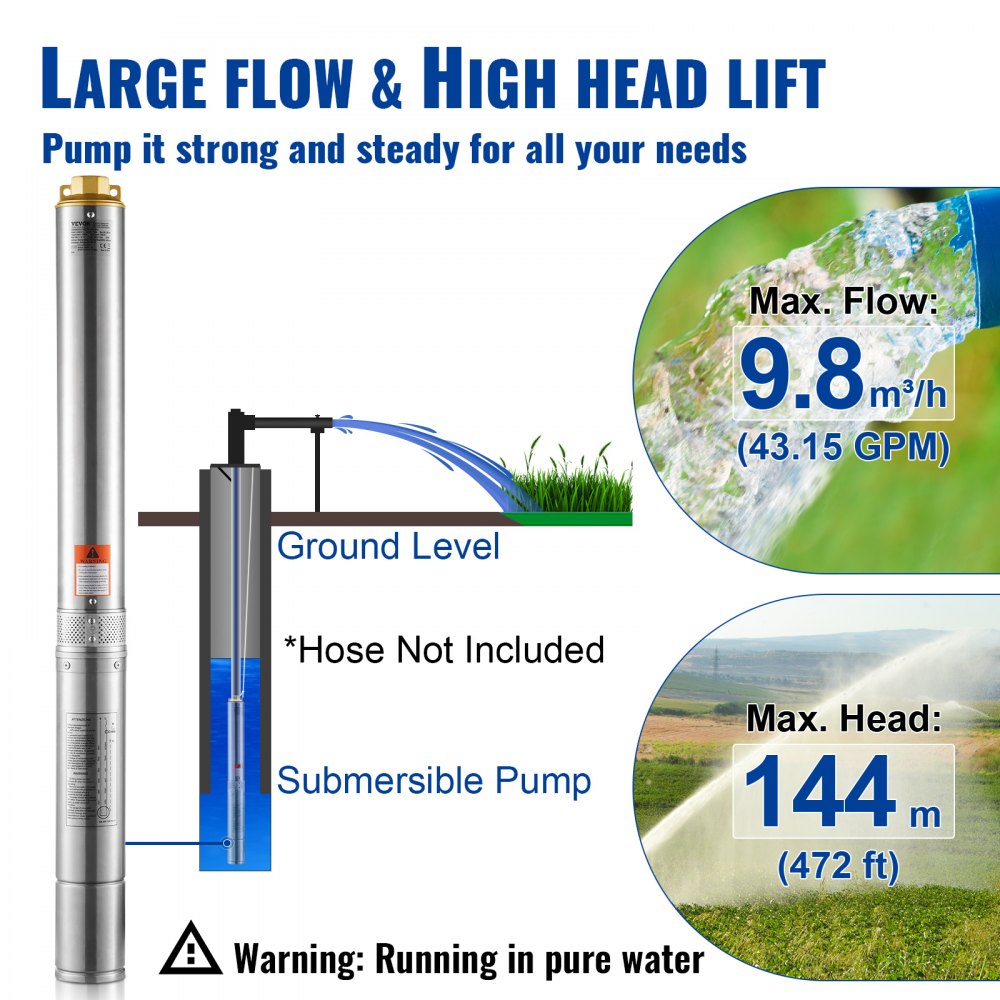

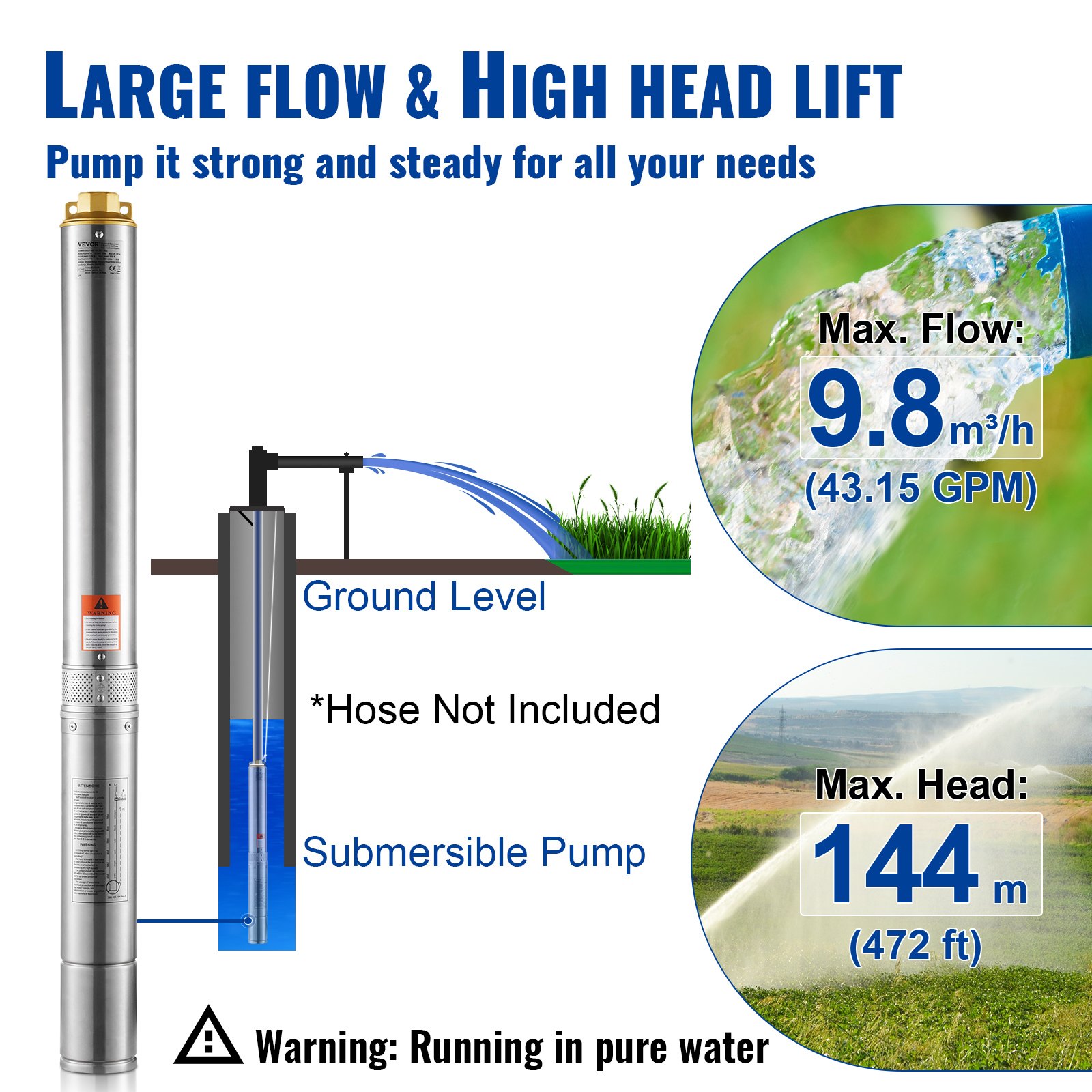

High flow rate and high delivery head
This 2200W submersible well pump offers a high flow rate of 2200W and a delivery head of 144m, thus meeting all your water needs. The multiple filter screen ensures crystal-clear water.

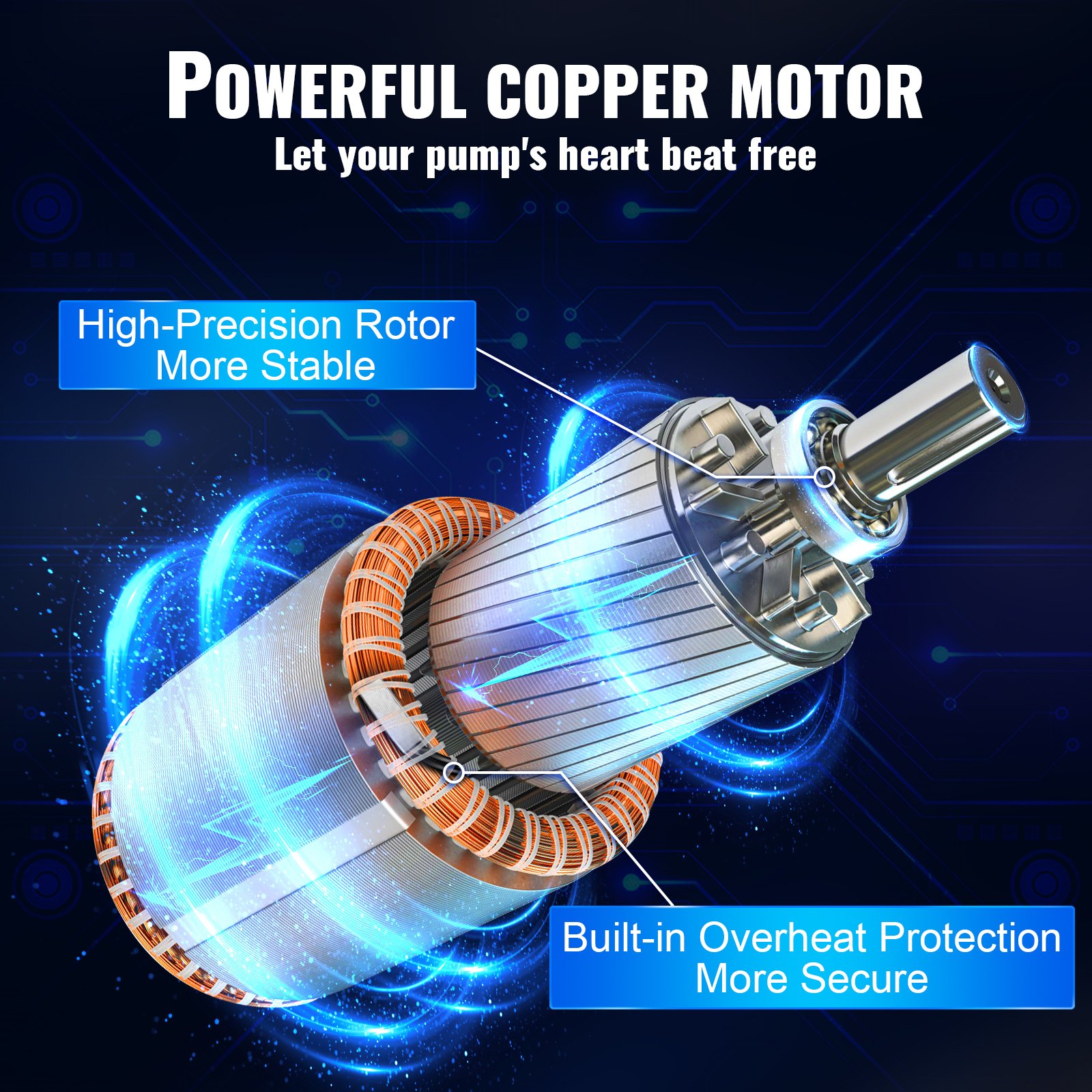

Unstoppable copper motor
A copper motor ensures powerful performance for our submersible well pump. It features overheat protection to prevent overheating and reduce energy consumption.

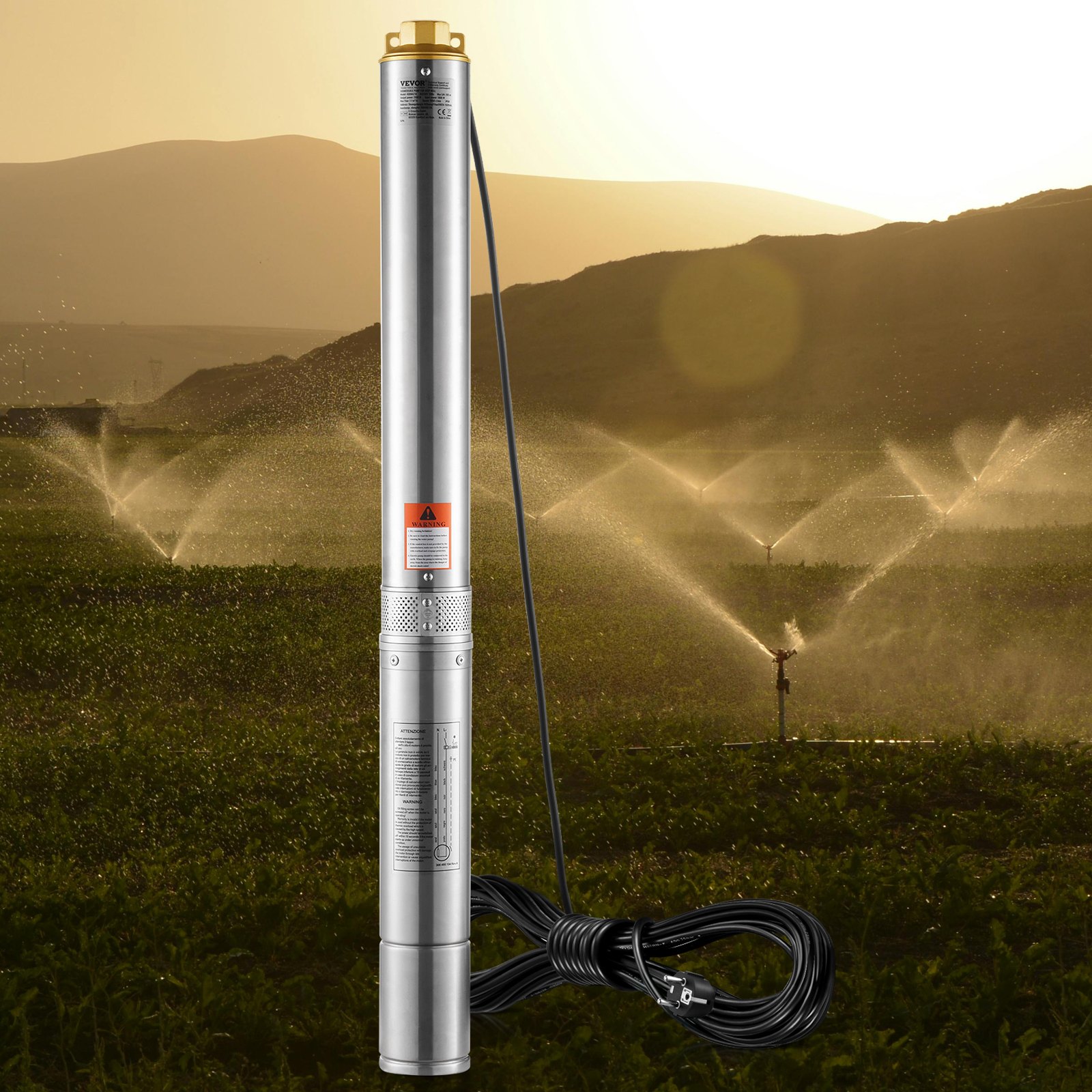

Wide application
Our deep well pump is ideal for households with a fresh water supply. It is also a great help for irrigating farmland, supplying water in mountainous areas, and draining cities, factories, railways, and mines.
- Article model number: 4SDM6/20
- Material: Stainless steel
- Power: 3 HP / 2200 W
- Voltage: AC 230V, 50 Hz
- Max. flow rate: 9.8 m³/h / 43.15 GPM
- Maximum delivery head: 144 m / 472 ft
- Discharge size: G1.5
- Length of power cable: 9.1 m
- Wheel speeds: 20
- Max. speed: 2850 rpm
- Protection rating: IP68
- 1 x Deep well submersible pump
- 1 x power cable
2200 W deep well submersible pump
Are you worried about your family's or farmland's water supply? Then get ready to get your well running again in no time! Our deep well submersible pump offers a high flow rate and ensures a consistent flow even at considerable depths below the surface. Thanks to its high-quality stainless steel construction, this deep well pump will maintain its excellent performance for years to come. Pump it up today and enjoy life to the fullest with our submersible well pump. Don't hesitate to get one!
- Improved pump flow rate and delivery head
- Improved stainless steel
- Reliable copper motor
- Trouble-free check valve and filter
Stainless steel construction
Thanks to its reinforced stainless steel construction, this deep well pump is an excellent choice, as it prevents corrosion, rust and breakage, giving you peace of mind.
Installed in no time
You can install the deep well submersible water pump vertically or horizontally. Please ensure the pump is fully immersed in water to avoid prolonged periods of running dry.
Developed for you
Our well pump is equipped with high-performance impellers for extended service life and eyelets for wire/nylon ropes. Double ball bearings and stainless steel rotor shafts ensure low noise and wear resistance.
High flow rate and high delivery head
This 2200W submersible well pump offers a high flow rate of 2200W and a delivery head of 144m, thus meeting all your water needs. The multiple filter screen ensures crystal-clear water.
Unstoppable copper motor
A copper motor ensures powerful performance for our submersible well pump. It features overheat protection to prevent overheating and reduce energy consumption.
Wide application
Our deep well pump is ideal for households with a fresh water supply. It is also a great help for irrigating farmland, supplying water in mountainous areas, and draining cities, factories, railways, and mines.
- 1 x Deep well submersible pump
- 1 x power cable
- Article model number: 4SDM6/20
- Material: Stainless steel
- Power: 3 HP / 2200 W
- Voltage: AC 230V, 50 Hz
- Max. flow rate: 9.8 m³/h / 43.15 GPM
- Maximum delivery head: 144 m / 472 ft
- Discharge size: G1.5
- Length of power cable: 9.1 m
- Wheel speeds: 20
- Max. speed: 2850 rpm
- Protection rating: IP68
Product guides and documents
User manual-es (PDF) Review
Questions and Answers (10)
Que profundidad de inmersión puede soportar ?
La bomba de agua se puede utilizar a una distancia de 150 metros del agua.
By vevor
Helpful
(
5
)
Hola. Estoy en la duda, de comprar una bomba con funcionamiento incorporado o exterior. Necesitaría hablar con alguien experto y me aconseje. Soy cliente vuestro. Os he comprado ya dos bombas sumergibles, siempre con funcionamiento exterior y el condensador se me ha ido alguna vez. Si esta vez, compro la bomba con funcionamiento integrado.. si se va el condensador, que tengo que sacar la bomba?.
Estoy en esa duda, entre la bomba 1500(220w) integrado, o el 1.1 caja exterior.
Muchas gracias.
La bomba incorporada significa que el condensador de arranque está dentro de la bomba de agua y puede usarse después de enchufarlo. La caja de arranque externa significa que el condensador de arranque está en la caja de control. Primero, se debe conectar el cable de alimentación a la caja de control y luego se puede enchufar la caja de control para su uso. El cable de la bomba de agua de la caja de arranque externa es un cable de cuatro núcleos y hay un protector de sobrecarga en la caja de.
By vevor
Helpful
(
2
)
La carga máxima que tendrá la bomba dentro Del Pozo es de 80 metros de altura.
Cuan bomba me podría valer.
3- SKU SJQSB1100W403CHOEV2
Caudal máximo: 65 L/min
Altura manométrica máxima: 85 metros
Si esta respuesta no resuelve su problema, póngase en contacto con nosotros de nuevo para solicitar ayuda.
By vevor
Helpful
(
0
)
Entre los modelos europeos que cumplen el requisito de altura máxima de 80 metros o más se incluyen:
1- Referencia SJQSBLGBOC5503XPYV2
Caudal máximo: 35 L/min
Altura máxima: 108 metros
2- Referencia SJQSBZDKGOC55GHEWV2
Caudal máximo: 50 L/min
Altura manométrica máxima: 89 metros
Características: Presostato automático
By vevor
Helpful
(
0
)
¿Cual es la medida de diámetro de descarga en mm? Lo quiero conectar a un sistema de tuberías de 32mm de diámetro.
La salida de descarga es de 1¼ de pulgada (aproximadamente 32 mm), por lo que es compatible con un sistema de tuberías de 32 mm usando el conector adecuado si es necesario.
By vevor
Helpful
(
0
)
Buenos días, Tenía una bomba de 2,2 kW con condensador externo. Se averió por el tiempo y compré una con condensador interno 2,2 de vuestra marca. La cuestión es que al funcionar 7/8 min salta la protección del contador de luz y no del cuadro de maniobra. Puede ser por un funcionamiento defectuoso del condensador? Gracias y podría poner uno externo?
Le sugiero al cliente que retire el disyuntor para comprobar si la bomba de agua funciona correctamente. Creo que el problema podría ser una discrepancia entre el disyuntor y la bomba. El condensador ya está dentro de la bomba de agua; añadir otro lo dañaría. En cuanto a si el cliente quiere reemplazarlo con un condensador externo, es una decisión suya.
