Features & Details

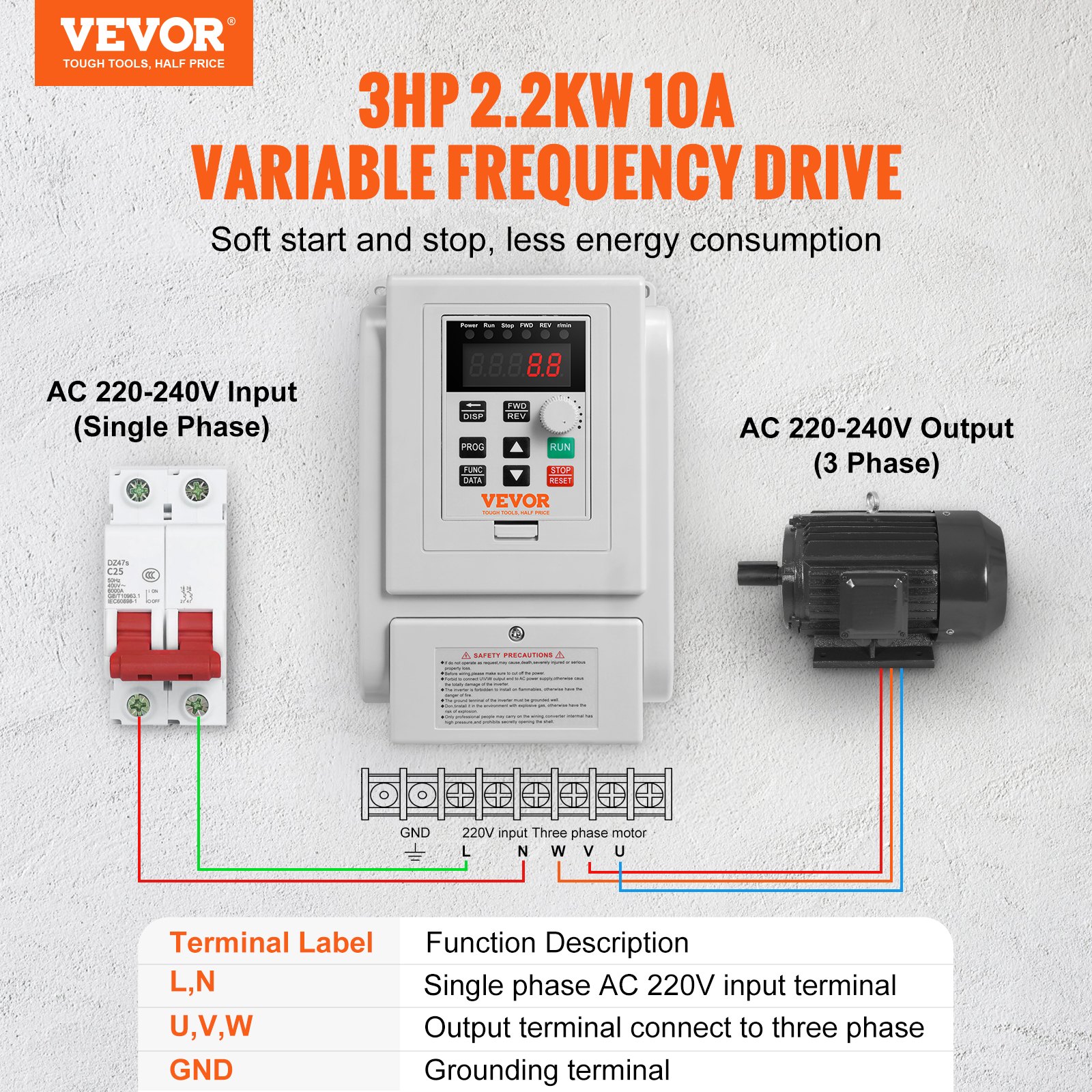

- Unrivaled quality: The VEVOR 2.2 kW, 10 A 3 HP frequency converter (VFD) delivers unsurpassed quality and performance. With a single-phase AC 220-240 V input and a three-phase AC 220-240 V output, it ensures smooth start and stop, consistent motor control, and energy efficiency. Input frequency: 50/60 Hz; output frequency: 0-400 Hz.

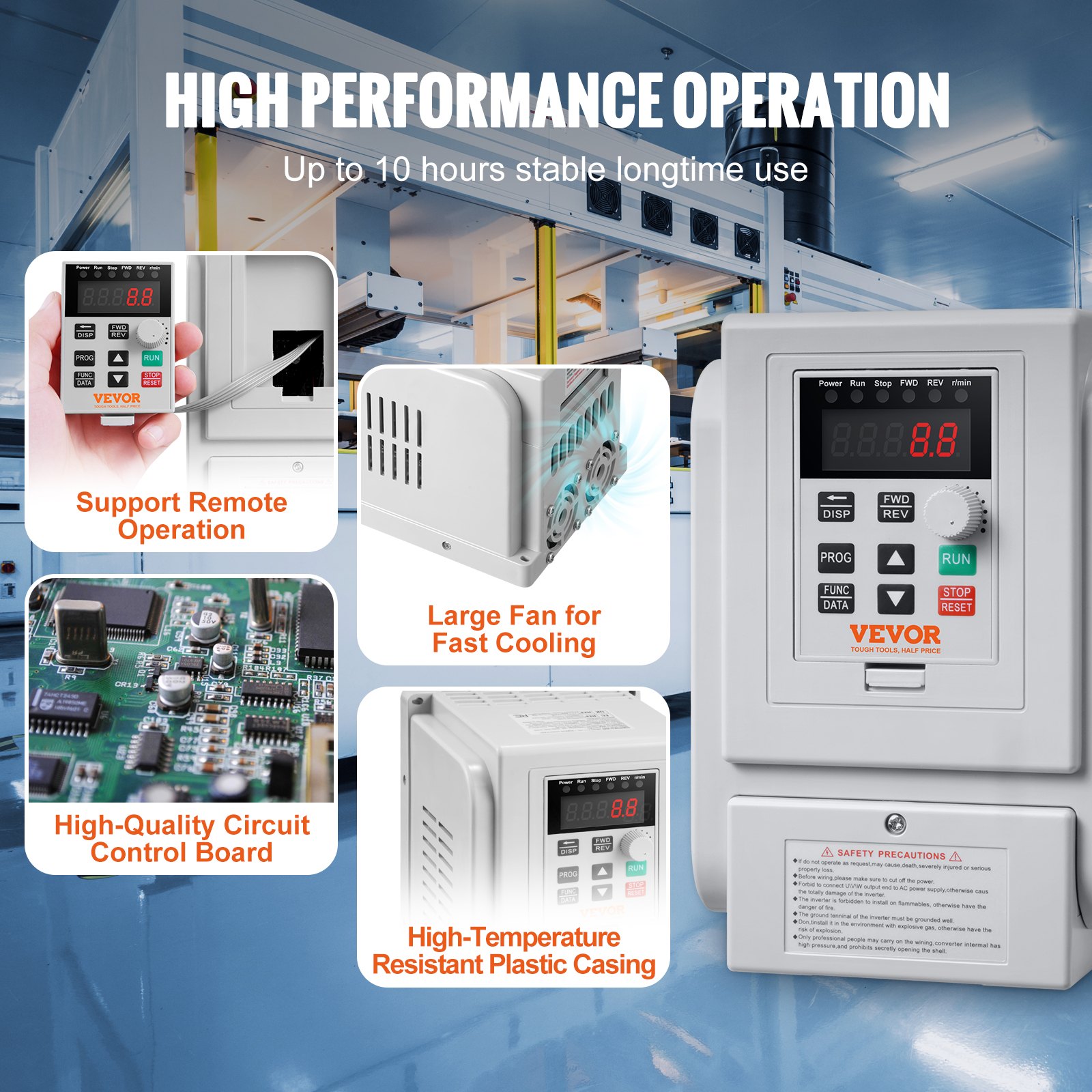

- Effortless setup and operation: The detailed instructions make setting the parameters a breeze. An intuitive control panel, a clear display, and a frequency control knob simplify operation. The detachable control panel with a 20 cm cable allows for convenient remote control.
- Safety and durability redefined: Our VFD features a 10-fold protection system that safeguards against overcurrent, overload, overvoltage, phase failure, and more. Combined with the triple-protected circuit board, we prioritize your safety and the product's longevity.
- Efficient power in silence: The frequency converter's high-performance fan ensures rapid cooling during extended use. Its multi-sided design with multiple holes promotes optimal airflow while ensuring quiet operation.

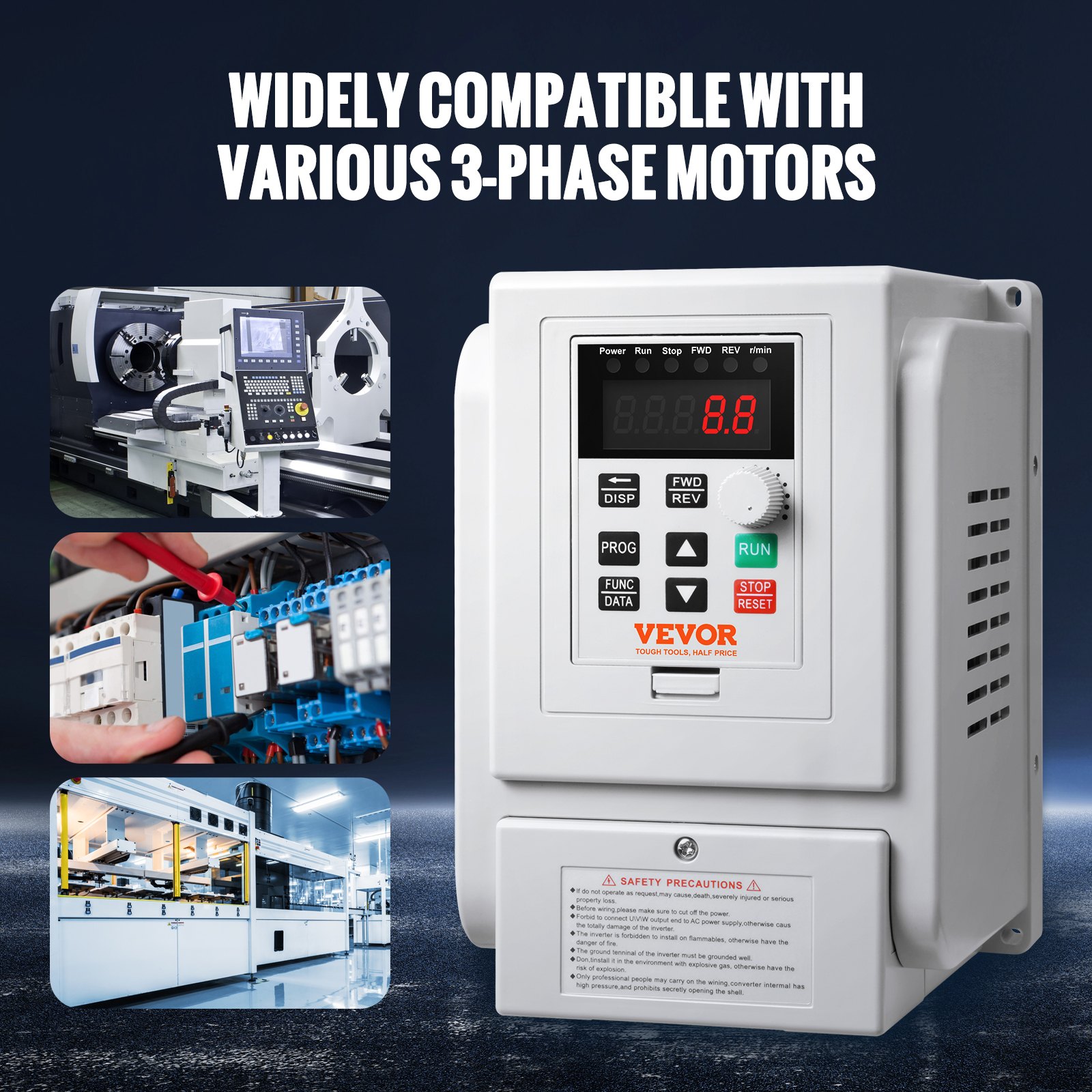

- Master of versatility: Our VFD is ideal for driving 3-phase motors in various machines, including compressors, lathes, fans, milling machines, etc. Please note: It does not support external braking resistors. For heavier motor loads, please choose a higher-powered VFD for best results.
Frequently Bought Together
Reviews 3.9
All reviews are from verified purchases
Average rating based on 7 reviews
Reviews 3.9
All reviews are from verified purchases
See all 7 reviews
About this item

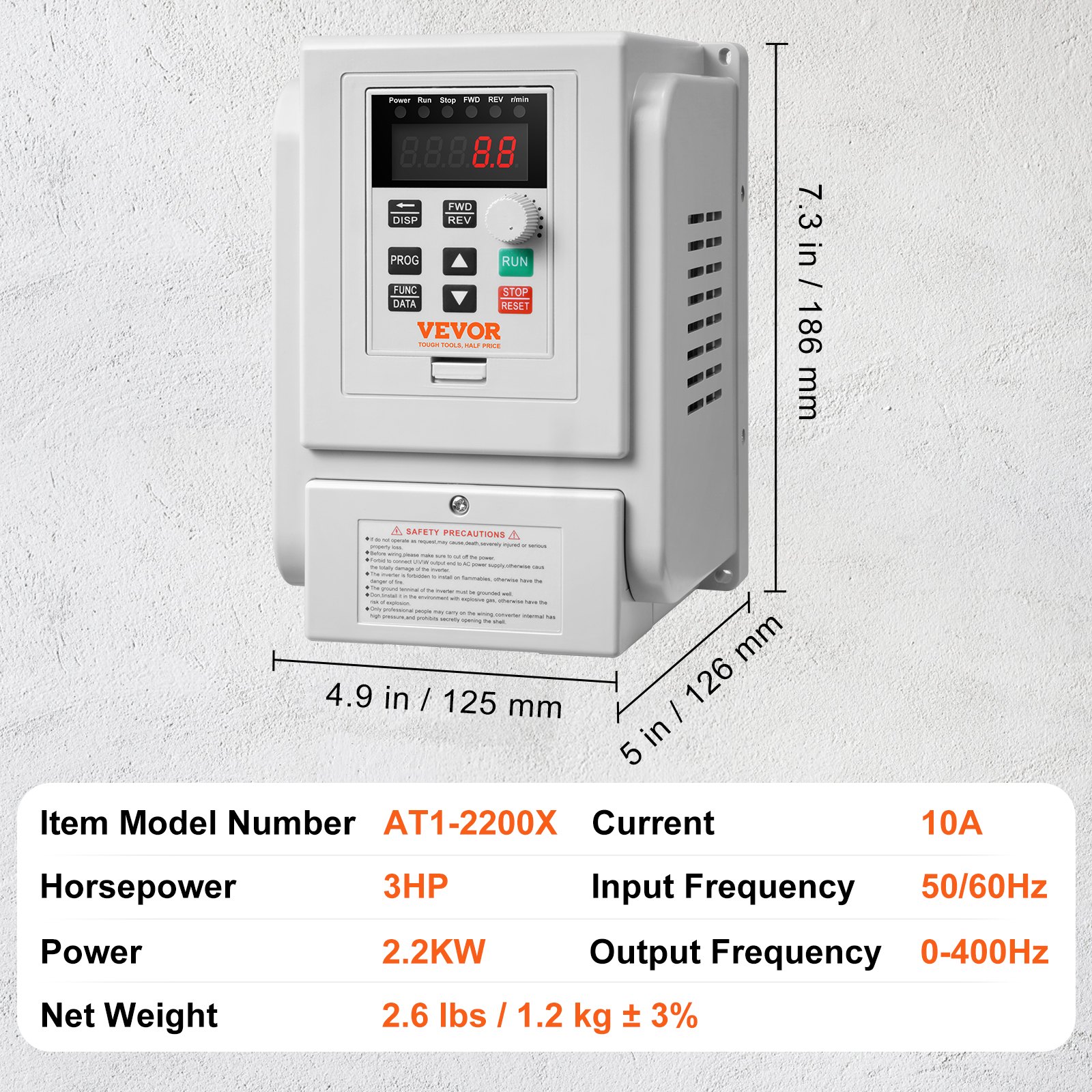

Product specification
- Item model number
- AT1-2200X
- Horsepower
- 3 hp
- Power
- 2.2 kW
- Current
- 10 A
- Input voltage
- AC 220–240 V, single-phase
- Output voltage
- AC 220–240 V, three-phase
- Input frequency
- 50 / 60 Hz
- Output frequency
- 0–400 Hz
- Operating temperature
- 10-40 °C (50-104 °F)
- Net weight
- 1.2 kg (2.6 lbs) ± 3%
Description

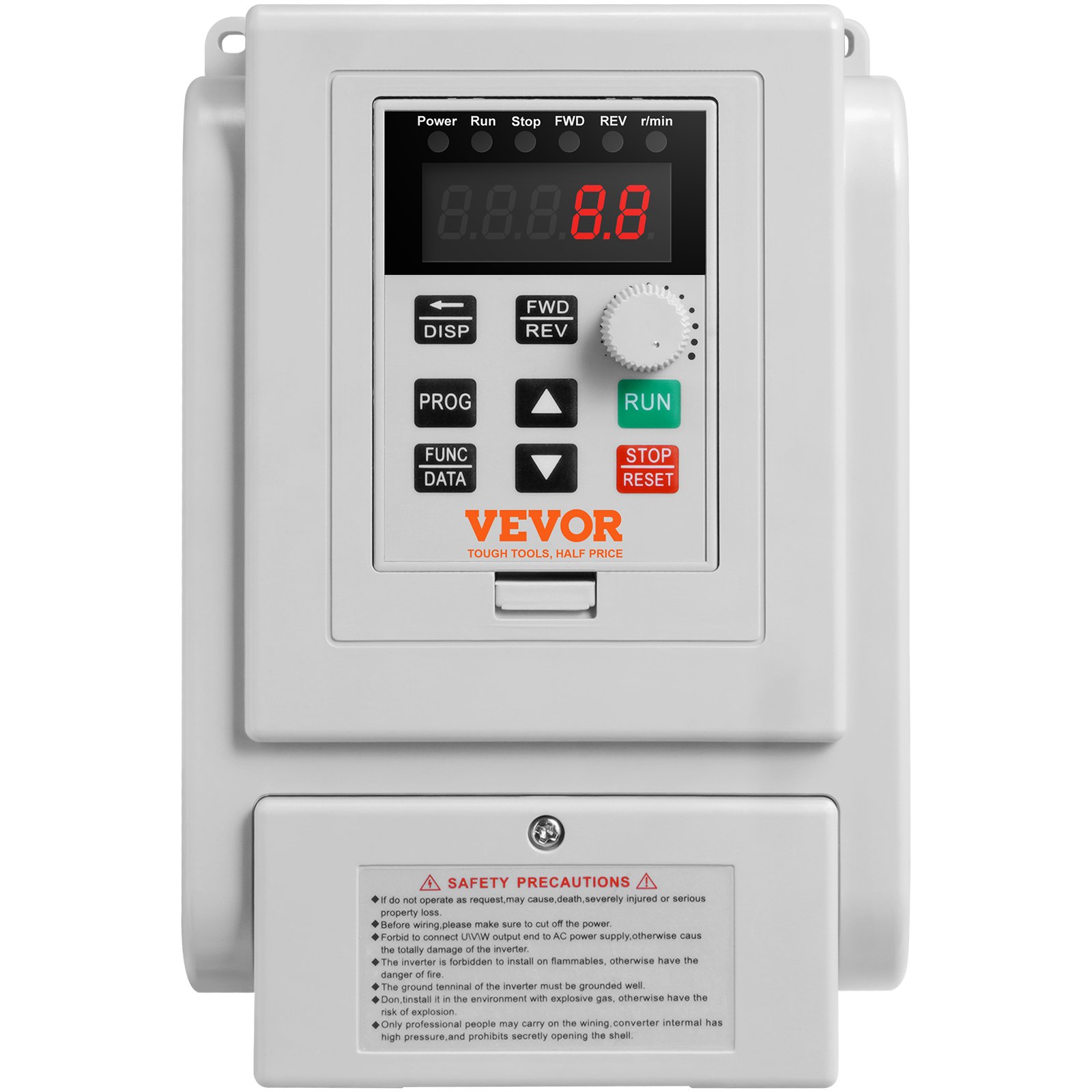

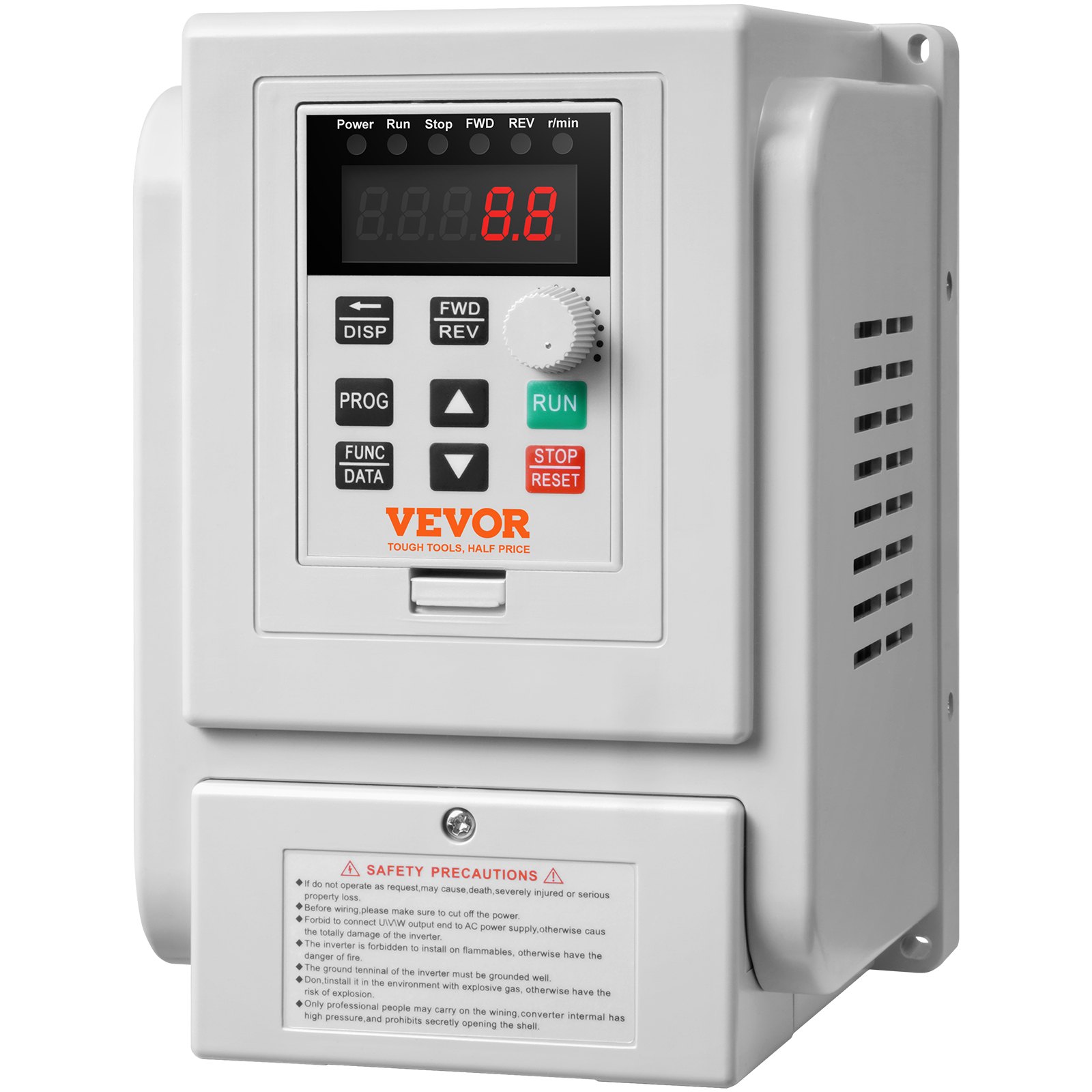

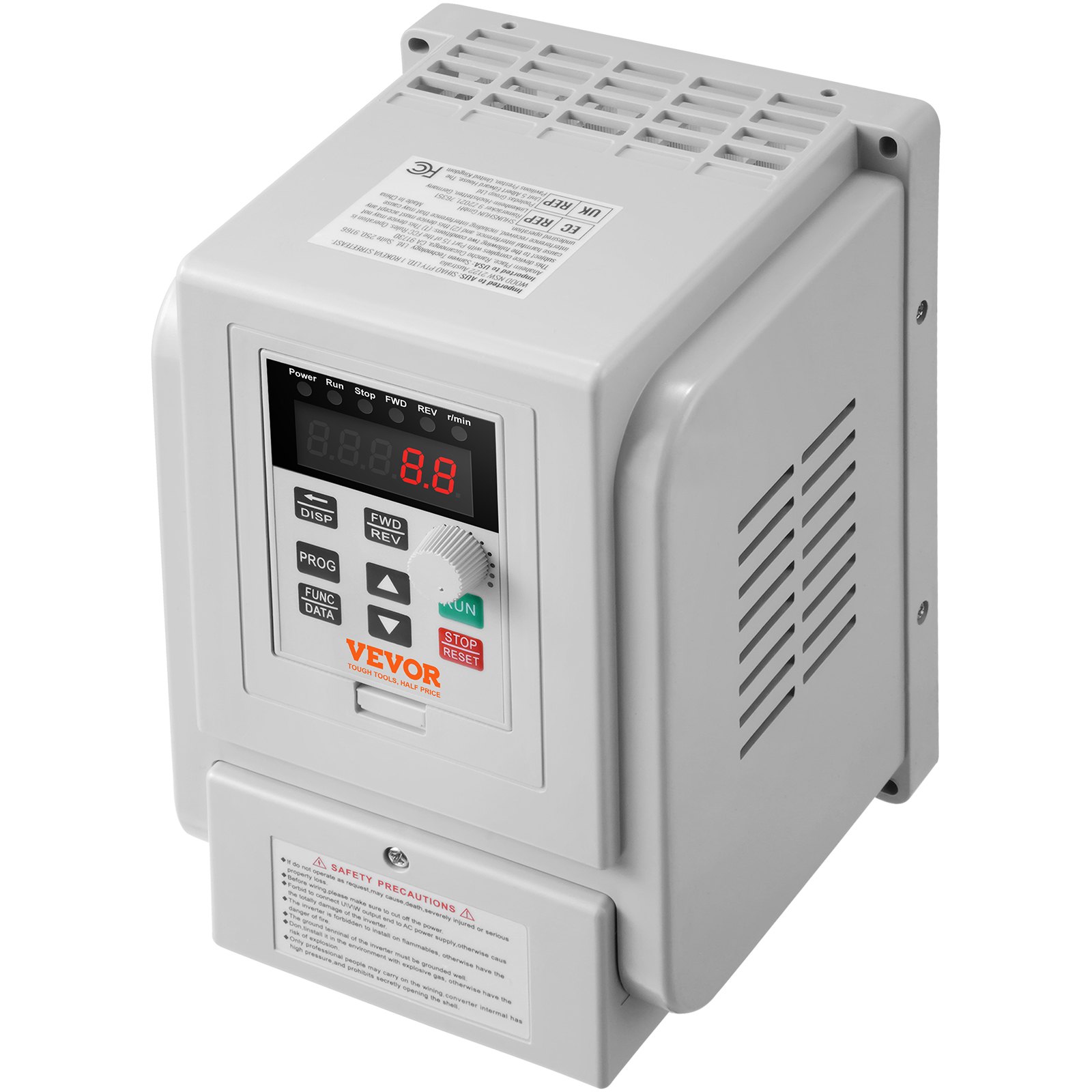

VEVOR 2.2 kW, 10 A, 3 HP frequency converter VFD
The VEVOR variable frequency drive (VFD) offers precise motor speed control through accurate frequency and amplitude of the motor drive current. With simple wiring, a user-friendly control panel, and smooth start/stop, it improves energy efficiency.

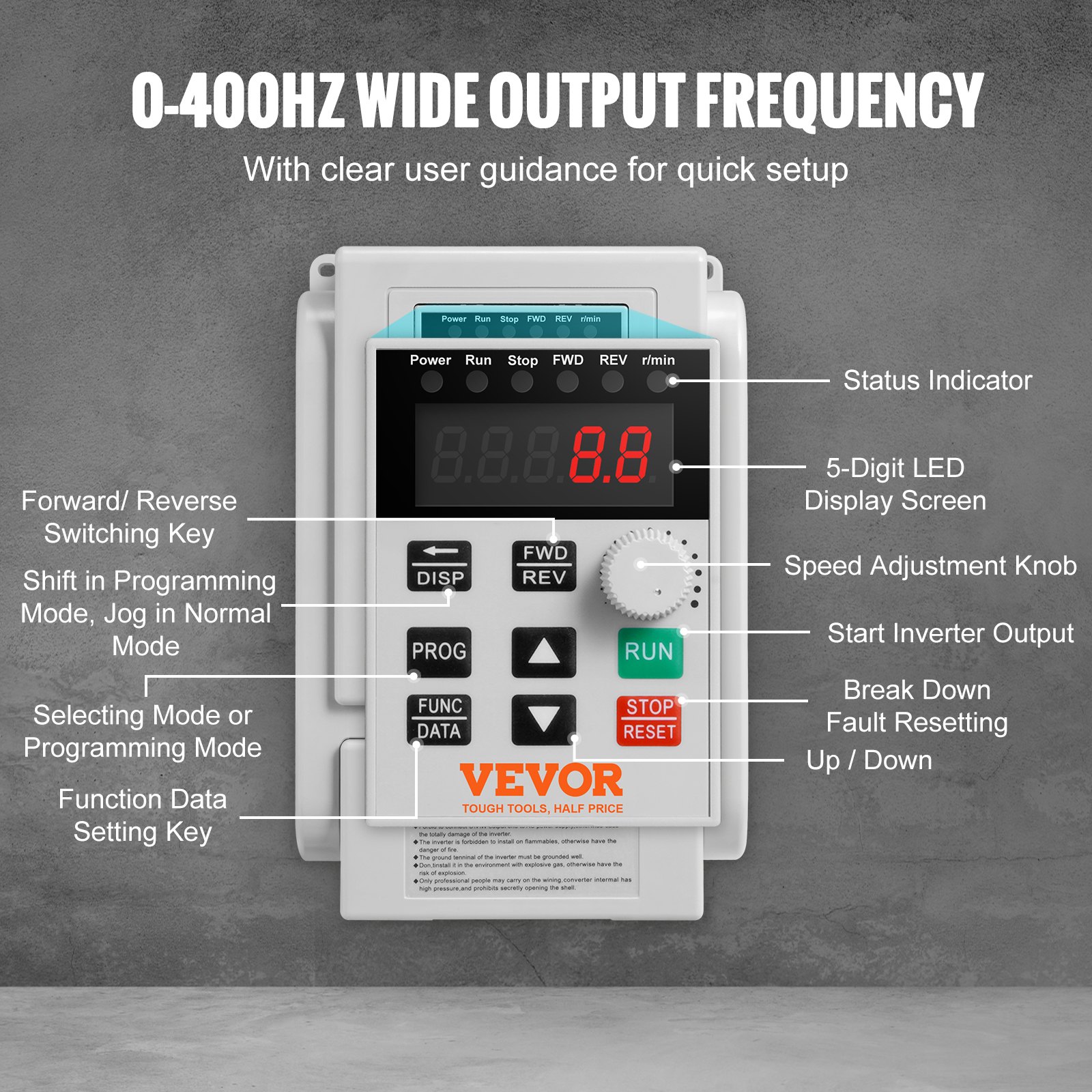

Operating Instructions: ① Press the programming button. ② Use the up/down and shift buttons to find parameters. ③ Press the function/save button to enter the setting. ④ Use the up/down and shift buttons to modify the settings. ⑤ Press the function/save button to save the settings. ⑥ Press the programming button to exit.

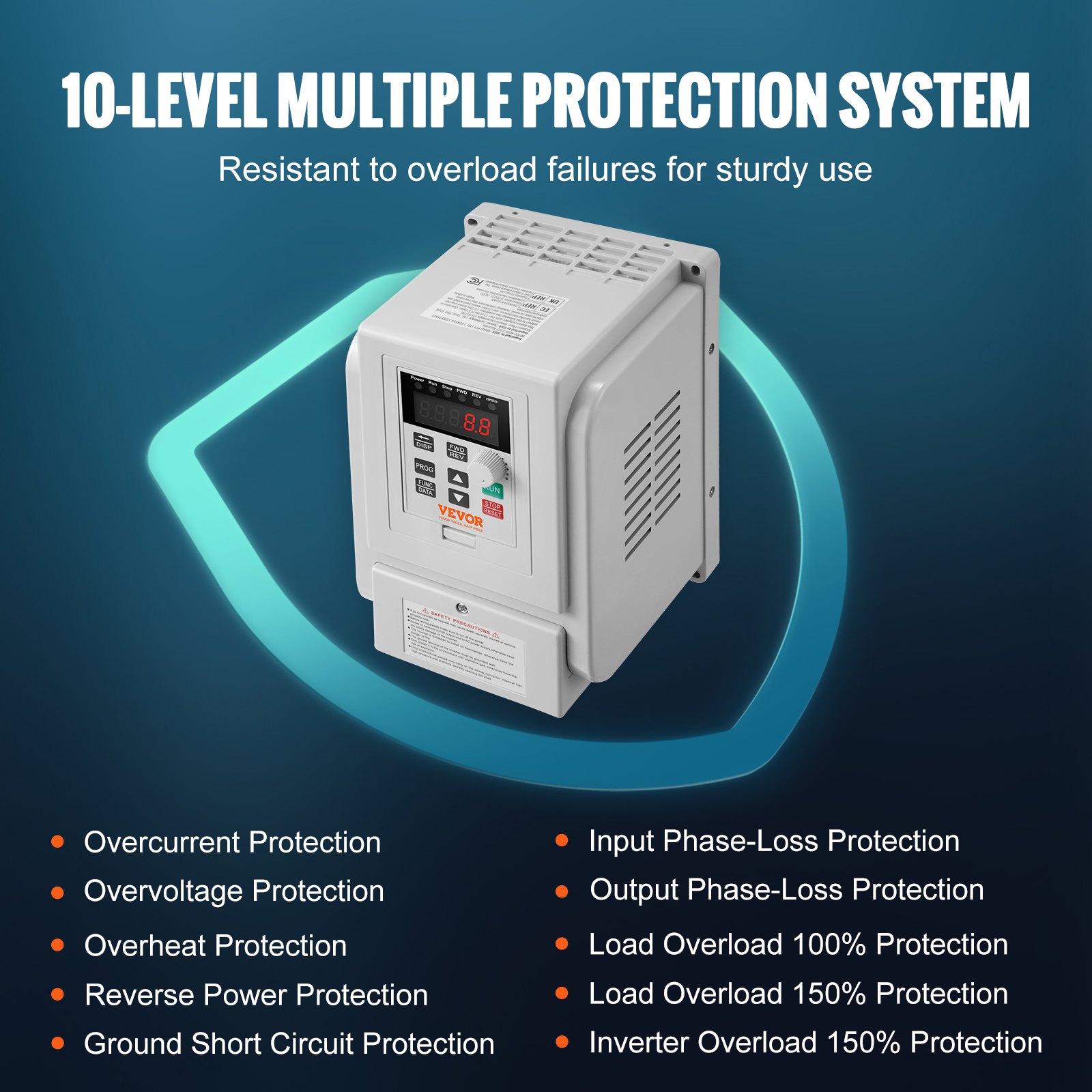

Equipped with a 10-stage intelligent protection system against overcurrent, overload, overvoltage and phase failure; the durable plastic housing ensures high performance and quality from the inside out, so you don't have to worry during operation.

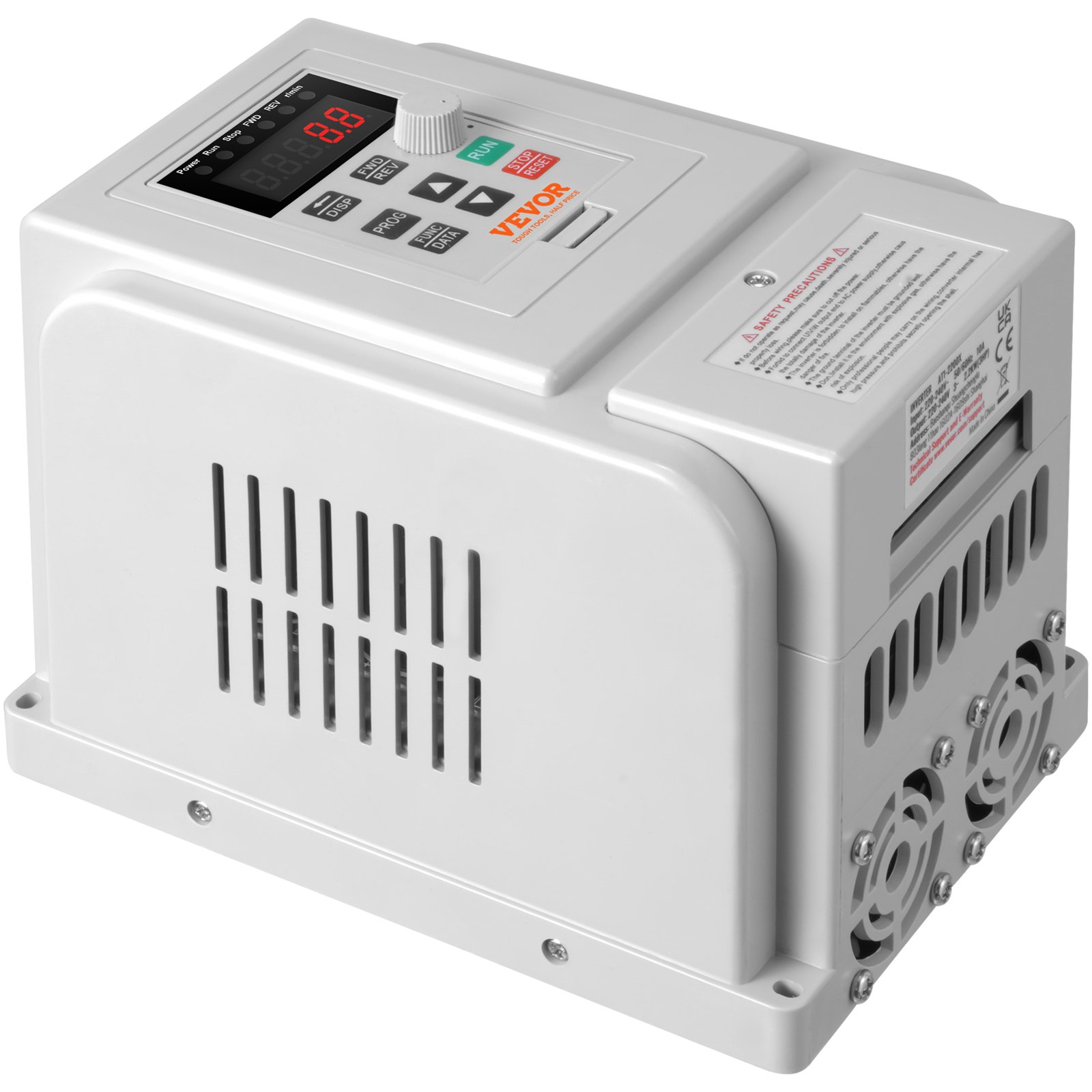

Large cooling fans and a multi-hole design ensure efficient operation and prevent overheating and overload during extended use. Tip: Position the device vertically for effective heat dissipation.
Tips: ① Turn off the power before connecting; never connect AC power to the motor output. ② To protect the VFD, press the red 'Stop' button and turn off the power when not in use. ③ Do not use an external braking resistor. ④ Do not install in humid environments or at high temperatures.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (25)
Hola puede hacer un inversión de giro
El interruptor del botón FWD/REV en el panel del inversor puede realizar una rotación hacia adelante y hacia atrás.
By vevor
Helpful
(
2
)
Valdría para un motor trifásico de dos velocidades de 1 kW de potencia
Se recomienda enviarnos la placa de identificación de su motor. En términos generales, se pueden admitir motores asíncronos trifásicos con una potencia cercana a 220 V dentro del rango de potencia del inversor.
By vevor
Helpful
(
1
)
Hola, me podrían aclarar el parámetro P76 (current coefficient)? No entiendo su función o qué tipo de valor de corriente debo poner ahí. Gracias!
Viene utilizzato per calibrare la corrente di visualizzazione. Se la corrente di visualizzazione risulta imprecisa, regolare P076 per multipli.
By vevor
Helpful
(
1
)
Hola compre un variador de frecuencia convertidor de frecuencia 2,2 kw . 3HP 10A 0-400Hz
Cuando el relé le da la corriente no se pone en marcha automático; y tengo que hacerlo manual para la puesta en marcha .
Se tiene que hacer un puente o cambiar algún parámetro para la puesta en marcha automatizo .
P065=2, cambie este parámetro.
By vevor
Helpful
(
0
)
Hola muy buenas, necesito la tabla de registros modbus para controlarlo por rs485.
También quiero saber si puedo controlarlo con pulsador externo y potenciómetro.
Gracias
Este modelo carece de una asignación de registros Modbus para dispositivos de control RS485. Se trata de un interruptor externo: P011=2 conectado a X4 COM, potenciómetro P010=2 conectado a 5V vil com.
By vevor
Helpful
(
0
)
