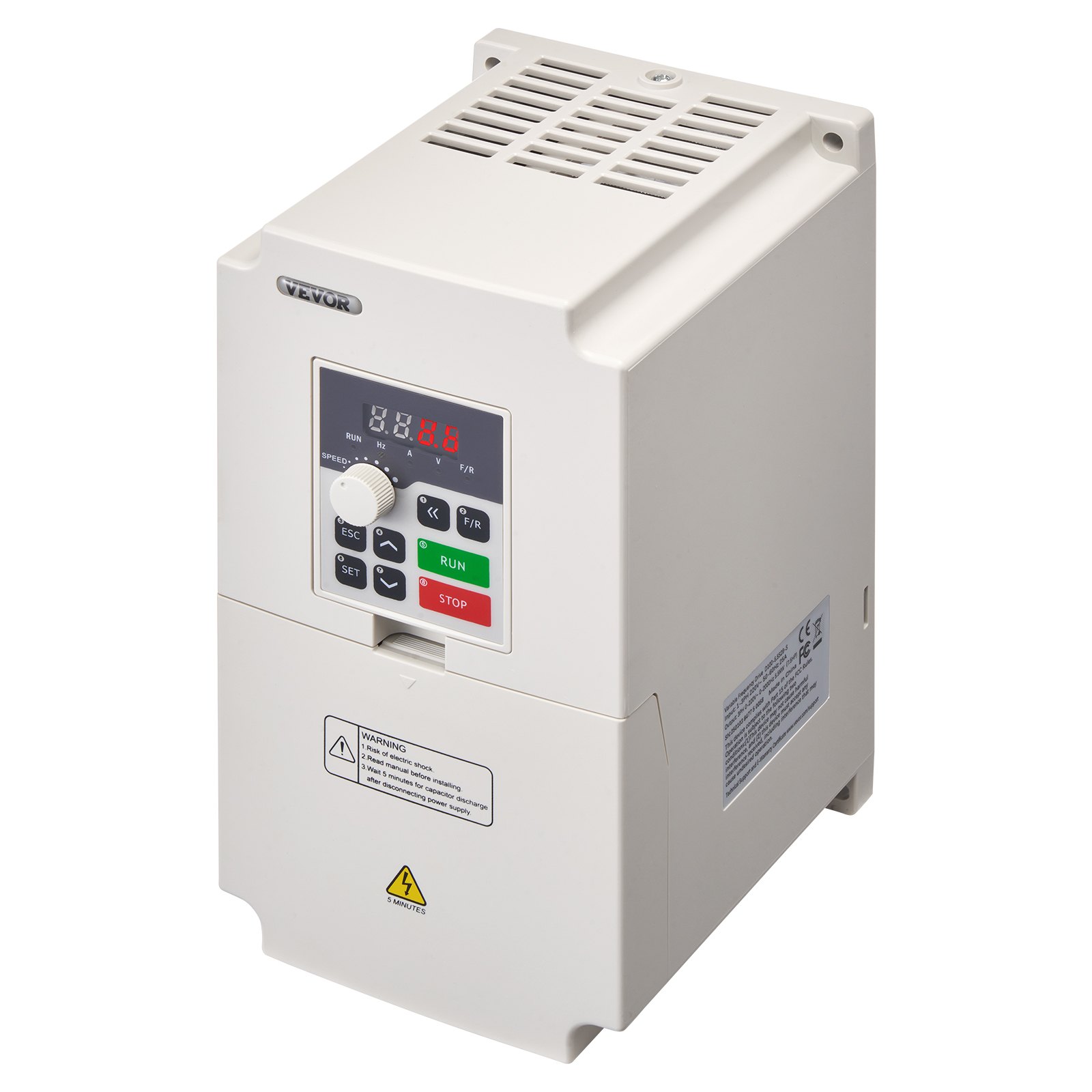

VEVOR frequency converter 7.5HP, 5.5kW, 25A, 1-/3-phase AC 220V input to 3-phase AC 0-220V output, frequency converter, 50/60Hz input, 0-2000Hz output, VFD for spindle motor speed control
4.4 195 Reviews
156 90 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details
- Key parameters: Power: 5.5 kW, Horsepower: 7.5 hp, Input current: 25 A. Input phase: single-phase AC 220 V or three-phase AC 220 V; Output phase: three-phase AC 0–220 V. Input frequency: 50/60 Hz; Output frequency: 0–2000 Hz.

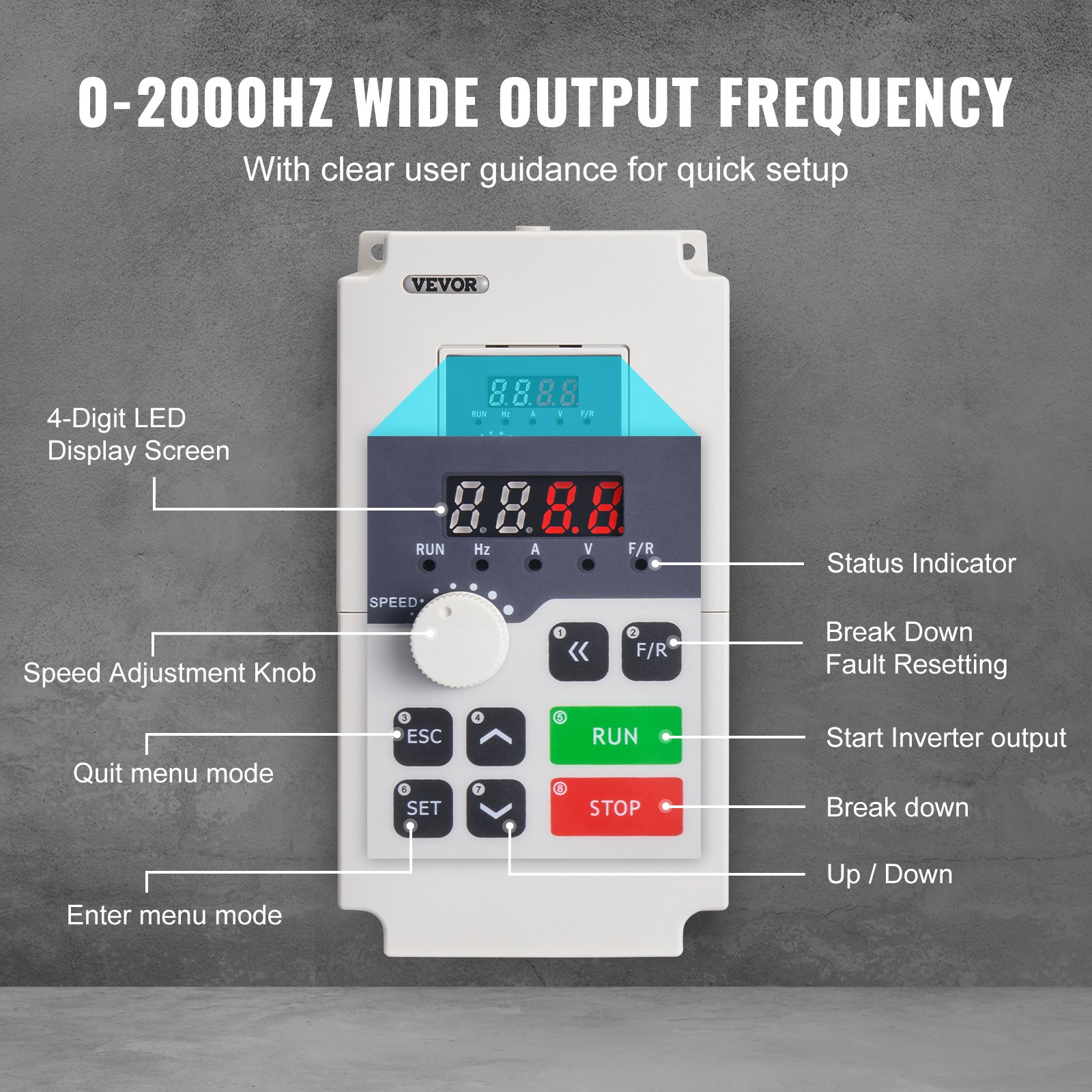

- Intuitive display and buttons: Our variable frequency drive (VFD) features an intuitive display and user-friendly buttons, allowing users to get started quickly. The detachable control panel can be connected to the appropriate interface for remote control, providing added convenience and flexibility.

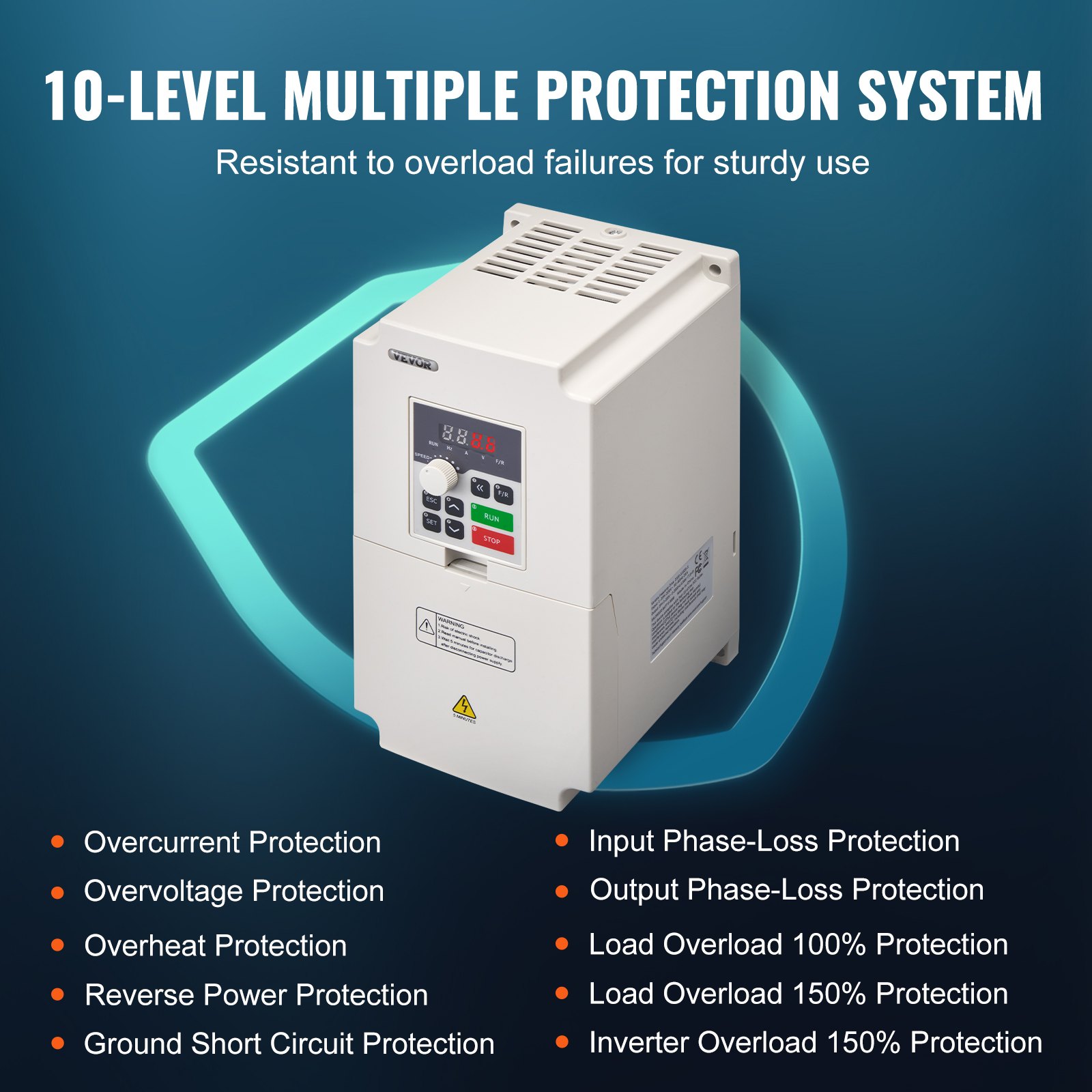

- Safe and durable: The VFD features a comprehensive protection system that safeguards against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and increase the VFD's lifespan.

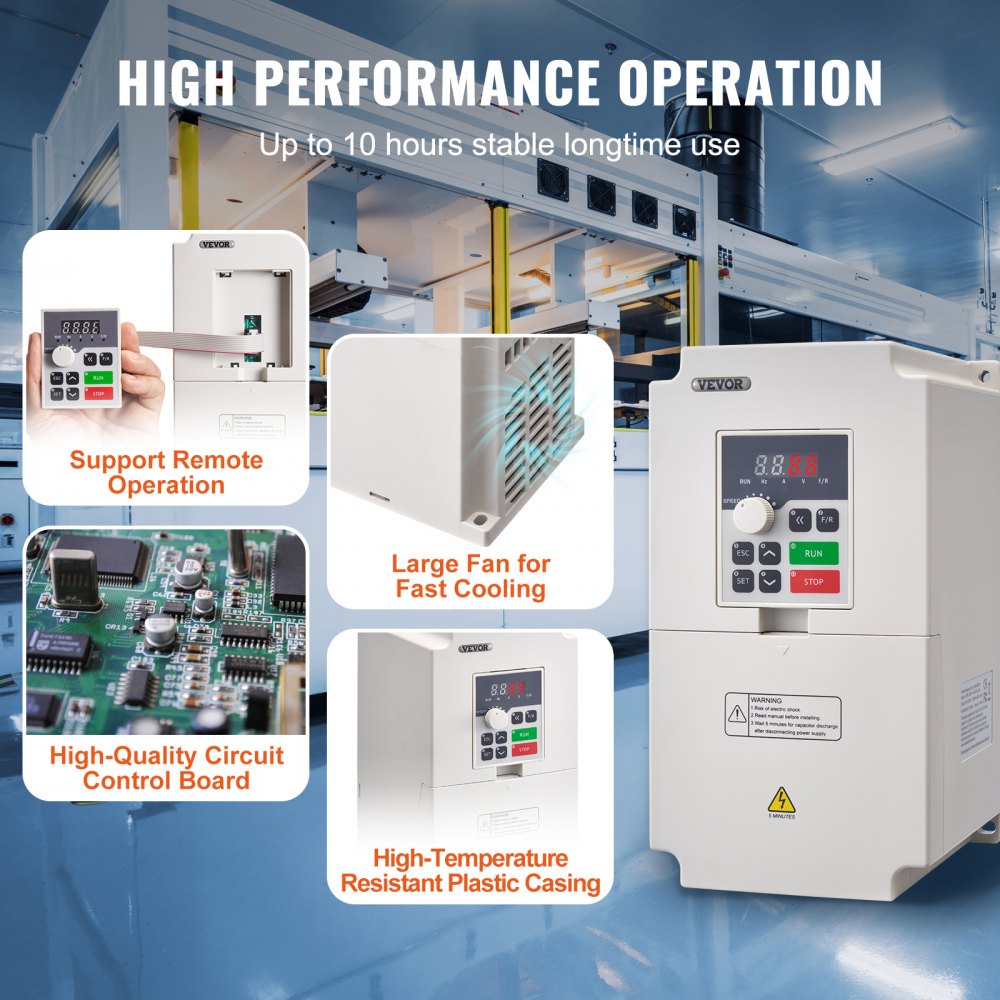

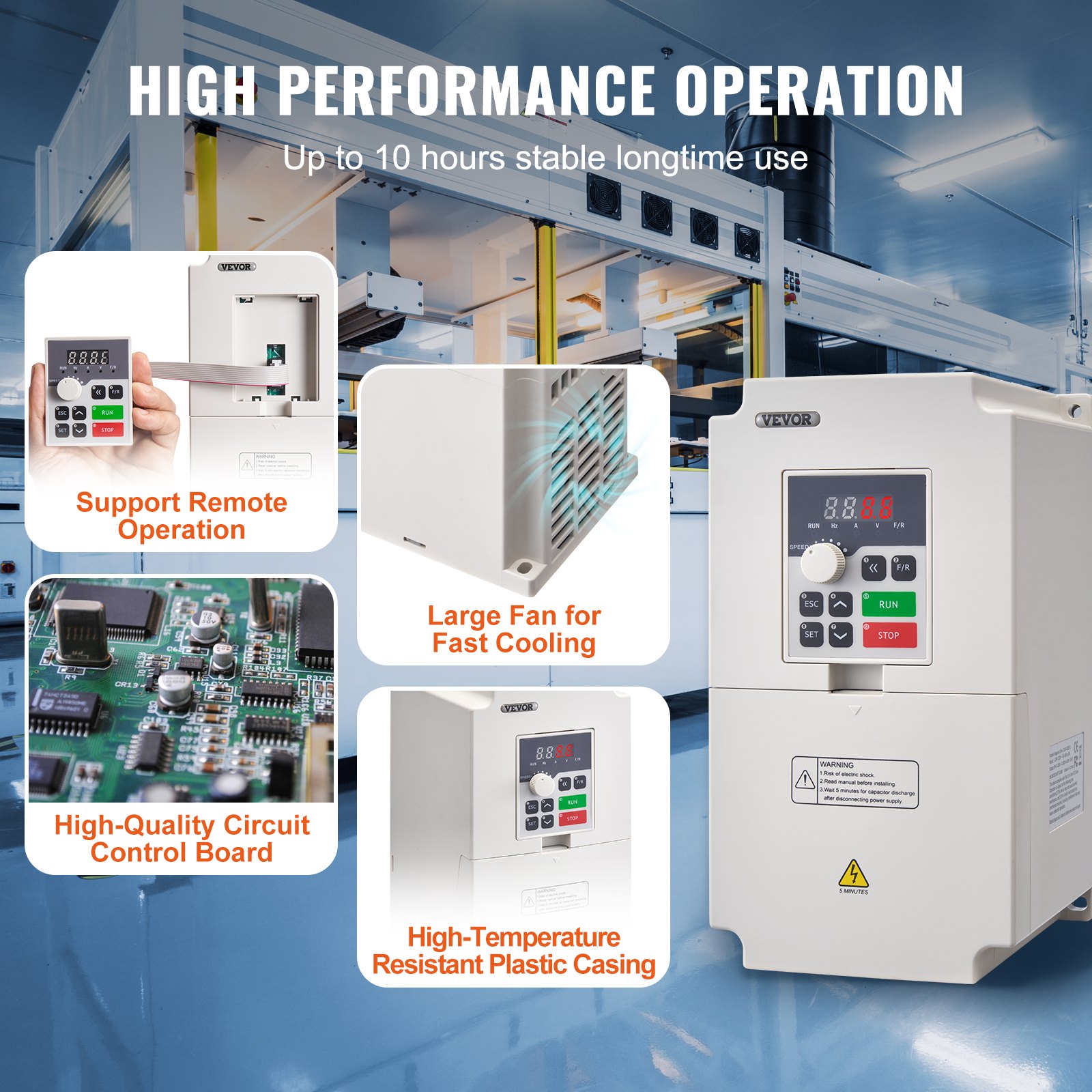

- Efficient heat dissipation: This VFD features a powerful cooling fan and a multi-hole design that ensures efficient heat dissipation and improved ventilation. It offers stable, long-lasting performance with reduced noise, making it the ideal choice for demanding industrial applications.

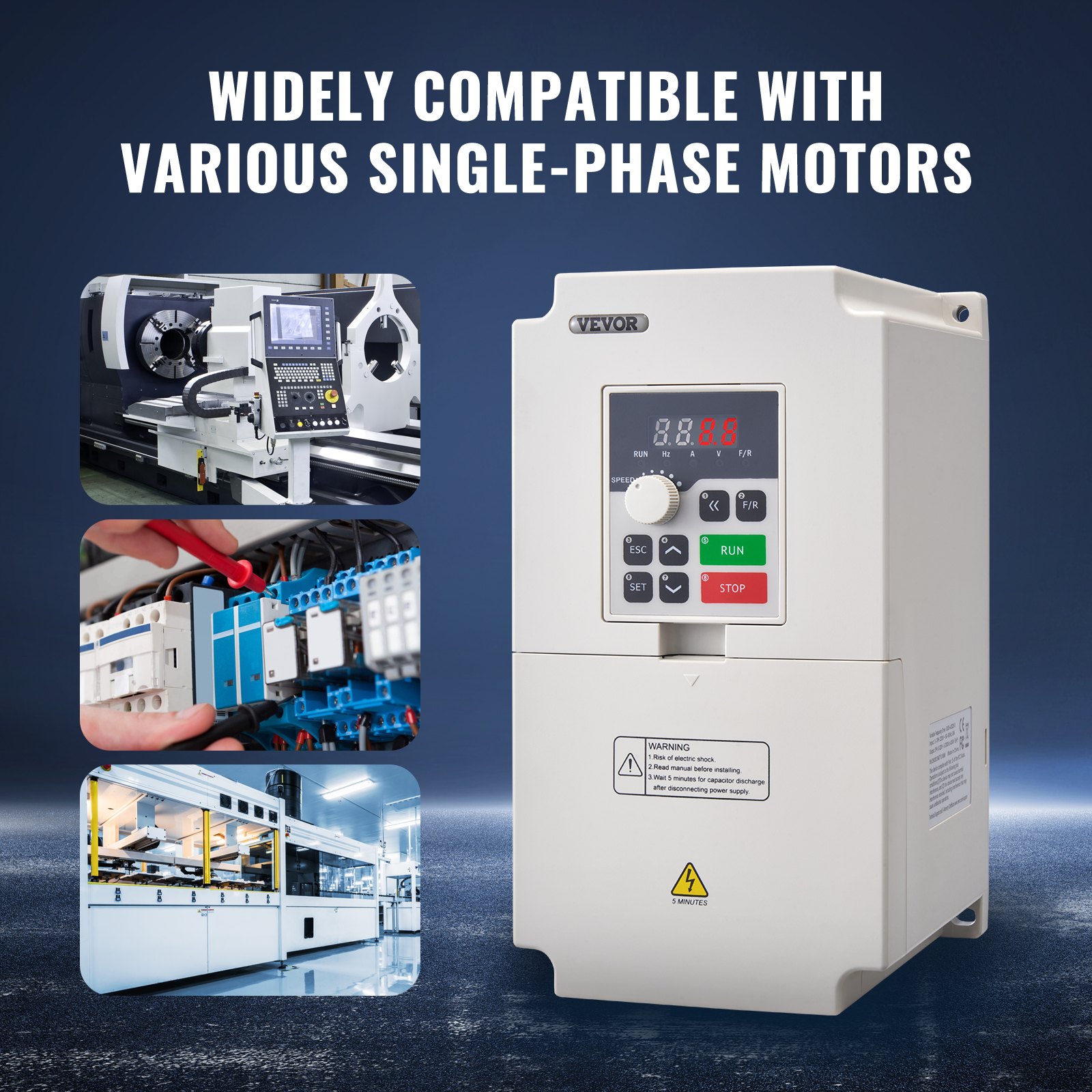

- High versatility: Our VFD is ideal for driving three-phase motors in various machines, including CNC milling machines, CNC machining centers, milling machines, drilling machines, compressors, pumps, grinding machines, centrifuges, and other speed-controlled machines. For higher motor loads and optimal results, choose a higher-powered VFD.
Product specification
- Item model number D100-5.5S2B-S
- Power 7.5 hp
- Input voltage 1PH AC220V or 3PH AC220V
- Input current 25 A
- Output voltage 3PH AC 0~220V
- Power 5.5 kW
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
No customer reviews
Be the first to rate this product. your feedback will helps others make informed decisions.
Write a Review
Top Reviews
About this item
Product specification
- Item model number
- D100-5.5S2B-S
- Power
- 7.5 hp
- Input voltage
- 1PH AC220V or 3PH AC220V
- Input current
- 25 A
- Output voltage
- 3PH AC 0~220V
- Power
- 5.5 kW
- Input frequency
- 50/60 Hz
- Output frequency
- 0-2000 Hz

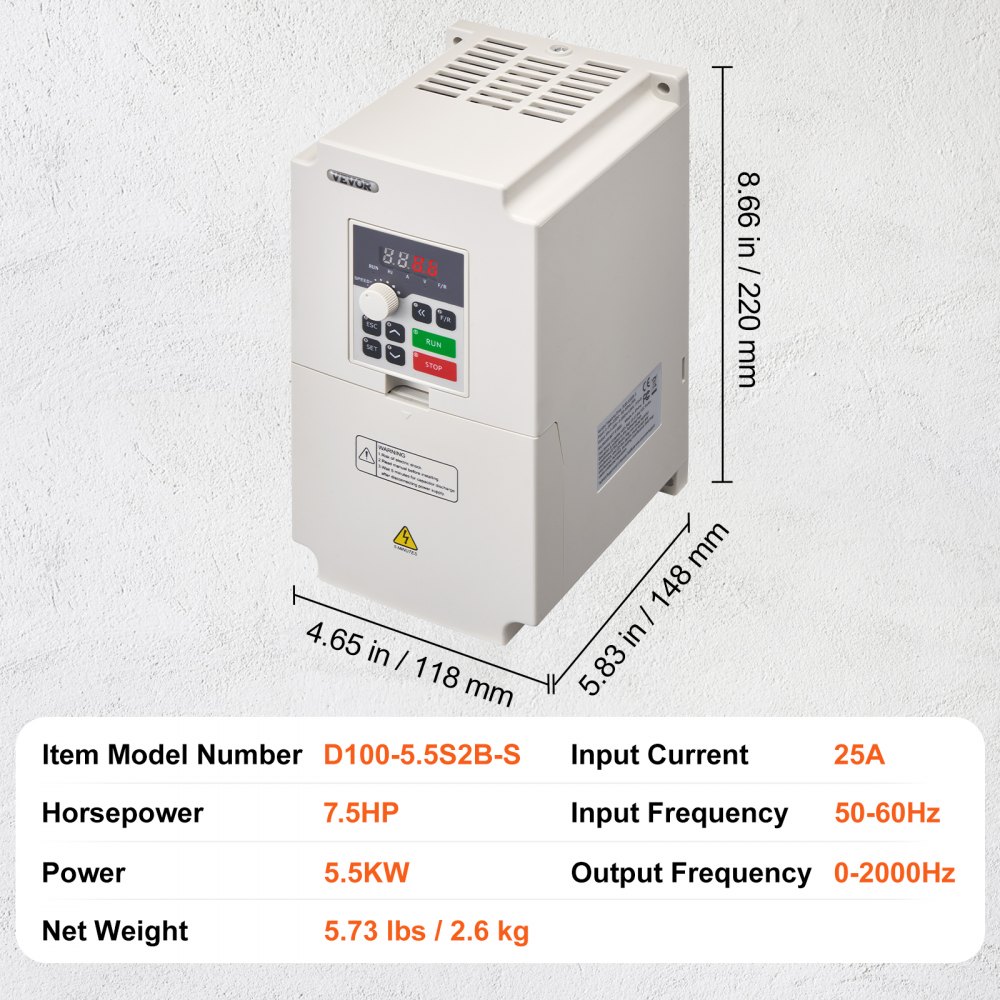

- Net weight
- 5.73 lbs / 2.6 kg

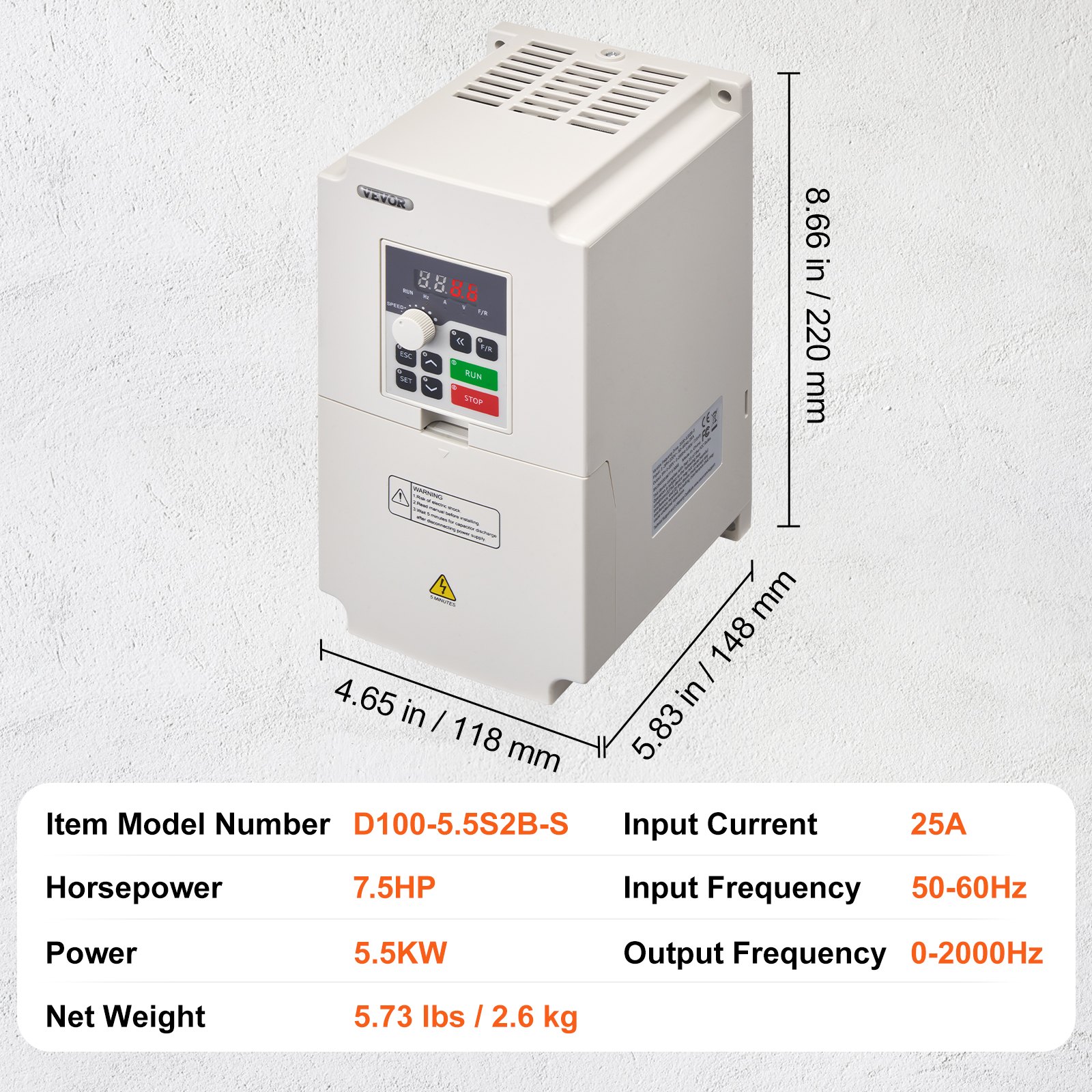

- Product dimensions
- 8.66 x 4.65 x 5.83 inches / 220 x 118 x 148 mm
Description
7.5 hp, 5.5 kW, 25 A, frequency converter

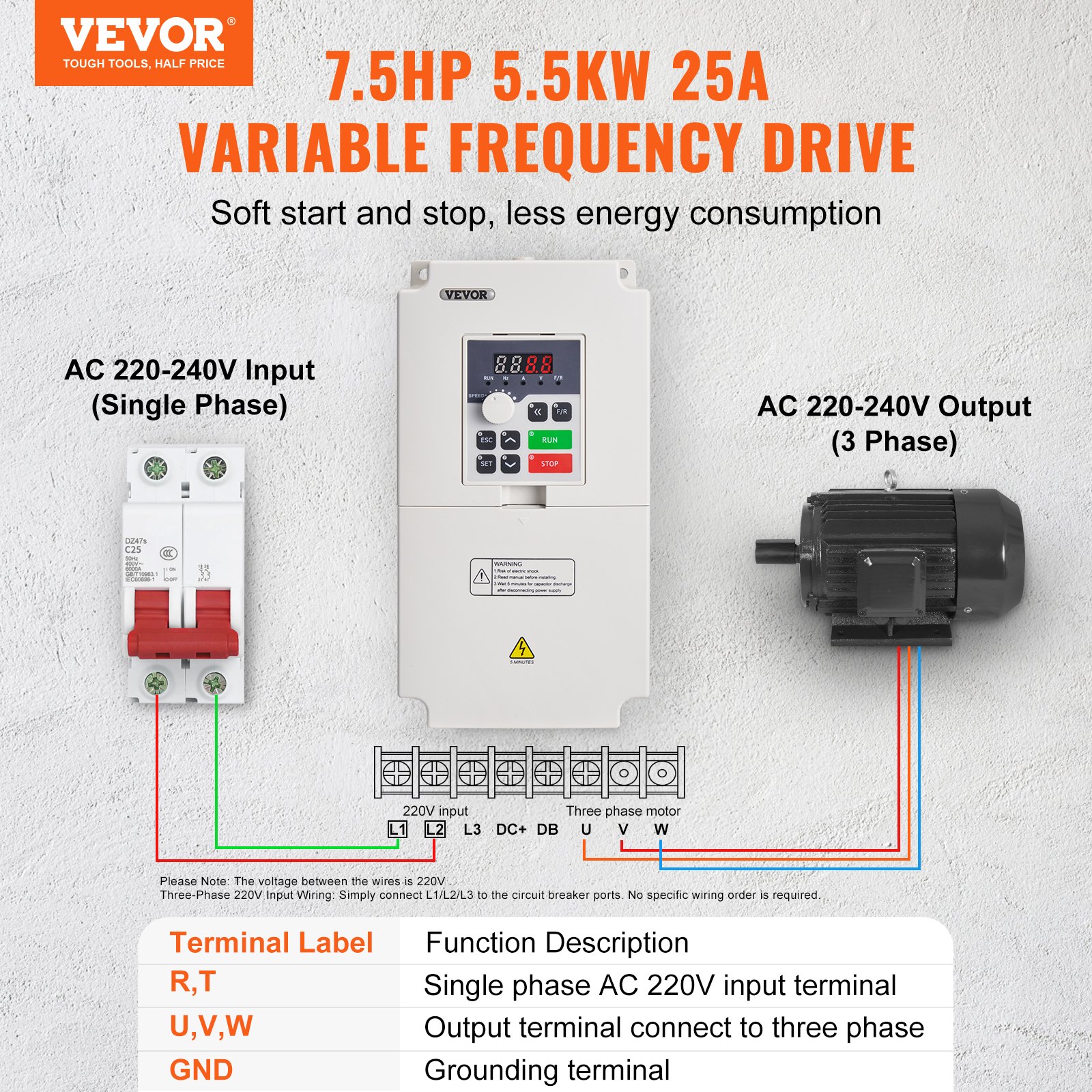

The VFD's input is single-phase AC 220 V (1PH) or three-phase AC 220 V (3PH), and the output is three-phase AC 0 ~ 220 V (3PH). With simple wiring, an intuitive display, and comprehensive protection features, it simplifies operation.

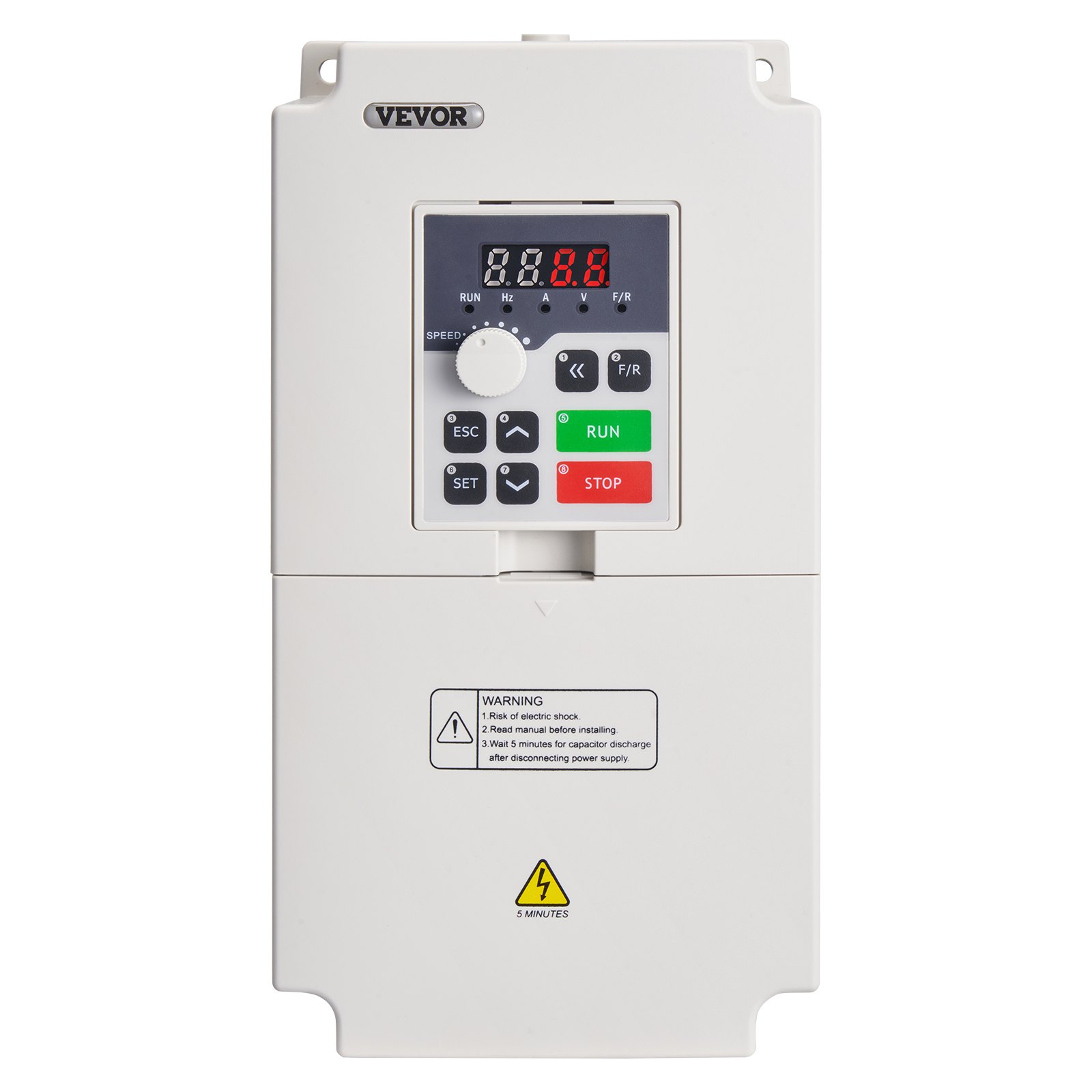

The frequency converter is user-friendly and features an intuitive display. It also has a detachable control panel that can be connected to the appropriate interface for remote control.
Our VFD is equipped with an intelligent protection system that offers protection against overcurrent, overload, overvoltage, and phase loss. It is primarily made of flame-retardant plastic, ensuring high performance and quality from the inside out.
For stable and efficient operation, large cooling fans and a design with multiple heat dissipation holes are required, which prevents overheating and overloading during prolonged operation.
Installation tips: 1. Turn off the power. 2. To protect the VFD, press the red "Stop" button and turn off the power. 3. Avoid installation in humid or hot environments. 4. For optimal performance, choose a VFD with higher power.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (6)
Que tipo de potenciómetro externo hay que utilizar y de cuantos k 10 o 5?
Se recomienda utilizar un potenciómetro de 5KΩ.
By vevor
Helpful
(
0
)
El modelo de inversor de frecuencia
D100-5,5S2B-S es el mismo modelo que el
100-5,5S2-C0 ya que en el libro de instrucciones para buscar la resistencia de frenado no aparece el primero pero si el segundo, recomendando una resistencia de frenado de 520w y 33 ohmios y me habéis mandado a casa el D100-5,5S2B-S
Quisiera saber si es el mismo modelo y si vale la misma resistencia
Ambos son el mismo producto, solo se ha modificado el número de modelo. Los parámetros aplicables de la resistencia de frenado son 520 W, 33 Ω.
Si esta respuesta no resuelve su problema actual, póngase en contacto con nosotros de nuevo para obtener ayuda.
By vevor
Helpful
(
0
)
Hola este variador sirve también para entrada monofásica de 230v a salida trifásica de 220v para motores más Antiguos
Este convertidor de frecuencia puede aceptar un voltaje de entrada monofásico de 220 V y un voltaje de salida trifásico de 220 V.
By vevor
Helpful
(
0
)
Necesito saber si este variador de 5,5kw VFD que es el modelo 100-5,5S2-C0
Tiene entrada monofásica a 230v y
Tiene salida trifásica a 220v para motores trifásicos de 220v ?
La respuesta indicó que la potencia de entrada puede ser monofásica de 230 V y la de salida trifásica de 220 V.
By vevor
Helpful
(
0
)
Cuantos watios y ohmios dice el fabricante que necesita la resistencia de frenado para este variador?. No puedo hacer la compra sin saber estos datos. Gracias.
Los parámetros de la resistencia de frenado son 520 W, 33 Ω.
By vevor
Helpful
(
0
)
